Description

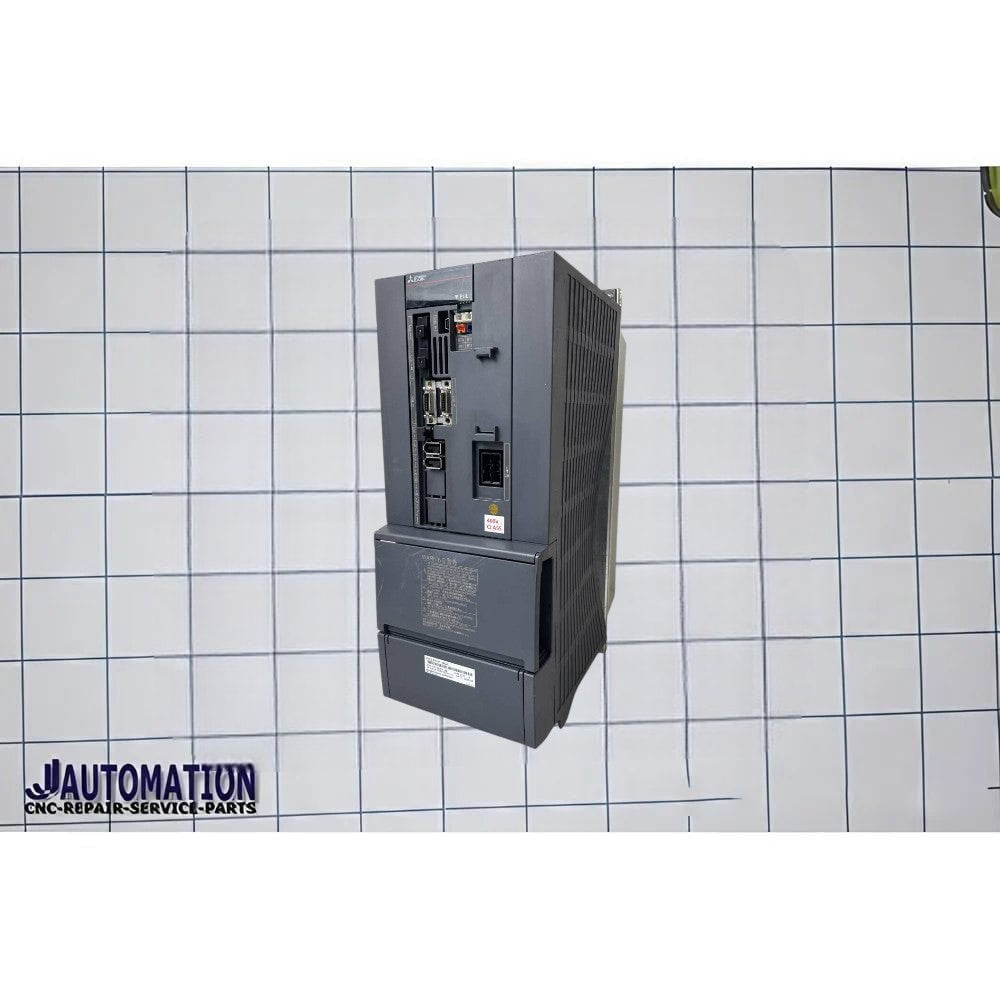

The Mitsubishi MDS-EH-V2-40 is a 2-axis CNC AC servo drive (servo amplifier) from the MDS-EH series, used in Mitsubishi CNC machine tool systems.
š§ Description
- Product type: 2-axis servo drive / servo amplifier
- Series: MDS-EH
- Model: MDS-EH-V2-40
- Manufacturer: Mitsubishi Electric
- Application: CNC machining centers, lathes, milling machines, robotics, and industrial automation systems
- Axis configuration: Dual-axis (V2 = 2-axis module)
- Control method: Sine-wave PWM high-speed servo control
- System type: CNC DC-bus servo drive system
- Cooling: Forced-air cooling (cabinet mounted)
- Protection: IP20 industrial enclosure use
š Official Mitsubishi documentation confirms it belongs to the MDS-EH V2 40A class drive category used for medium-power axes in CNC machines.
āļø Key Specifications
- Axis rating: 2-axis integrated amplifier
- Nominal maximum current: 40A / 40A (per axis class)
- DC bus input: 513ā648V DC
- Control power supply: 380ā480V AC, 50/60Hz
- Control type: Fully digital closed-loop servo control
- Feedback: Mitsubishi high-resolution encoder system support
- Installation: Cabinet-mounted industrial drive
š Typical Applications
- CNC machining centers (medium-size machines)
- Feed axes (X/Y/Z motion control)
- Precision lathes and milling machines
- Industrial robotics (moderate load axes)
- Automated production machinery
š Position in V2 Series
- V2-10 ā light duty
- V2-20 ā light/medium duty
- V2-40 ā medium duty (balanced torque and speed)
- V2-80 / V2-160 ā heavy-duty industrial axes
ā ļø Important Notes
- Not a standalone drive ā works only with Mitsubishi CNC controllers (M70 / M700 series, etc.)
- Must be paired with compatible Mitsubishi servo motors and encoders
- Designed for cabinet integration with proper cooling and grounding
