Mitsubishi M80 Spindle Drive 400V MDS-E-SP-200
Roll over image to zoom in Click on image to zoom

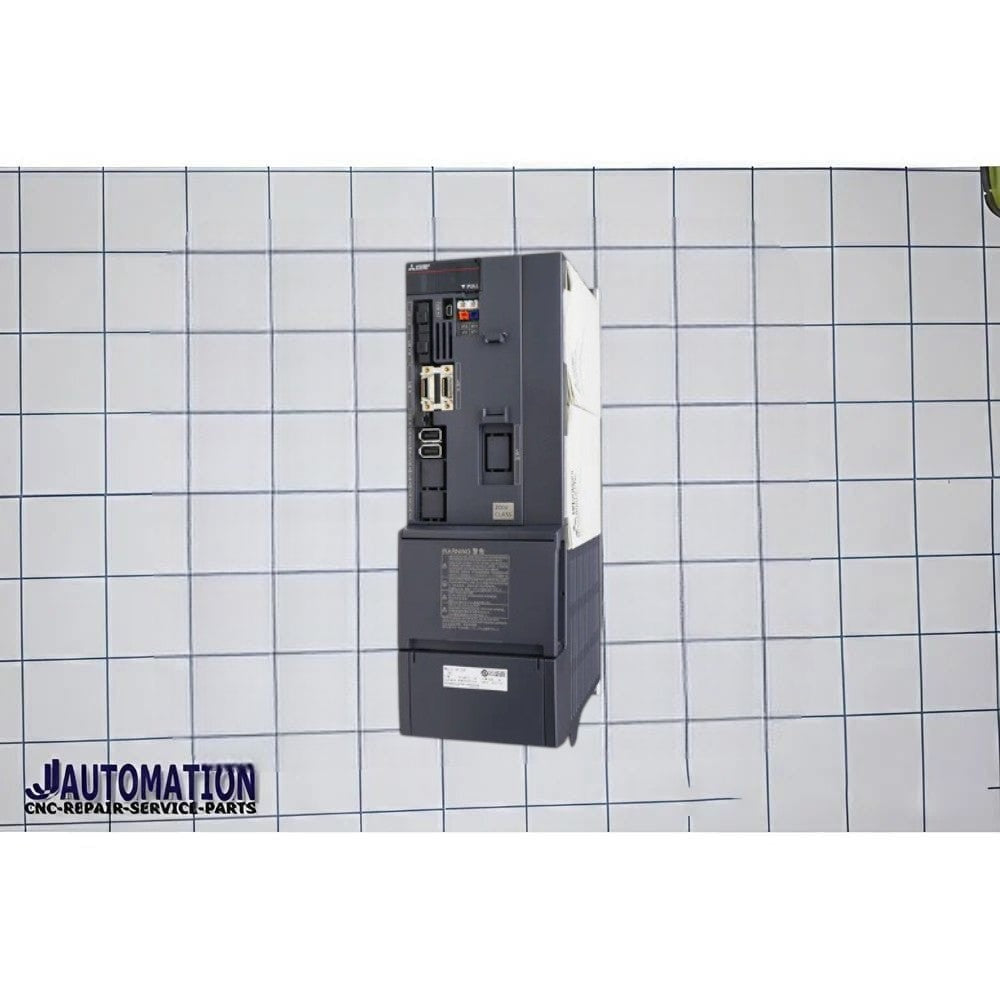

Mitsubishi M80 Spindle Drive 400V MDS-E-SP-200

Mitsubishi M80 Spindle Drive 400V MDS-E-SP-200

JJAutomationSKU: MDS-E-SP-200
No reviews
Condition: New
Price:
Price on request
Request a Quote

Description


The Mitsubishi MDS-E-SP-200 is a high-capacity 1-axis CNC spindle drive unit from Mitsubishi Electric’s MDS-E series, designed to control Mitsubishi SJ-series AC spindle motors used in medium and heavy-duty CNC machining applications.

It is a spindle amplifier/drive, not a motor.

Key Specifications (MDS-E-SP-200)

Specification Value
Series MDS-E Series
Type 1-axis spindle drive unit
Nominal Maximum Current (Peak) 200 A
Rated Output Voltage 170 VAC
Rated Output Current 85 A
Input Voltage 270–324 VDC
Input Current 76 A
Control Power Supply 200–240 VAC
Frequency 50/60 Hz
Control Method Sine wave PWM control
Cooling Method Forced air cooling
Protection Rating IP20 (excluding terminal block)
Weight ~5.8 kg
Outline Drawing Class C1

These specifications are listed in Mitsubishi Electric’s MDS-E/EH Series Specifications Manual.

Features

  • Designed for Mitsubishi SJ-series spindle motors
  • High-power spindle control for heavy machining operations
  • Stable spindle speed and torque regulation using PWM control
  • Supports spindle orientation and rigid tapping
  • Compact modular design for CNC cabinet installation
  • Forced-air cooling for continuous industrial duty

Typical Applications

  • CNC machining centers
  • Heavy-duty milling machines
  • CNC turning and boring machines
  • Industrial metal cutting systems
  • High-load automated machining equipment
