Mitsubishi M80 Spindle Drive MDS-EH-SP-100
Roll over image to zoom in Click on image to zoom
Mitsubishi M80 Spindle Drive MDS-EH-SP-100

Mitsubishi M80 Spindle Drive MDS-EH-SP-100

JJAutomationSKU: MDS-EH-SP-100
No reviews
Condition: New
Price:
Price on request
Request a Quote

Description

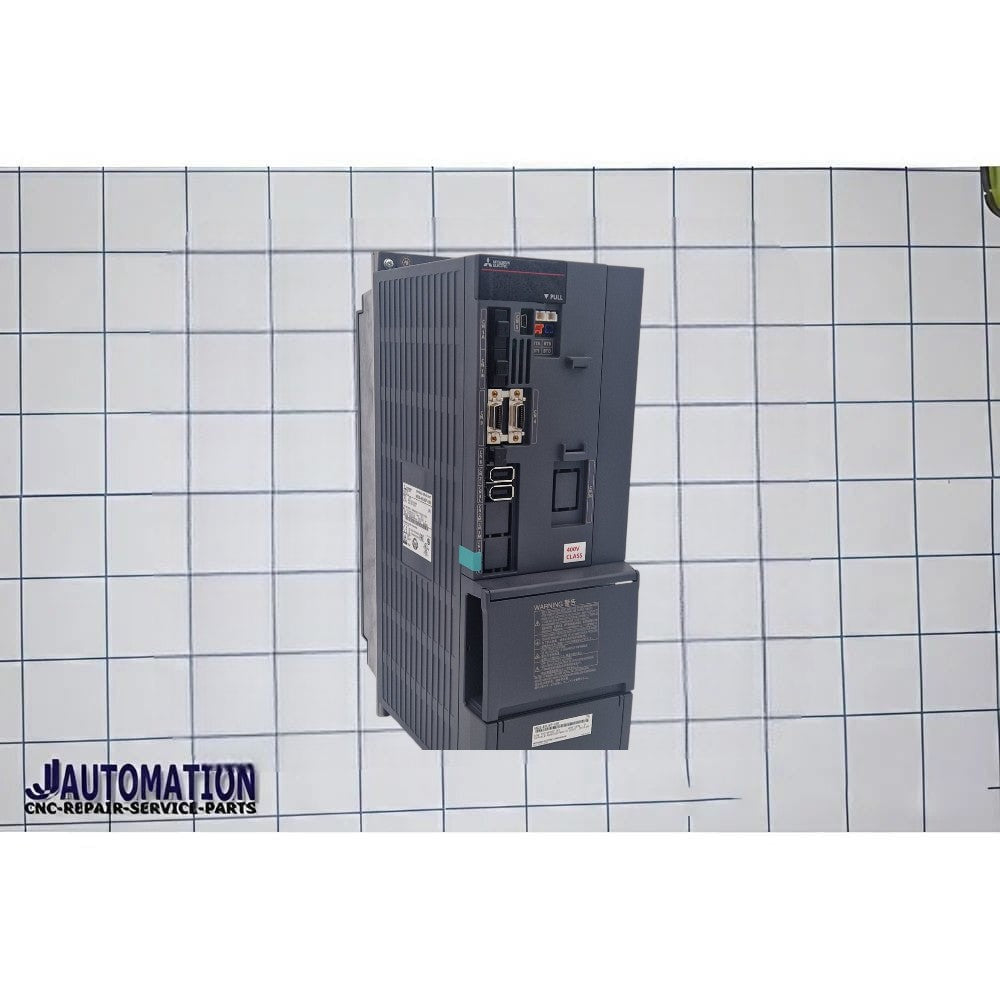

The Mitsubishi MDS-EH-SP-100 is a high-capacity CNC spindle drive unit (AC spindle amplifier) from the MDS-EH series, designed for controlling high-power spindle motors in CNC machine tools.

šŸ”§ Description

  • Product type: CNC spindle drive / spindle amplifier
  • Series: MDS-EH
  • Model: MDS-EH-SP-100
  • Manufacturer: Mitsubishi Electric
  • Function: Controls spindle motor speed, torque, orientation, and rigid tapping functions
  • Application: CNC machining centers, lathes, milling machines, and heavy-duty production systems
  • Control method: Sine-wave PWM vector spindle control
  • Cooling: Forced-air cooling
  • Protection rating: IP20 (excluding terminal terminals)

āš™ļø Main Specifications

  • Drive type: 1-axis spindle amplifier
  • Nominal maximum current: 100A
  • Rated output current: 43A
  • Input voltage:
    • 513ā€“648V DC bus
    • Control power: 380ā€“480V AC, 50/60Hz
  • Rated output voltage: 323VAC
  • Input current rating: 38A
  • Heat radiation at rated output: 442W
  • Cooling method: Forced-air cooling
  • Weight: Approx. 5.8ā€“7.5 kg depending on source/configuration

šŸ­ Typical Applications

  • CNC turning centers
  • Vertical machining centers (VMC)
  • Heavy milling machines
  • High-speed spindle systems
  • Production machining lines requiring high spindle torque

šŸ“Œ Main Features

  • High-speed vector spindle control
  • Rigid tapping and spindle orientation support
  • Constant torque and constant power operation
  • Compatible with Mitsubishi CNC systems (M70/M700/M800 series)
  • Supports induction and permanent magnet spindle motors
  • Integrated diagnostics and CNC optical communication

šŸ“Š Position in the SP Series

  • SP-20 ā†’ light spindle systems
  • SP-40 ā†’ medium spindle systems
  • SP-80 ā†’ high-power spindle systems
  • SP-100 ā†’ heavy-duty industrial spindle systems
  • SP-160 / SP-200 ā†’ ultra-heavy spindle applications

āš ļø Important Notes

  • SP series drives are for spindle motors only (not feed-axis servo motion)
  • Requires Mitsubishi CNC controller integration
  • Must be paired with compatible spindle motors and encoder systems
  • Designed for cabinet-mounted industrial use only
