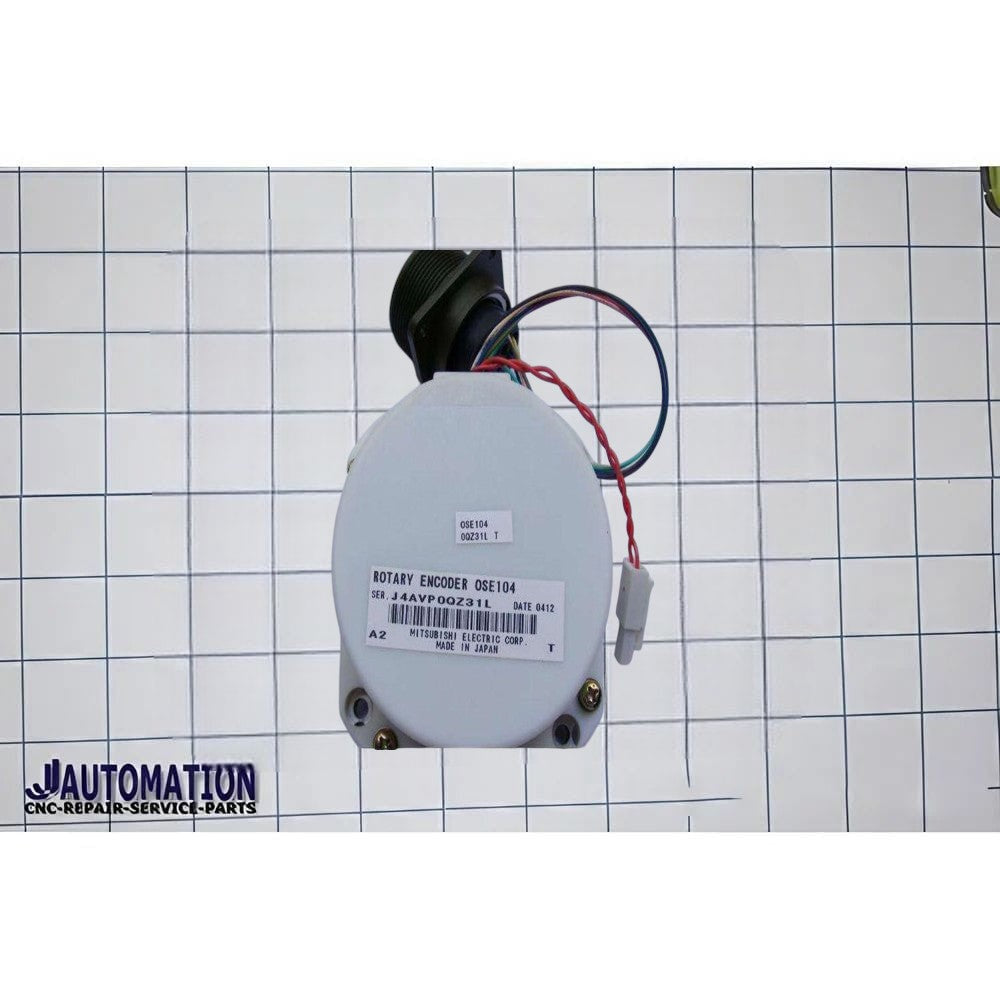

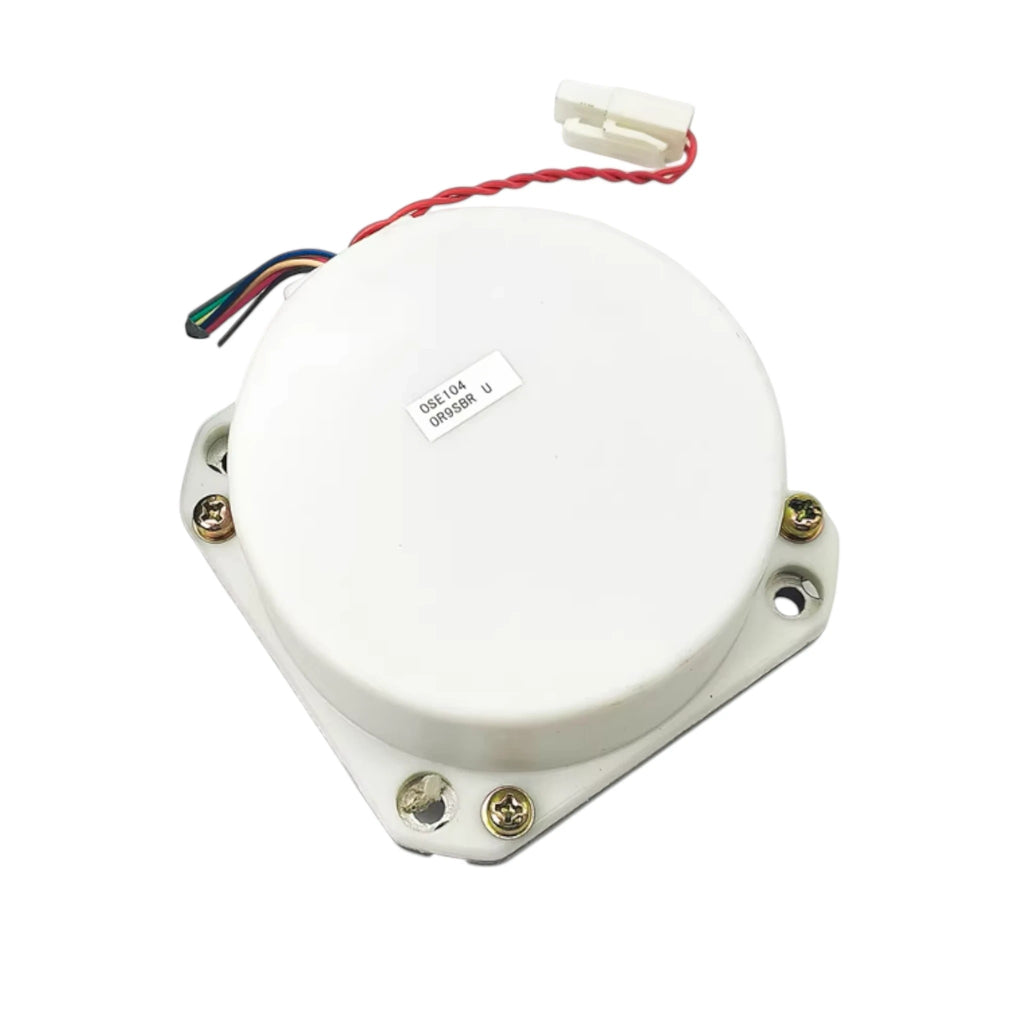

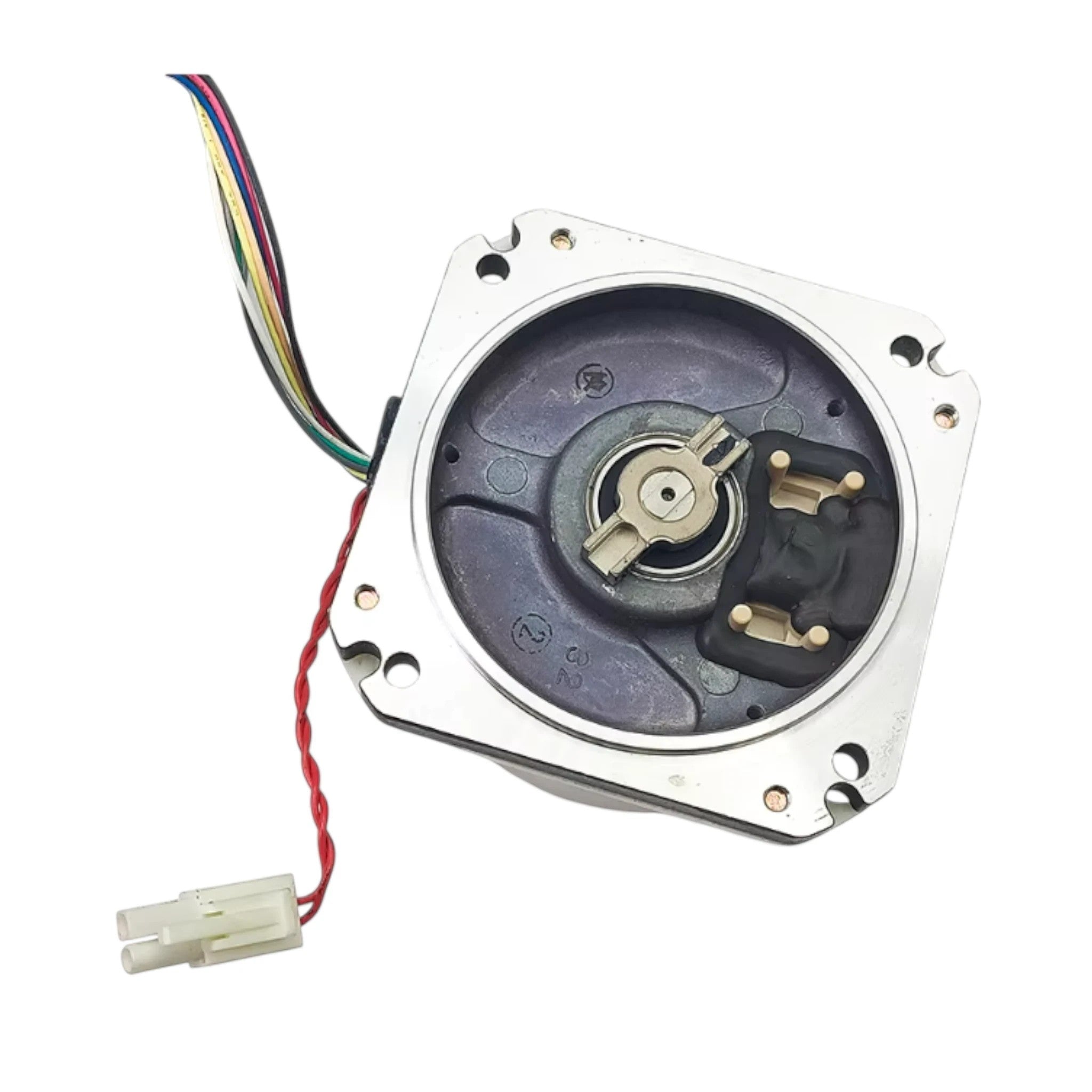

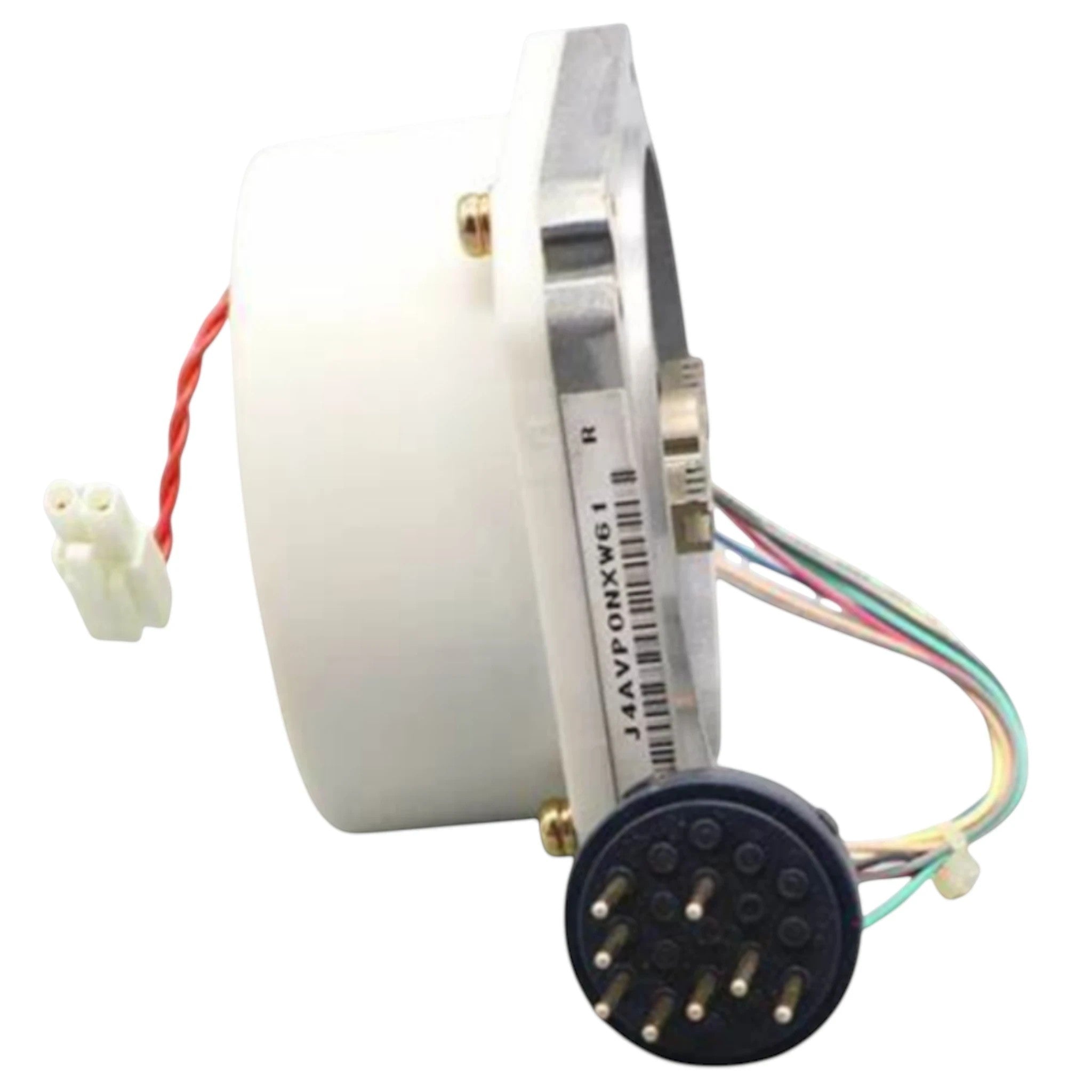

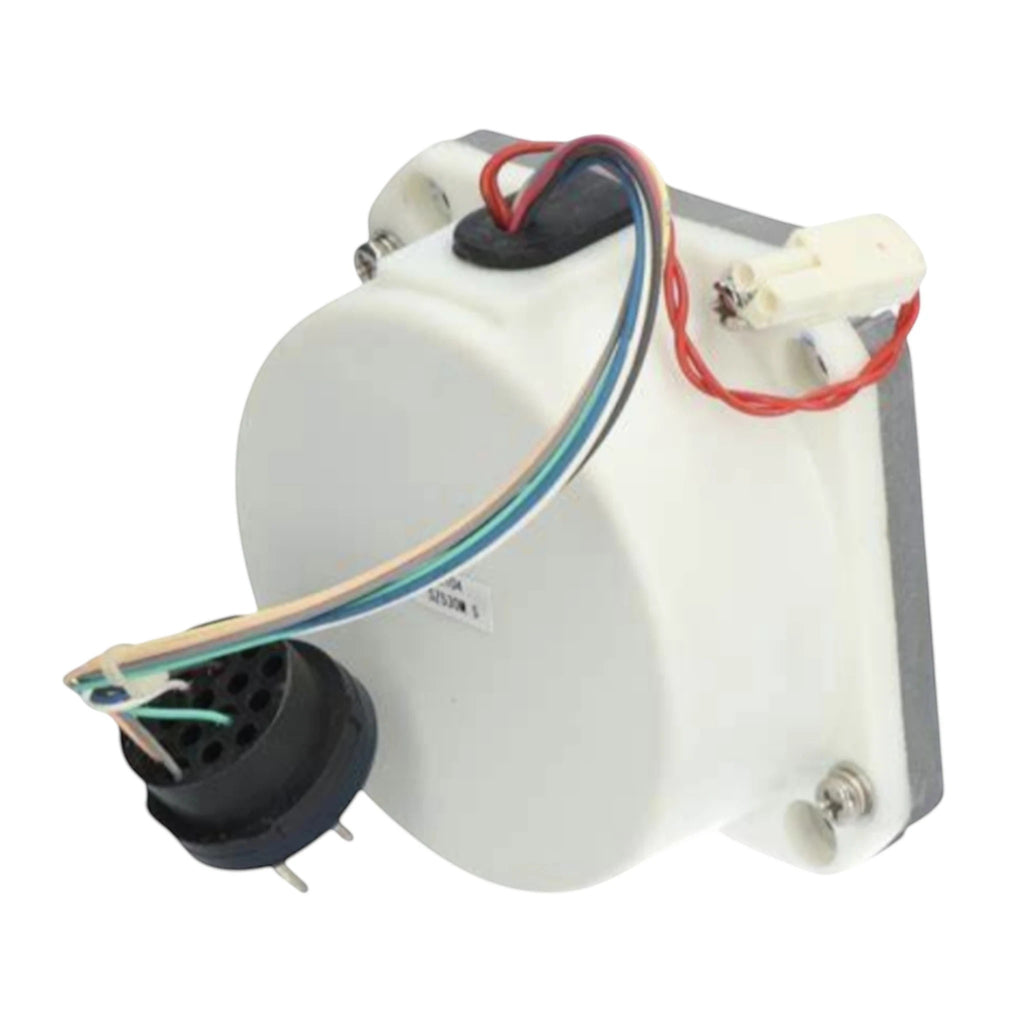

Mitsubishi OSE104 Encoder — High-Accuracy Rotary Feedback Encoder
The Mitsubishi OSE104 is a high-precision incremental rotary encoder designed to deliver reliable position and speed feedback for industrial automation systems. Engineered by Mitsubishi Electric, this encoder is commonly used as an integral feedback component in AC servo motor systems, CNC machines, robotic controllers, and motion control applications where accurate motion detection is critical.
Built with an optical sensing mechanism, the OSE104 converts the rotational motion of a motor shaft into electrical pulse signals that indicate precise angular position and velocity. These signals feed into servo drives or motion controllers to enable tight closed-loop control, enhancing machine responsiveness, precision, and repeatability.
Its compact footprint and robust construction make the OSE104 suitable for integration into a variety of industrial environments, while its compatibility with Mitsubishi servo systems ensures seamless interfacing and dependable long-term operation.
Key Features
-

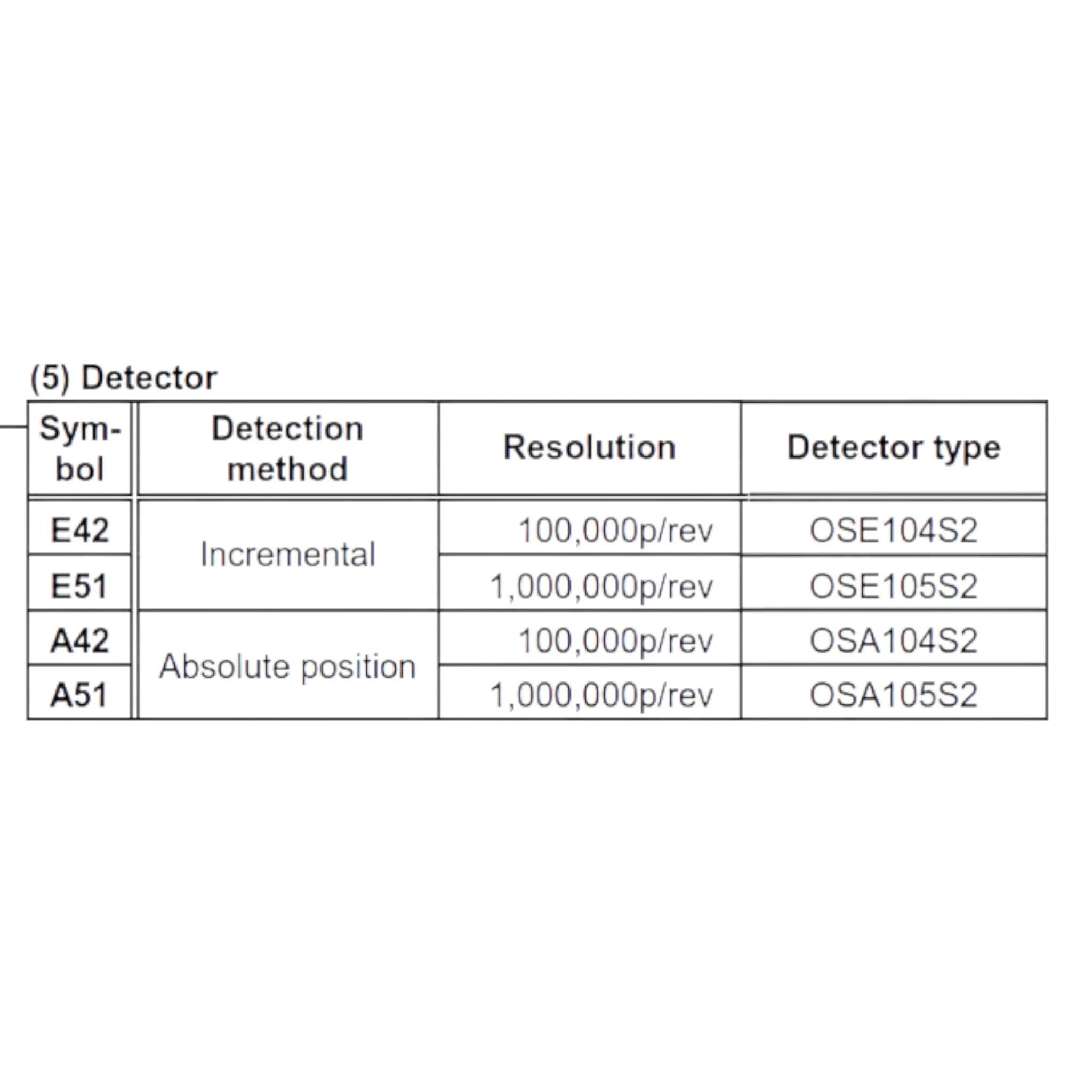

High-Resolution Incremental Feedback: Provides accurate position and speed data for precision motion control.
-
Optical Rotary Encoding: Delivers stable, repeatable signals with low noise interference.
-
Standard Phase Outputs: Includes quadrature A/B phase and Z-index pulse for direction detection and homing.
-
Industrial Compatibility: Designed for Mitsubishi Electric servo motors and drives, enabling smooth closed-loop integration.
-
Compact, Durable Design: Suitable for demanding industrial conditions with minimal maintenance.
Typical Applications
-
CNC machine tools and milling centers
-
Robotics and automated assembly systems
-
Factory automation and conveyor systems
-
Servo motor closed-loop feedback
-
Precision positioning and speed control operations
