Description

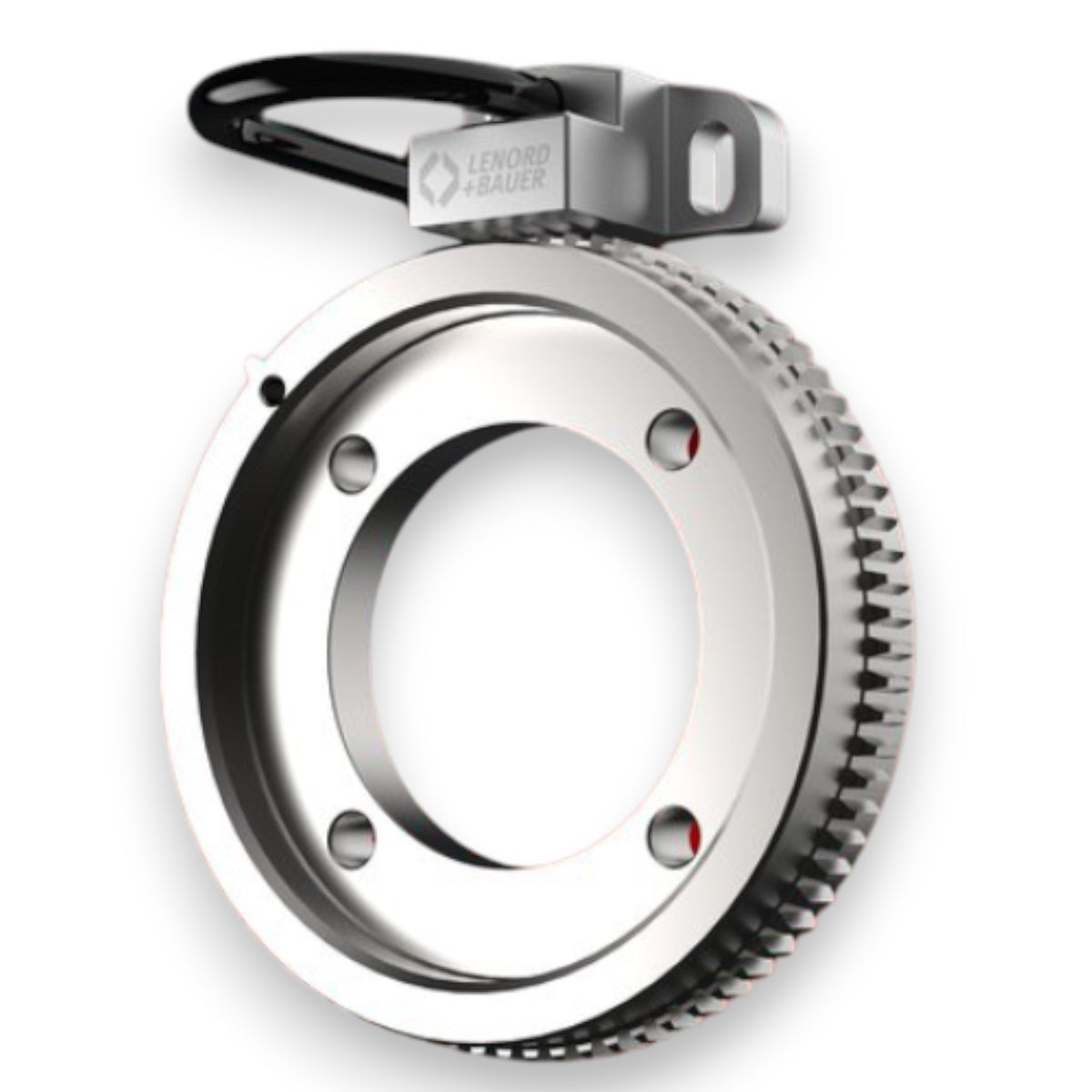

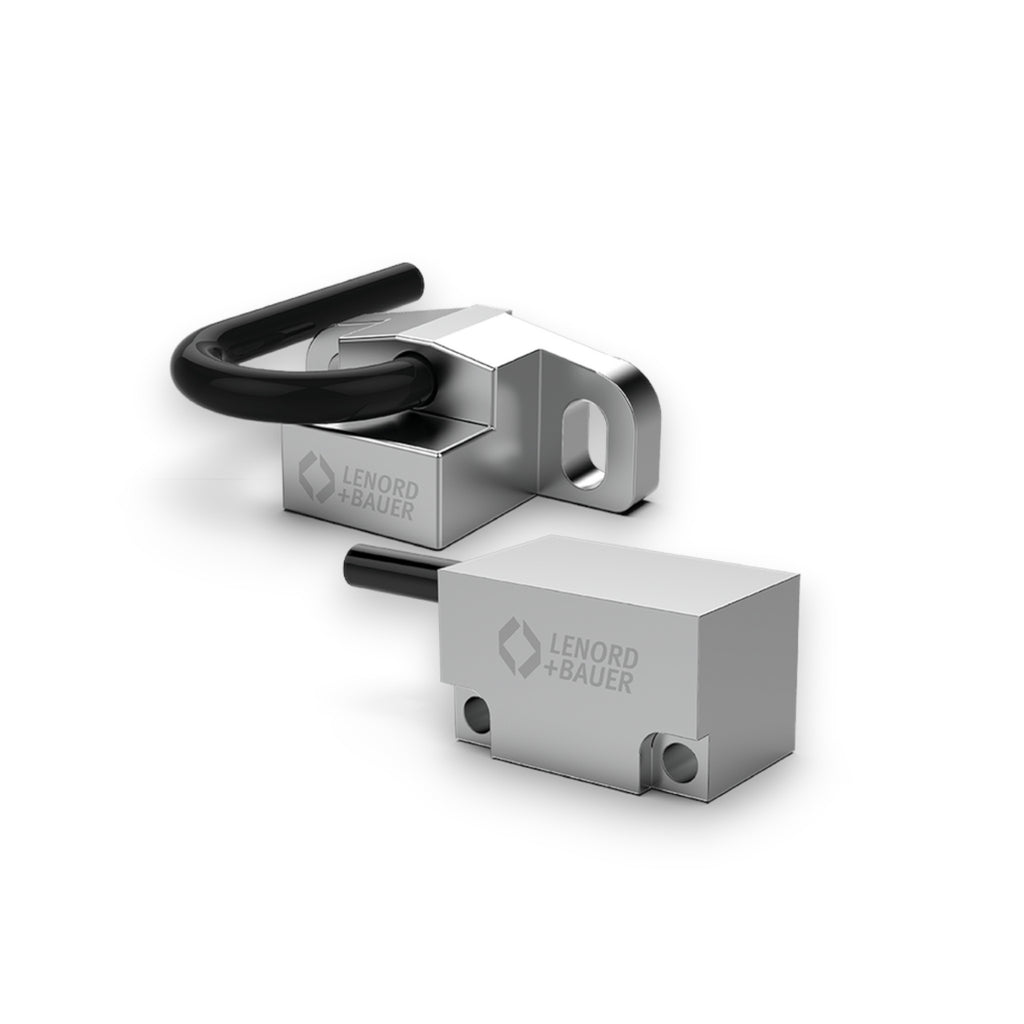

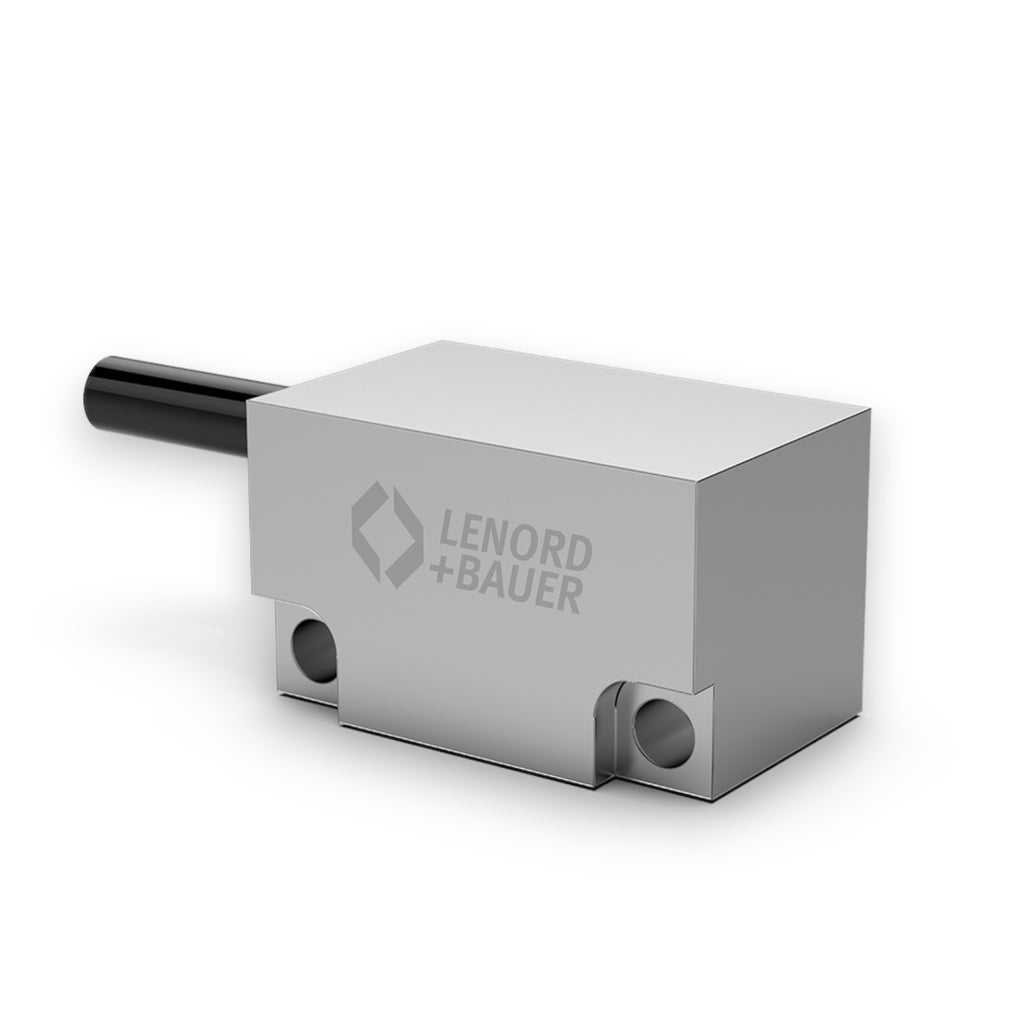

The GEL2449M is a high-precision incremental rotary encoder (MiniCODER series) made by Lenord + Bauer, and in CNC documentation it’s listed as a spindle-side encoder option compatible with Mitsubishi CNC/spindle systems (like MDS drive+M800/M80/E80/C80 controllers). It provides rotational position and speed feedback for spindle control and orientation detection.
📊 Core Characteristics
Encoder type:
• Incremental rotary encoder (MiniCODER) with digital serial interface for Mitsubishi systems.
Resolution / Detection:
• ~524,288 pulses per revolution (minimum detection resolution ≈ 0.000687° per count).
Signal Interface:
• Uses a high-speed digital serial interface compatible with Mitsubishi’s encoder input — typically no external converter required (unlike some other high-resolution encoders).
Operation:
• The MiniCODER measures rotation using magnetoresistive scanning of a precision target wheel mounted on the shaft; it detects direction, speed, and position electronically.
Environment & Signals:
• High immunity to electrical noise and good signal quality even in industrial environments; automatic configuration and tests available with a service/configuration tool (e.g., Lenord + Bauer’s GEL-211CST4).
⚙️ Typical Use
The GEL2449M encoder is commonly used for:
-
Spindle feedback in CNC machine tools
-
Orientation and indexing control
-
Systems requiring moderate to high resolution feedback without absolute encoding
-
Integration with Mitsubishi CNC systems that support serial encoder interfaces without extra interface hardware
It is often chosen where a robust, high-speed encoder with good noise immunity is needed and where the resolution of ~524k pulses/rev is sufficient for spindle control tasks.
📌 Comparison Context
In Mitsubishi spindle option lists, GEL2449M sits between very high-resolution absolute encoders (like ERM280 series) and simpler incremental feedback devices like OSE1024:
| Encoder | Manufacturer | Resolution | Notes |
|---|---|---|---|
| ERM280 2048 | Heidenhain | ~33 million p/rev | Very high precision |
| GEL2449M | Lenord + Bauer | ~524k p/rev | Self-contained, no interface needed |
| OSE1024 | Mitsubishi | 1024 p/rev | Basic incremental feedback |
This makes GEL2449M a good middle-ground option when high resolution and noise immunity matter but the extremely high precision of ERM absolute encoders is not required.
