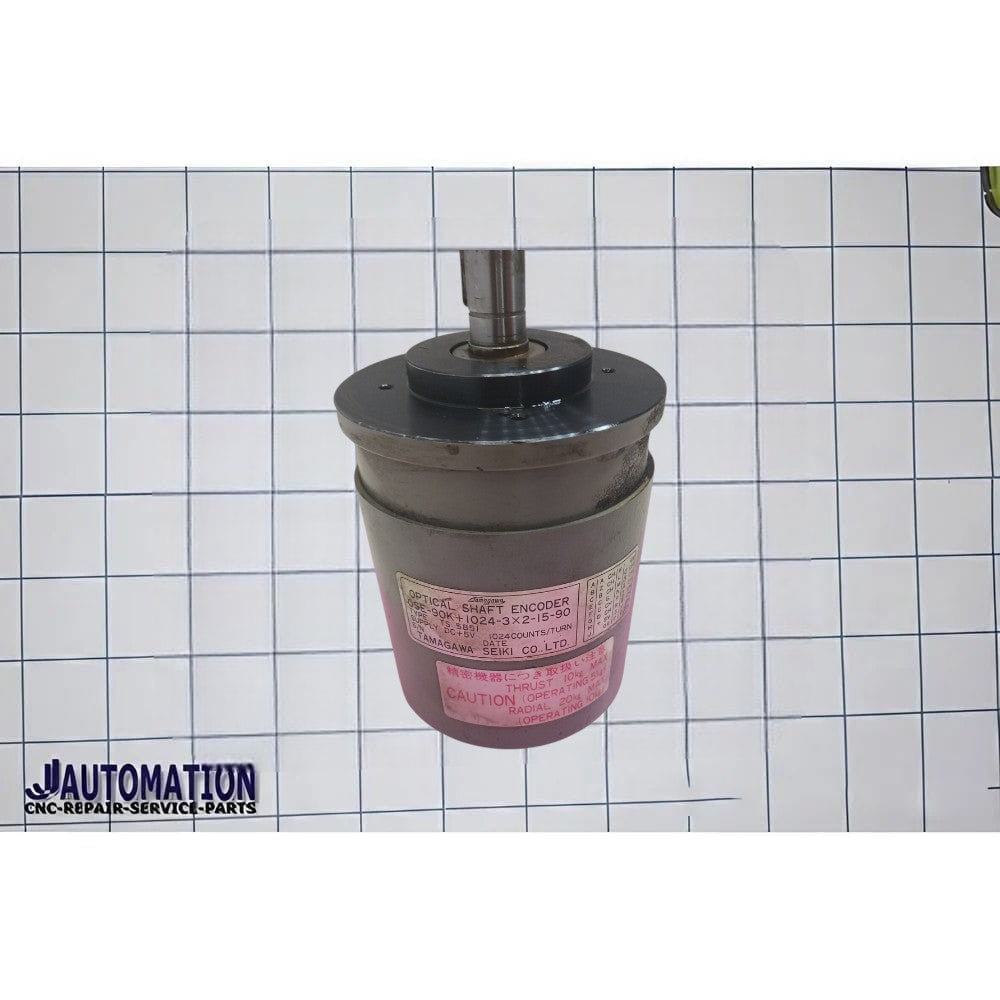

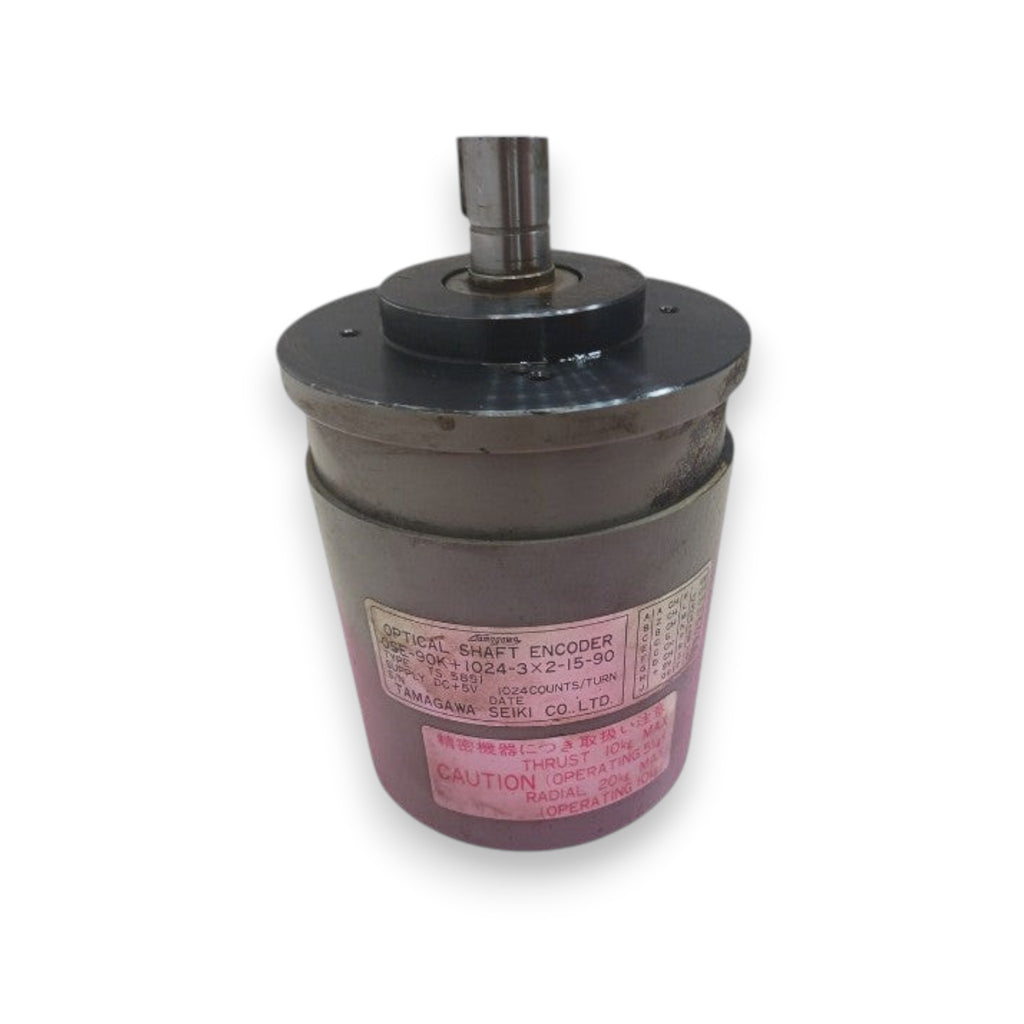

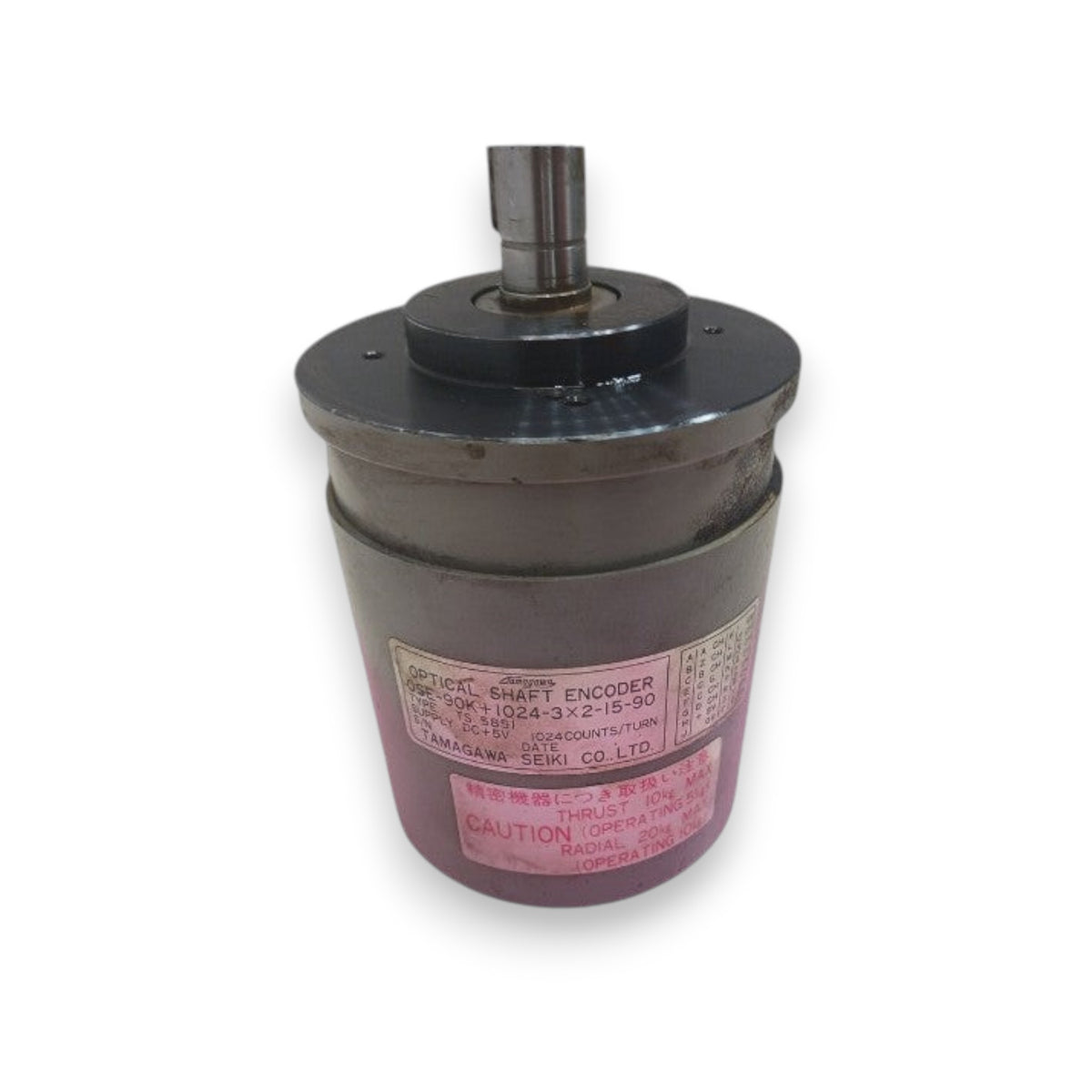

OSE90K – Mitsubishi C‑Axis Encoder
Description
The OSE90K Mitsubishi Encoder is a high‑resolution C‑axis feedback encoder designed for advanced CNC and motion control applications. It provides both high‑precision C‑axis signals and standard orientation/position feedback, enabling precise rotational position, speed detection, and C‑axis control on spindles. This encoder is ideal for systems requiring highly accurate contouring, indexing, and orientation functions in industrial machining environments.
Features
-
High‑resolution C‑axis output: Offers up to 90,000 pulses per revolution for fine angular position detection.
-
Standard orientation feedback: Includes 1024 pulses per revolution (A/B) plus one Z pulse for orientation control.
-
Dual signal phases: C/D phase for C‑axis plus A/B/Z for standard feedback provide versatile motion control data.
-
Industrial‑grade design: Robust mechanical construction suitable for continuous operation in demanding environments.
-
Wide compatibility: Works with Mitsubishi CNC drives and controllers for C‑axis and spindle control functions.
-
Reliable performance: Shaft friction, inertial load, and vibration resistance engineered for precision applications.
-
Used in advanced CNC systems: Ideal for contouring control, high‑precision indexing, and orientation tasks.
Typical Applications
-
C‑axis control on CNC machine spindles
-
Contouring and precision machining
-
High‑speed indexing and orientation control
-
Automated production and multi‑axis systems
