Description

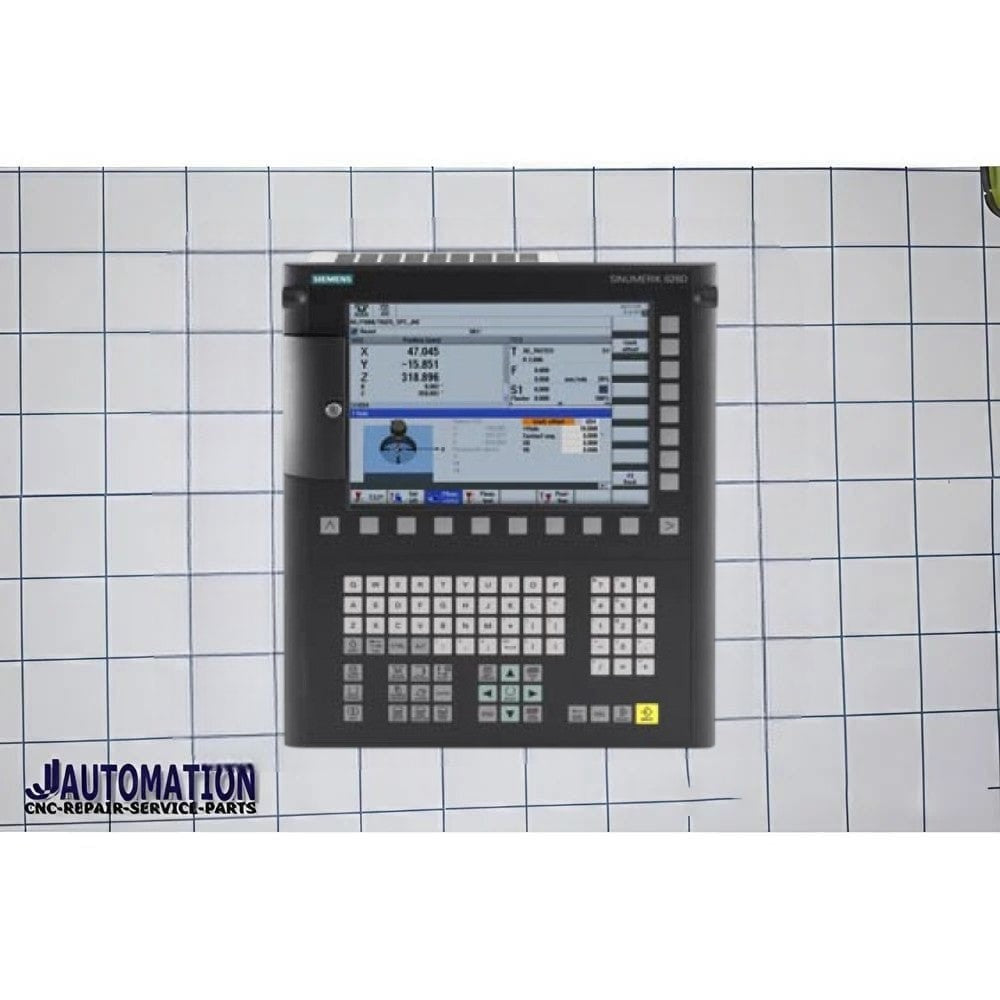

The Siemens 6FC5370-2BT02-0CA0 is a SINUMERIK 808D Advanced CNC operator panel / PPU (Panel Processing Unit) designed for CNC turning (lathe) machines.
It is a CNC control + HMI interface, not a motor or drive.
🔧 Basic Identification
| Feature | Details |
|---|---|
| Manufacturer | Siemens |
| Product Series | SINUMERIK 808D Advanced |
| Part Number | 6FC5370-2BT02-0CA0 |
| Type | PPU (Panel Processing Unit) |
| Machine Type | CNC Turning / Lathe |
| PPU Version | PPU 160.2 Vertical |
| Layout | Chinese layout |
| Function | CNC control + HMI operator interface |
📌 Siemens documentation lists this model as:
“SINUMERIK 808D ADVANCED T PPU 160.2 vertical Chinese layout.”
⚙️ Main Functions
The 6FC5370-2BT02-0CA0 serves as the primary operator interface for CNC turning machines and provides:
- CNC program input and editing
- Axis and spindle control
- Tool management and offset settings
- Alarm and diagnostics display
- Machine setup and monitoring
- Communication with servo and spindle drives
🧠 System Role
In a Siemens CNC architecture:
Operator Panel (PPU)
→ communicates with
SINUMERIK CNC controller
→ controls
servo drives + spindle drives
This unit acts as the main operating interface between the operator and the CNC machine.
📋 Technical Specifications
| Specification | Value |
|---|---|
| Product Family | SINUMERIK 808D ADVANCED |
| PPU Type | PPU 160.2 Vertical |
| Supply Voltage | 24 V DC |
| Front Protection Rating | IP65 |
| Rear Protection Rating | IP20 |
| Mounting Type | Vertical panel mounting |
| Application | CNC turning machines |
🔍 Difference Between Similar Models
| Model | Application | Layout | Orientation |
|---|---|---|---|
| 6FC5370-2BT02-0AA0 | Turning | English | Vertical |
| 6FC5370-2BT02-0CA0 | Turning | Chinese | Vertical |
| 6FC5370-2AT03-0AA0 | Turning | English | Horizontal |
| 6FC5370-2AM03-0AA0 | Milling | English | Horizontal |
📌 “T” models are designed for turning/lathe systems, while “M” models are intended for milling applications.
🏭 Typical Applications
- CNC lathes
- Compact CNC turning centers
- Educational CNC systems
- Industrial turning machines using SINUMERIK 808D Advanced
