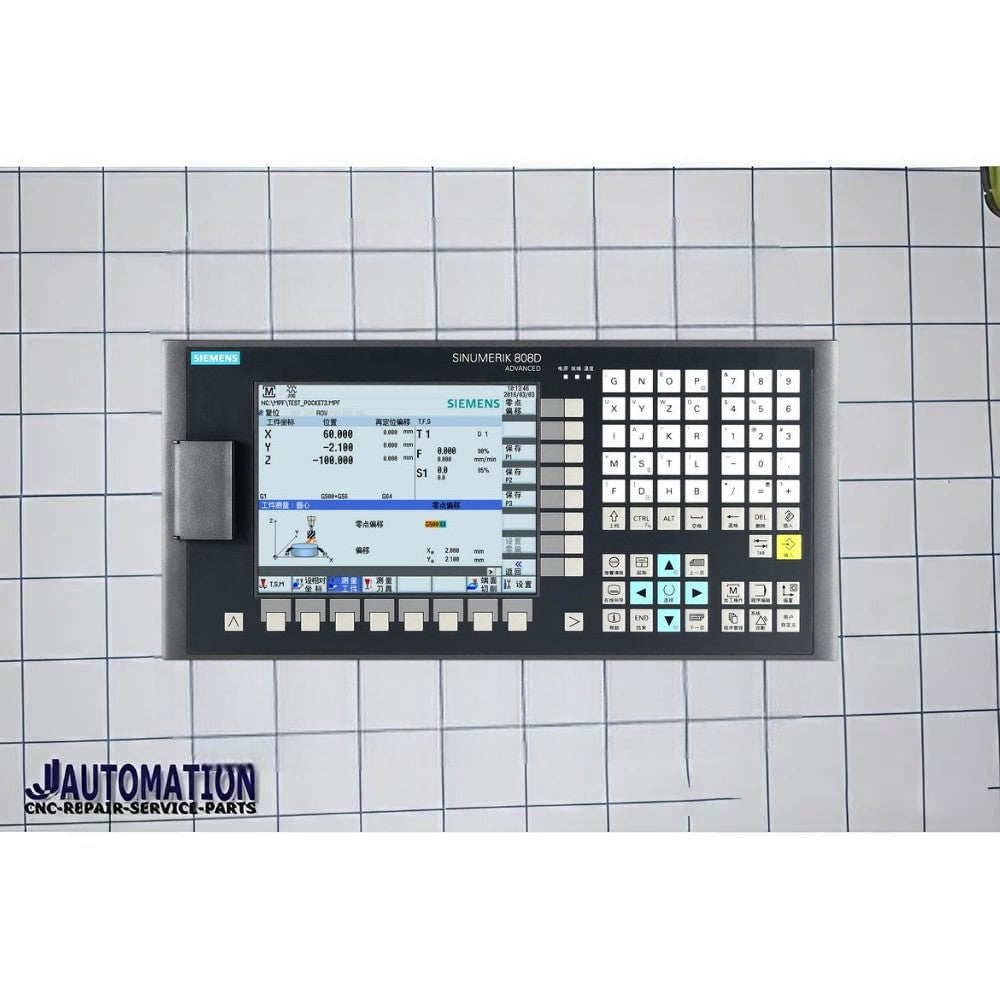

Siemens 808D PPU161.3 6FC5370-2AM03-0CA0 (CHINESE)

The Siemens 6FC5370-2AM03-0CA0 is a SINUMERIK 808D Advanced CNC operator panel / PPU (Panel Processing Unit) designed for CNC milling machines.

It is a CNC control + HMI interface, not a drive or motor.

🔧 Basic Identification

📌 Siemens commissioning manuals identify this model as:
“SINUMERIK 808D ADVANCED M PPU 161.3 horizontal, Chinese layout.”

⚙️ Main Functions

The 6FC5370-2AM03-0CA0 serves as the primary CNC machine interface for:

• CNC program input and editing
• Milling axis control
• Spindle operation
• Tool management
• Alarm and diagnostic display
• Machine setup and monitoring
• Communication with servo and spindle drives

🧠 System Role

In a Siemens CNC machine architecture:

Operator Panel (PPU)
→ communicates with
SINUMERIK CNC controller
→ controls
servo drives + spindle drives

This unit acts as the main operating interface between the operator and the machine.

📋 Technical Specifications

📌 SINUMERIK 808D Advanced systems are compact panel-based CNC solutions designed for entry-level and standard milling/turning machines.

🔍 Difference Between Similar Models

📌 “M” models are for milling machines, while “T” models are for turning/lathe applications.

🏭 Typical Applications

• CNC vertical milling machines
• CNC machining centers
• Educational CNC systems
• Compact industrial milling machines
• Standard production milling applications
