Product Description

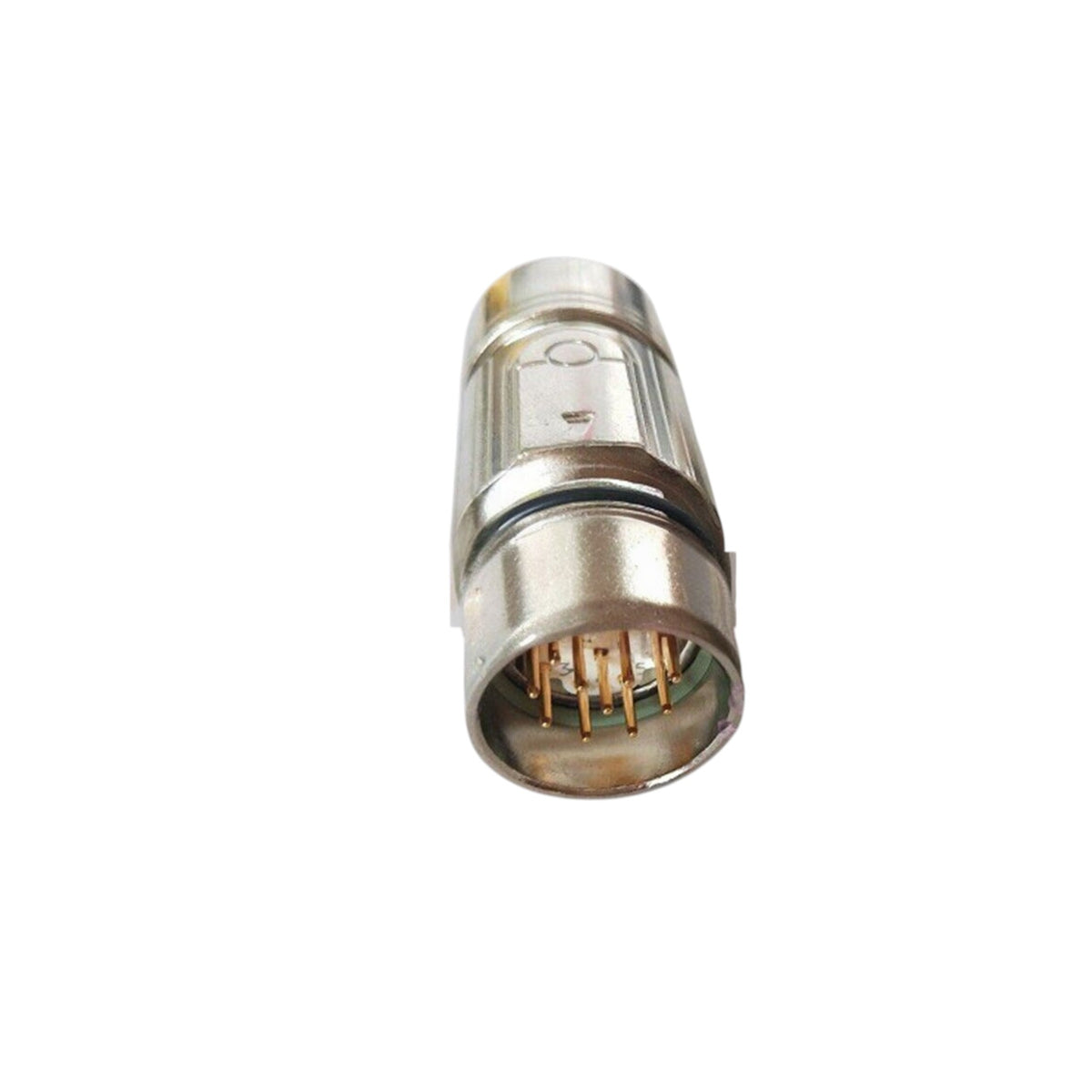

The Siemens 6FX2003-0SA17 is a 17-pole signal connector engineered for reliable signal transmission in industrial automation, motion control, and drive system applications. Designed with a male thread pin configuration, the connector includes a 17-pole insulator, pin contacts for multiple conductor sizes, and cable terminals for secure cable installation. It is commonly used in Siemens encoder systems, feedback devices, measuring systems, and drive interfaces where dependable electrical connectivity is essential.
This connector is supplied with 17 pin contacts (0.08–0.22 mm²), 17 pin contacts (0.20–0.56 mm²), and two cable terminals supporting cable diameters from 6.5–13 mm, providing installation flexibility for various industrial wiring requirements.
Key Features
- Genuine Siemens signal connector
- 17-pole connector design
- Male thread pin configuration
- 17-pole insulator included
- Pin contacts for 0.08–0.22 mm² conductors
- Pin contacts for 0.20–0.56 mm² conductors
- Cable terminals for 6.5–10 mm and 10.1–13 mm cable diameters
- Secure and reliable signal transmission
- Suitable for encoder and feedback applications
- Pack quantity: 1 unit
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6FX2003-0SA17 |
| Product Type | Signal Connector |
| Number of Poles | 17 |
| Connector Style | Male Thread Pin |
| Insulator | 1 × 17-Pole |
| Contact Type | Pin Contacts |
| Conductor Size Range | 0.08–0.22 mm² / 0.20–0.56 mm² |
| Cable Diameter Range | 6.5–10 mm / 10.1–13 mm |
| Package Quantity | 1 Unit |
| Application | Encoder, Feedback & Measuring Systems |
Applications
- SINAMICS drive systems
- SIMODRIVE systems
- Encoder interfaces
- External sensor modules
- Servo motor feedback connections
- Measuring systems
- CNC machinery
- Industrial automation equipment
- Motion control installations
