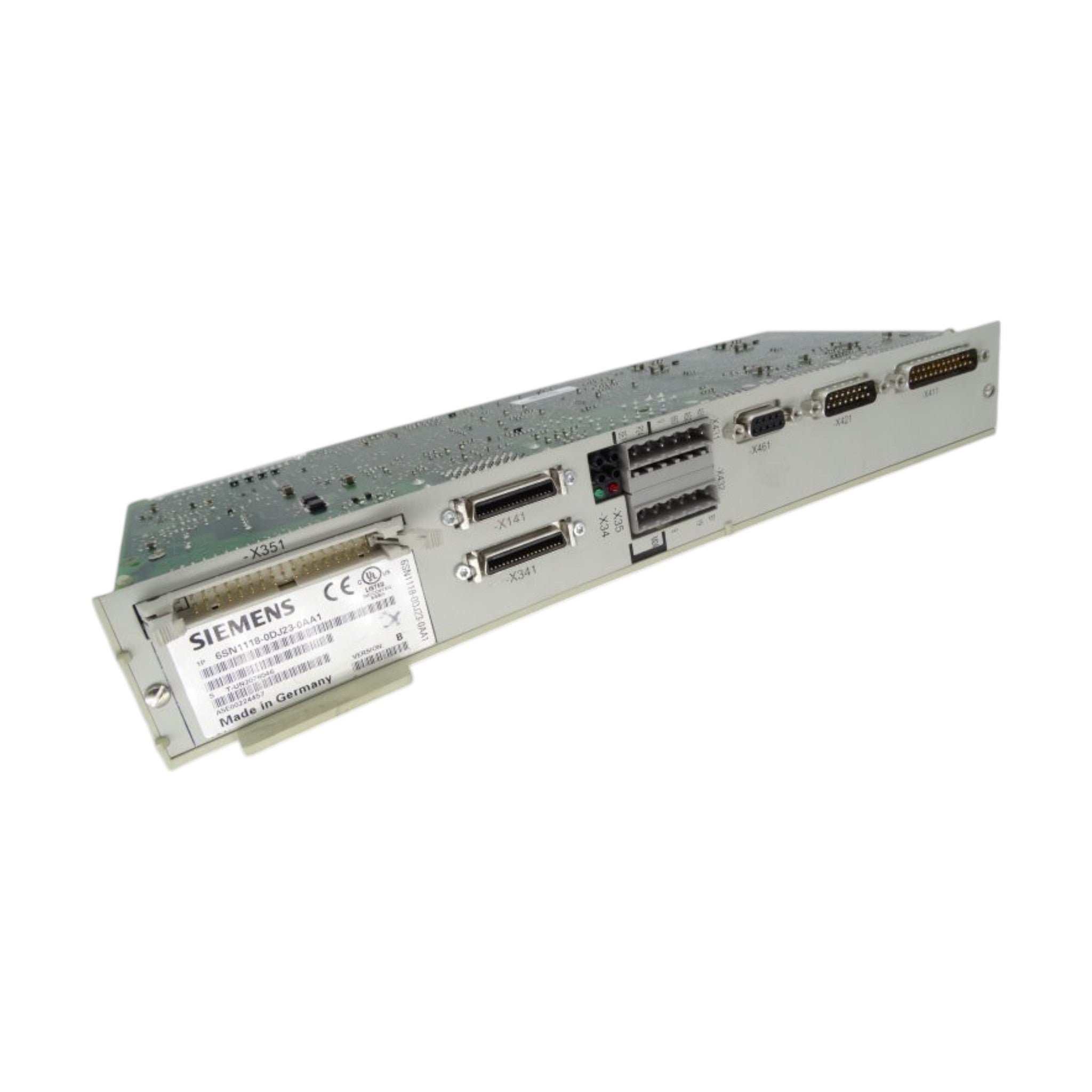

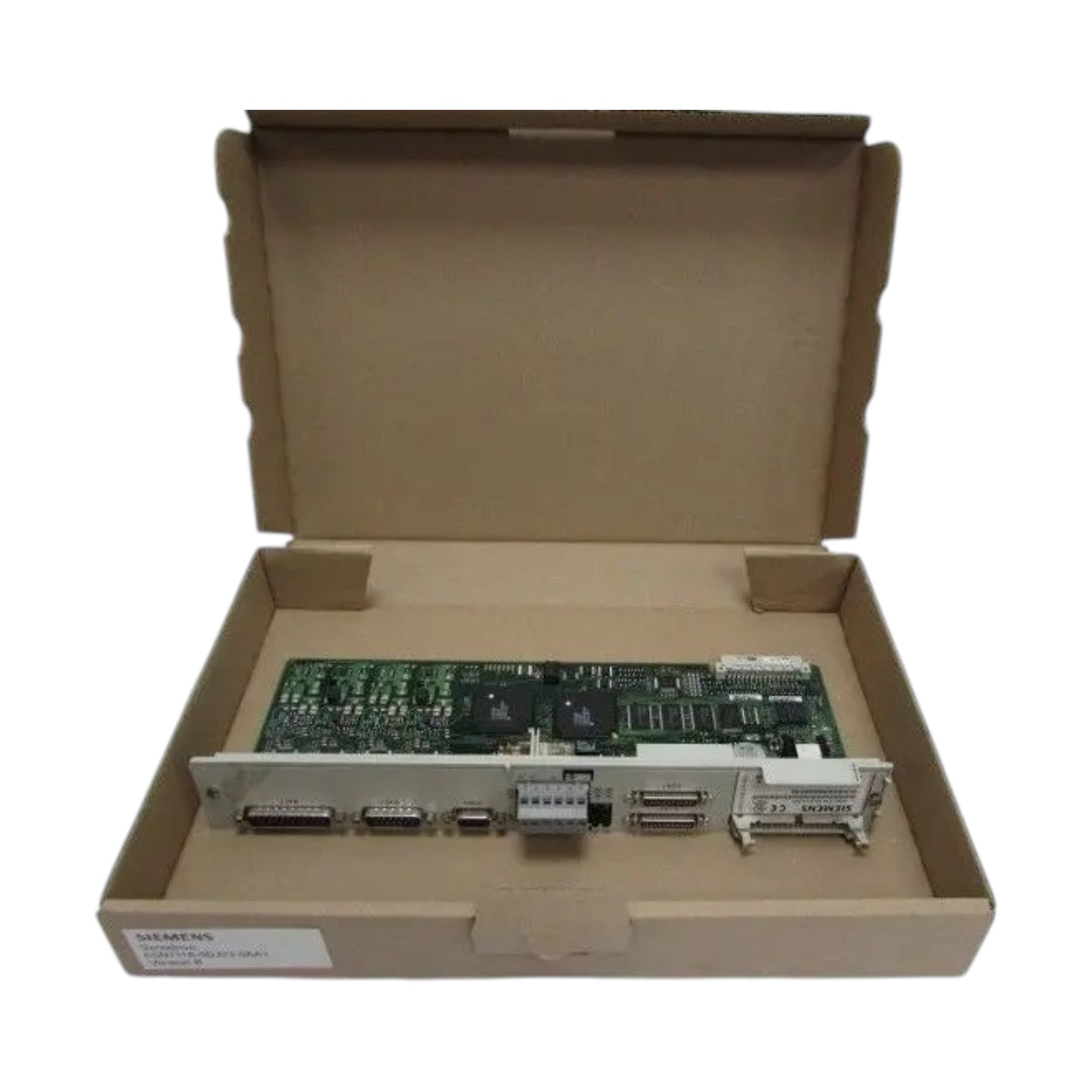

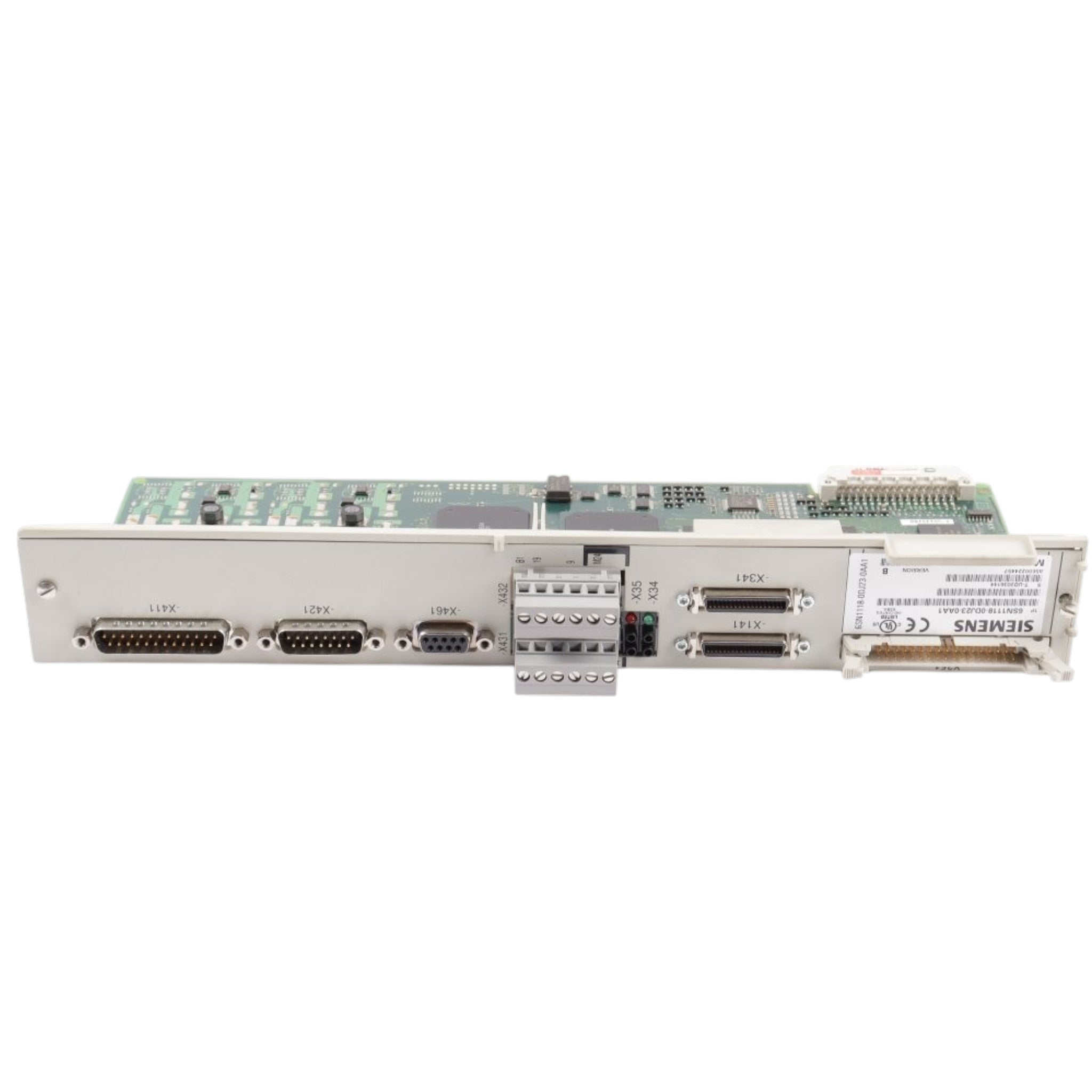

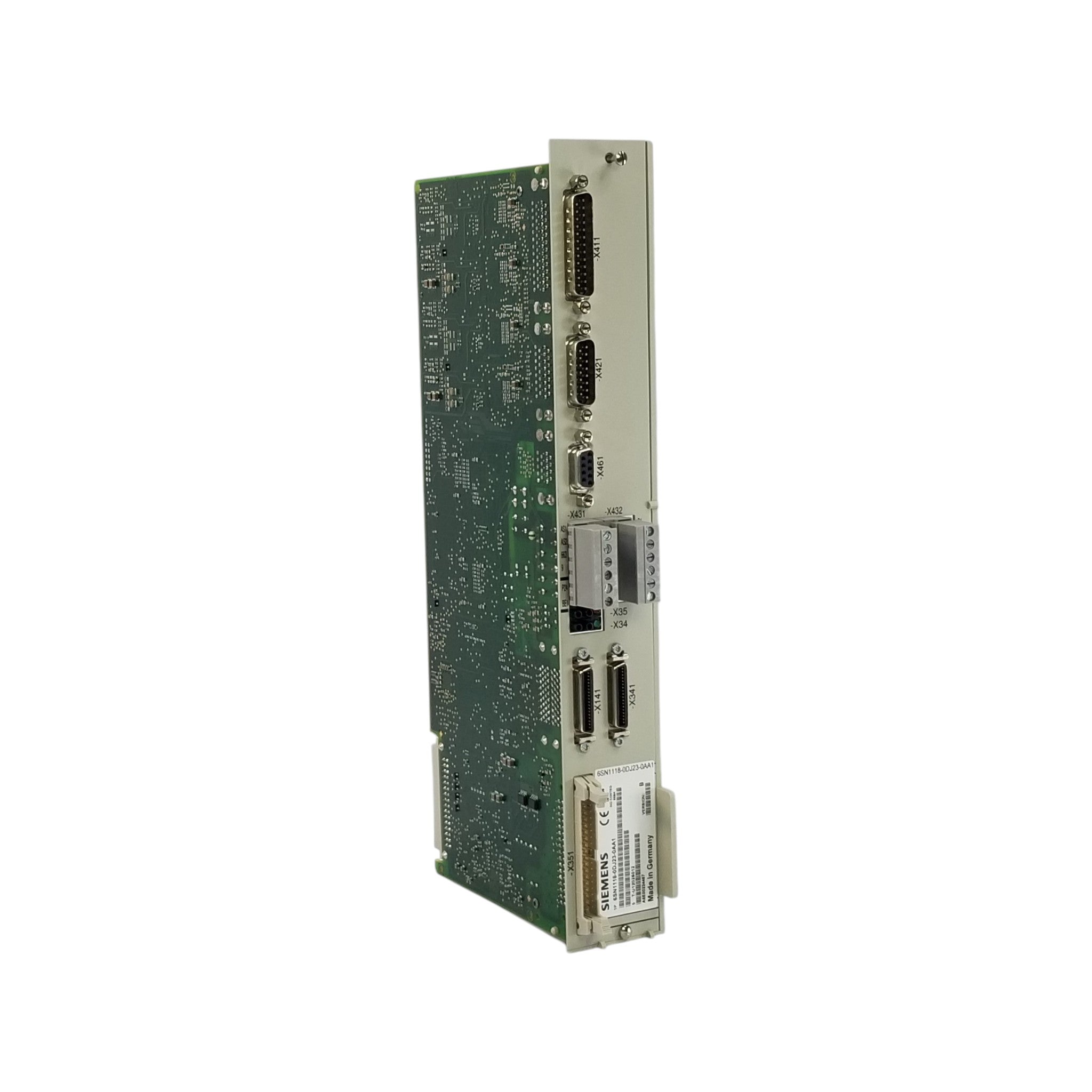

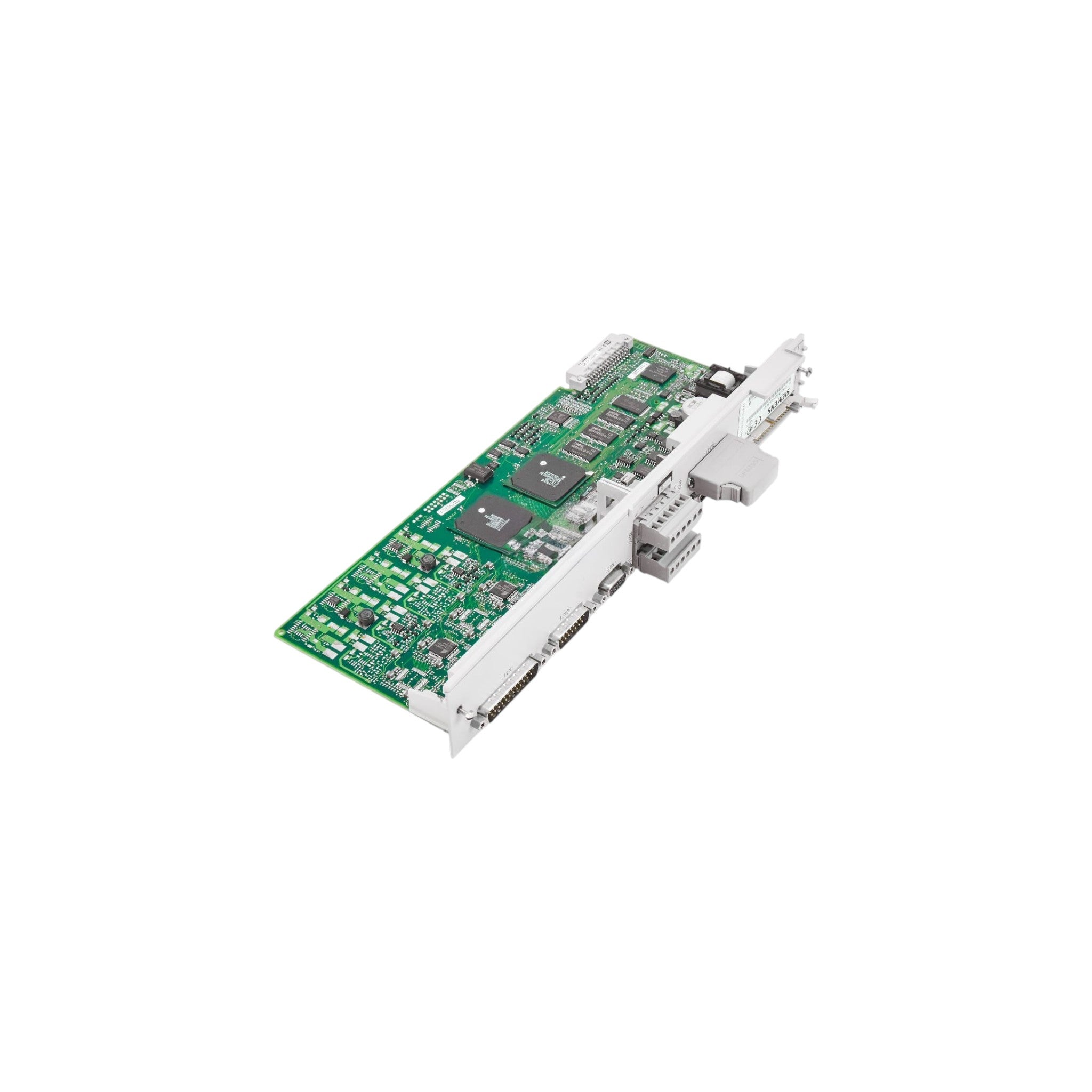

Siemens 6SN1118-0DG23-0AA1 – SIMODRIVE 611-D Closed-Loop Performance Control Unit
Part Number: 6SN1118-0DG23-0AA1
Manufacturer: Siemens
Product Family: SIMODRIVE 611-D
Module Type: Closed-Loop Plug-in Performance Control Unit (1 Axis)
Product Description
The Siemens 6SN1118-0DG23-0AA1 is a SIMODRIVE 611-D closed-loop performance control unit for single-axis digital servo and main spindle drives. It is designed for use with direct measuring systems using voltage signals (1 Vpp), providing high-precision position and speed control in SINUMERIK CNC applications. This plug-in control unit is intended for SIMODRIVE 611-D digital drive systems and supports demanding machine tool applications requiring accurate closed-loop feedback.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SN1118-0DG23-0AA1 |
| Product Family | SIMODRIVE 611-D |
| Module Type | Closed-Loop Performance Control Unit |
| Number of Axes | 1 Axis |
| Drive Type | Digital Servo & Main Spindle Drives |
| Measuring System | Direct Measuring System (Voltage Signals / 1 Vpp) |
| Encoder Support | Incremental, SIN/COS (1 Vpp), EnDat |
| Net Weight | Approximately 0.6 kg |
| Country of Origin | Germany |
Key Features
- Single-axis closed-loop performance control
- Designed for SIMODRIVE 611-D digital drives
- Supports feed and main spindle drive applications
- Compatible with direct measuring systems using voltage signals (1 Vpp)
- High-speed digital servo processing for precise positioning
- Plug-in module for simple installation and replacement
- Reliable operation in demanding CNC machining environments.
Compatible Systems
- Siemens SINUMERIK 810D
- Siemens SINUMERIK 840D
- SIMODRIVE 611-D Digital Drive Systems
- Feed Servo Drives
- Main Spindle Drives
- 1 Vpp Direct Measuring Systems
Typical Applications
- CNC Turning Centers
- CNC Milling Machines
- Vertical & Horizontal Machining Centers
- Grinding Machines
- Gear Cutting Machines
- Industrial Motion Control Systems
