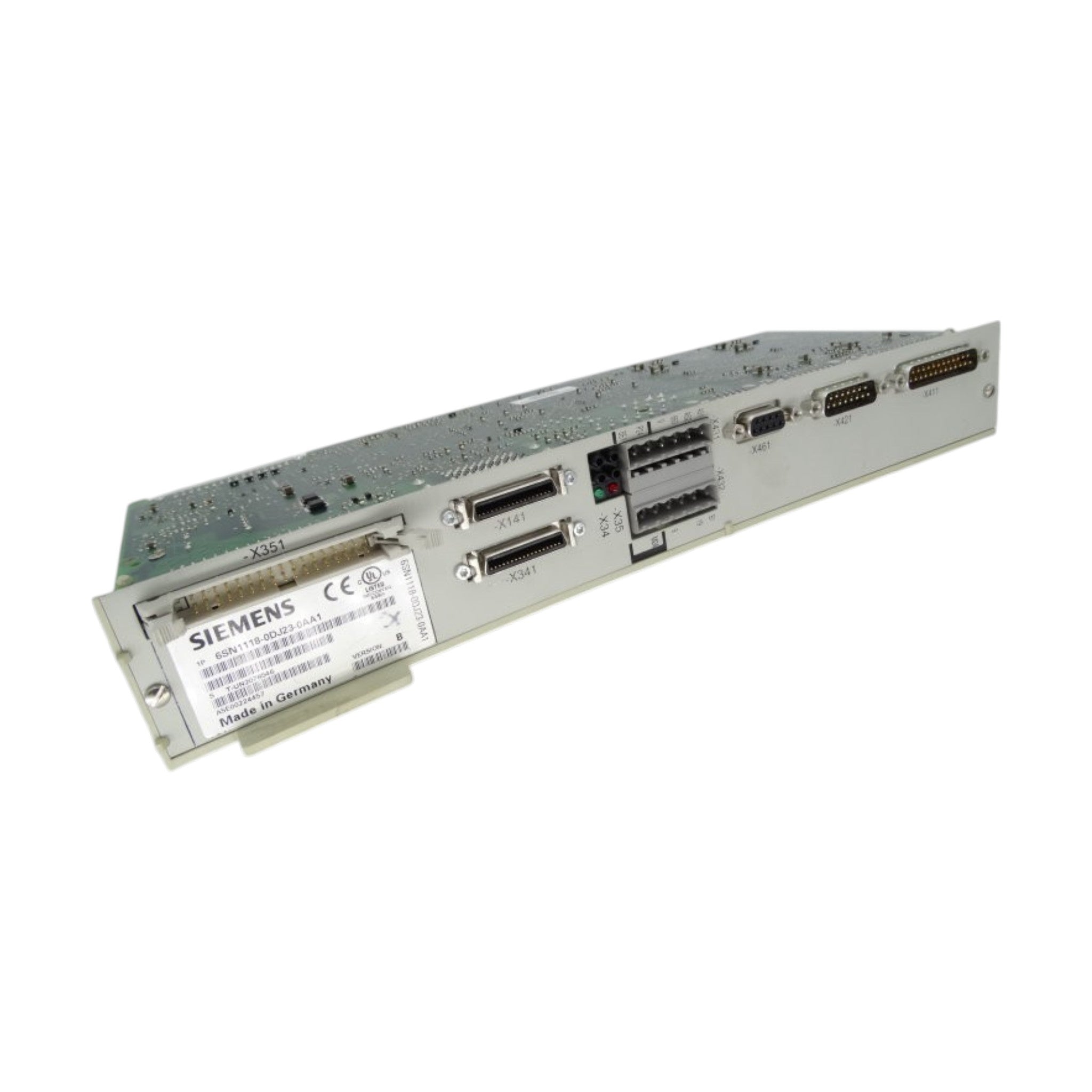

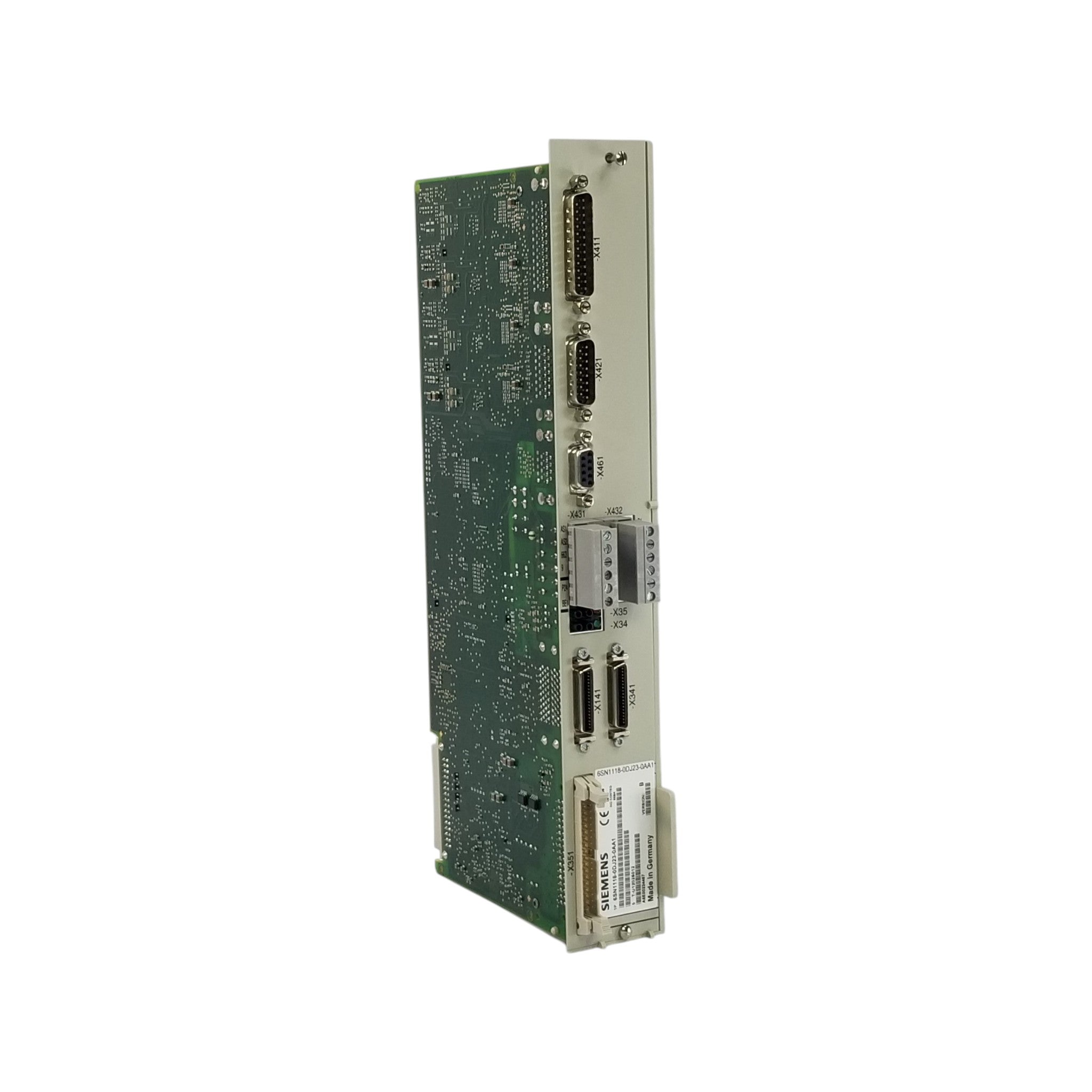

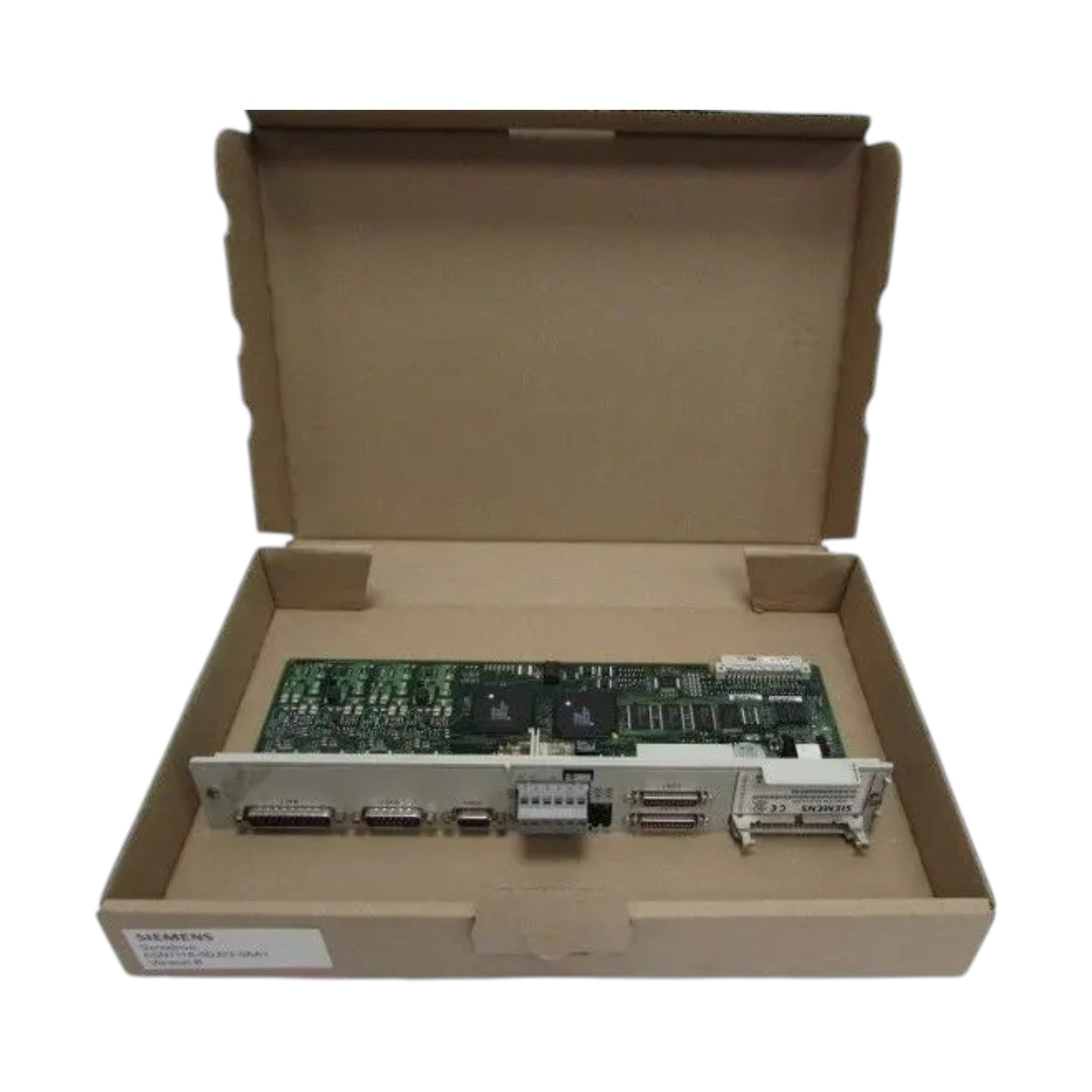

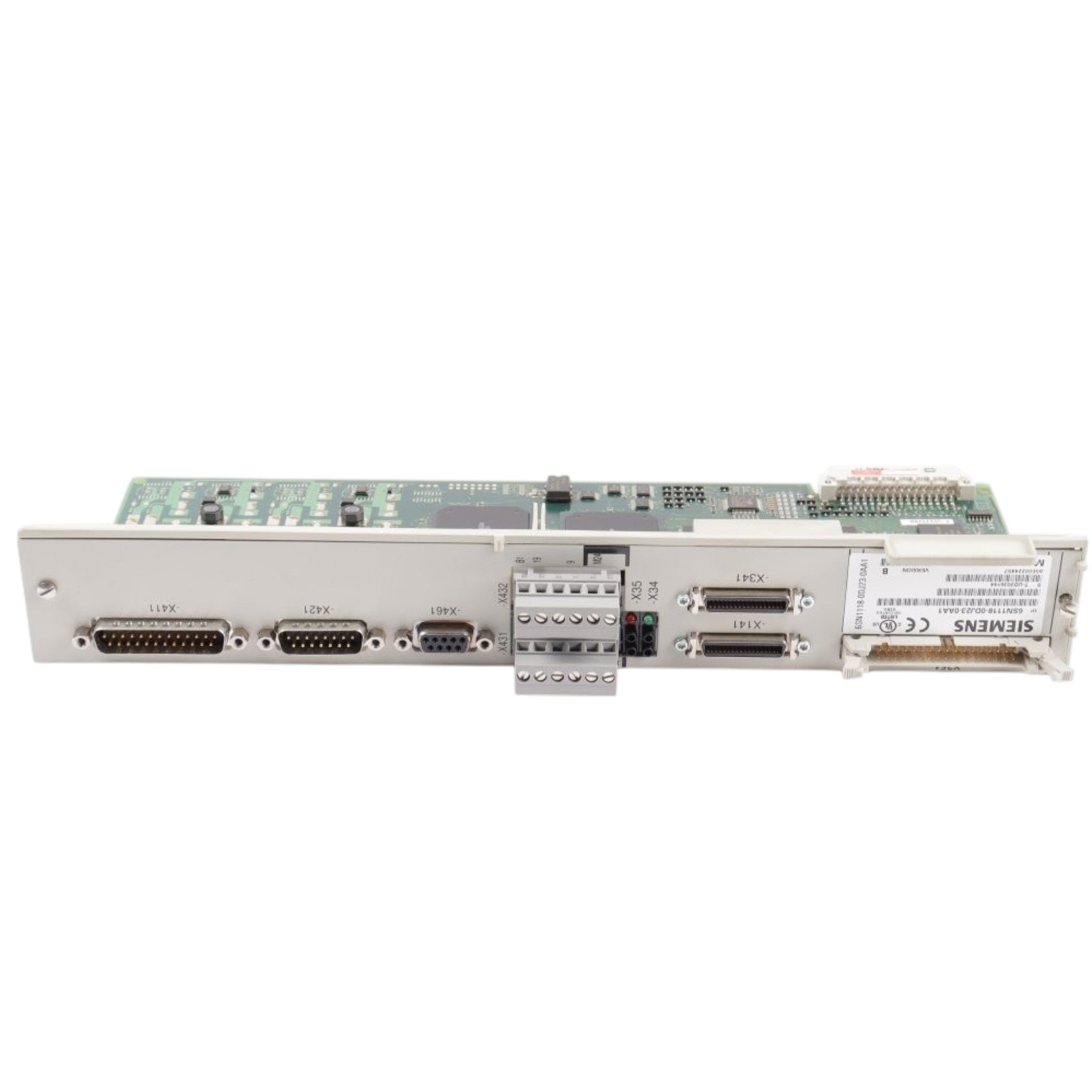

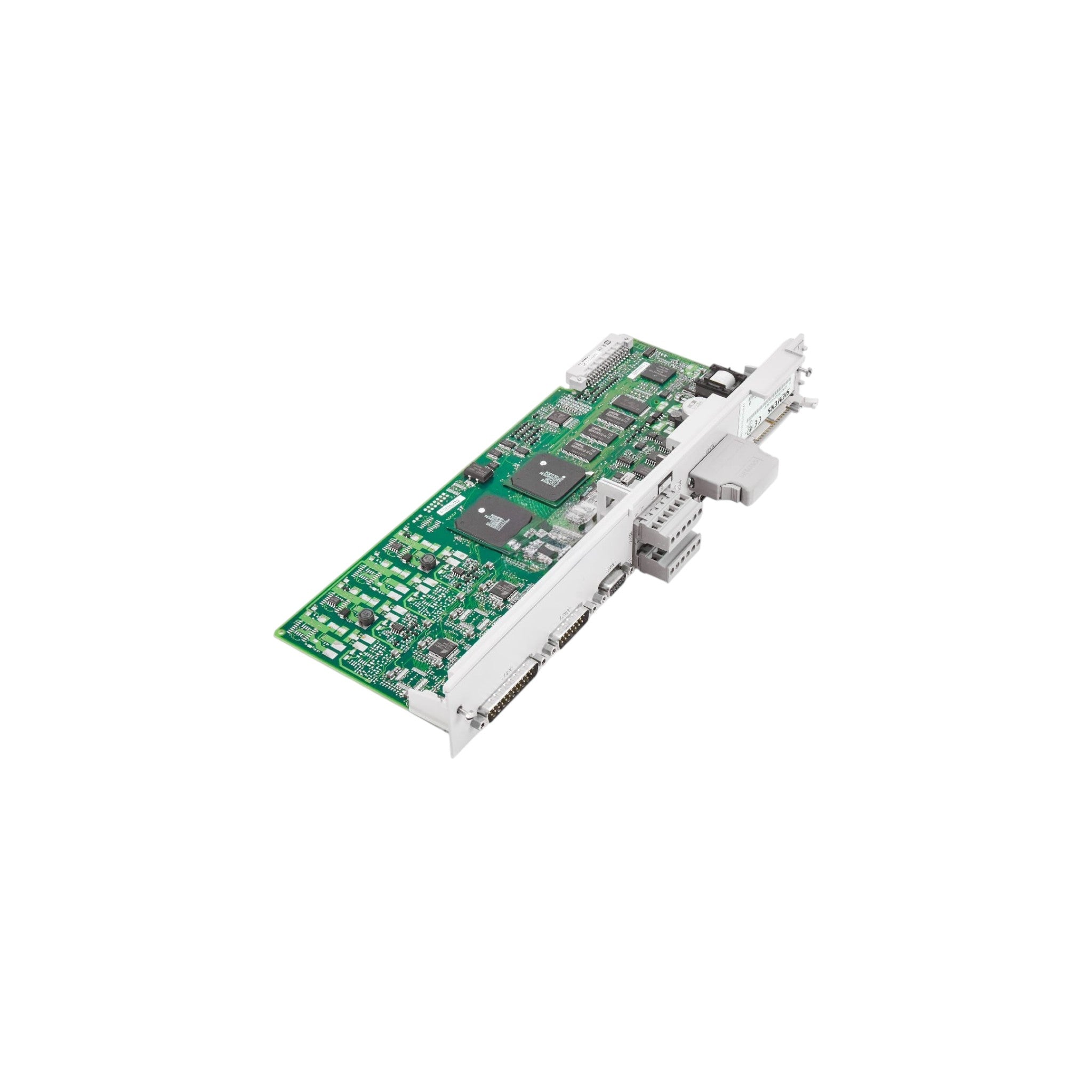

Siemens 6SN1118-0DJ23-0AA1 – SIMODRIVE 611 Digital Control Loop Block
Part Number: 6SN1118-0DJ23-0AA1
Manufacturer: Siemens
Product Family: SIMODRIVE 611 Digital
Module Type: High-Performance Digital Control Loop Block (Control Unit)
Product Description
The Siemens 6SN1118-0DJ23-0AA1 is a SIMODRIVE 611 Digital High-Performance Control Loop Block designed for single-axis servo and spindle control in SINUMERIK CNC systems. It supports SIN/COS 1 Vpp direct measuring systems and provides precise closed-loop motion control for demanding CNC machining applications. This module requires NC software version 6.4.9 or later (from 06.04.2009) and is intended for use with compatible SIMODRIVE 611 Digital drive systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SN1118-0DJ23-0AA1 |
| Product Family | SIMODRIVE 611 Digital |
| Module Type | High-Performance Digital Control Loop Block |
| Number of Axes | 1 Axis |
| Feedback System | SIN/COS 1 Vpp Direct Measuring System |
| Encoder Support | Incremental, SIN/COS (1 Vpp), EnDat |
| Compatible Motors | 1FT6, 1FK, 1FE1, 1FW6, 2SP1, 1PH7, 1PM, 1FN, 1LA |
| Required NC Software | Version 6.4.9 or later |
| Approximate Weight | 0.20 kg |
Key Features
- High-performance digital control loop block
- Single-axis closed-loop servo control
- Supports SIN/COS 1 Vpp direct measuring systems
- Compatible with EnDat and incremental encoder feedback
- High-precision positioning and speed control
- Designed for SIMODRIVE 611 Digital systems
- Optimized for demanding CNC machining applications
Compatible Systems
- Siemens SINUMERIK 810D
- Siemens SINUMERIK 840D
- SIMODRIVE 611 Digital
- Siemens 1FT6 Servo Motors
- Siemens 1FK Servo Motors
- Siemens 1FE1 Built-in Motors
- Siemens 1FW6 Torque Motors
- Siemens 1PH7 Spindle Motors
Typical Applications
- CNC Turning Centers
- CNC Milling Machines
- Machining Centers
- Grinding Machines
- Gear Cutting Machines
- High-precision Industrial Automation
