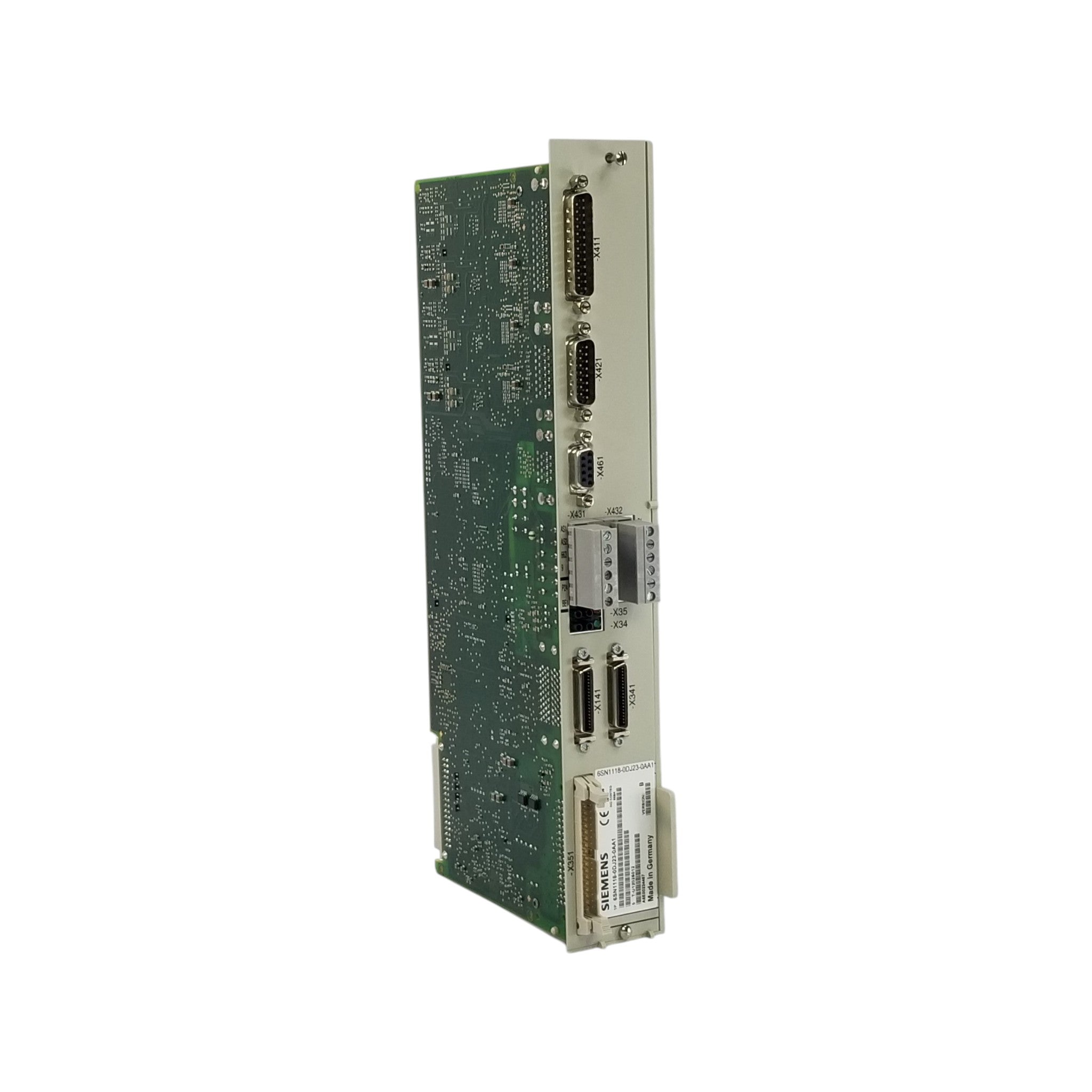

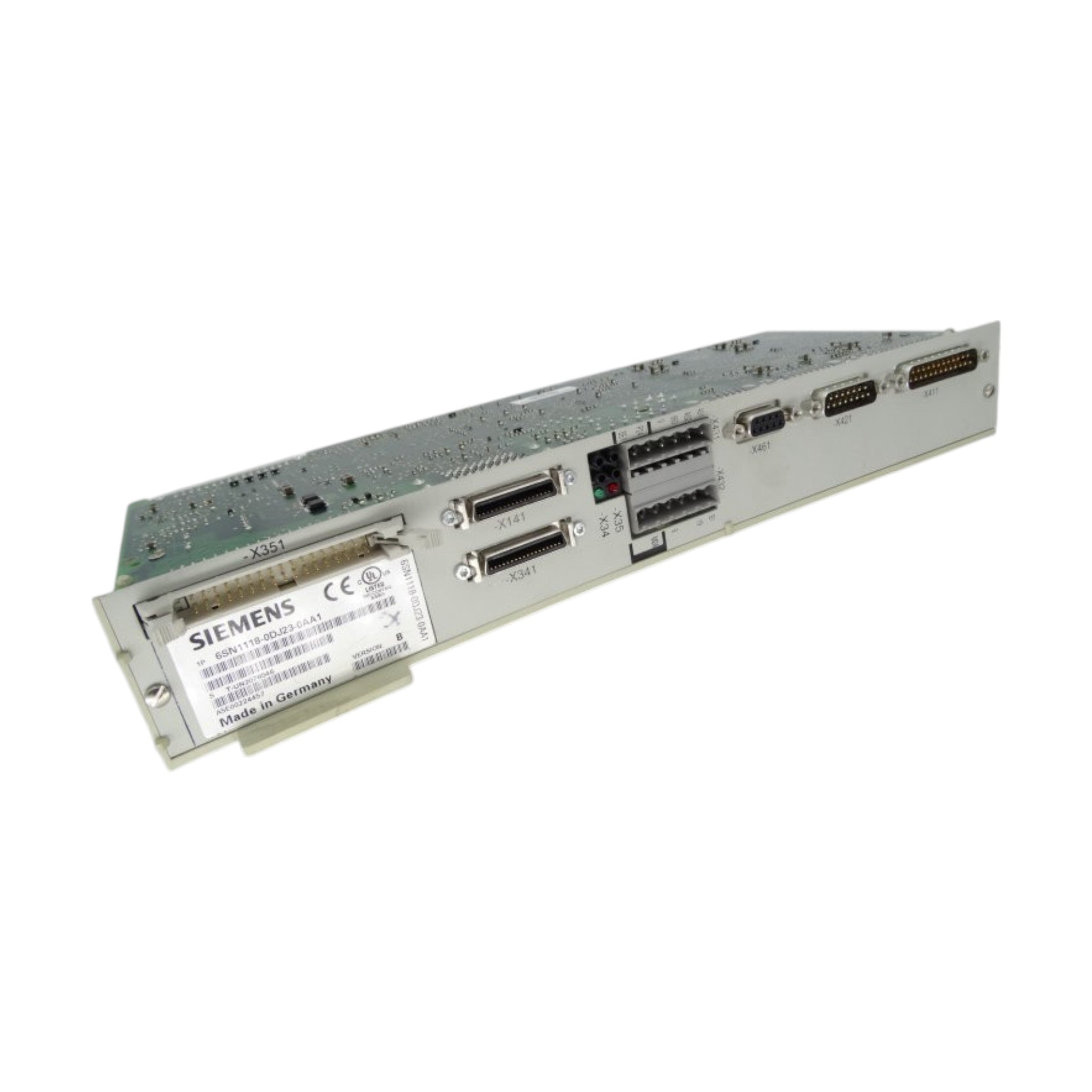

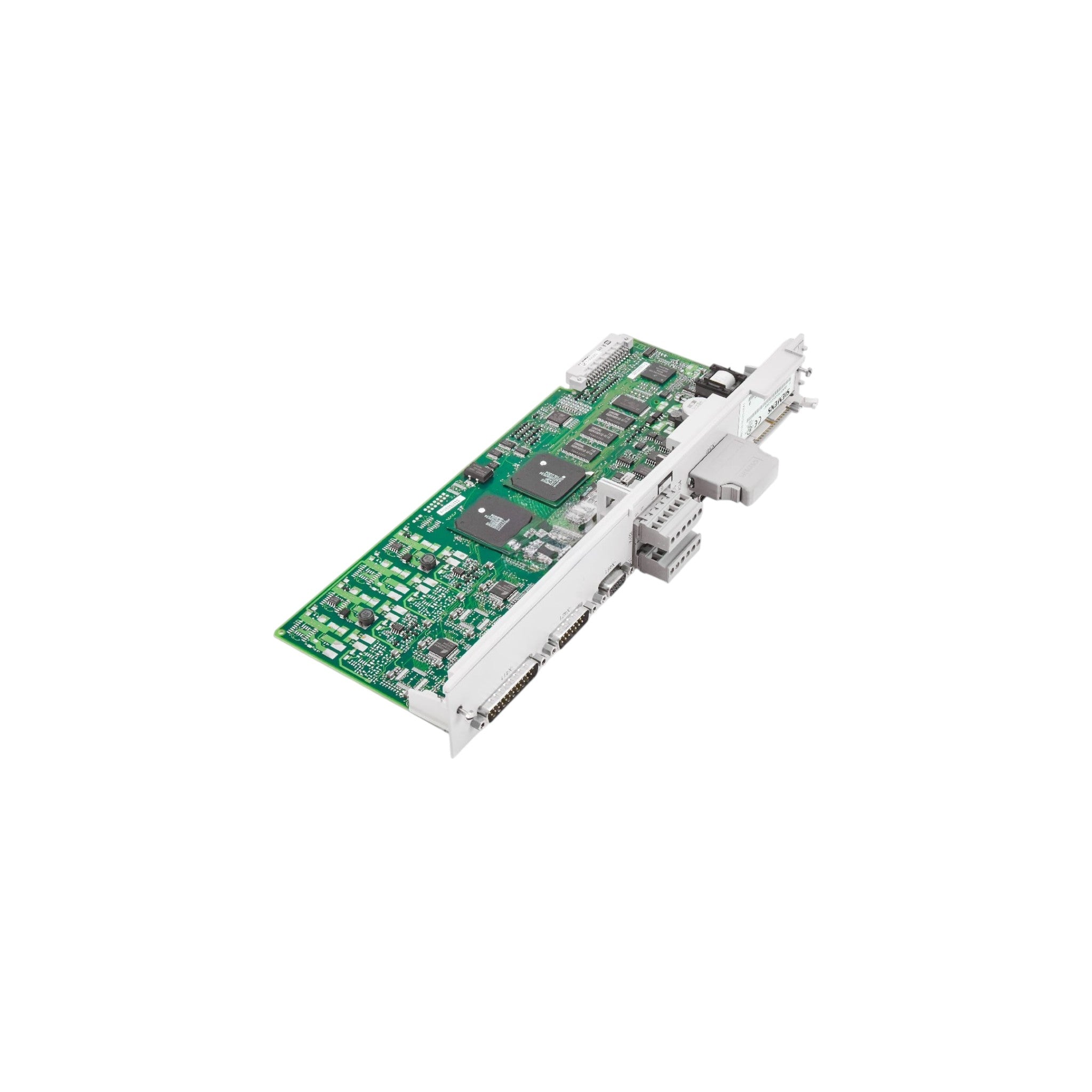

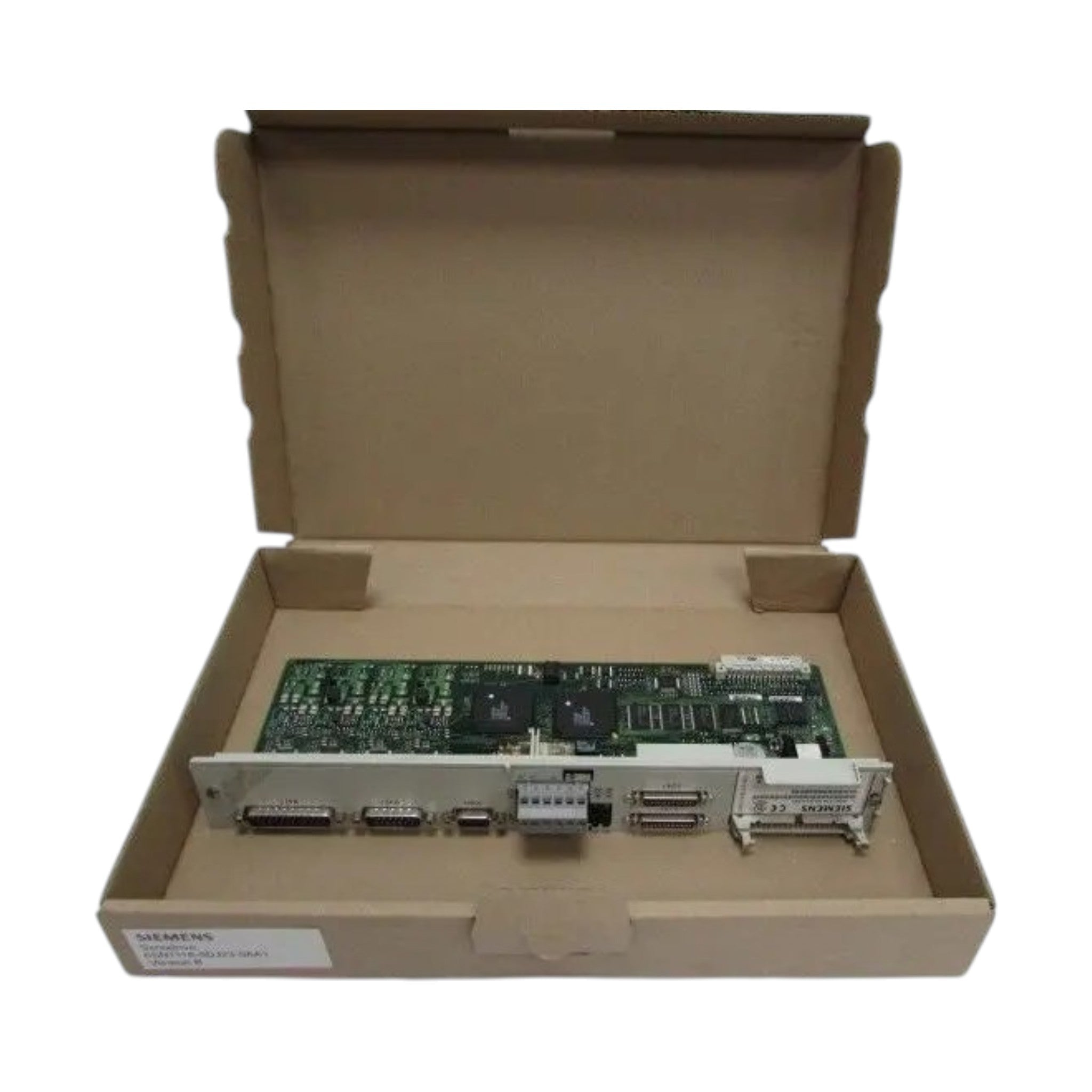

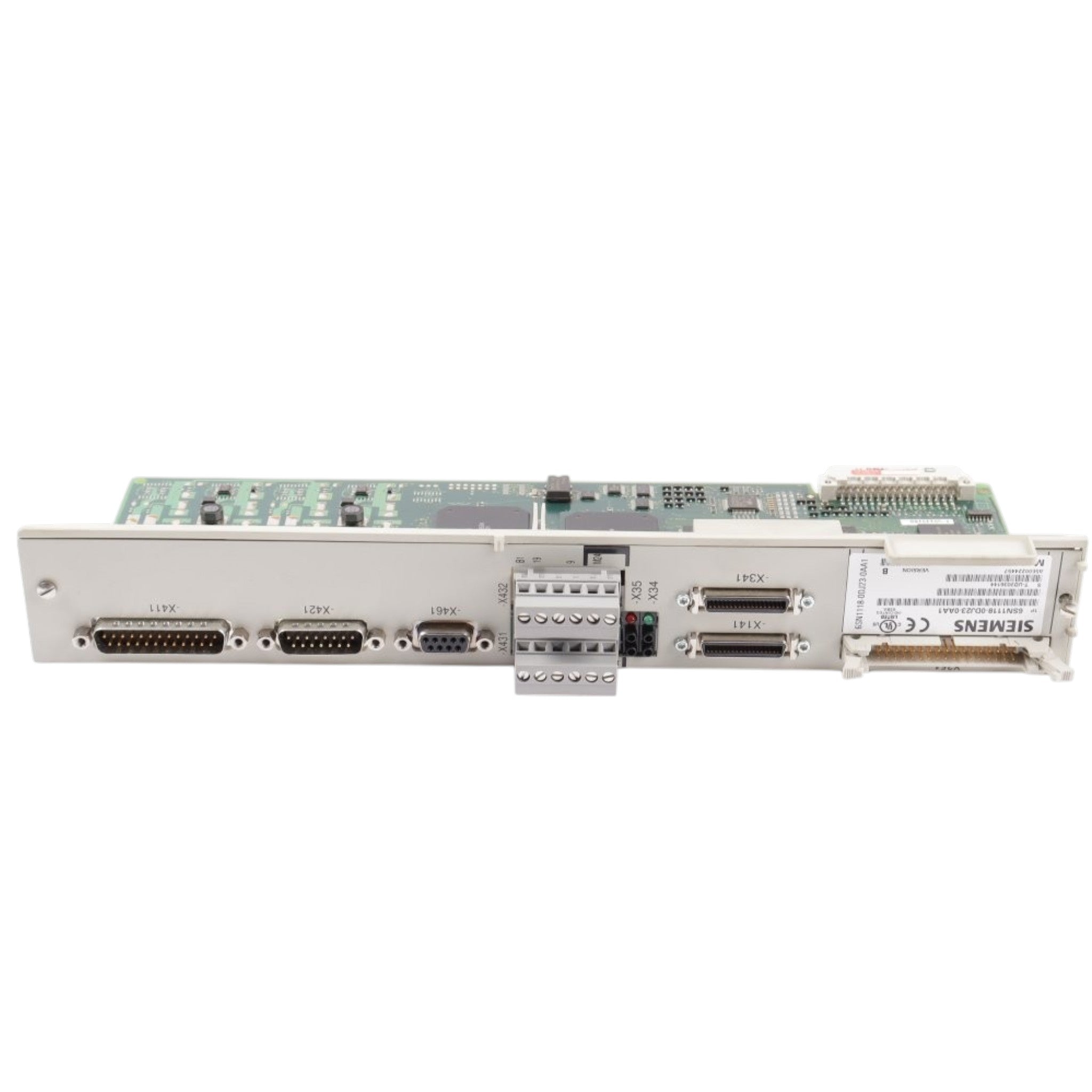

Siemens Control Card Unit 6SN1118-0DM23-0AA0

Siemens 6SN1118-0DM23-0AA0 – SIMODRIVE 611-D Closed-Loop Control Plug-in Unit

Part Number: 6SN1118-0DM23-0AA0

Manufacturer: Siemens

Product Family: SIMODRIVE 611-D

Module Type: Standard Closed-Loop Control Plug-in Unit (2 Axes)

Product Description

The Siemens 6SN1118-0DM23-0AA0 is a SIMODRIVE 611-D closed-loop control plug-in unit designed for 2-axis digital servo drive and spindle control in SINUMERIK CNC systems. It features Standard Closed-Loop Control 2 and supports direct measuring systems (SPG-S) for high-precision motion control. The module can control up to two feed drive (FDD) axes or one main spindle drive (MSD) and is intended for use with SIMODRIVE 611-D digital drive systems.

Technical Specifications

Key Features

• 2-axis closed-loop control module
• Standard Closed-Loop Control 2
• Supports direct measuring systems (SPG-S)
• Precise position, speed, and torque control
• Compatible with SIMODRIVE 611-D digital drive systems
• Plug-in design for quick installation and replacement
• Suitable for high-performance CNC machine tool applications

Compatible Systems

• Siemens SINUMERIK 810D
• Siemens SINUMERIK 840D
• SIMODRIVE 611-D Digital Drive Systems
• Feed Drive (FDD) Applications
• Main Spindle Drive (MSD) Applications

Typical Applications

• CNC Lathes
• CNC Milling Machines
• Machining Centers
• Grinding Machines
• Gear Cutting Machines
• Industrial Motion Control Systems
