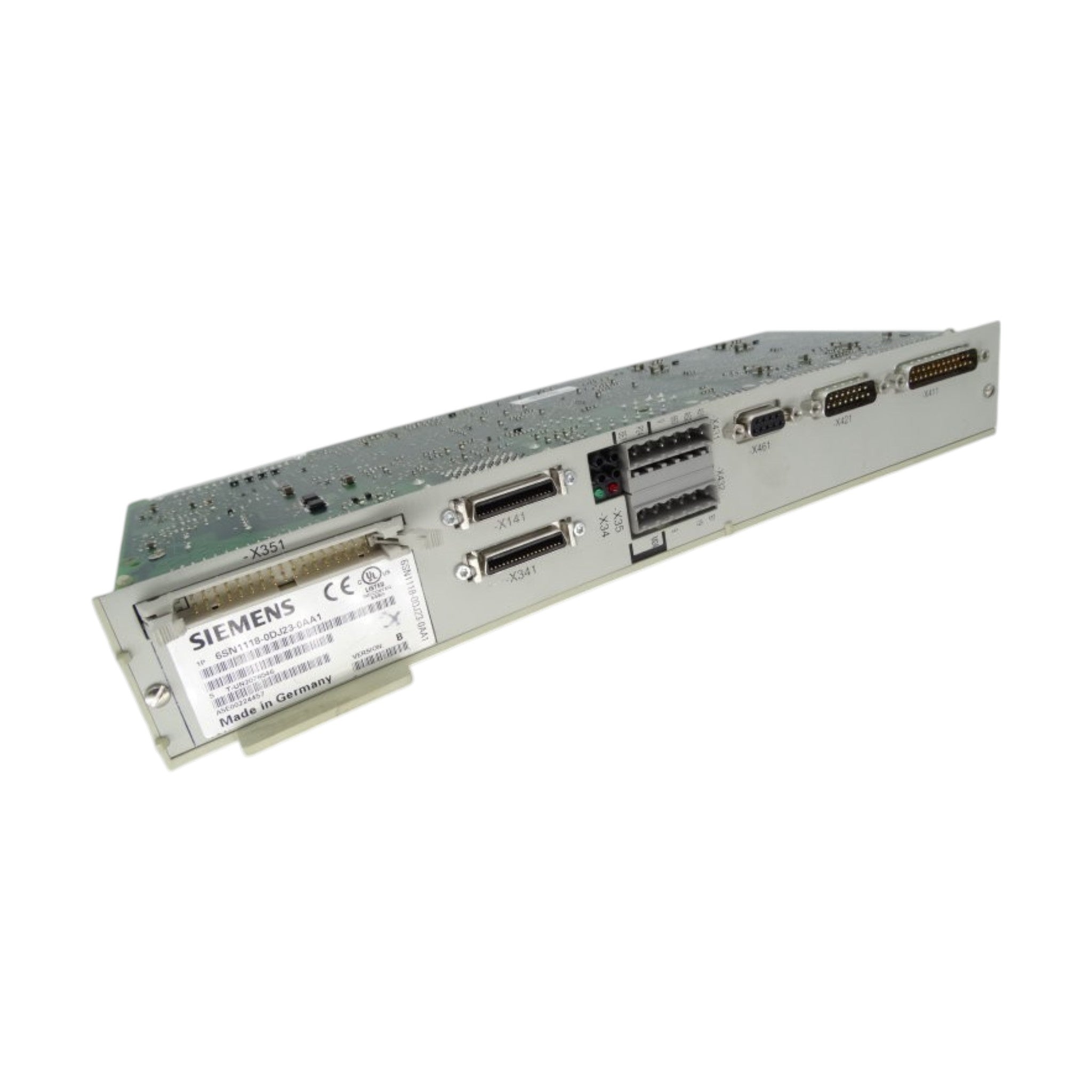

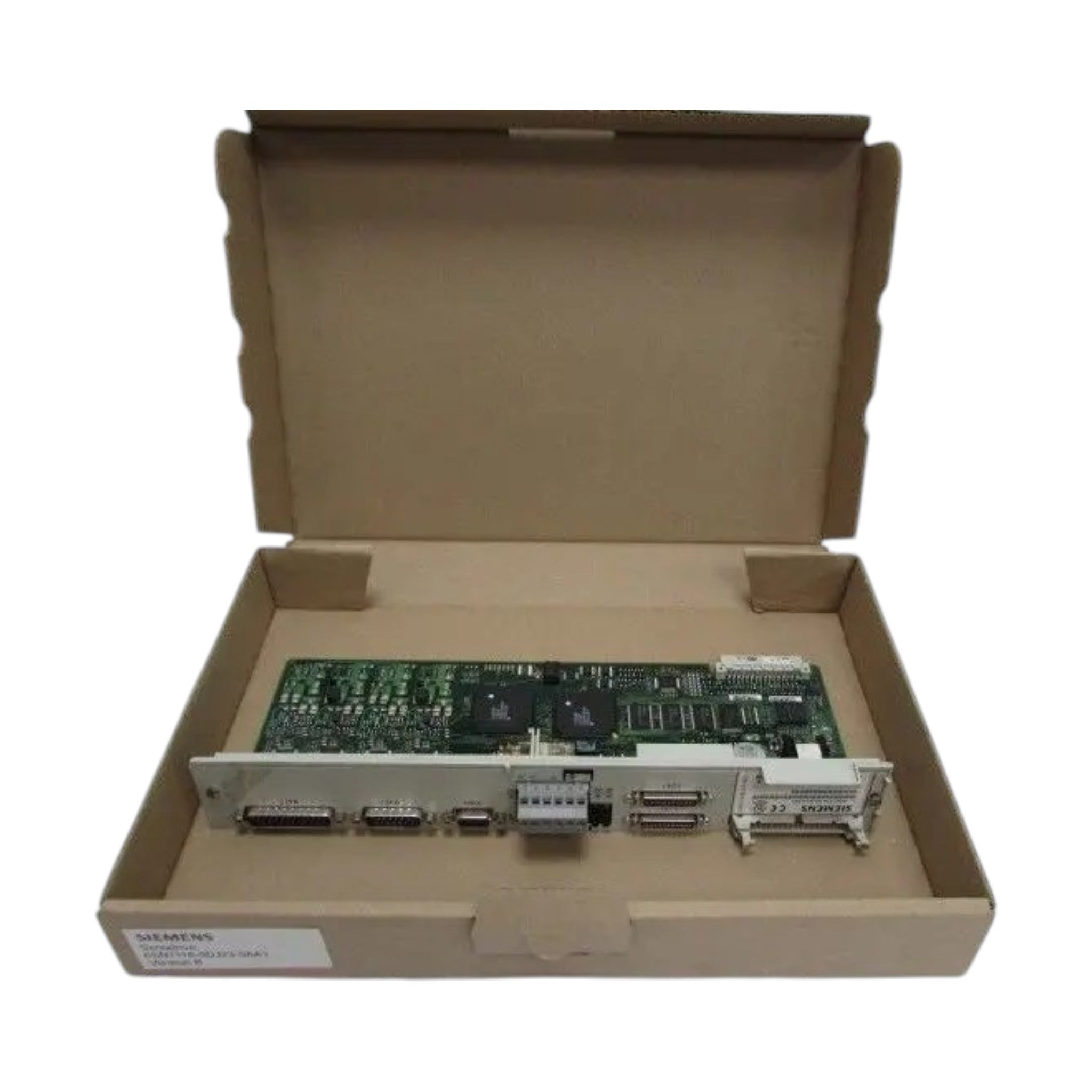

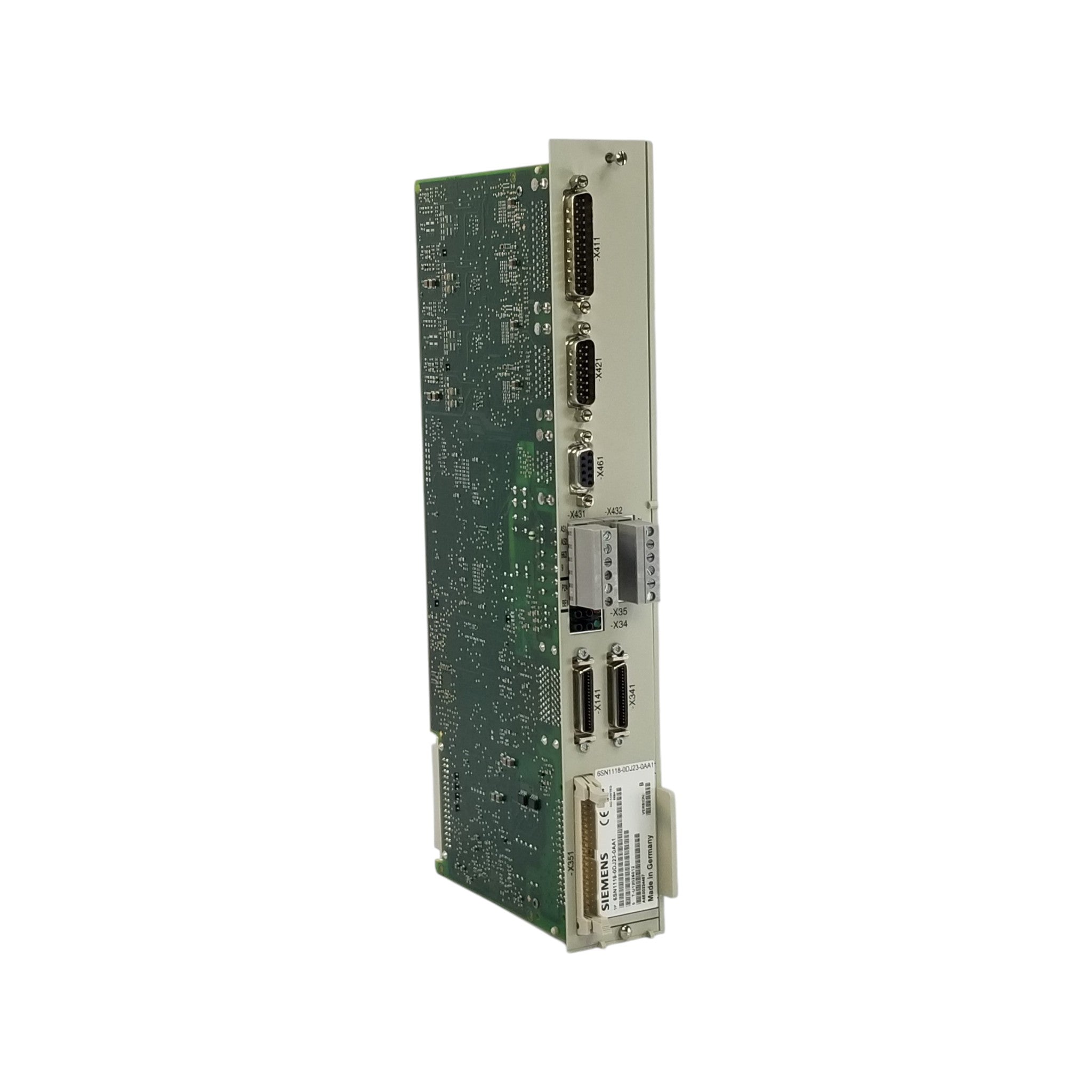

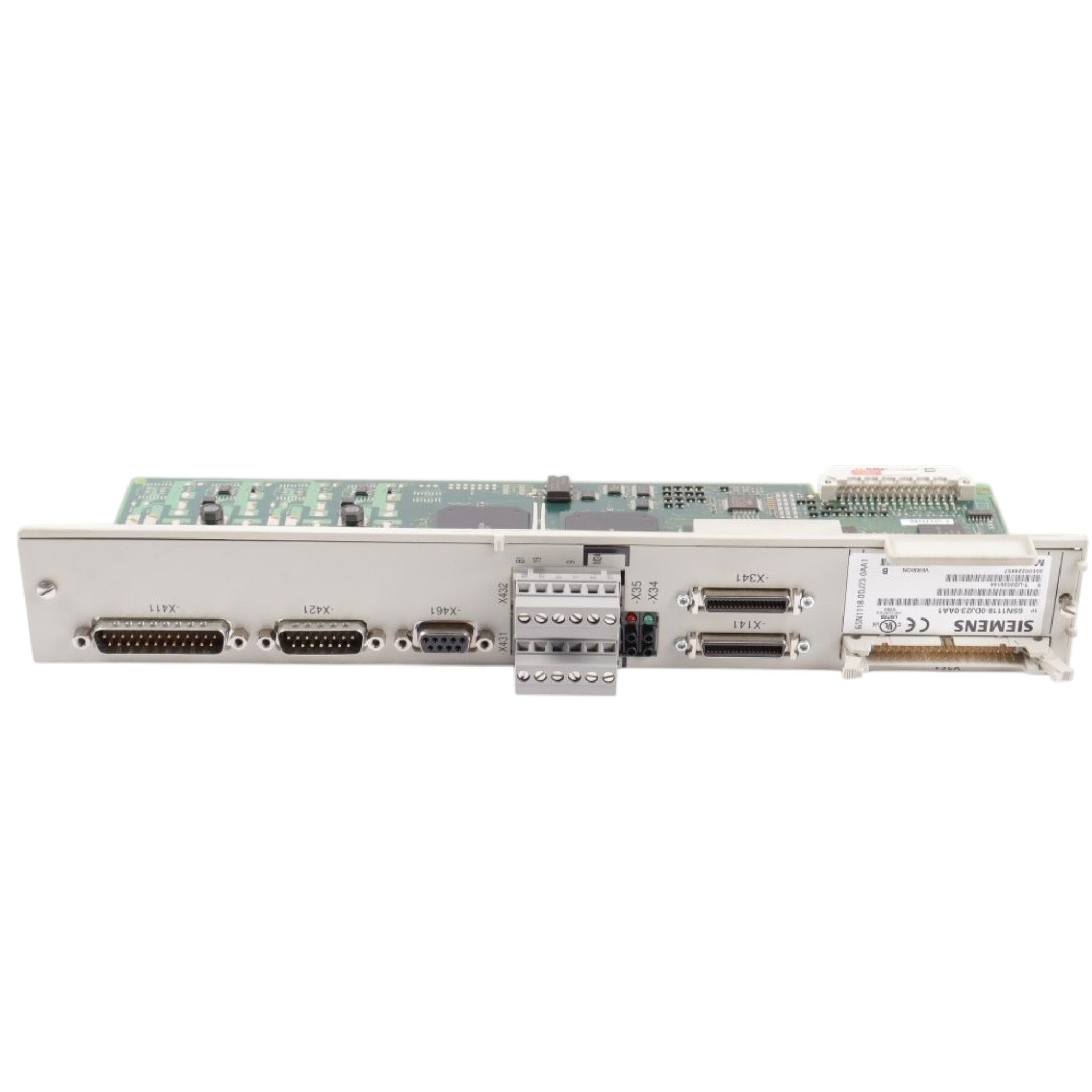

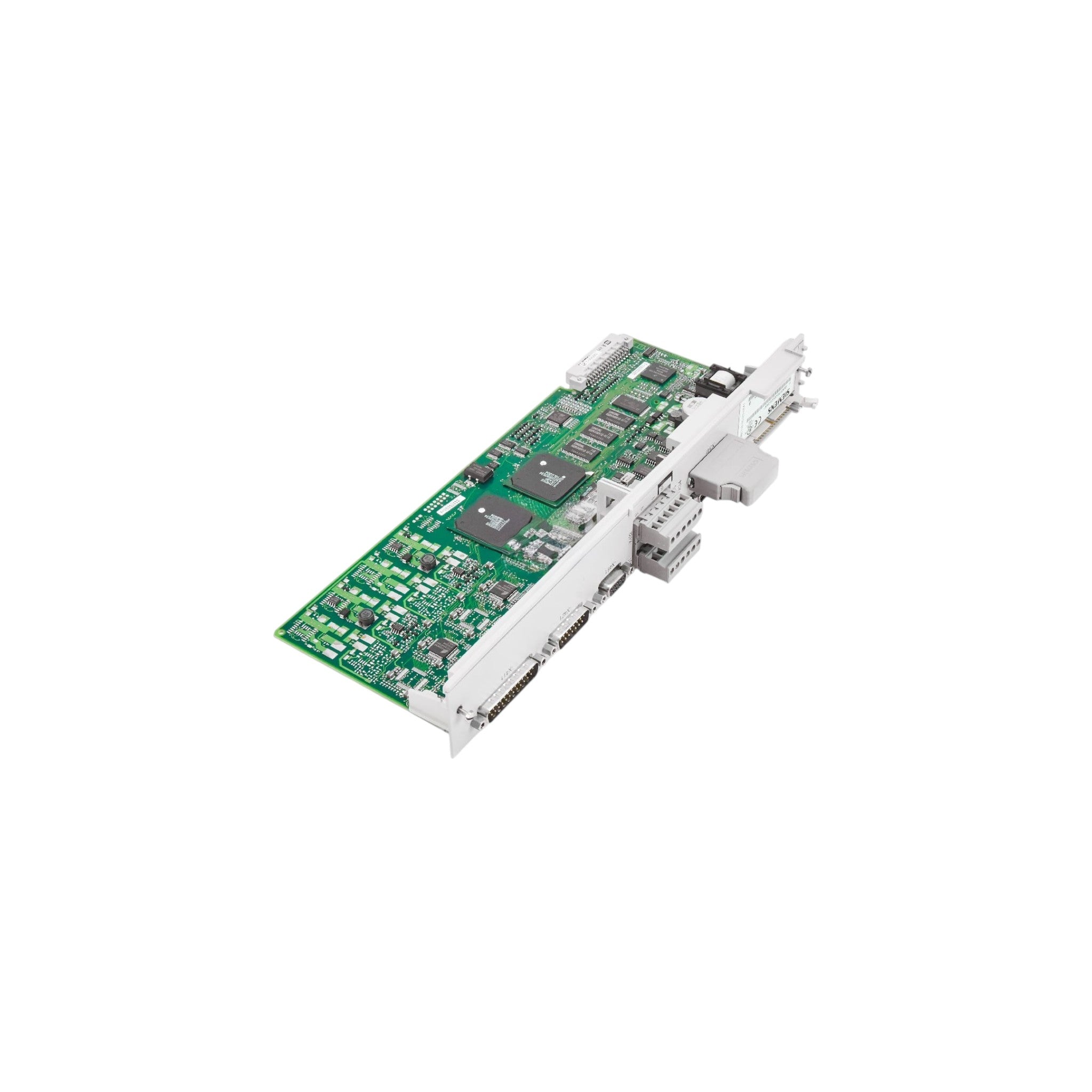

Siemens 6SN1118-0DM33-0AA0 – SIMODRIVE 611 Digital High Standard Control Unit
Part Number: 6SN1118-0DM33-0AA0
Manufacturer: Siemens
Product Family: SIMODRIVE 611 Digital
Module Type: High Standard Closed-Loop Control Plug-in Unit (2 Axes)
Product Description
The Siemens 6SN1118-0DM33-0AA0 is a SIMODRIVE 611 Digital High Standard closed-loop control plug-in unit designed for 2-axis servo drive and main spindle control in SINUMERIK CNC systems. It supports SIN/COS 1 Vpp direct measuring systems and provides precise position, speed, and torque control for high-performance machine tools. The module is intended for use with SIMODRIVE 611 Digital drive systems and requires NC software version 06.04.09 or later.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SN1118-0DM33-0AA0 |
| Product Family | SIMODRIVE 611 Digital |
| Module Type | High Standard Closed-Loop Control Unit |
| Number of Axes | 2 Axes |
| Control Type | Closed-Loop Digital Control |
| Measuring System | SIN/COS 1 Vpp Direct Measuring System |
| Encoder Support | SIN/COS (1 Vpp) Direct Measuring Systems |
| NC Software Requirement | Version 06.04.09 or later |
| Installation | Plug-in Control Module |
| Approximate Weight | 0.4 kg (0.9 lb) |
Key Features
- High Standard closed-loop control for 2 axes
- Supports feed drive (FD) and main spindle drive (MSD) applications
- Compatible with SIN/COS 1 Vpp direct measuring systems
- High-precision position, speed, and torque regulation
- Plug-in module for easy installation and replacement
- Designed for SIMODRIVE 611 Digital drive systems
- Reliable operation in demanding CNC machining environments
Compatible Systems
- Siemens SINUMERIK 810D
- Siemens SINUMERIK 840D
- SIMODRIVE 611 Digital
- Feed Drive (FD)
- Main Spindle Drive (MSD)
- Direct Measuring Systems (SIN/COS 1 Vpp)
Typical Applications
- CNC Turning Centers
- CNC Milling Machines
- Vertical and Horizontal Machining Centers
- Grinding Machines
- Gear Cutting Machines
- Industrial Motion Control Systems
