Product Description

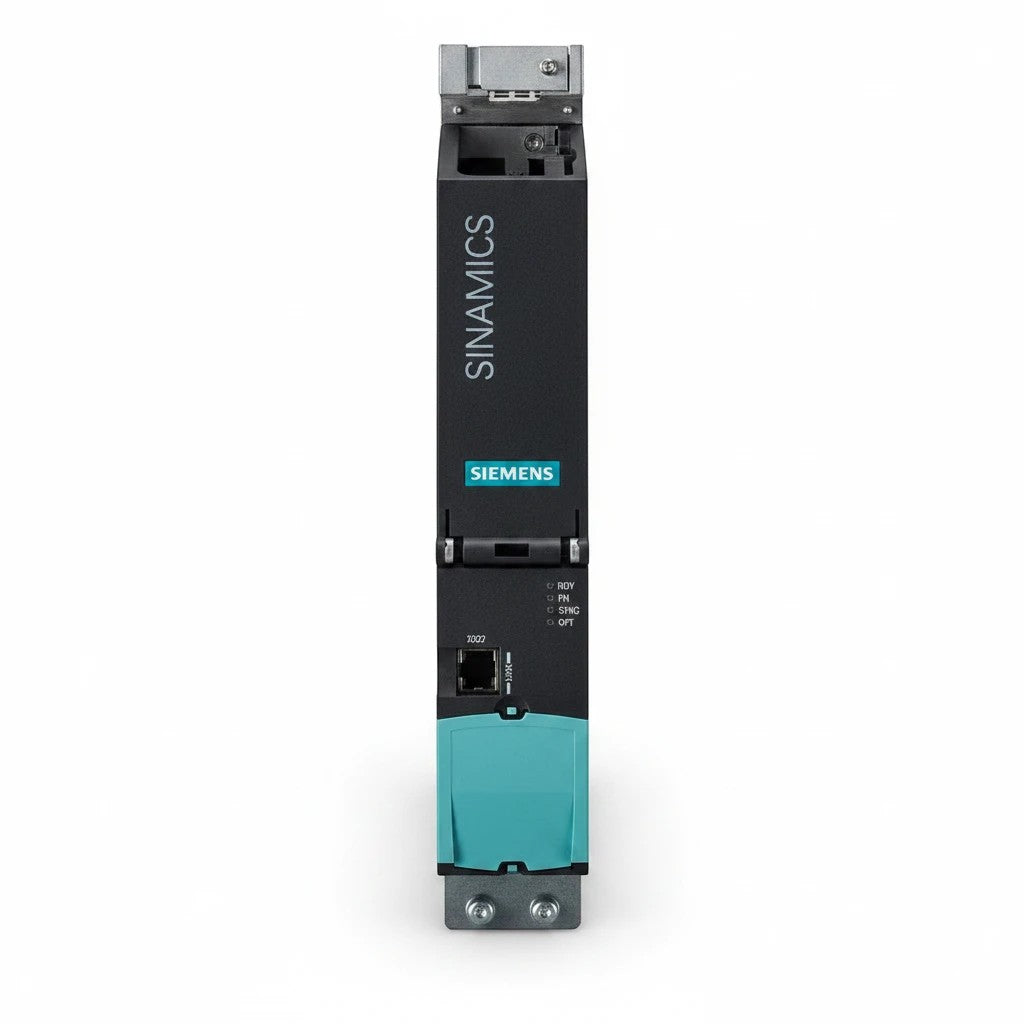

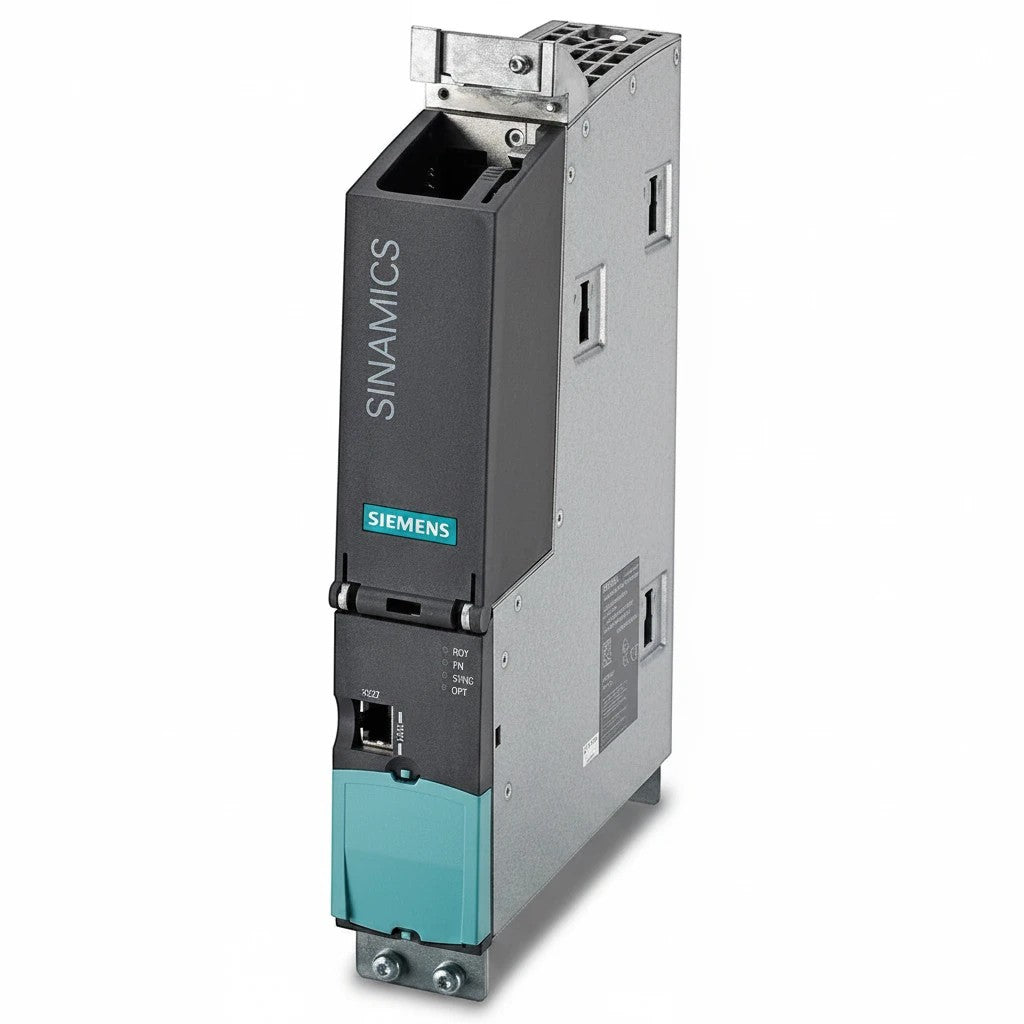

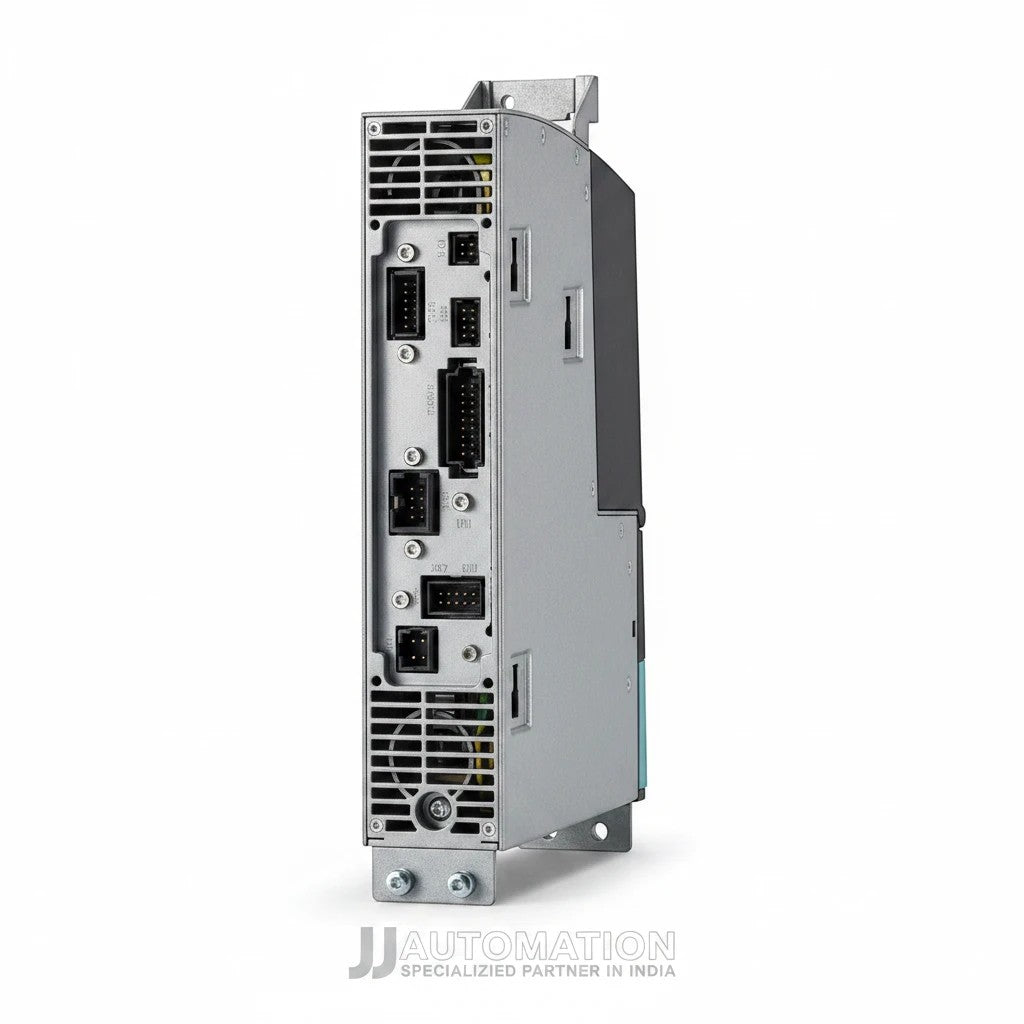

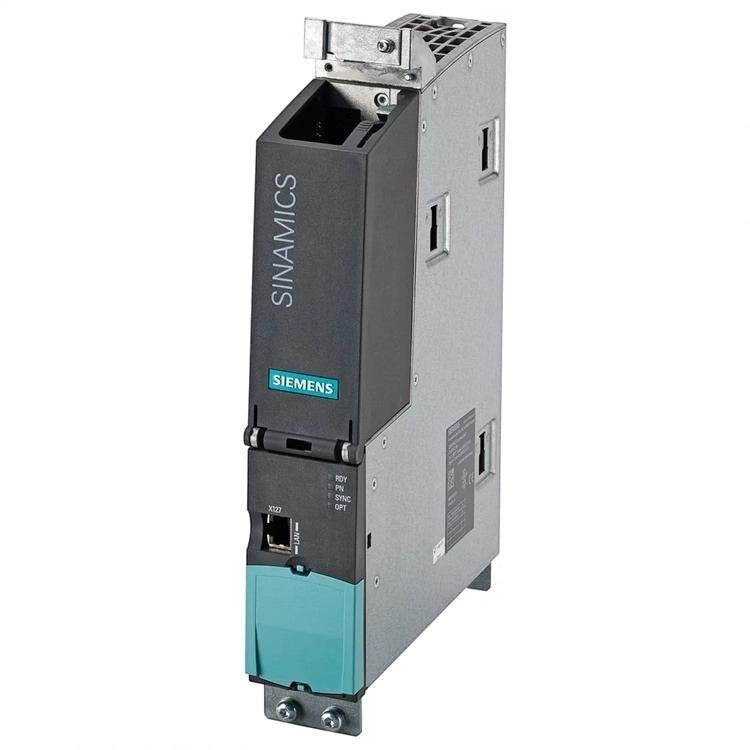

The Siemens 6SL3420-2TE11-7AA1 is a SINAMICS S120 Double Motor Module designed for high-performance motion control applications requiring precise speed, torque, and positioning control. This Booksize Compact motor module operates from a 600 V DC link and delivers dual 3-phase 400 V outputs rated at 1.7 A per axis, making it ideal for multi-axis automation systems. The module features internal air cooling, optimized pulse patterns, advanced safety support, and includes a DRIVE-CLiQ cable for seamless integration within SINAMICS S120 drive systems.
Engineered for machine tools, packaging machinery, robotics, material handling equipment, and industrial manufacturing systems, the 6SL3420-2TE11-7AA1 provides reliable and efficient drive performance while supporting advanced motion control functions.
Key Features
- Genuine Siemens SINAMICS S120 Double Motor Module
- DC link input voltage: 600 V DC
- Dual output channels: 3AC 400 V
- Rated output current: 1.7 A / 1.7 A
- Booksize Compact frame design
- Internal air cooling system
- Optimized pulse patterns for efficient motor control
- Supports advanced safety functions
- Includes DRIVE-CLiQ communication cable
- Designed for multi-axis motion control applications
- Seamless integration with SINAMICS S120 systems
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SL3420-2TE11-7AA1 |
| Product Family | SINAMICS S120 |
| Product Type | Double Motor Module |
| Input Voltage | 600 V DC |
| Output Voltage | 3AC 400 V |
| Rated Output Current | 1.7 A / 1.7 A |
| Frame Size | Booksize Compact |
| Cooling Method | Internal Air Cooling |
| Communication | DRIVE-CLiQ |
| Net Weight | 3.4 kg |
| Product Lifecycle | Active Product |
| Condition | New / Original Siemens Product |
Applications
- CNC Machine Tools
- Robotics Systems
- Packaging Equipment
- Printing Machinery
- Material Handling Systems
- Automated Production Lines
- Assembly Machines
- Motion Control Applications
- Industrial Automation Systems
Benefits
- High-precision motor control
- Compact space-saving design
- Reliable multi-axis operation
- Easy integration with SINAMICS architecture
- Enhanced machine productivity
- Reduced installation complexity
- Long-term Siemens lifecycle support
