Product Description

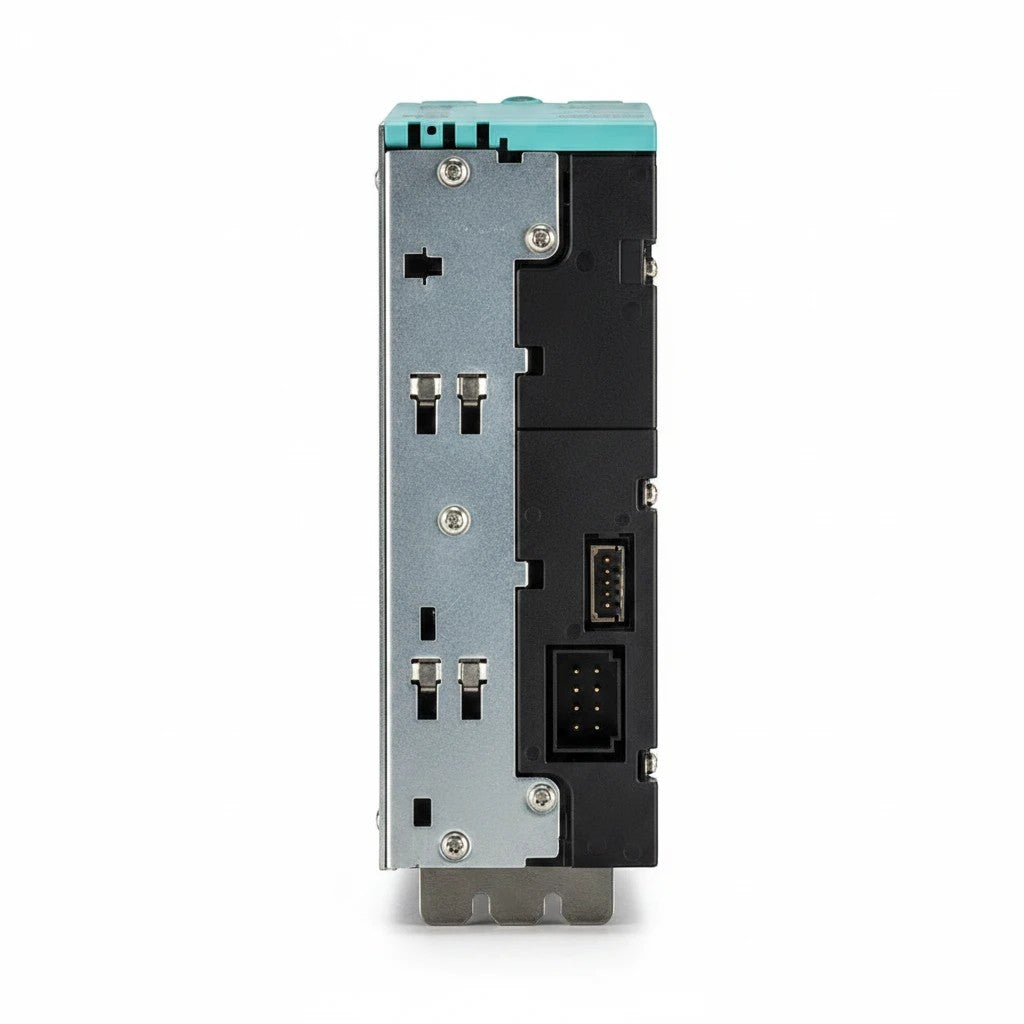

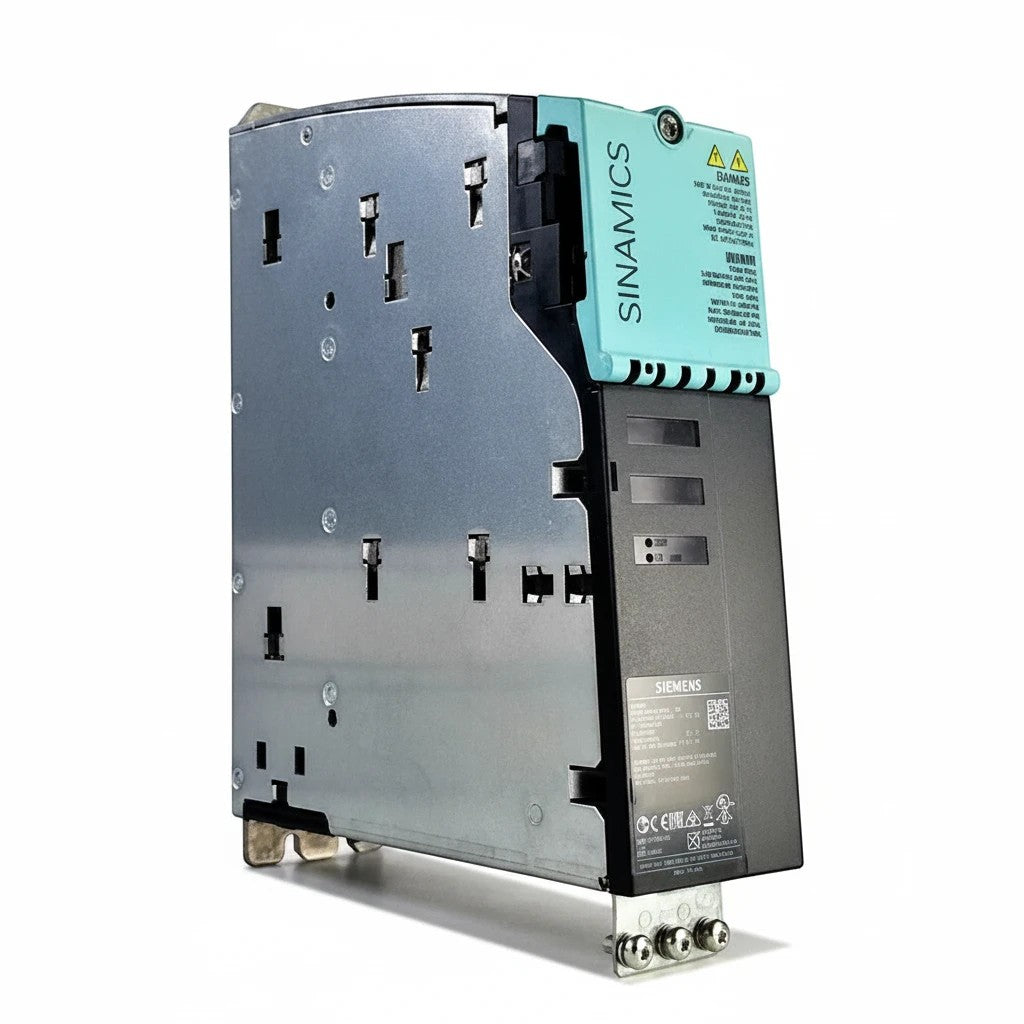

The Siemens 6SL3420-2TE13-0AA1 is a SINAMICS S120 Double Motor Module designed for high-performance multi-axis motion control applications. Operating from a 600 V DC link, this compact Booksize motor module delivers dual 3-phase 400 V outputs with a rated output current of 3 A per axis. Its space-saving design, internal air-cooling system, optimized pulse patterns, and integrated safety capabilities make it an ideal solution for advanced industrial automation systems. The module includes DRIVE-CLiQ connectivity for seamless integration with SINAMICS S120 drive architectures.
Designed for machine tools, robotics, packaging machinery, conveyor systems, printing equipment, and automated production lines, the 6SL3420-2TE13-0AA1 delivers reliable motor control, precise positioning, and efficient operation in demanding industrial environments.
Key Features
- Genuine Siemens SINAMICS S120 Double Motor Module
- DC link input voltage: 600 V DC
- Dual 3-phase 400 V motor outputs
- Rated output current: 3 A / 3 A
- Booksize Compact frame design
- Internal air-cooling system
- Optimized pulse patterns for smooth motor operation
- Supports higher-order safety functions
- Integrated DRIVE-CLiQ communication interface
- Designed for compact multi-axis drive systems
- High reliability and performance for industrial automation applications
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SL3420-2TE13-0AA1 |
| Product Family | SINAMICS S120 |
| Product Type | Double Motor Module |
| Input Voltage | 600 V DC |
| Output Voltage | 3AC 400 V |
| Rated Output Current | 3 A / 3 A |
| Rated Motor Power | Approx. 1.6 kW per channel |
| Frame Size | Booksize Compact |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
| Safety Functions | Supported |
| Approx. Weight | 3.4 kg |
| Product Lifecycle | Active Product |
| Condition | New / Original Siemens Product |
Applications
- CNC Machine Tools
- Robotics Systems
- Packaging Machinery
- Printing Equipment
- Conveyor Systems
- Material Handling Equipment
- Automated Assembly Lines
- Motion Control Applications
- Industrial Manufacturing Systems
Benefits
- Precise dual-axis motor control
- Compact installation footprint
- Easy integration into SINAMICS S120 systems
- Reduced wiring through DRIVE-CLiQ communication
- Enhanced machine productivity
- Reliable operation in demanding environments
- Long-term Siemens product support and availability
