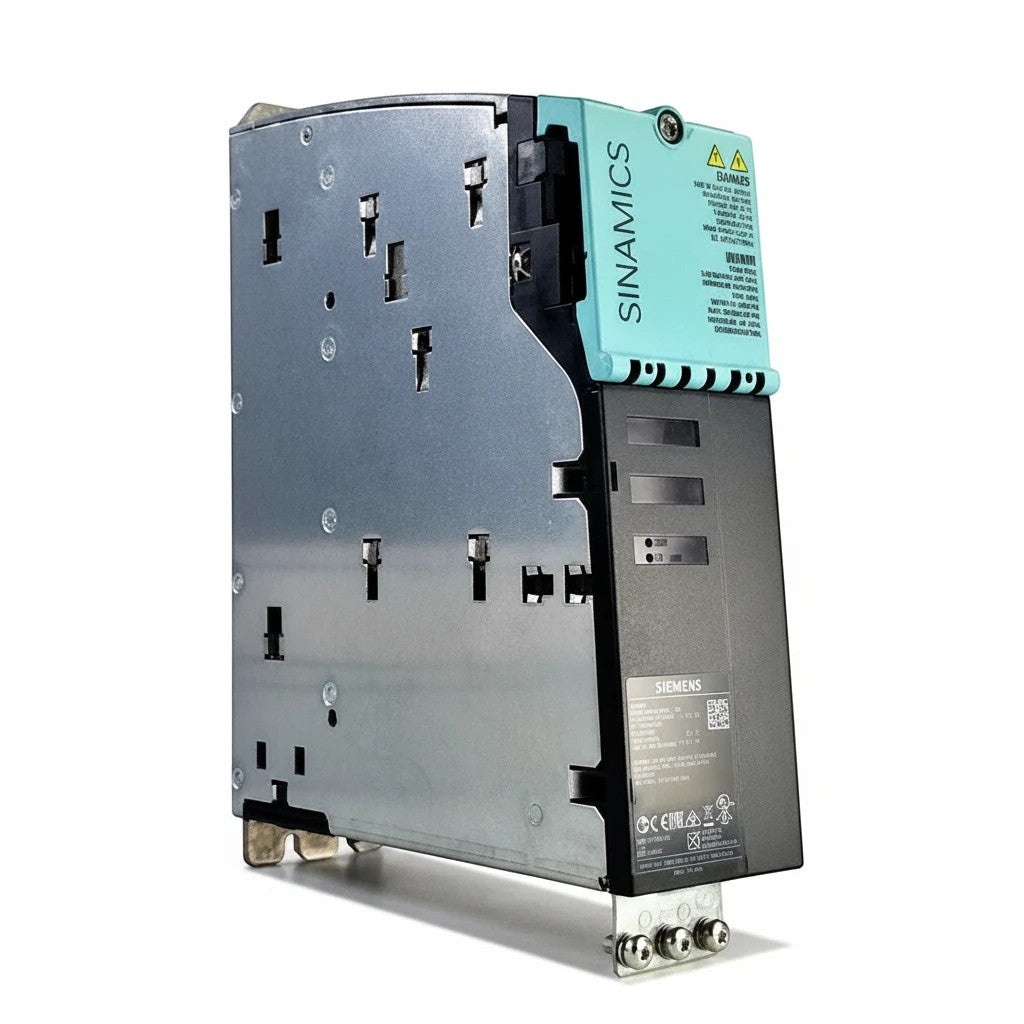

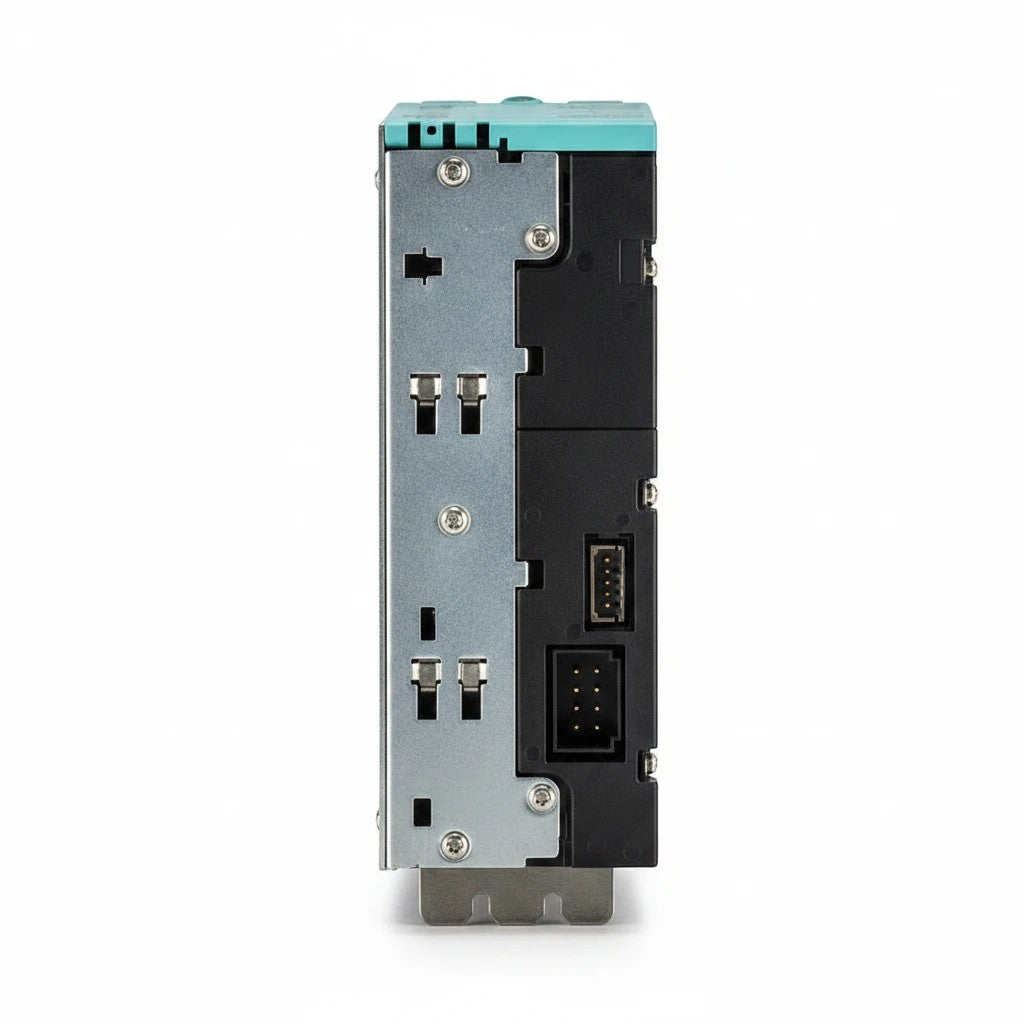

The Siemens 6SL3420-2TE15-0AA1 is a SINAMICS S120 Double Motor Module engineered for advanced multi-axis motion control applications. Designed for operation with a 600 V DC link, this Booksize Compact motor module delivers dual 3-phase 400 V outputs with a rated output current of 5 A per axis. Its compact footprint, internal air-cooling system, optimized pulse patterns, and integrated safety capabilities make it an ideal choice for high-performance industrial automation systems. The module also includes a DRIVE-CLiQ cable for seamless communication and integration within the SINAMICS S120 platform.
Built for machine tools, robotics, packaging equipment, material handling systems, printing machinery, and automated production lines, the 6SL3420-2TE15-0AA1 provides reliable motor control, precise positioning, and efficient operation in demanding industrial environments.
Key Features
- Genuine Siemens SINAMICS S120 Double Motor Module
- DC link input voltage: 600 V DC
- Dual 3-phase 400 V motor outputs
- Rated output current: 5 A / 5 A
- Maximum output current: 15 A per axis
- Booksize Compact frame design
- Internal air-cooling system
- Optimized pulse patterns for smooth motor operation
- Supports higher-order safety functions
- Integrated DRIVE-CLiQ communication interface
- Compact solution for dual-axis servo applications
- Designed for high-performance industrial automation systems
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SL3420-2TE15-0AA1 |
| Product Family | SINAMICS S120 |
| Product Type | Double Motor Module |
| Input Voltage | 510–720 V DC (600 V DC nominal) |
| Output Voltage | 3AC 400 V |
| Rated Output Current | 5 A / 5 A |
| Maximum Output Current | 15 A / 15 A |
| Rated Power | 2 × 2.7 kW |
| DC Link Current | 12 A |
| Frame Size | Booksize Compact |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
| Safety Rating | SIL 2 / PL d / Category 3 |
| Weight | Approx. 3.4 kg |
| Product Lifecycle | Active Product |
| Condition | New / Original Siemens Product |
Applications
- CNC Machine Tools
- Robotics Systems
- Packaging Machinery
- Printing Equipment
- Conveyor Systems
- Material Handling Equipment
- Automated Assembly Lines
- Servo Motion Control Systems
- Industrial Manufacturing Plants
Benefits
- Precise dual-axis motor control
- Compact cabinet installation
- Reliable high-performance operation
- Reduced wiring through DRIVE-CLiQ integration
- Advanced functional safety support
- Optimized energy efficiency and motor performance
- Long-term Siemens lifecycle support and service availability
