Product Description

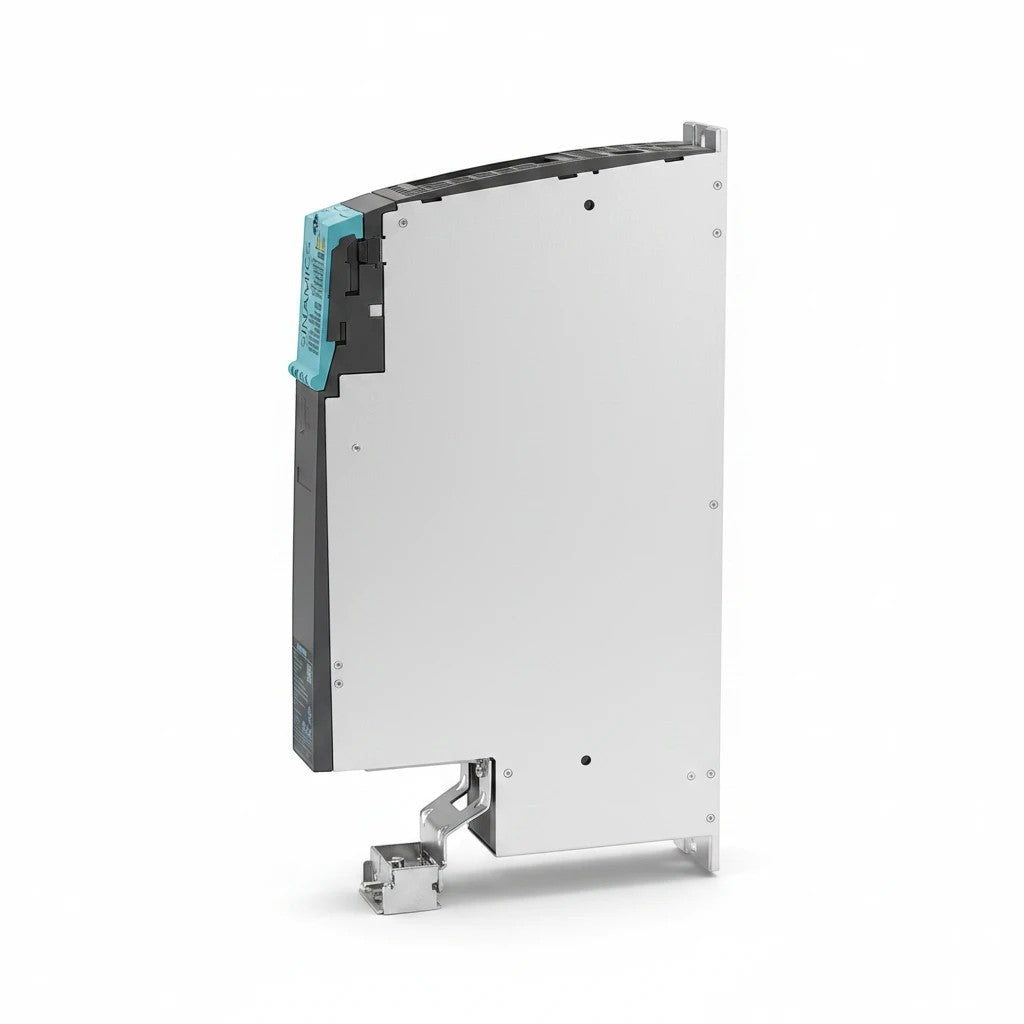

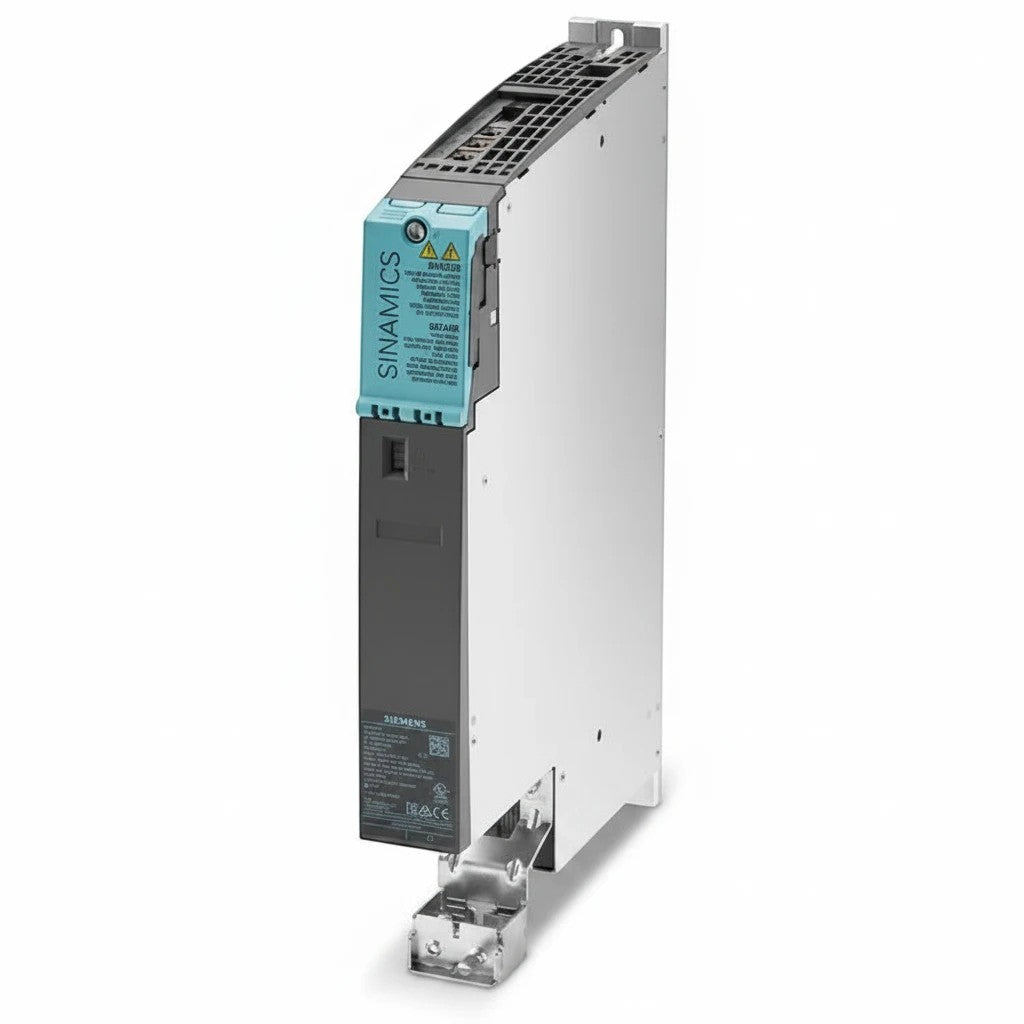

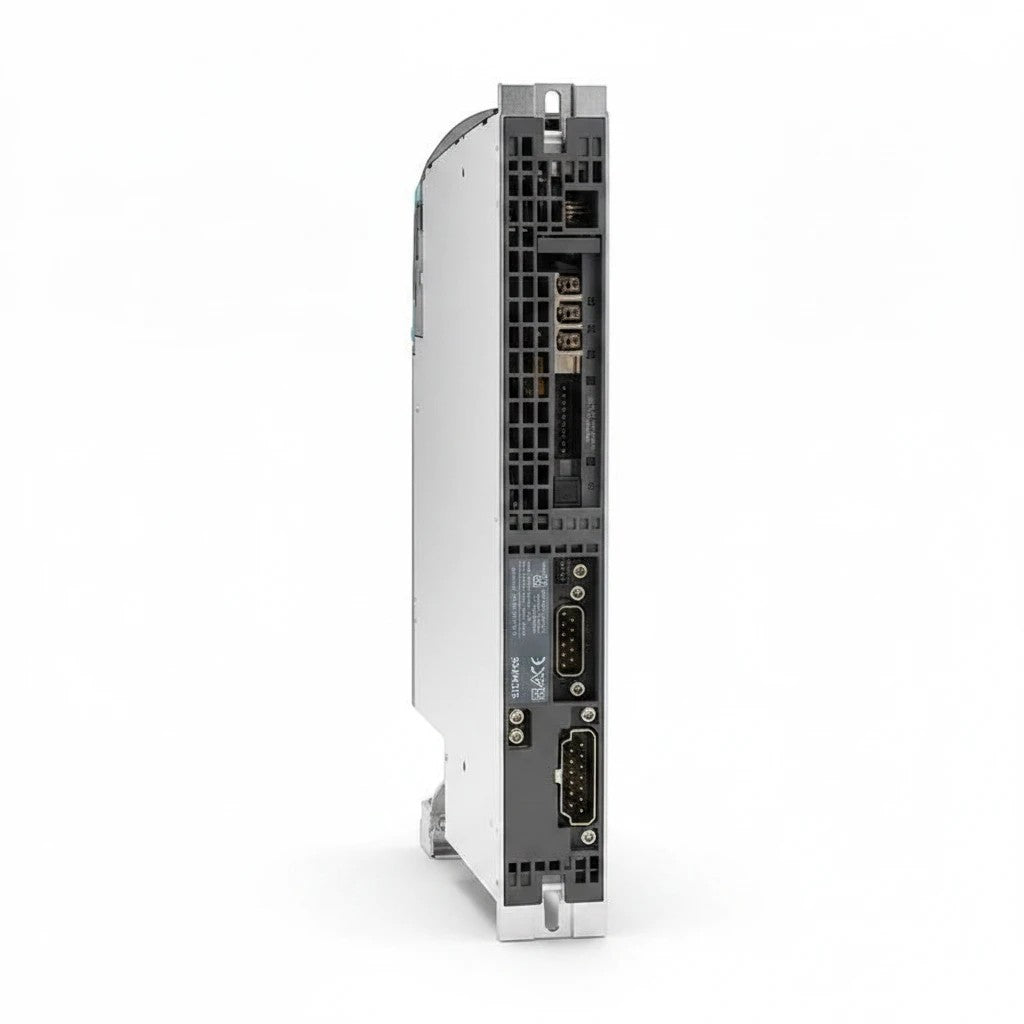

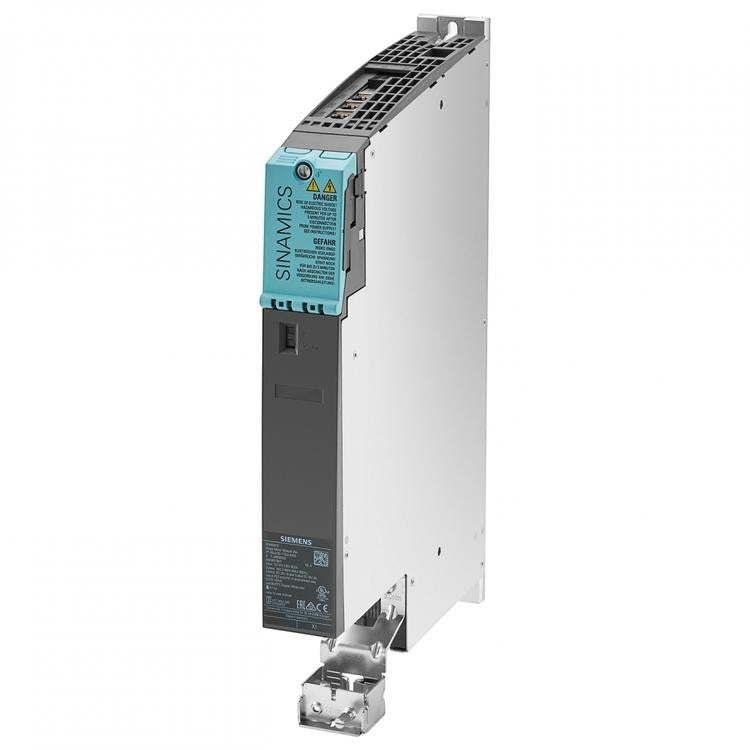

The Siemens 6SL3120-2TE15-0AD0 is a SINAMICS S120 Double Motor Module engineered for advanced multi-axis motion control applications. Designed to operate from a 600 V DC link, this Booksize D-Type module delivers two independent 3-phase 400 V AC motor outputs with a continuous output current of 5 A per axis. Featuring optimized pulse patterns, internal air cooling, DRIVE-CLiQ communication, and support for Extended Safety Integrated functions, the module provides precise motor control, high dynamic performance, and reliable operation in demanding industrial environments.
The compact Booksize design makes it ideal for machine tools, robotics, packaging equipment, conveyor systems, material handling applications, and automated production lines requiring synchronized multi-axis servo control.
Key Features
- Genuine Siemens SINAMICS S120 Double Motor Module
- DC link input voltage: 600 V DC
- Dual 3-phase 400 V AC motor outputs
- Rated output current: 5 A / 5 A
- Booksize D-Type compact frame
- Internal air-cooling system
- Integrated DRIVE-CLiQ communication interface
- Optimized pulse patterns for smooth motor operation
- Supports Extended Safety Integrated functions
- Designed for high-performance multi-axis applications
- Seamless integration with SINAMICS S120 drive systems
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SL3120-2TE15-0AD0 |
| Product Family | SINAMICS S120 |
| Product Type | Double Motor Module |
| Input Voltage | DC 510–720 V (600 V DC nominal) |
| Output Voltage | 3AC 400 V |
| Rated Output Current | 5 A / 5 A |
| Base Load Current | 4.3 A / 4.3 A |
| Rated Pulse Frequency | 4 kHz |
| Frame Size | Booksize D-Type |
| Cooling Method | Internal Air Cooling |
| Communication Interface | DRIVE-CLiQ |
| Degree of Protection | IP20 |
| Safety Functions | Extended Safety Integrated |
| Weight | Approx. 4.7 kg |
| Product Lifecycle | Active Product |
| Condition | New / Original Siemens Product |
Applications
- CNC Machine Tools
- Robotics and Servo Systems
- Packaging Machinery
- Printing Equipment
- Conveyor Systems
- Material Handling Equipment
- Automated Assembly Lines
- Industrial Motion Control Systems
- Manufacturing Automation
Benefits
- Precise dual-axis servo motor control
- Compact Booksize design reduces cabinet space requirements
- Reliable DRIVE-CLiQ communication architecture
- Enhanced machine safety through integrated safety functions
- High efficiency and dynamic performance
- Simplified integration into SINAMICS S120 systems
- Long-term Siemens lifecycle support and availability
