Description

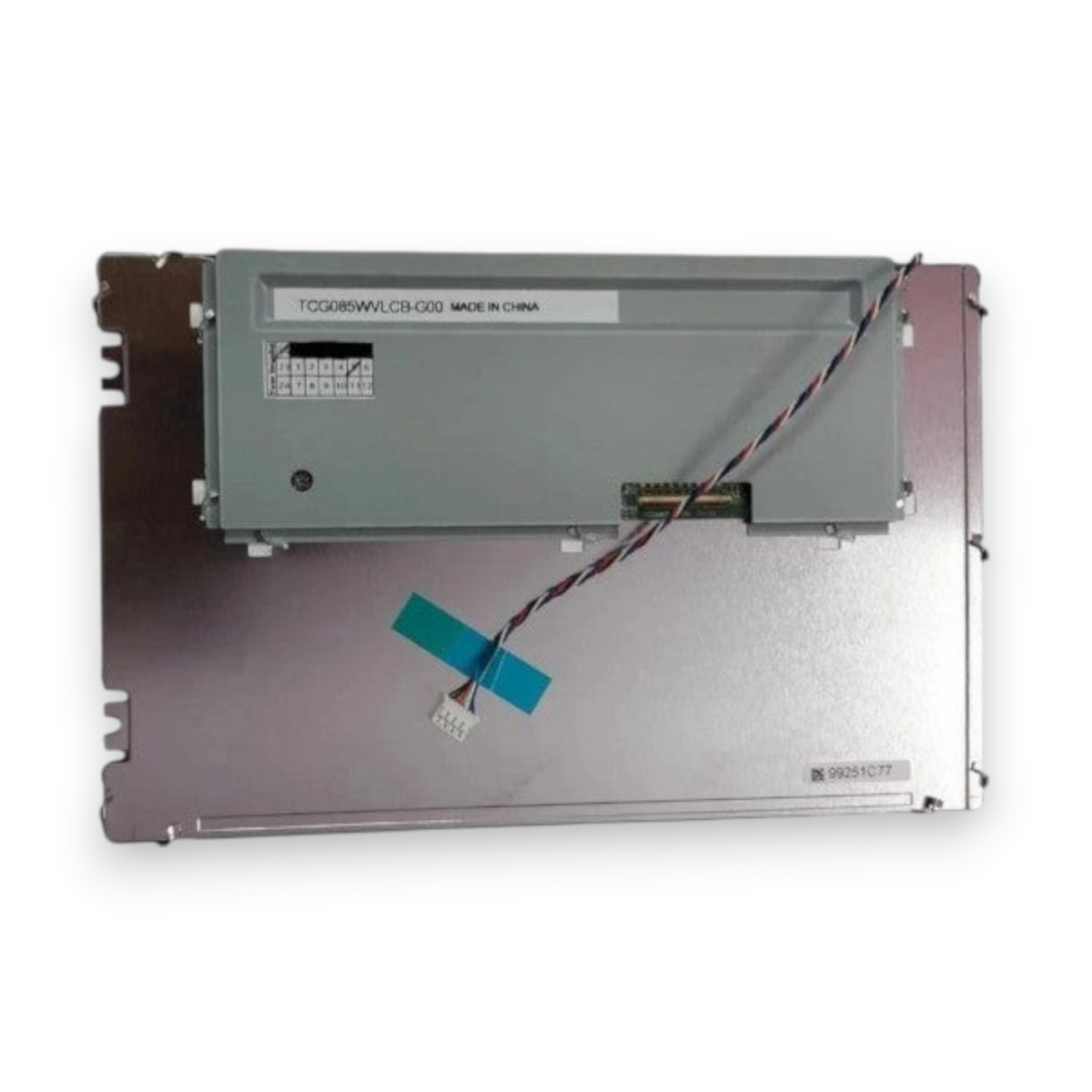

The Kyocera TCG085WVLCB-G00 is an 8.5-inch a-Si TFT colour LCD module (800 × 480 WVGA) with built-in white LED backlight, fitted in the Siemens Sinumerik 808D Basic operator panel. It is a direct replacement for a dim, faded, dead or damaged screen. Available new and as tested used/refurbished units, 100% checked before dispatch and supplied with warranty.
Key specifications
- Part number: TCG085WVLCB-G00 (Kyocera)
- Screen size: 8.5 inch diagonal, a-Si TFT-LCD, transmissive
- Resolution: 800 (RGB) × 480 (WVGA)
- Brightness: 400 cd/m²
- Contrast ratio: 500:1
- Backlight: built-in white LED (WLED)
- Active area: 184.8 (W) × 110.88 (H) mm
- Outline dimensions: 210 (W) × 134 (H) × 9 (D) mm
- Supply voltage (VDD): 3.3 V typical, 3.0 to 3.6 V range
- Operating temperature: −20 °C to +70 °C
- Weight: 305 g typical
- Used in: Siemens Sinumerik 808D Basic (PPU) operator panel
- Supplied as: bare LCD module, no touch overlay or housing
- Condition: New or Used/Refurbished (select above)
Send your 808D panel model on WhatsApp +91 8826207004 or email sales@jjautomation.in to confirm compatibility and get the best price.
