Product Description

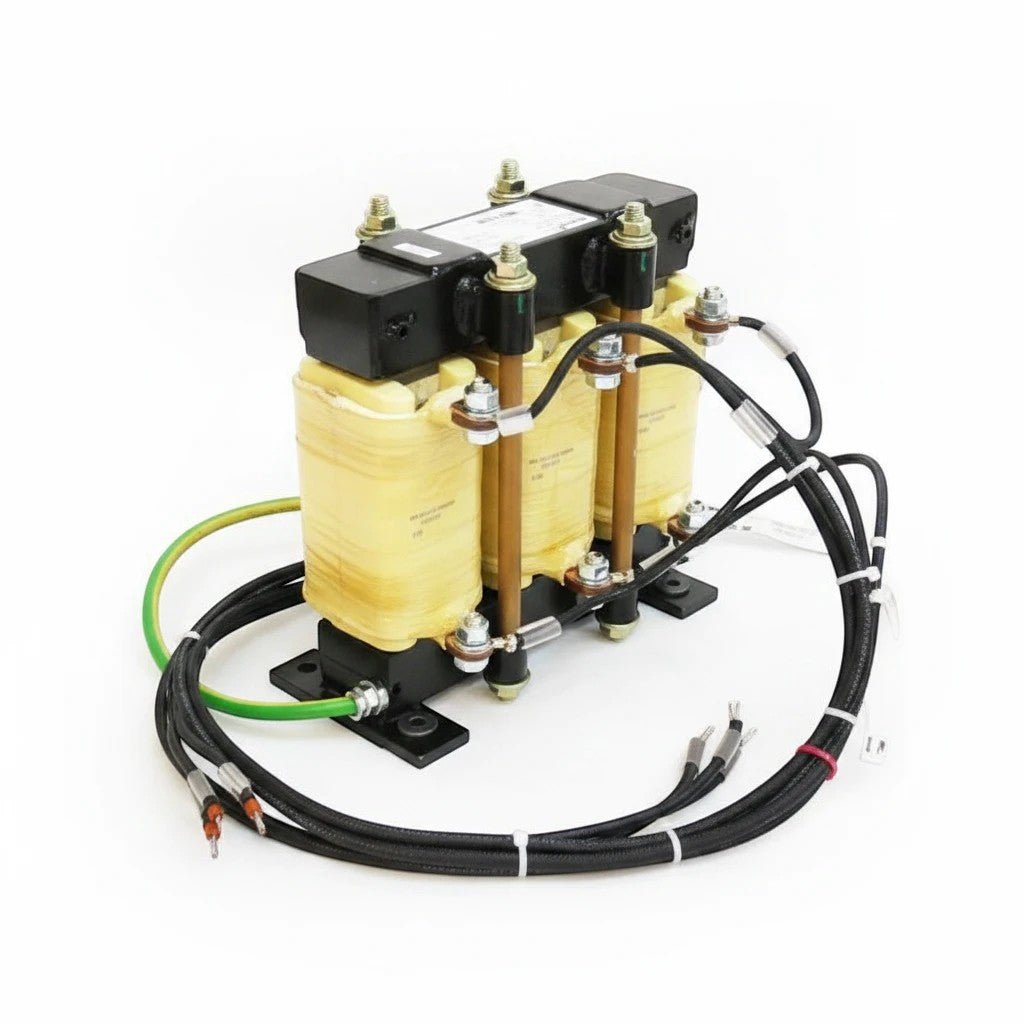

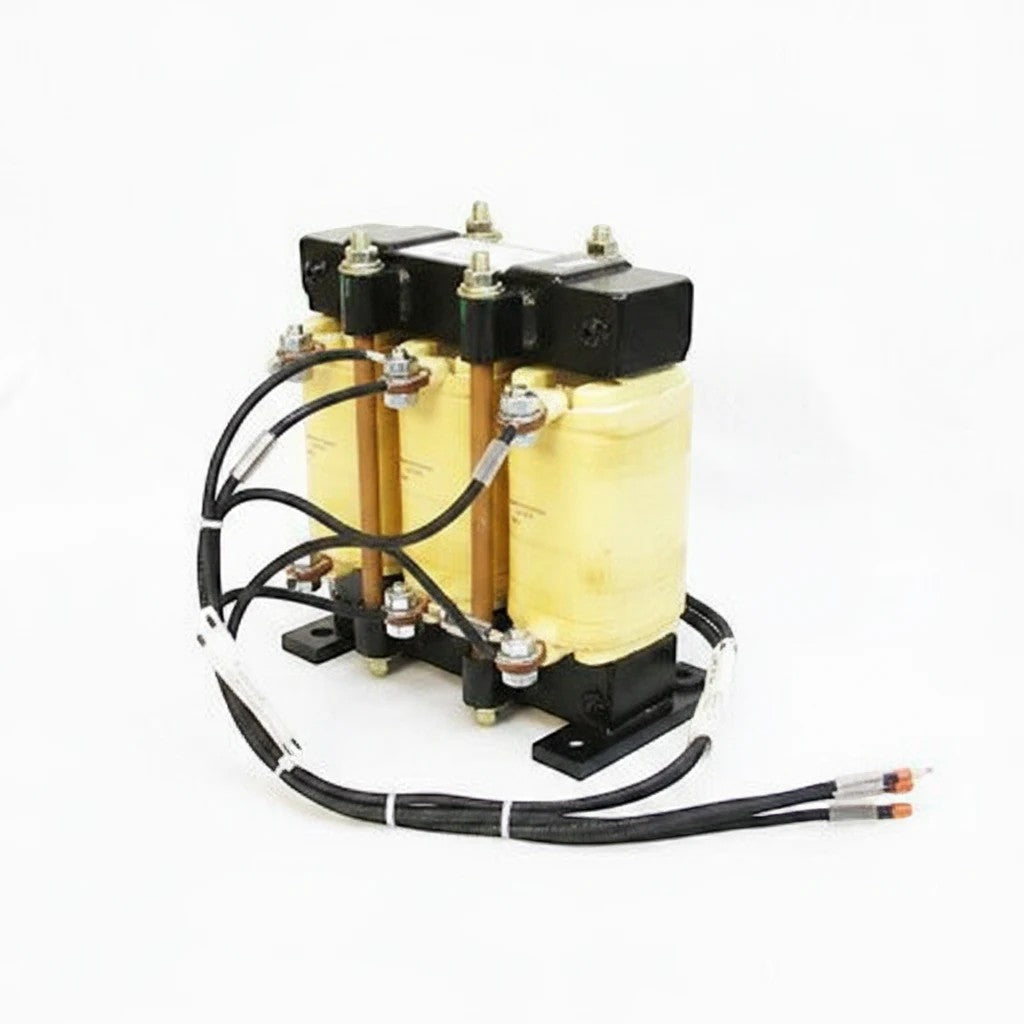

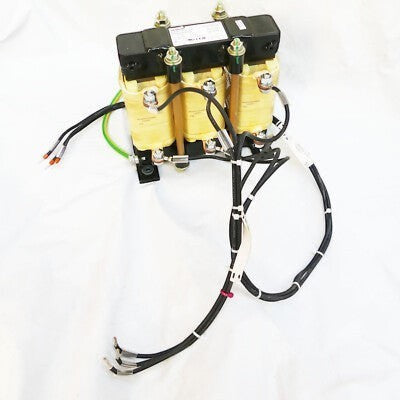

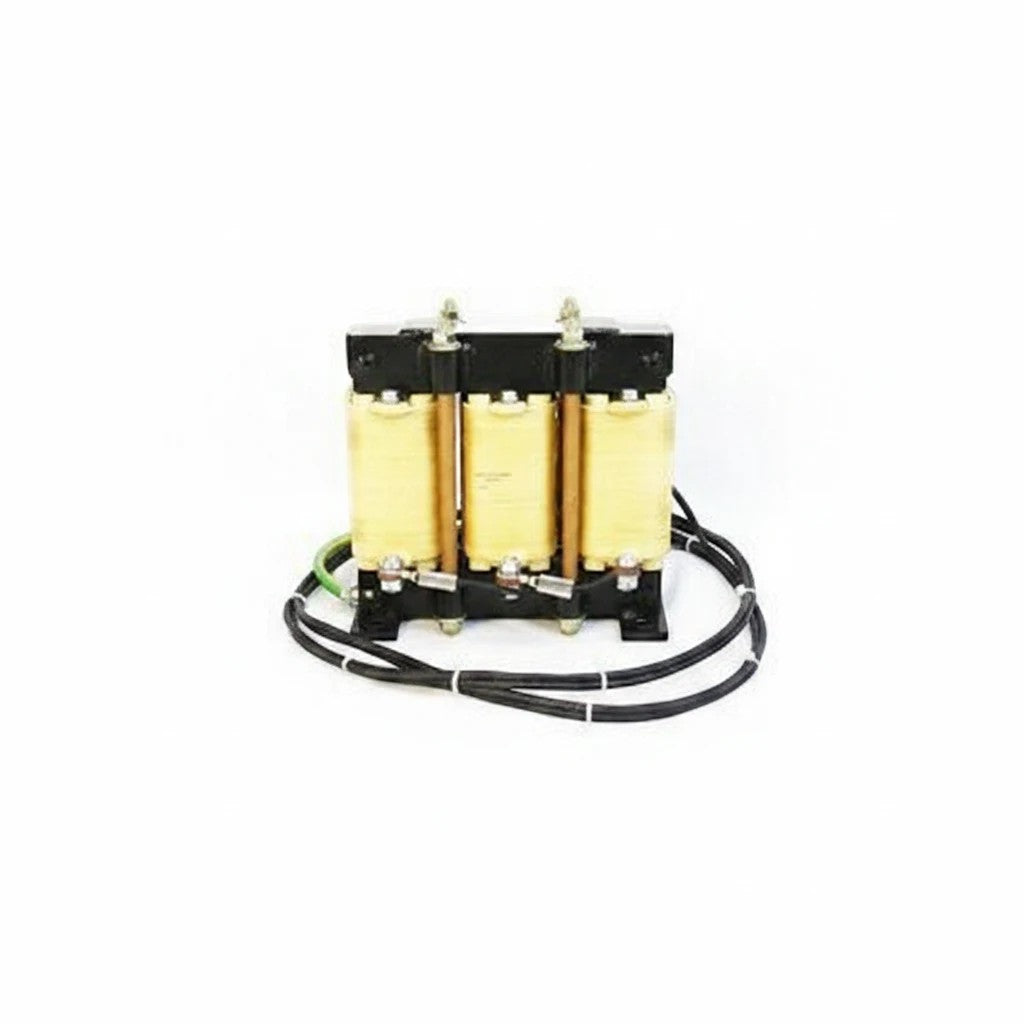

The Siemens 6SE7024-7ES87-1FE0 is a high-performance output reactor designed for use with SIMOVERT MASTERDRIVES and SINAMICS drive systems. Installed between the drive and motor, this three-phase reactor minimizes voltage peaks, reduces motor insulation stress, suppresses electromagnetic interference (EMI), and improves overall system reliability. It is rated for 380–460V AC operation with a continuous current capacity of 47A and supports output frequencies up to 120Hz with a pulse frequency of 3kHz.
The reactor is ideal for applications requiring long motor cable runs, improved motor protection, and enhanced EMC performance. It is commonly deployed in CNC machine tools, robotics, material handling systems, packaging equipment, printing machinery, and other demanding industrial automation environments.
Key Features
- Genuine Siemens SIMOVERT MASTERDRIVES output reactor
- Three-phase reactor design
- Rated current: 47A
- Operating voltage: 380–460V AC
- Maximum output frequency: 120Hz
- Pulse frequency: 3kHz
- Reduces PWM-related voltage spikes
- Improves motor insulation protection
- Minimizes bearing currents and cable reflections
- Enhances EMC performance
- Suitable for SINAMICS and SIMOVERT MASTERDRIVES systems
- Designed for industrial motion control applications
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SE7024-7ES87-1FE0 |
| Product Family | SIMOVERT MASTERDRIVES / SINAMICS |
| Product Type | Output Reactor |
| Phase Configuration | 3-Phase |
| Rated Voltage | 380–460V AC |
| Rated Current | 47A |
| Maximum Output Frequency | 120Hz |
| Pulse Frequency | 3kHz |
| Product Family Category | Motor Reactors for Booksize Format |
| Weight | 15.6 kg |
| Dimensions (H × W × D) | 210 × 260 × 340 mm |
| Country of Origin | Czech Republic |
| Product Lifecycle | Active Product |
| Condition | New / Original Siemens Product |
Applications
- SIMOVERT MASTERDRIVES Drive Systems
- SINAMICS Drive Systems
- CNC Machine Tools
- Servo Motor Applications
- Robotics and Automation
- Material Handling Equipment
- Packaging Machinery
- Printing Equipment
- Conveyor Systems
- Industrial Motion Control Installations
Benefits
- Protects motors from harmful voltage transients
- Extends motor insulation life
- Improves electromagnetic compatibility (EMC)
- Supports longer motor cable lengths
- Reduces motor bearing current damage
- Enhances drive system reliability and efficiency
- Minimizes electrical noise and interference
- Fully compatible with Siemens industrial drive architectures
