Description
Product Description

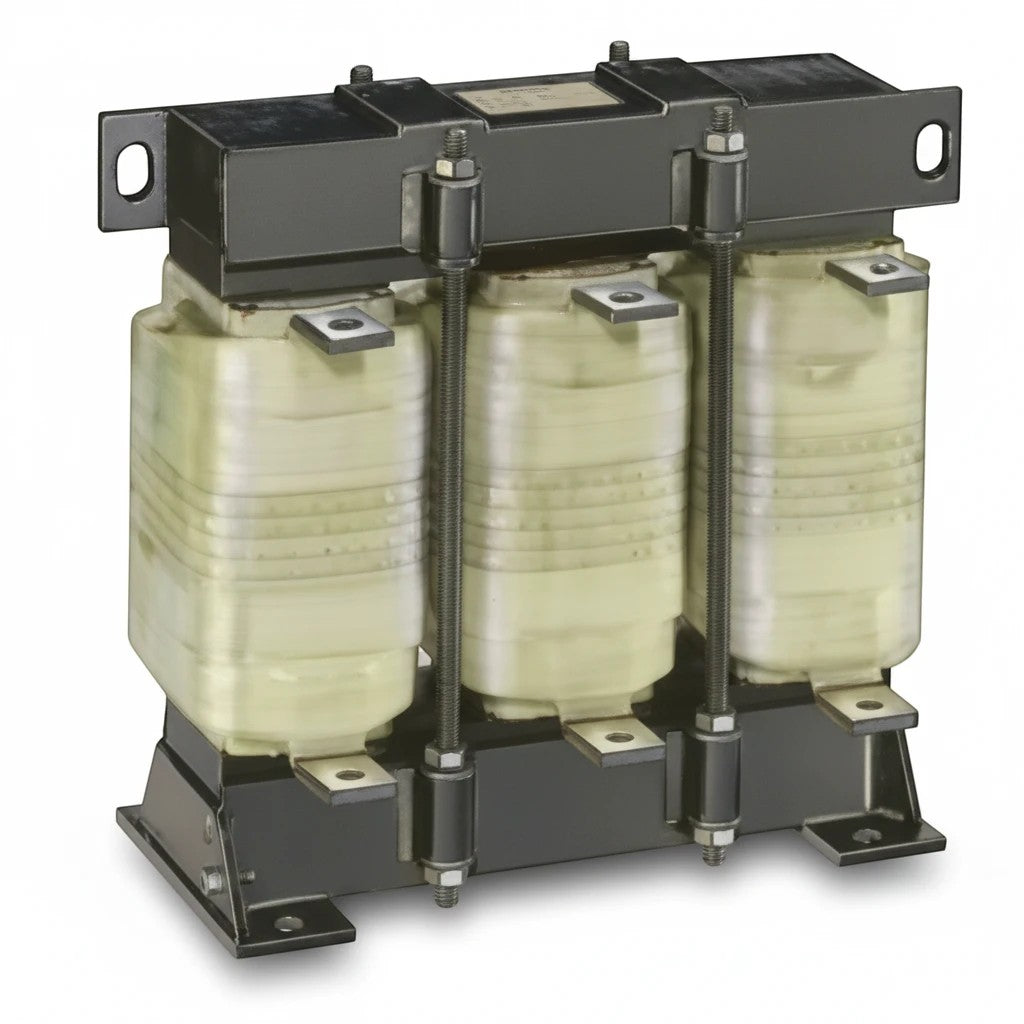

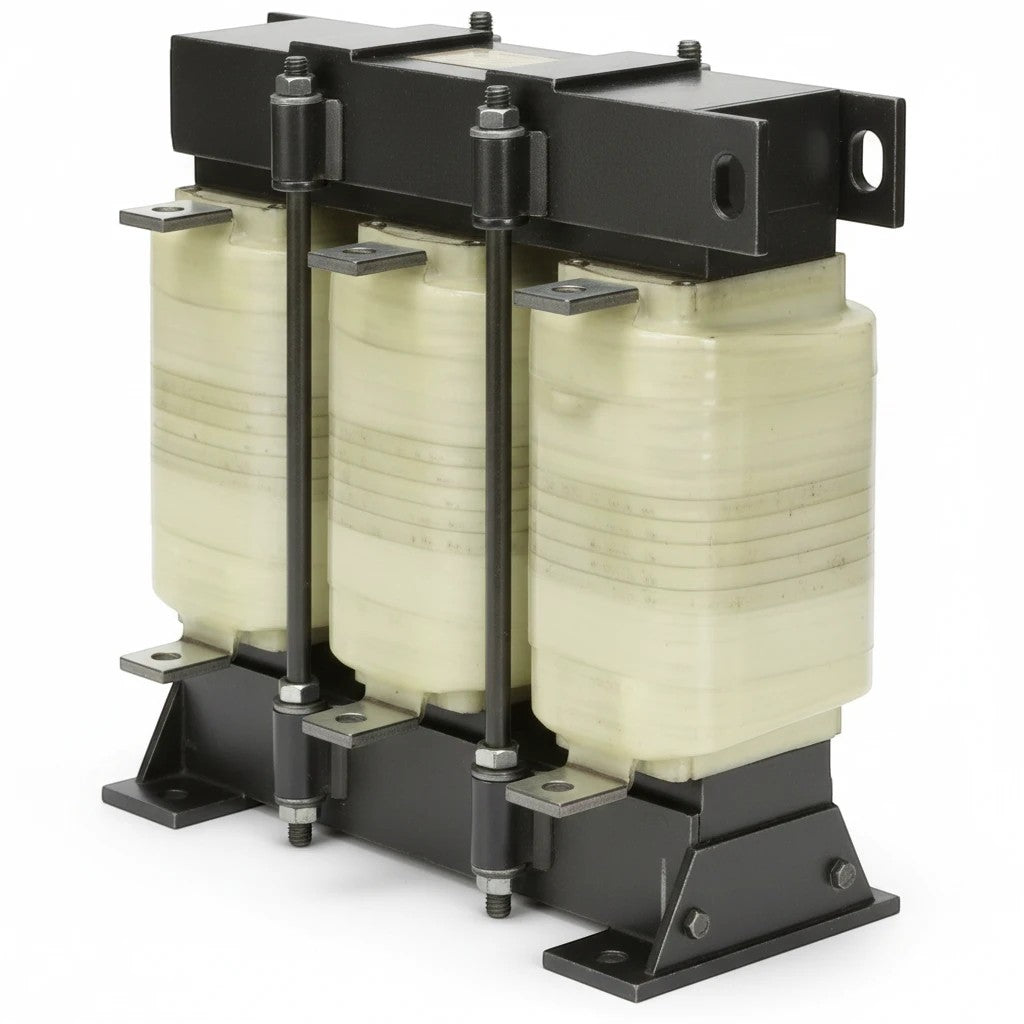

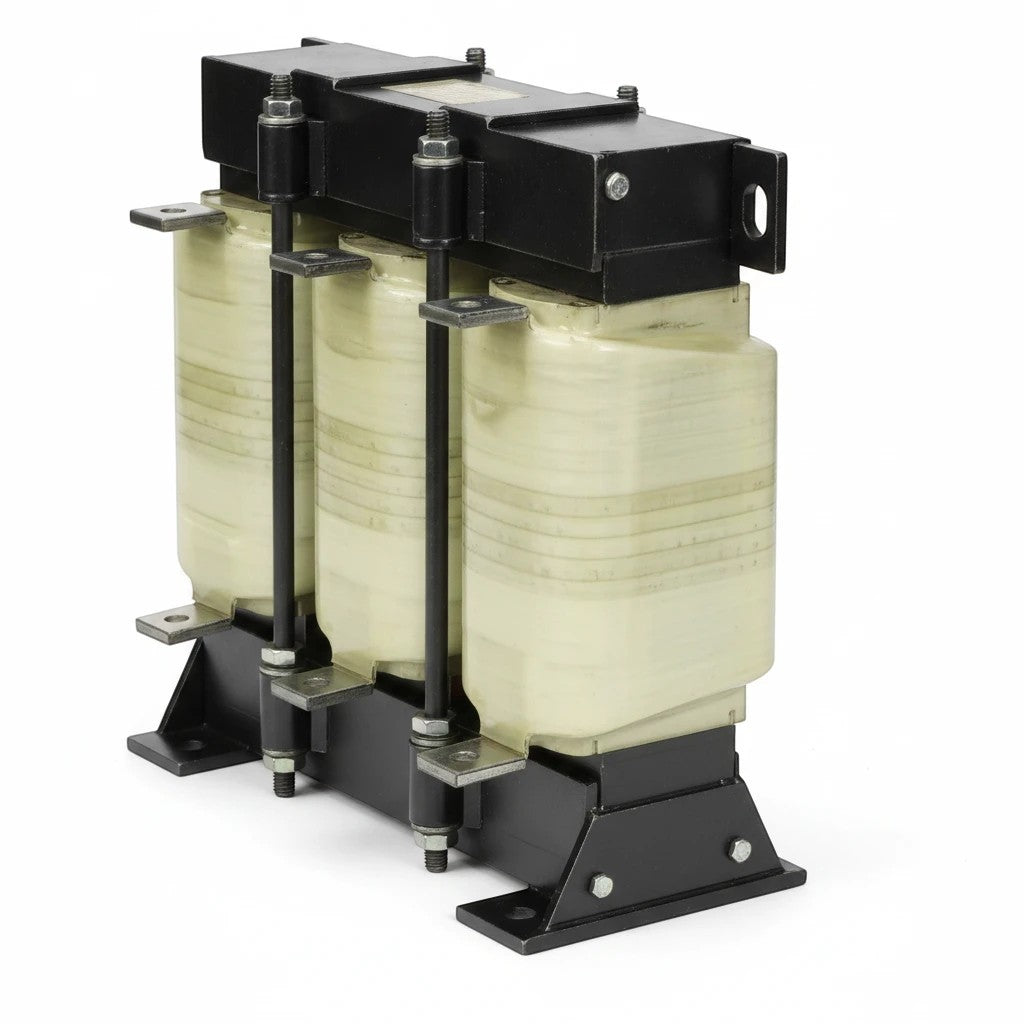

The Siemens 6SE7027-2ES87-1FE0 is a high-performance output reactor designed for SIMOVERT MASTERDRIVES and compatible SINAMICS drive systems. Installed between the inverter and motor, this three-phase reactor minimizes voltage peaks, reduces motor insulation stress, suppresses electromagnetic interference (EMI), and improves overall drive system reliability. It is designed for 380–460 V AC applications with a rated current of 72 A, supporting output frequencies up to 120 Hz and a pulse frequency of 3 kHz.
The reactor enables longer motor cable lengths while protecting motors from PWM-induced voltage reflections and bearing currents. It is widely used in CNC machinery, robotics, conveyors, packaging equipment, material handling systems, and other demanding industrial automation applications where reliable motor protection and enhanced EMC performance are essential.
Key Features
- Genuine Siemens SIMOVERT MASTERDRIVES output reactor
- Three-phase motor reactor design
- Rated current: 72 A
- Operating voltage: 380–460 V AC
- Maximum output frequency: 120 Hz
- Pulse frequency: 3 kHz
- Reduces PWM-related voltage spikes
- Improves motor insulation protection
- Minimizes bearing currents and cable reflections
- Enhances EMC performance
- Supports extended motor cable lengths
- Compatible with SIMOVERT MASTERDRIVES and SINAMICS drive systems
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SE7027-2ES87-1FE0 |
| Product Family | SIMOVERT MASTERDRIVES / SINAMICS |
| Product Type | Output Reactor |
| Phase Configuration | 3-Phase |
| Rated Voltage | 380–460 V AC |
| Rated Current | 72 A |
| Maximum Output Frequency | 120 Hz |
| Pulse Frequency | 3 kHz |
| Installation | Between Drive and Motor |
| Product Family Category | Motor Reactors for Booksize Format |
| Net Weight | Approx. 11.7 kg |
| Country of Origin | Czech Republic |
| Protection Class | IP00 |
| Product Lifecycle | Active Product |
| Condition | New / Original Siemens Product |
Applications
- SIMOVERT MASTERDRIVES Drive Systems
- SINAMICS Drive Systems
- CNC Machine Tools
- Servo Motor Applications
- Robotics and Automation
- Material Handling Equipment
- Packaging Machinery
- Printing Equipment
- Conveyor Systems
- Industrial Motion Control Installations
Benefits
- Protects motors from harmful voltage transients
- Extends motor insulation life
- Improves electromagnetic compatibility (EMC)
- Supports longer motor cable installations
- Reduces motor bearing current damage
- Enhances drive system reliability and efficiency
- Minimizes electrical noise and interference
- Fully compatible with Siemens industrial drive architectures
