Product Description

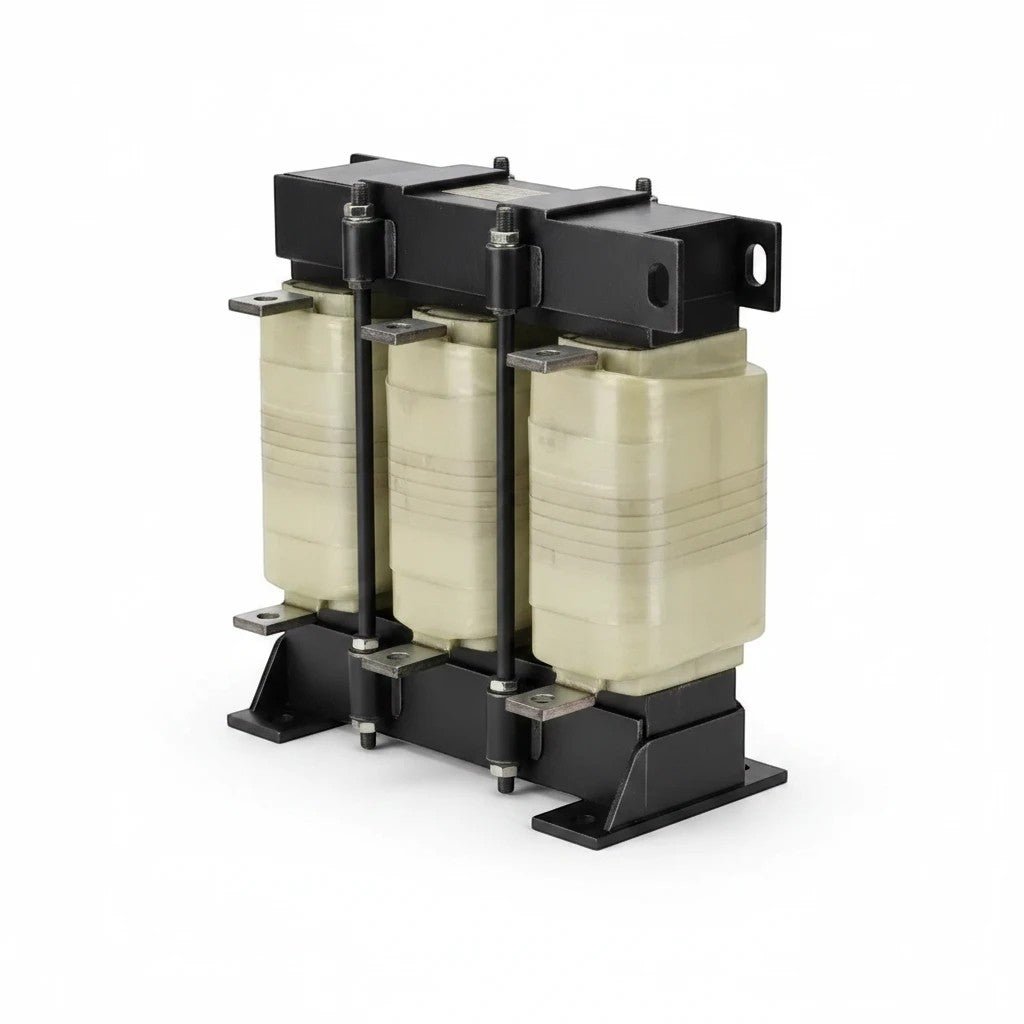

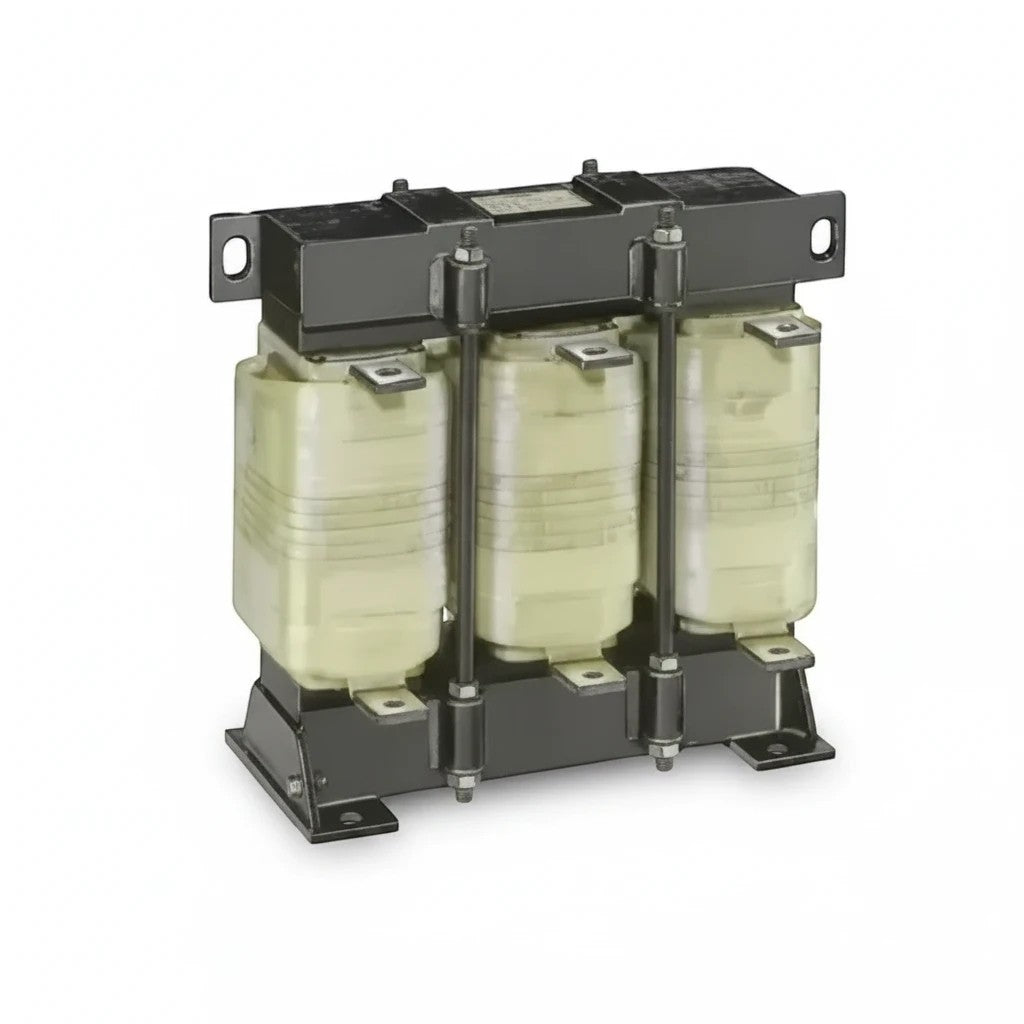

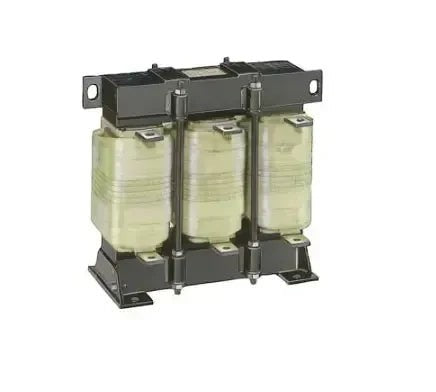

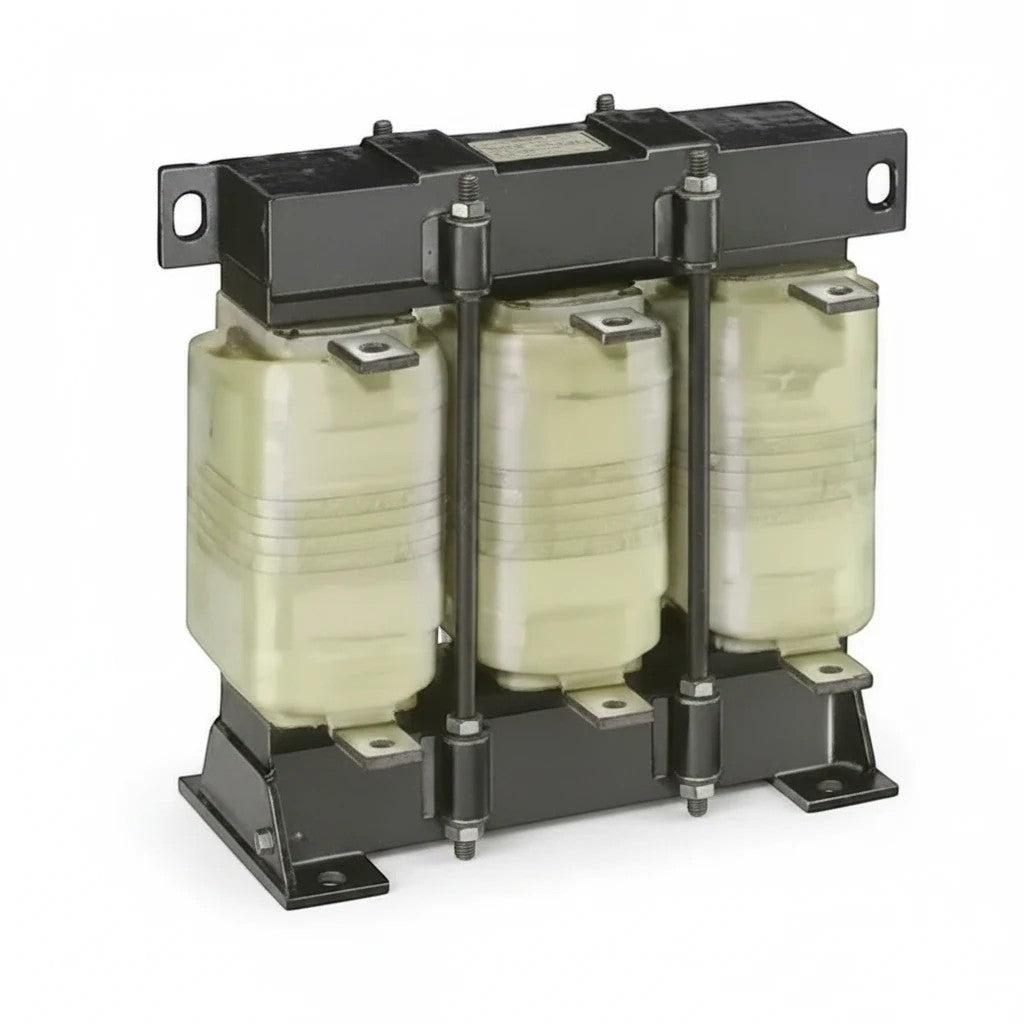

The Siemens 6SE7031-8ES87-1FE0 is a heavy-duty output reactor designed for use with SIMOVERT MASTERDRIVES and compatible SINAMICS drive systems. Installed between the inverter and motor, this three-phase output reactor minimizes PWM-induced voltage peaks, reduces motor insulation stress, suppresses electromagnetic interference (EMI), and enhances overall drive system reliability. With a rated current of 180A and an operating voltage range of 380–460V AC, it is engineered for demanding industrial motion control applications requiring high power and dependable motor protection.
The reactor helps reduce cable reflections, limits motor bearing currents, and enables longer motor cable lengths while improving electromagnetic compatibility (EMC). It is ideally suited for high-power drive systems used in CNC machine tools, robotics, material handling equipment, cranes, conveyors, packaging machinery, and automated manufacturing facilities.
Key Features
- Genuine Siemens SIMOVERT MASTERDRIVES output reactor
- Rated current: 180A
- Operating voltage: 380–460V AC
- Three-phase reactor design
- Maximum output frequency: 120Hz
- Pulse frequency: 3kHz
- Reduces PWM-related voltage spikes
- Improves motor insulation protection
- Minimizes bearing currents and cable reflections
- Enhances EMC performance
- Supports long motor cable installations
- Compatible with SIMOVERT MASTERDRIVES and SINAMICS systems
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SE7031-8ES87-1FE0 |
| Product Family | SIMOVERT MASTERDRIVES / SINAMICS |
| Product Type | Output Reactor |
| Phase Configuration | 3-Phase |
| Rated Voltage | 380–460V AC |
| Rated Current | 180A |
| Maximum Output Frequency | 120Hz |
| Pulse Frequency | 3kHz |
| Installation | Between Drive and Motor |
| Application | Motor Protection & EMC Improvement |
| Protection Class | IP00 |
| Cooling Method | Natural Air Cooling |
| Mounting Type | Cabinet Installation |
| Product Lifecycle | Active Product |
| Condition | New / Original Siemens Product |
Applications
- SIMOVERT MASTERDRIVES Drive Systems
- SINAMICS Drive Systems
- High-Power Servo Applications
- CNC Machine Tools
- Robotics and Automation
- Cranes and Hoisting Systems
- Material Handling Equipment
- Conveyor Systems
- Packaging Machinery
- Industrial Manufacturing Plants
Benefits
- Protects motors from harmful voltage transients
- Extends motor insulation lifespan
- Reduces EMI and electrical noise
- Improves drive system reliability and efficiency
- Supports longer motor cable installations
- Minimizes motor bearing current damage
- Enhances overall motor performance
- Fully compatible with Siemens industrial drive architectures
