Description

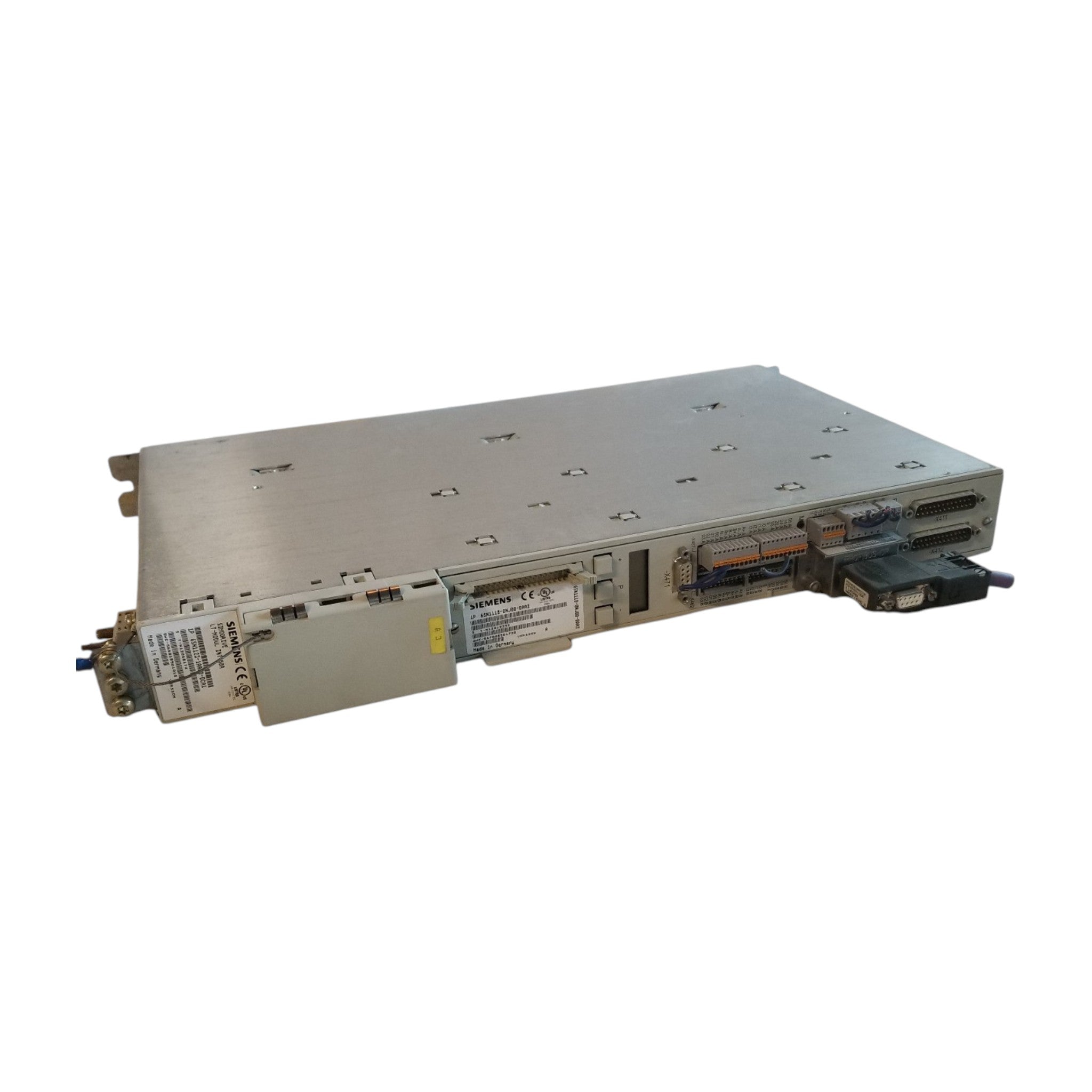

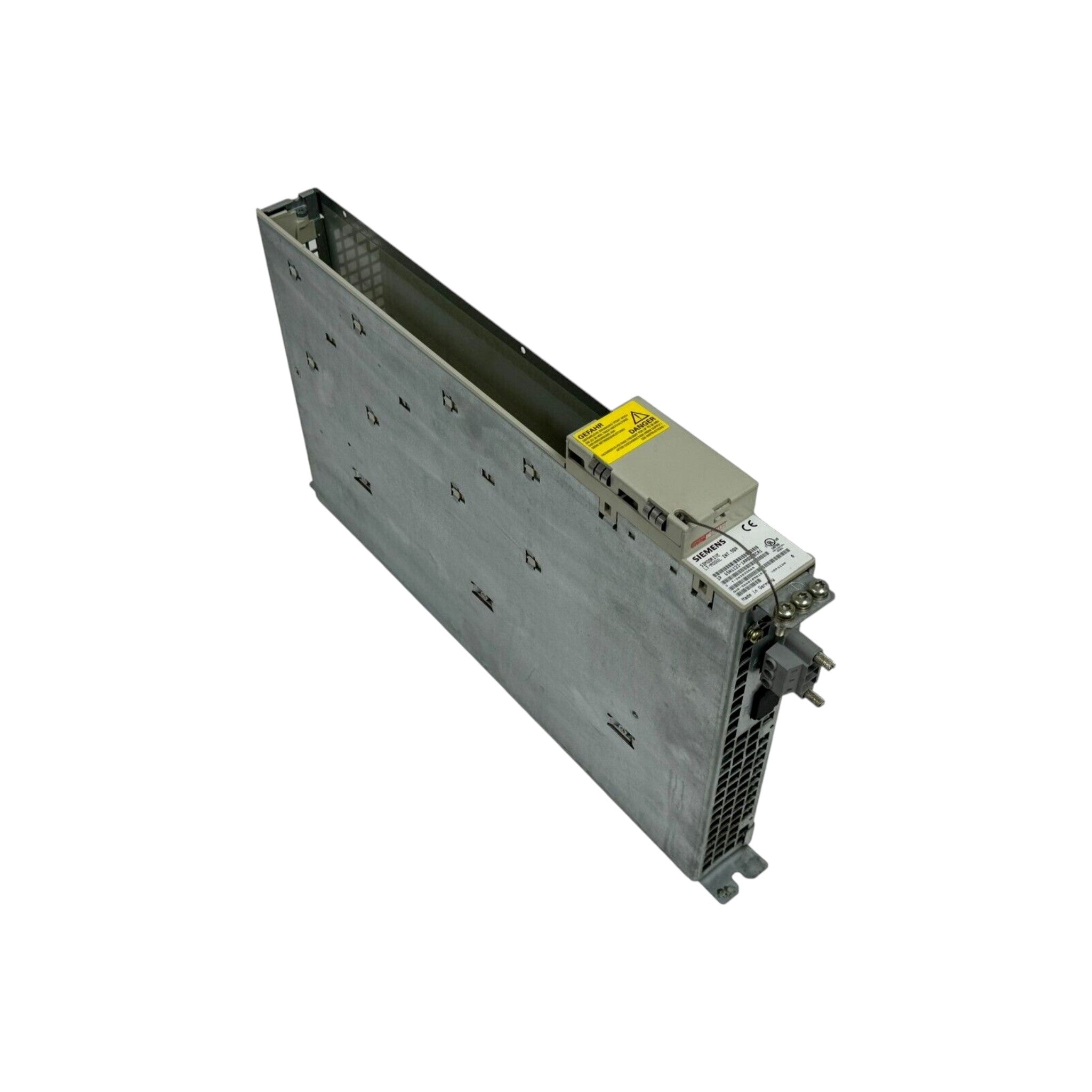

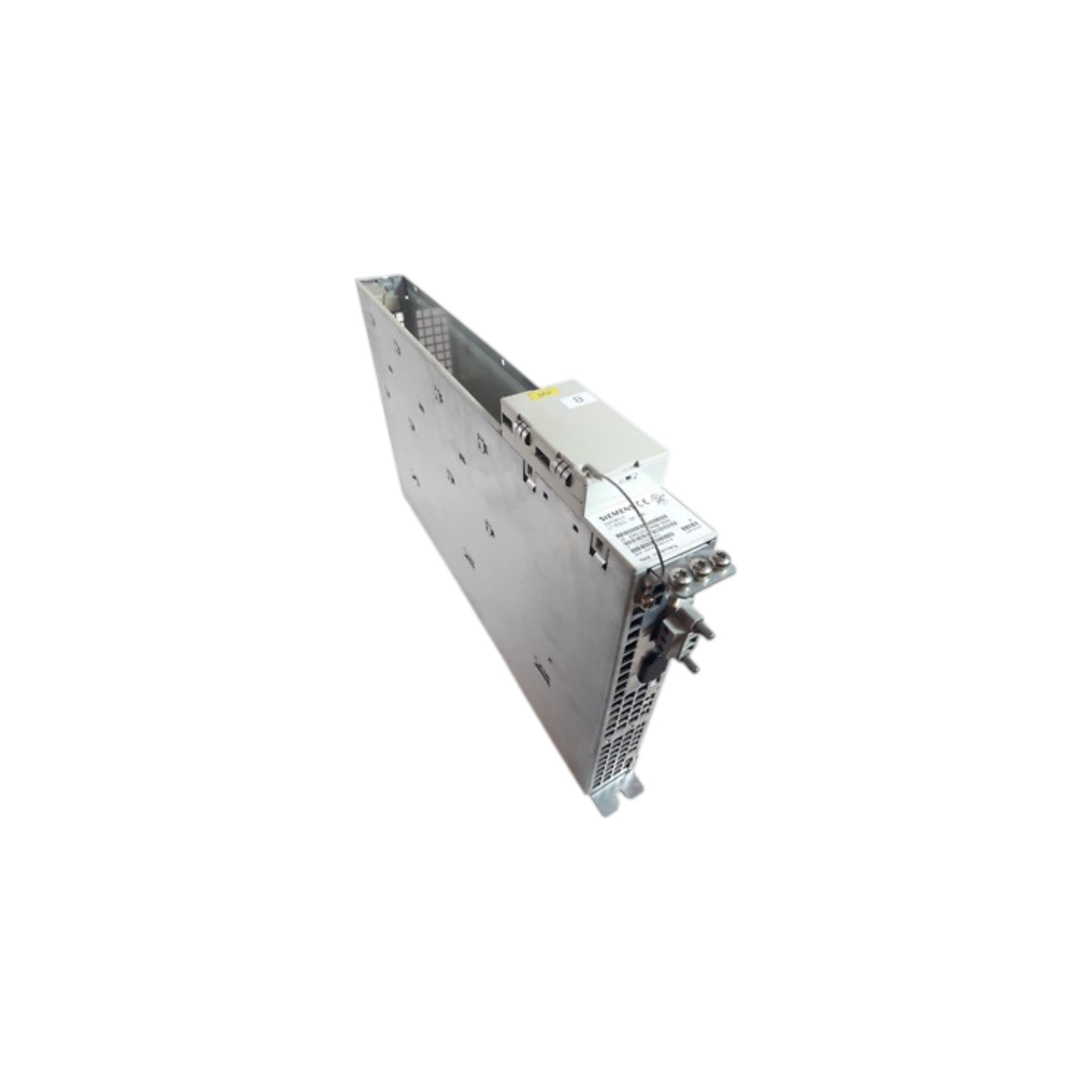

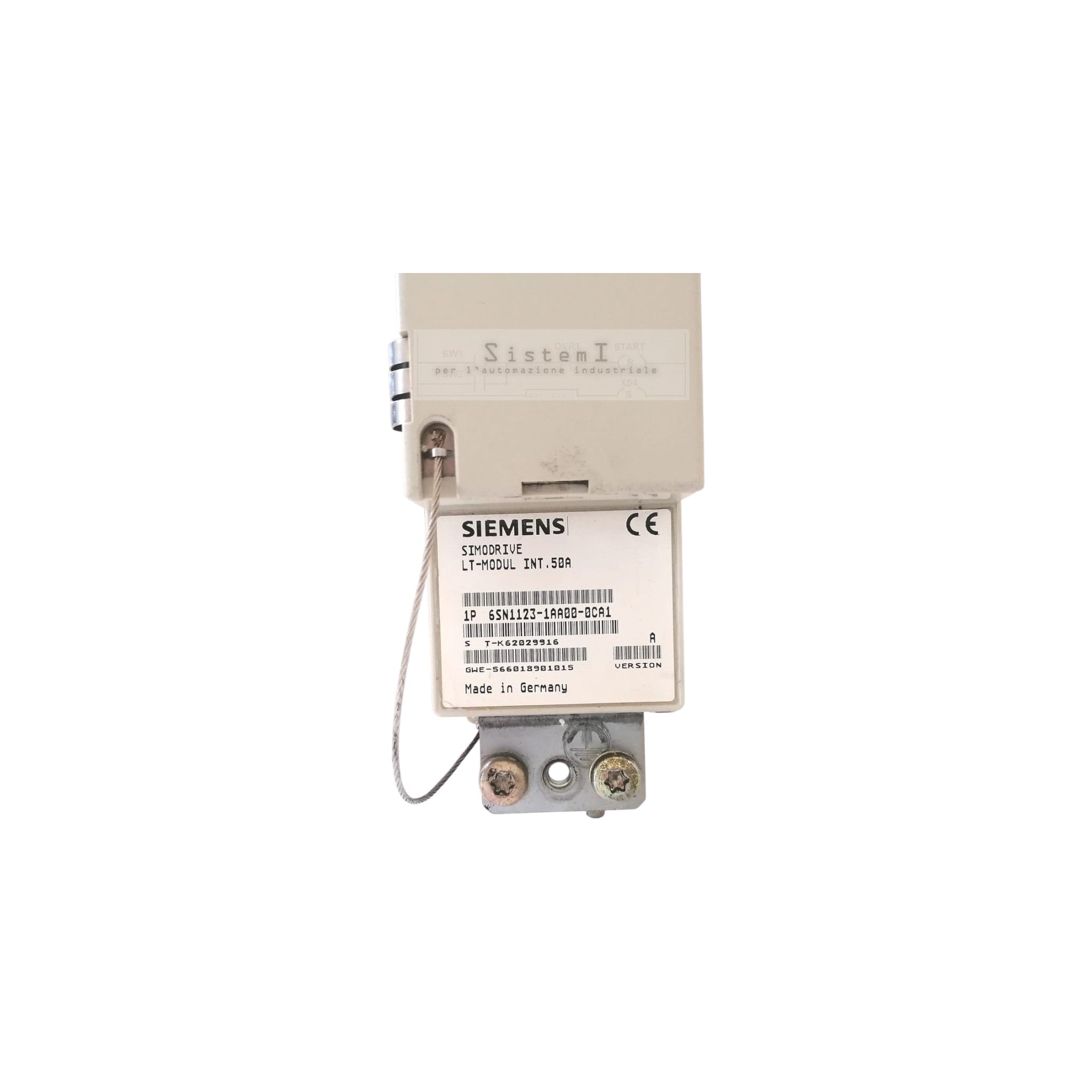

Siemens 6SN1123-1AA00-0DA0 – SIMODRIVE 611 LT Power Module
Part Number: 6SN1123-1AA00-0DA0
Manufacturer: Siemens
Product Family: SIMODRIVE 611
Module Type: LT (Leistungsteil) Single-Axis Power Module
Product Description
The Siemens 6SN1123-1AA00-0DA0 is a SIMODRIVE 611 LT single-axis power module for CNC machine tools and industrial automation systems. It supplies power to one servo or spindle axis and is designed to operate with SIMODRIVE 611 control modules. The module features 80 A transistor output, internal cooling, and supports Siemens servo, spindle, and induction motors, delivering precise and reliable motion control for demanding applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SN1123-1AA00-0DA0 |
| Product Family | SIMODRIVE 611 |
| Module Type | LT (Power Module) |
| Number of Axes | 1 Axis |
| Transistor Current | 80 A |
| Rated Motor Current (1FT5) | 40 A |
| Rated Motor Current (1FT6) | 28 A |
| Rated Motor Current (1PH) | 30 A |
| Rated Current (Asynchronous Motor) | 30 A |
| Cooling Method | Internal Cooling |
| Module Width | 100 mm |
| Approximate Weight | 8.2–9 kg |
Key Features
- SIMODRIVE 611 LT single-axis power module
- 80 A transistor output stage
- Internal heat dissipation for reliable operation
- High dynamic performance for CNC feed and spindle drives
- Compatible with Siemens 1FT5, 1FT6, 1PH, and induction motors
- Modular design for simplified maintenance and replacement
- Designed for continuous industrial operation in SINUMERIK CNC systems
Compatible Systems
- Siemens SINUMERIK 810D
- Siemens SINUMERIK 840D
- SIMODRIVE 611 Digital
- SIMODRIVE 611 Universal
- Siemens 1FT5 Servo Motors
- Siemens 1FT6 Servo Motors
- Siemens 1PH Spindle Motors
- Siemens Induction Motors
Typical Applications
- CNC Lathes
- CNC Milling Machines
- Vertical and Horizontal Machining Centers
- Grinding Machines
- Gear Cutting Machines
- Industrial Automation Equipment
