Description

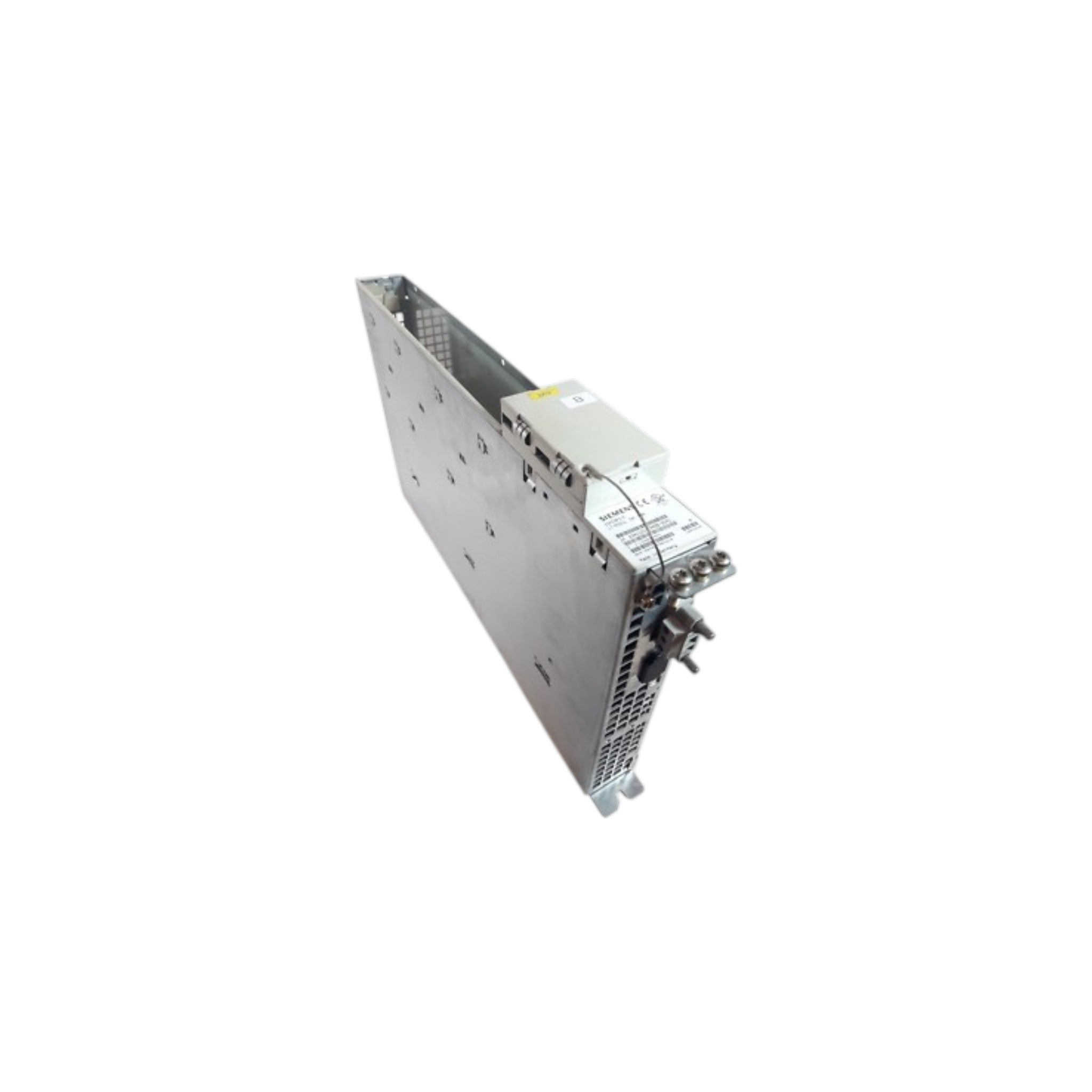

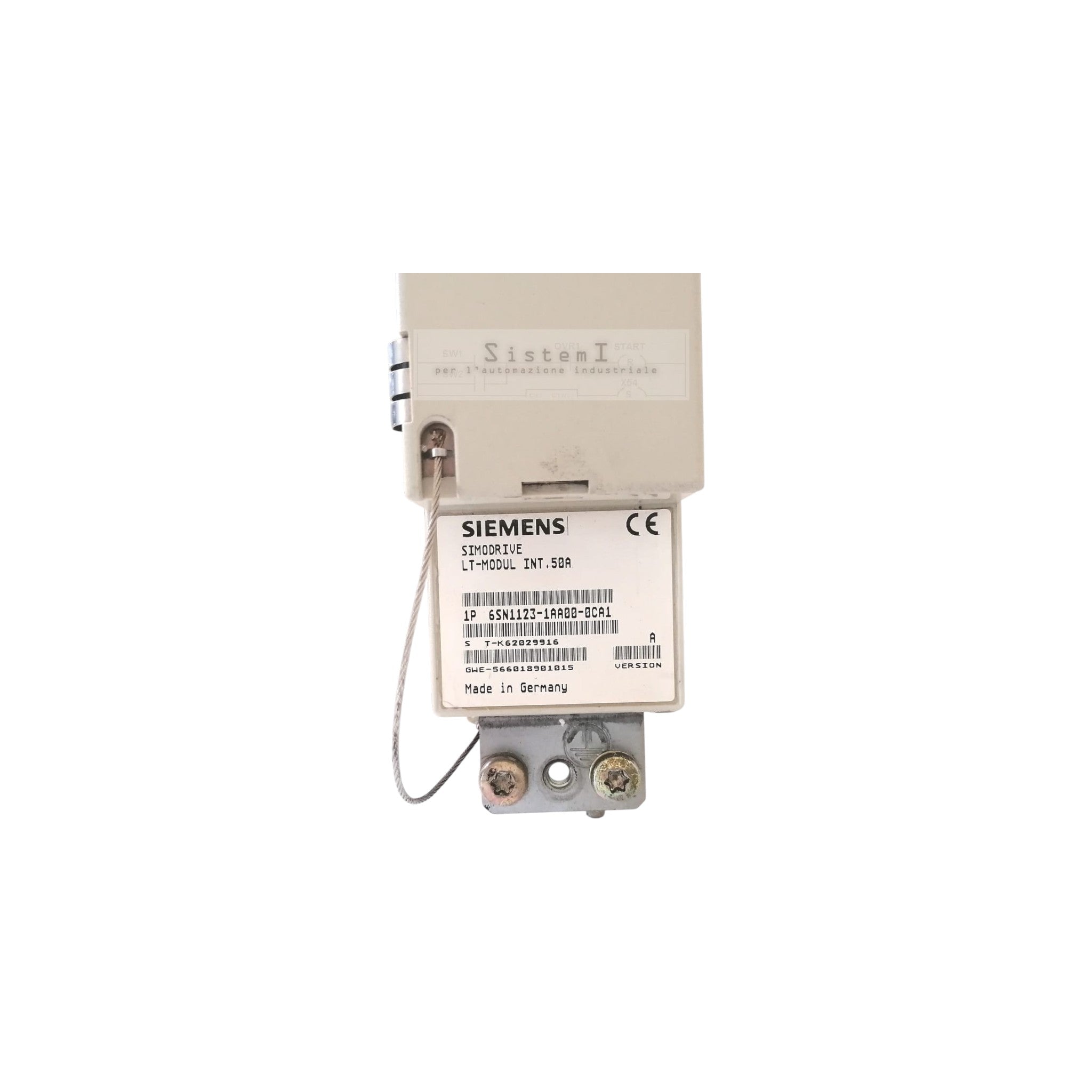

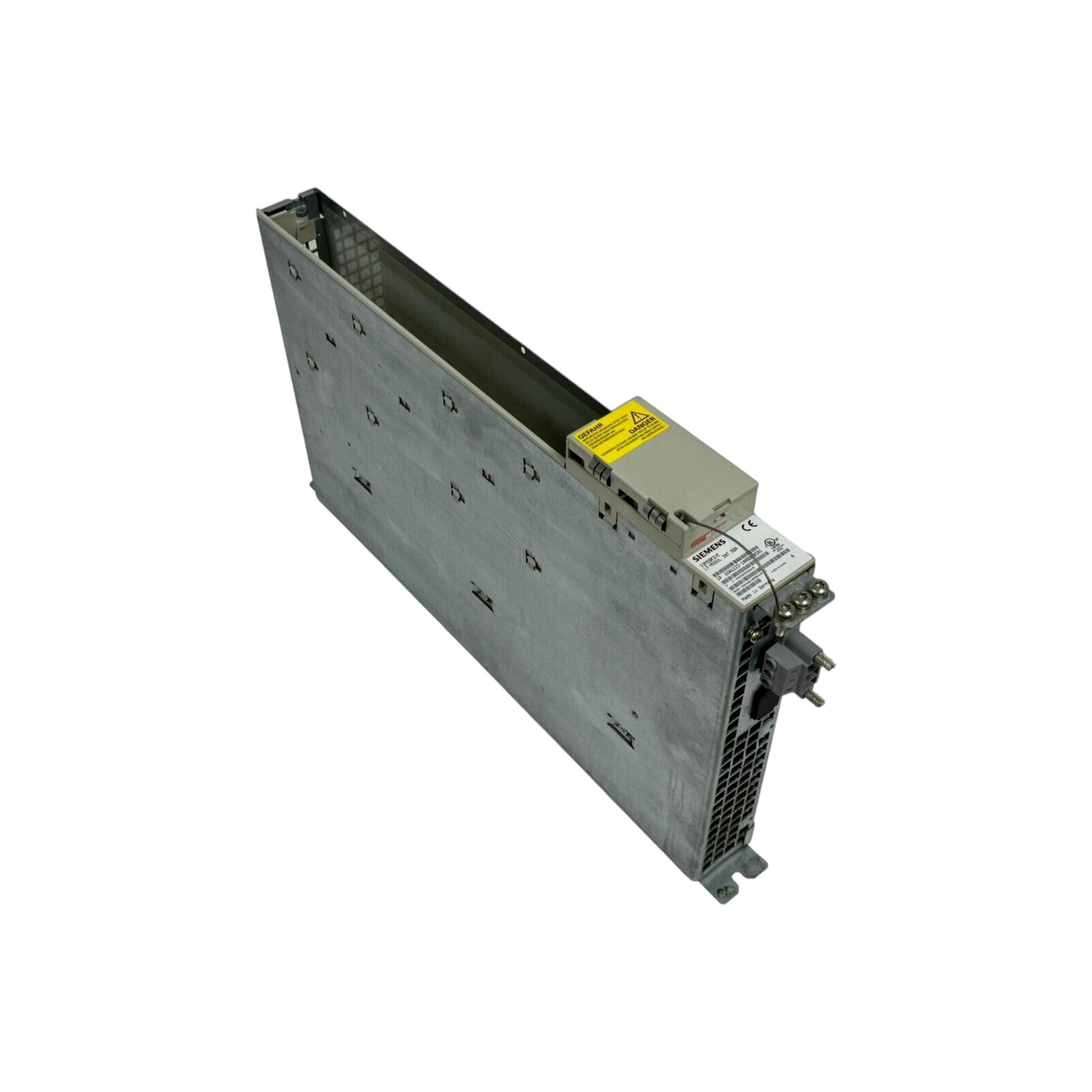

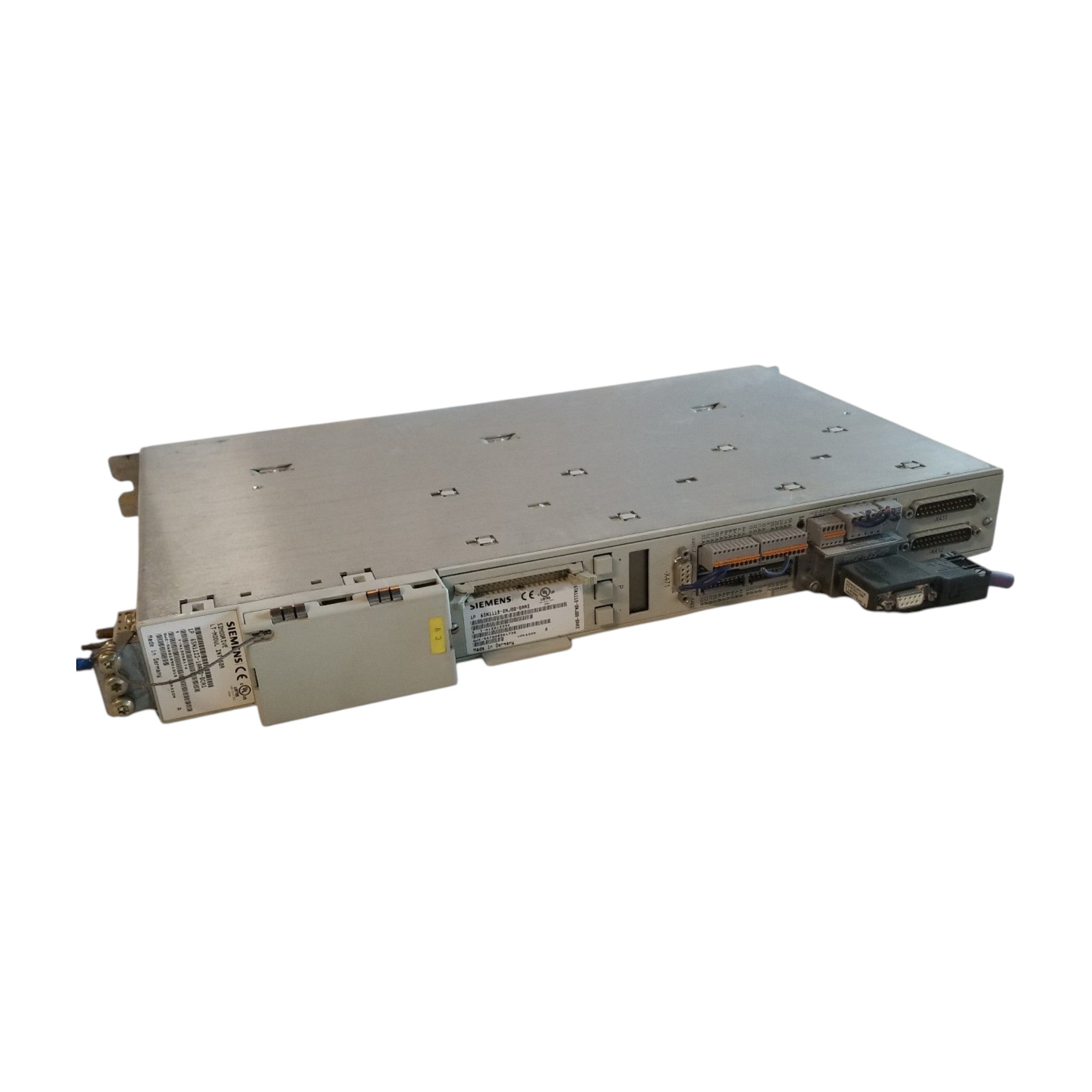

Siemens 6SN1123-1AA00-0DA1 – SIMODRIVE 611 LT Power Module
Part Number: 6SN1123-1AA00-0DA1
Manufacturer: Siemens
Product Family: SIMODRIVE 611
Module Type: LT (Leistungsteil) Single-Axis Power Module
Product Description
The Siemens 6SN1123-1AA00-0DA1 is a SIMODRIVE 611 LT single-axis power module engineered for high-performance CNC machine tools and industrial automation systems. It delivers power to a single servo or spindle axis and is designed for use with compatible SIMODRIVE 611 control modules. Featuring an 80 A transistor output and internal cooling, it provides precise motion control, high overload capability, and reliable continuous operation for demanding manufacturing applications.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SN1123-1AA00-0DA1 |
| Product Family | SIMODRIVE 611 |
| Module Type | LT (Power Module) |
| Number of Axes | 1 Axis |
| Transistor Current | 80 A |
| Rated Motor Current (1FT5) | 40 A |
| Rated Motor Current (1FT6) | 28 A |
| Rated Motor Current (1PH) | 30 A |
| Rated Current (Asynchronous Motor) | 30 A |
| Cooling Method | Internal Cooling |
| Module Width | 100 mm |
| Approximate Weight | 8.6 kg |
Key Features
- Single-axis SIMODRIVE 611 LT power module
- 80 A transistor output stage
- Internal cooling for efficient heat dissipation
- High dynamic response for precision CNC motion control
- Supports Siemens synchronous servo motors, spindle motors, and asynchronous motors
- Compact modular design for simplified installation and maintenance
- Optimized for continuous industrial operation in machine tools and automation systems
Compatible Systems
- Siemens SINUMERIK 810D
- Siemens SINUMERIK 840D
- SIMODRIVE 611 Digital
- SIMODRIVE 611 Universal
- Siemens 1FT5 Servo Motors
- Siemens 1FT6 Servo Motors
- Siemens 1PH Spindle Motors
- Siemens Asynchronous Motors
Typical Applications
- CNC Turning Centers
- CNC Milling Machines
- Vertical and Horizontal Machining Centers
- Grinding Machines
- Gear Cutting Machines
- Industrial Automation Equipment
