Description

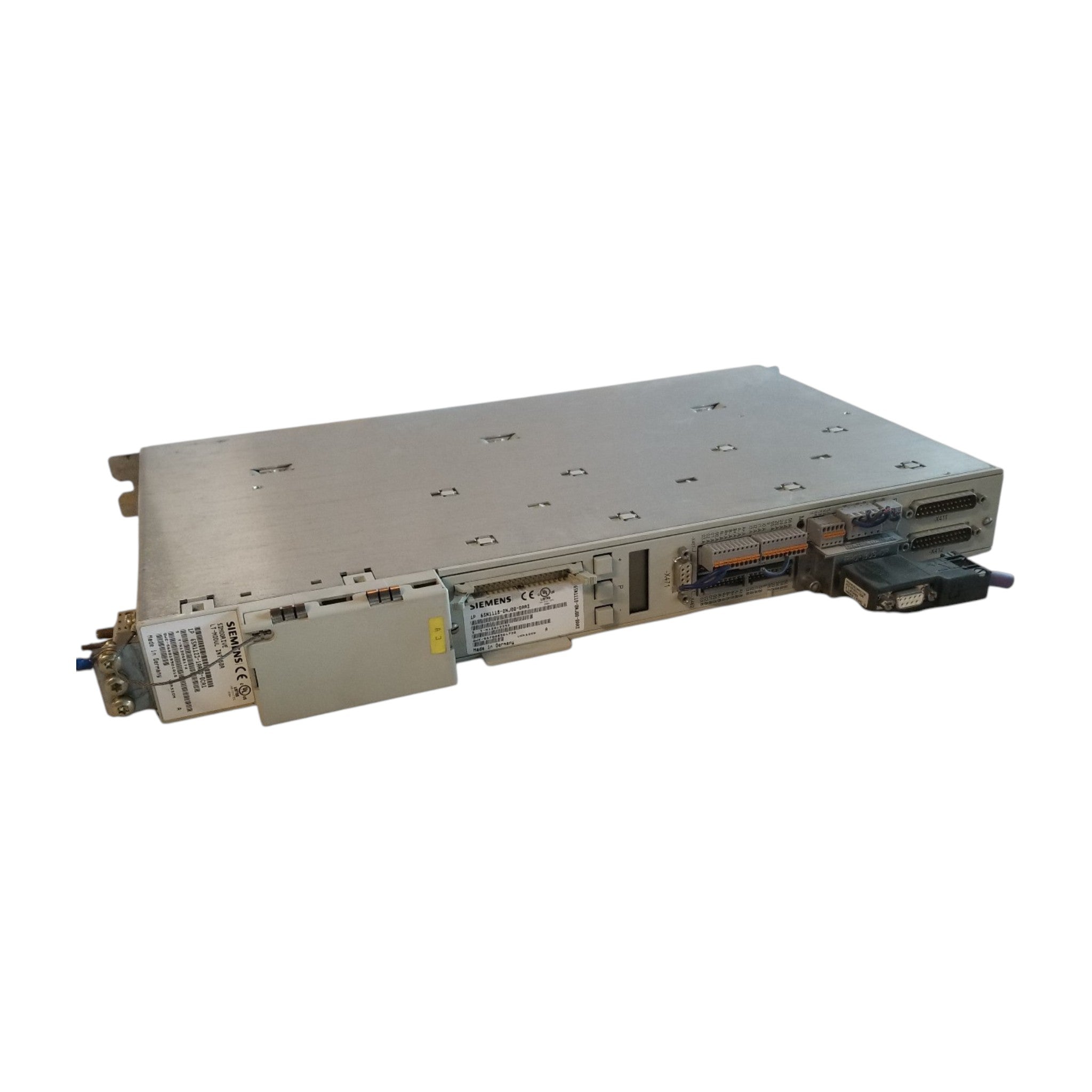

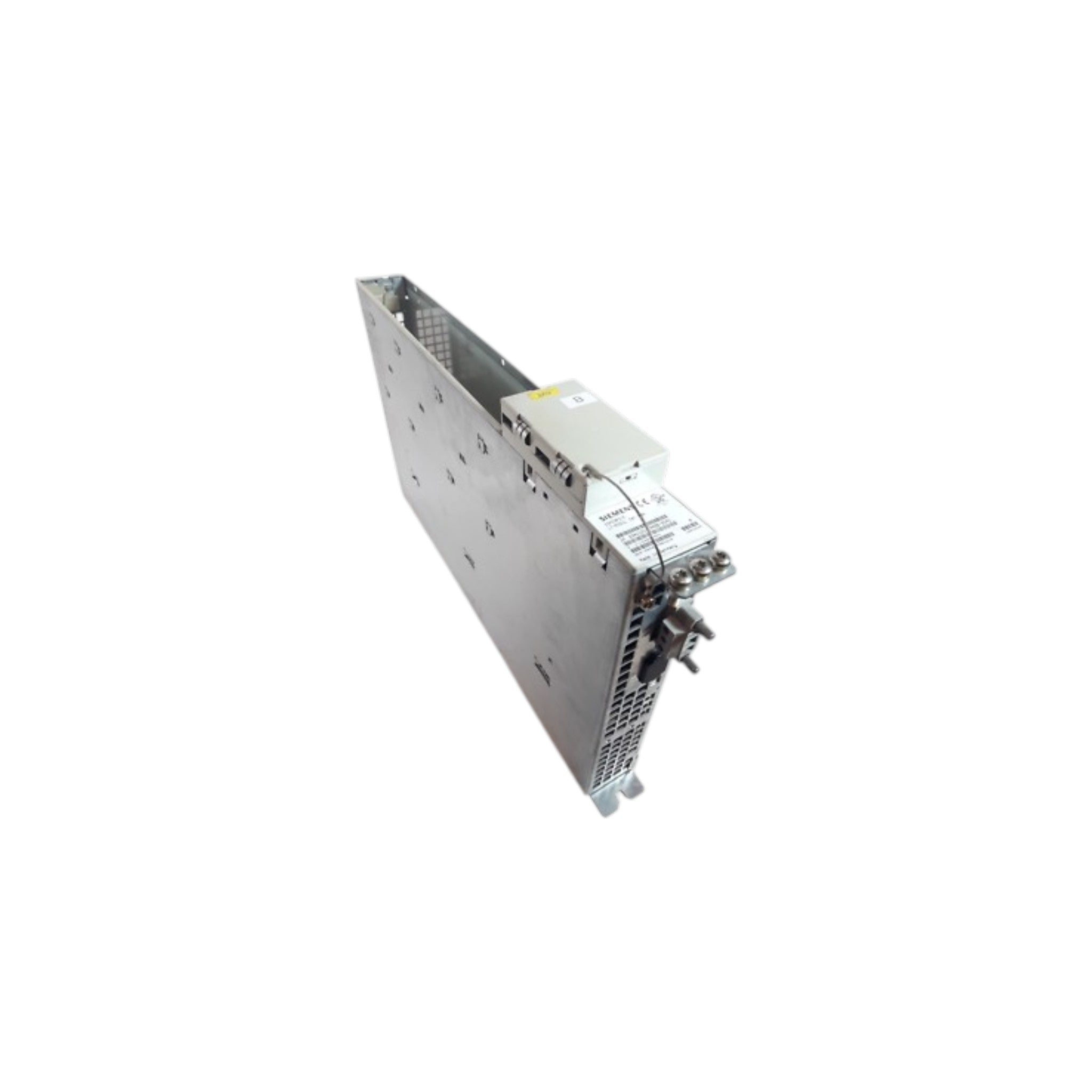

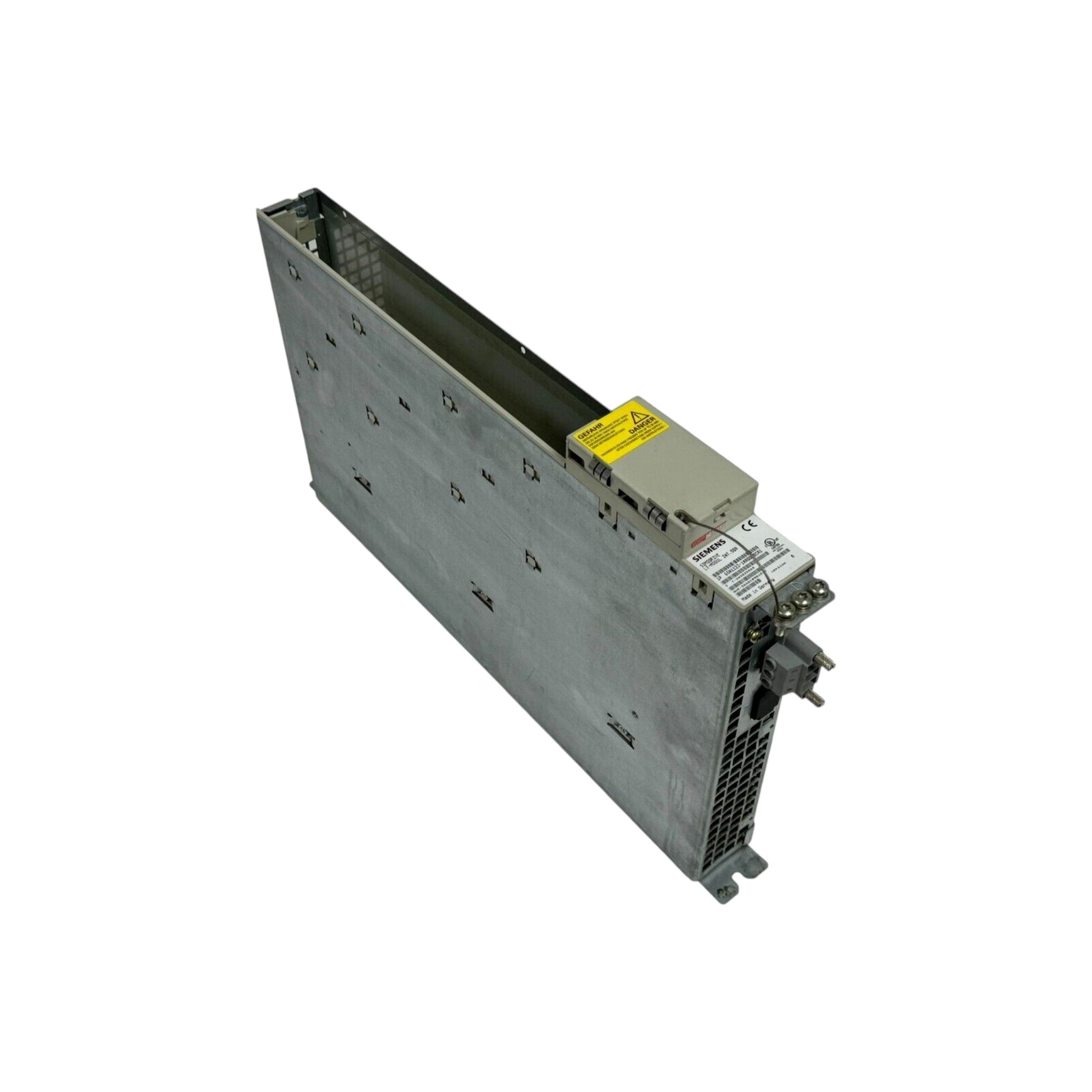

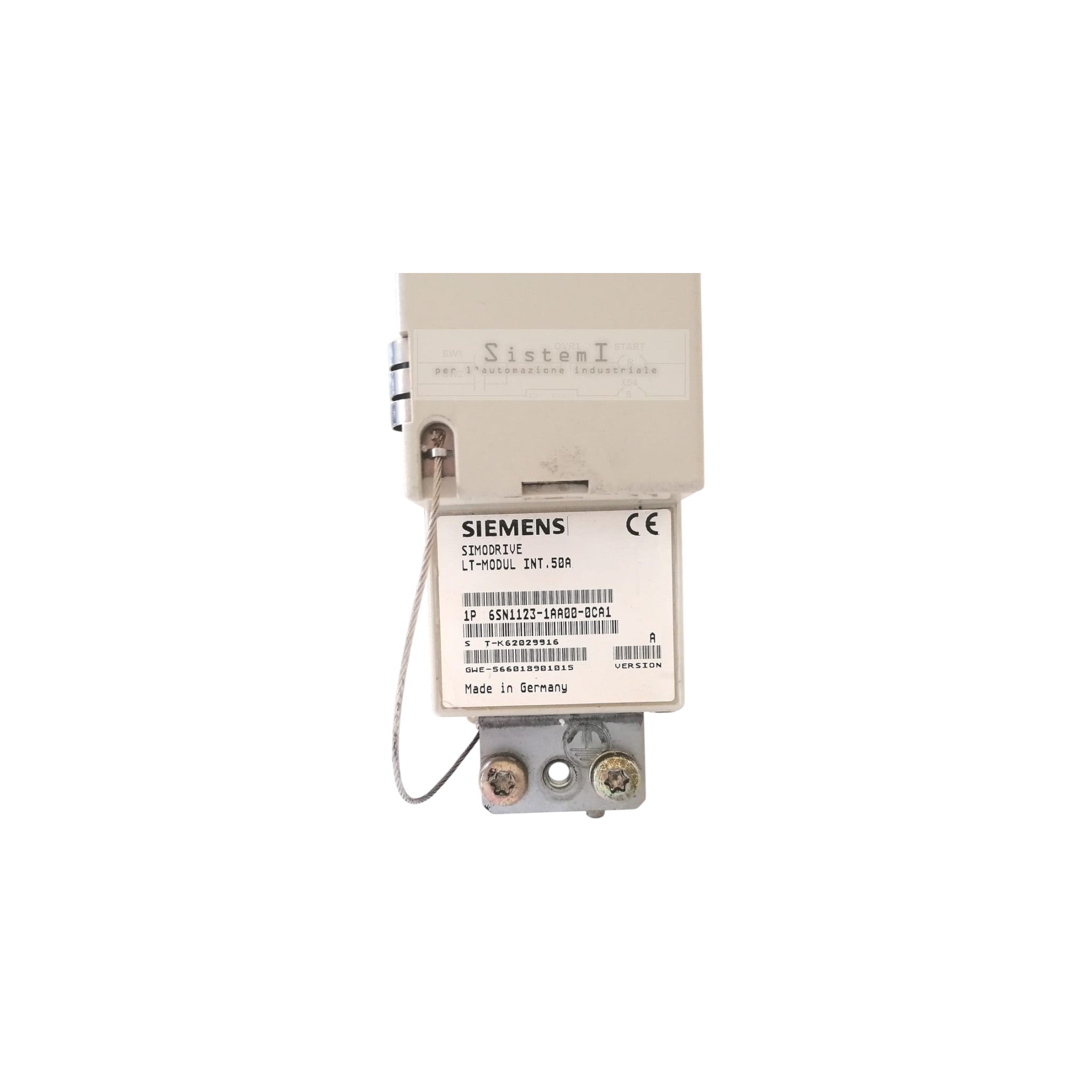

Siemens 6SN1123-1AB00-0HA1 – SIMODRIVE 611 LT 2-Axis Power Module
Part Number: 6SN1123-1AB00-0HA1
Manufacturer: Siemens
Product Family: SIMODRIVE 611
Module Type: LT (Leistungsteil) 2-Axis Power Module
Product Description
The Siemens 6SN1123-1AB00-0HA1 is a SIMODRIVE 611 LT 2-axis power module designed for precision CNC machine tools and industrial motion control applications. It powers two servo feed axes or a combination of one feed axis and one main spindle when used with compatible SIMODRIVE 611 control modules. This module features an 8 A transistor output, internal cooling (heat dissipation), and delivers reliable, high-precision performance for SINUMERIK CNC systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Part Number | 6SN1123-1AB00-0HA1 |
| Product Family | SIMODRIVE 611 |
| Module Type | LT (Power Module) |
| Number of Axes | 2 Axes |
| Transistor Current | 8 A |
| Rated Feed Motor Current | 3 A |
| Rated Main Spindle Current | 3 A |
| Cooling Method | Internal Cooling / Internal Heat Dissipation |
| Module Width | 50 mm |
| Approximate Weight | 5.6–6.0 kg |
Key Features
- Dual-axis SIMODRIVE 611 LT power module
- 8 A transistor output stage
- Internal cooling for reliable thermal management
- Supports two servo feed axes or a feed/spindle configuration
- High-precision motion control for CNC machining
- Compact modular design for easy installation and maintenance
- Designed for continuous operation in SIMODRIVE 611 drive systems
Compatible Systems
- Siemens SINUMERIK 810D
- Siemens SINUMERIK 840D
- SIMODRIVE 611 Digital
- SIMODRIVE 611 Universal
- Siemens 1FT5 Servo Motors
- Siemens 1FT6 Servo Motors
- Siemens Main Spindle Motors
Typical Applications
- CNC Lathes
- CNC Milling Machines
- Machining Centers
- Grinding Machines
- Industrial Automation Systems
- Machine Tool Motion Control
