Siemens SIMOTICS M-1PH8 – 1PH8224 Shopify Product Listing
Product Title

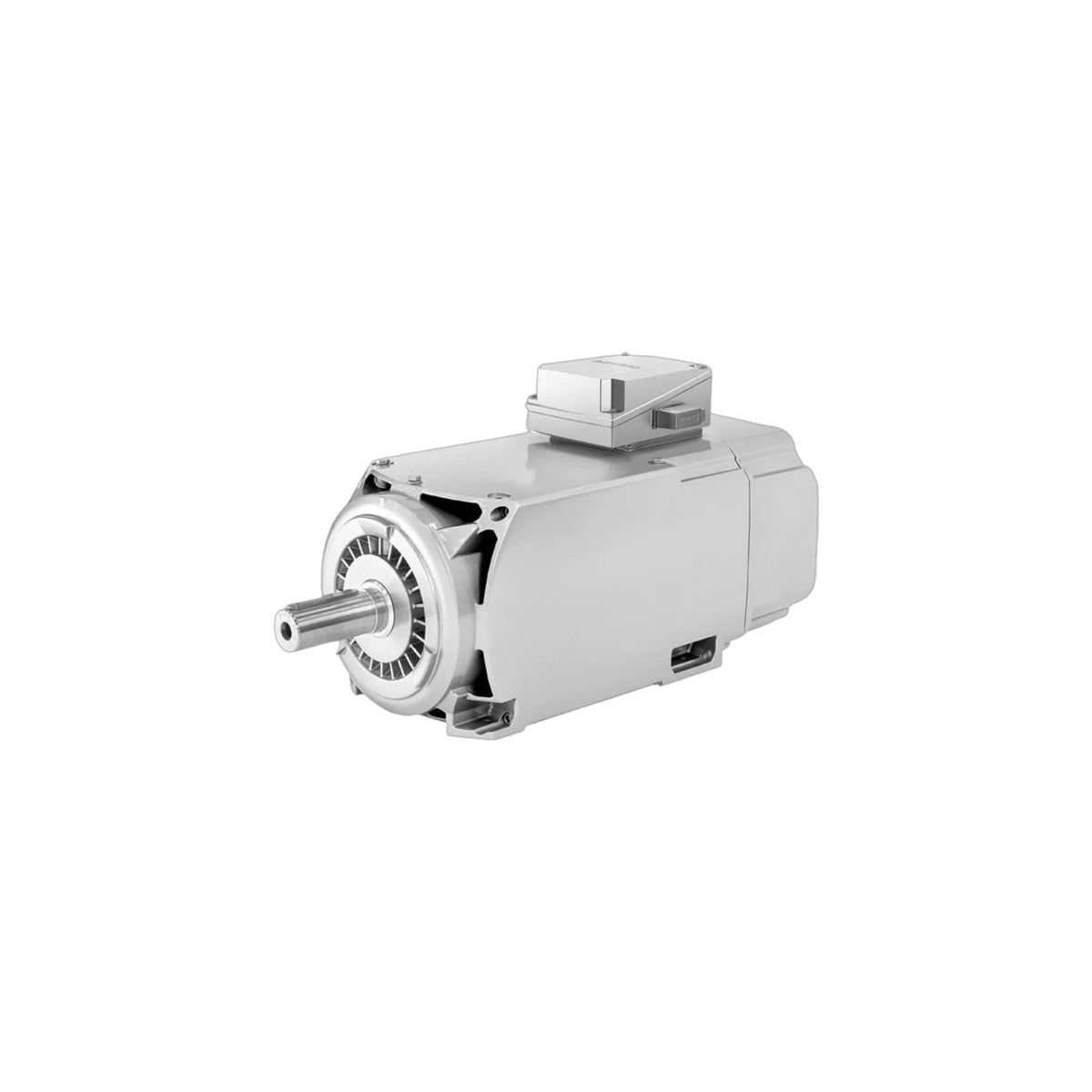

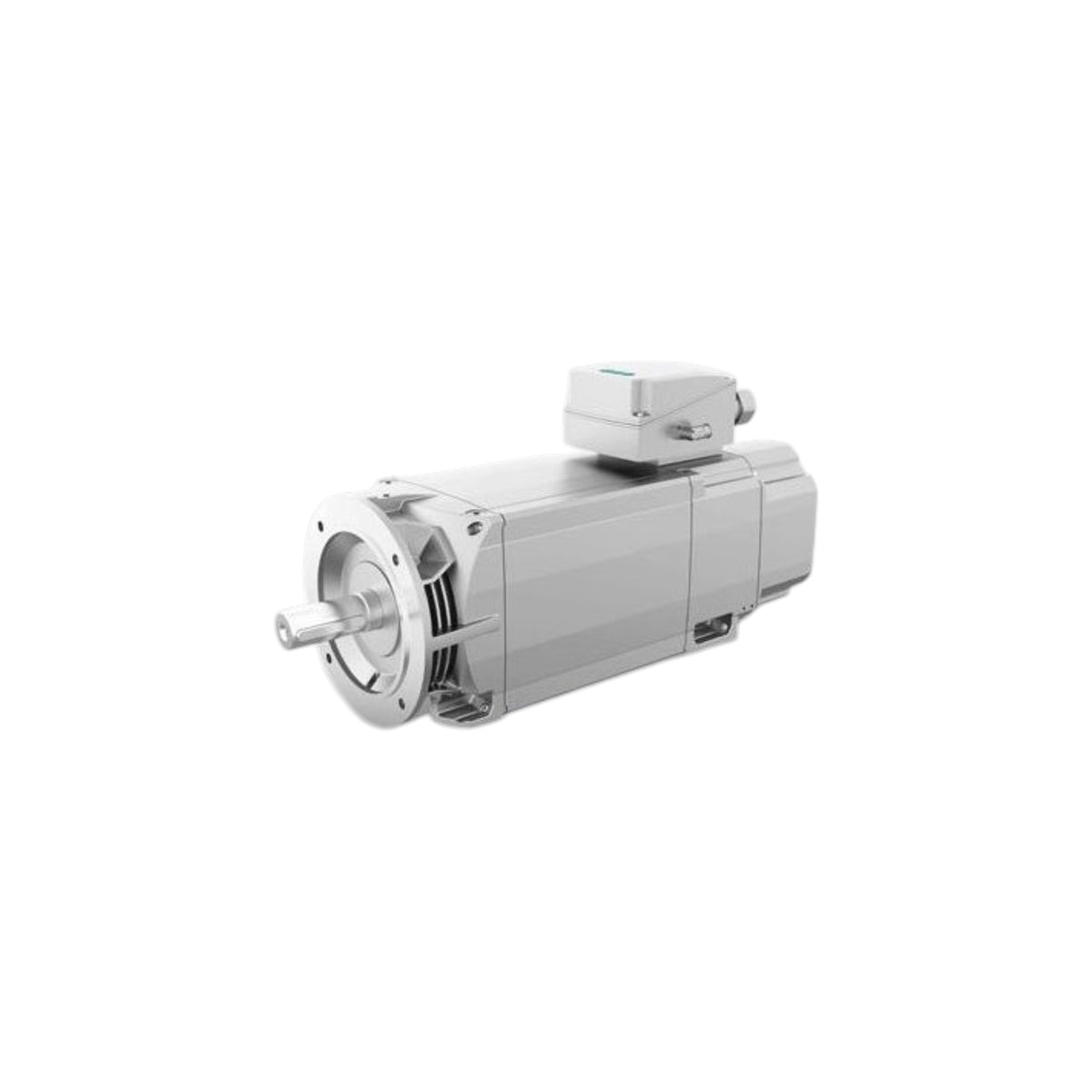

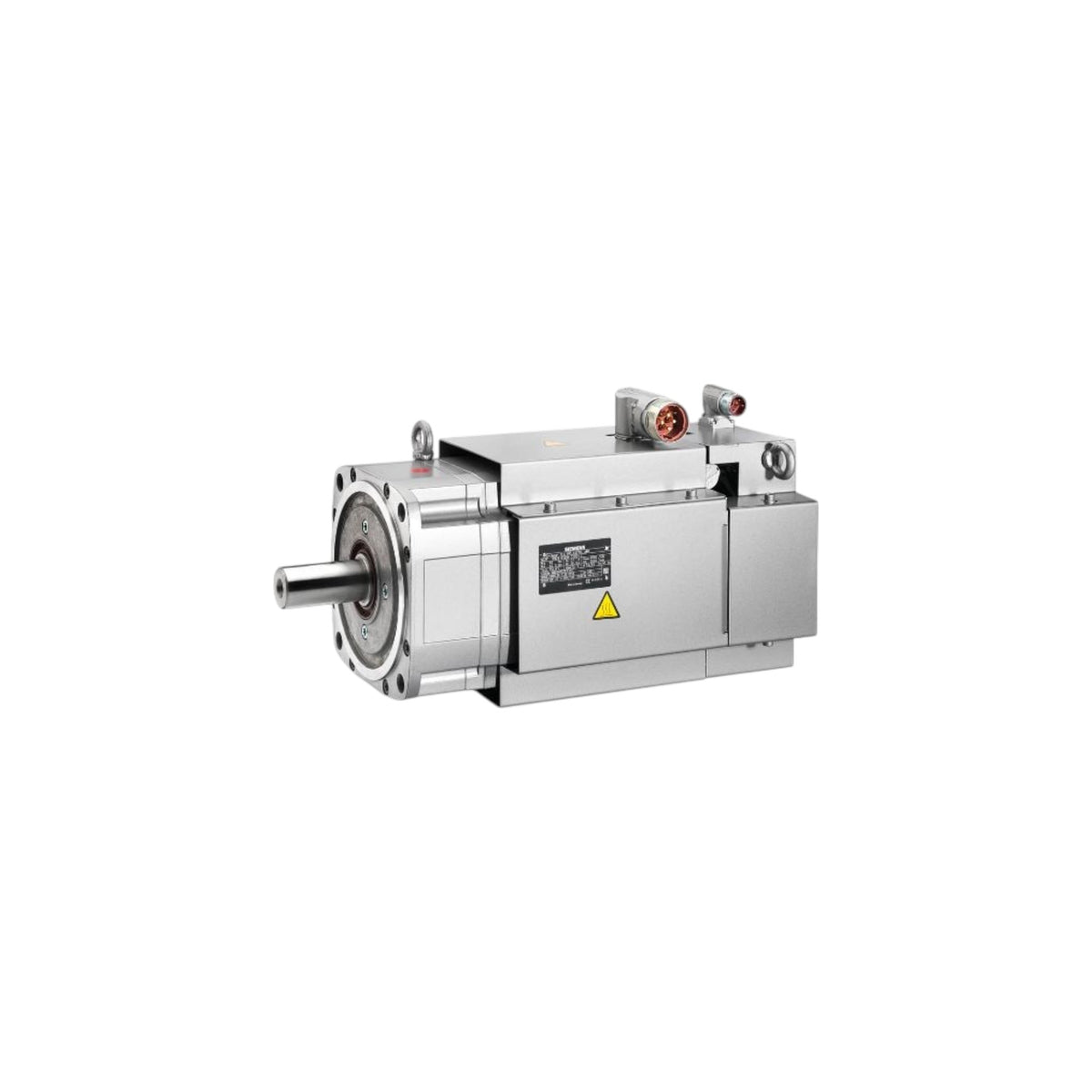

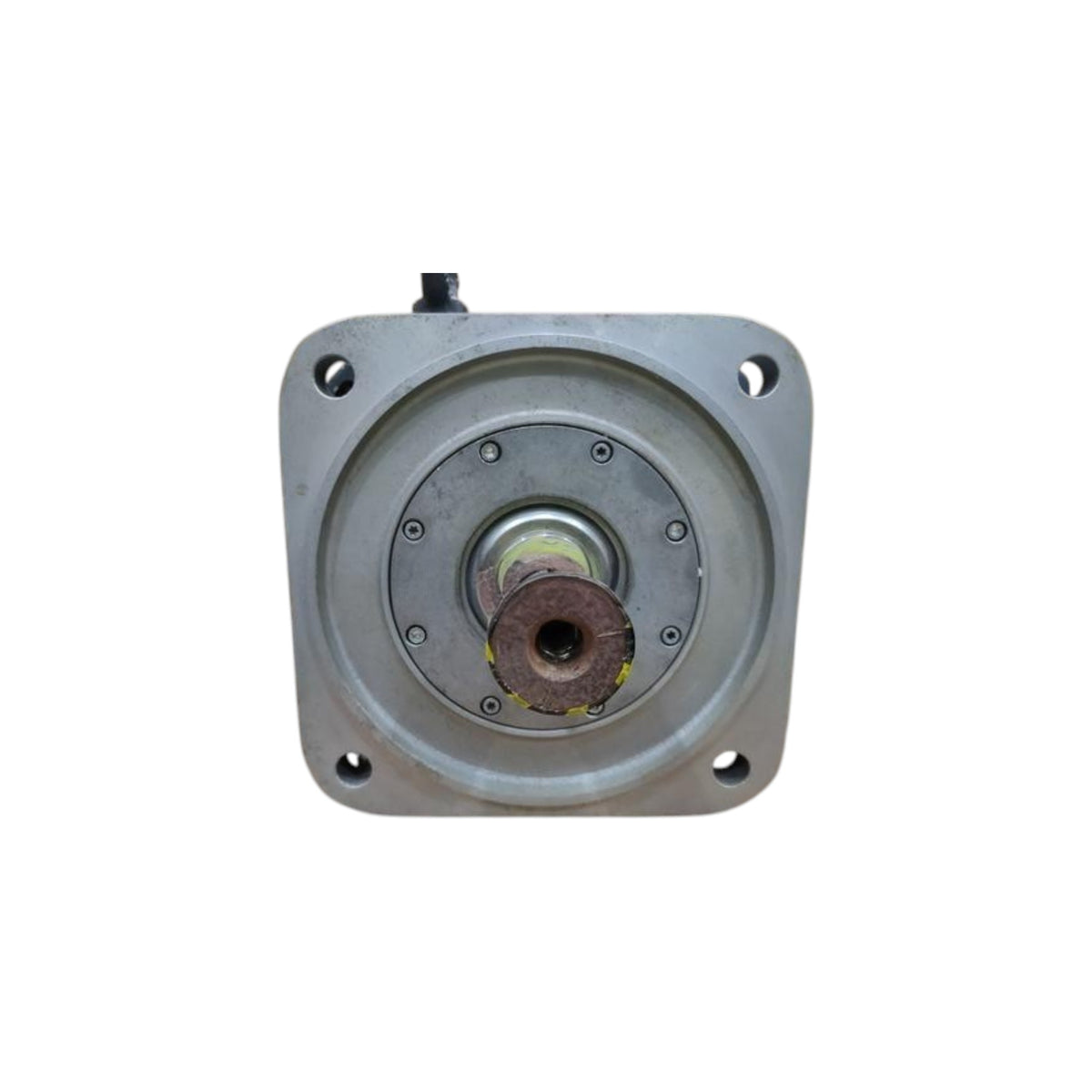

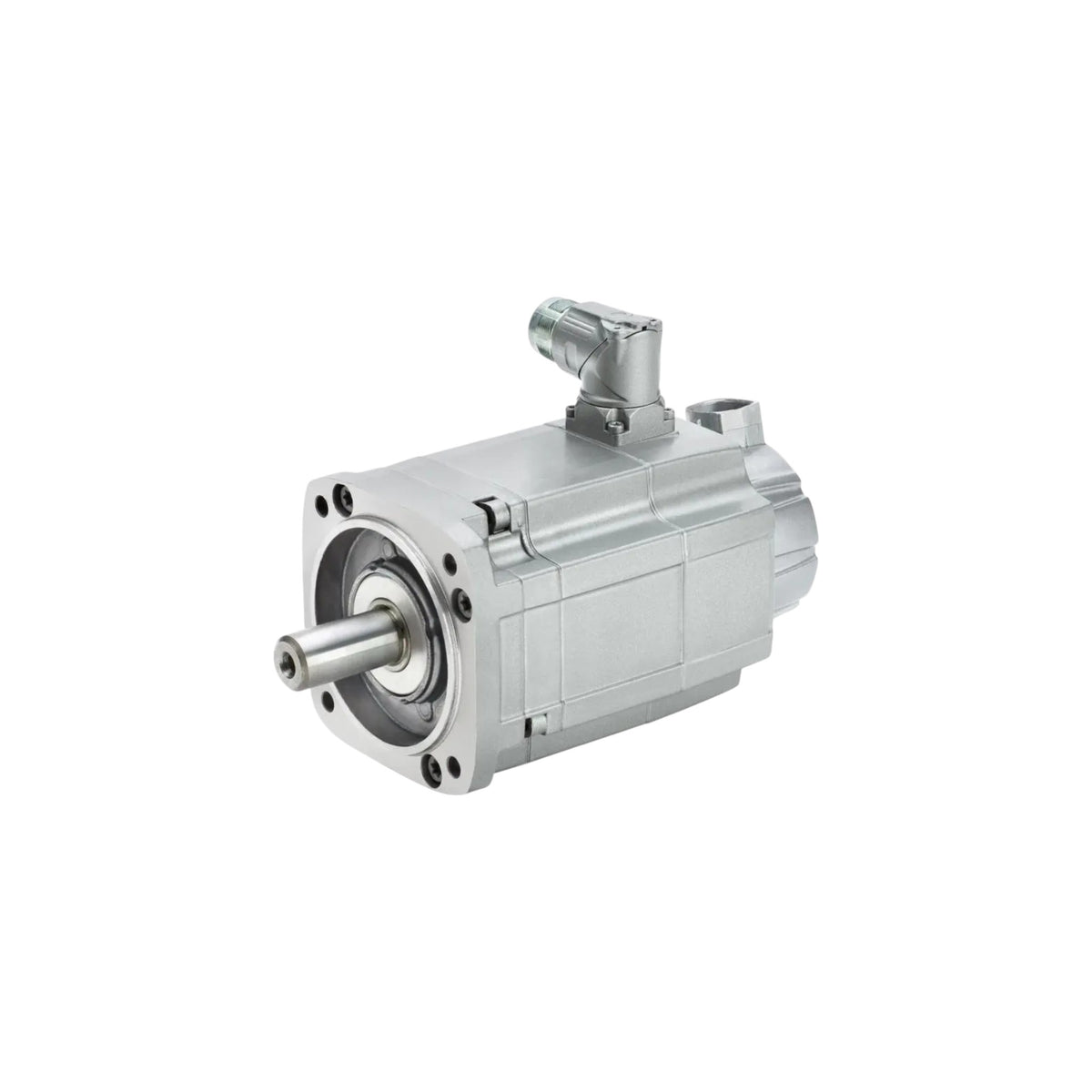

Siemens 1PH8224 SIMOTICS M-1PH8 Main Motor | High-Performance Asynchronous Motor for SINAMICS S120
Product Description
The Siemens 1PH8224 is a high-performance SIMOTICS M-1PH8 asynchronous main motor engineered for CNC machine tools, heavy-duty spindle drives, and demanding industrial automation applications. Designed for seamless integration with Siemens SINAMICS S120 drive systems, the 1PH8224 delivers exceptional torque, precise speed control, and high overload capability for continuous-duty industrial operation.
The 1PH8224 motor series is available in multiple configurations with forced ventilation, open-circuit cooling, or water cooling, offering a wide range of encoder systems, shaft options, and mounting configurations. Depending on the specific variant, the motor provides rated power up to 164 kW, rated torque up to 1,074 Nm, maximum torque up to 1,760 Nm, and maximum operating speeds up to 4,500 RPM. Integrated DRIVE-CLiQ technology enables simplified commissioning, diagnostics, and reliable communication with Siemens SINAMICS drive systems.
Designed with a rugged industrial construction, the 1PH8224 is available with IP23, IP55, or IP65 protection depending on the selected configuration, making it suitable for demanding manufacturing environments.
Key Features
- Genuine Siemens SIMOTICS M-1PH8 asynchronous main motor
- Optimized for Siemens SINAMICS S120 drive systems
- High power density and outstanding overload capability
- Available with forced ventilation, open-circuit cooling, or water cooling
- DRIVE-CLiQ digital communication interface
- Incremental and absolute encoder options
- IP23, IP55, or IP65 protection (configuration dependent)
- Rated power up to 164 kW (variant dependent)
- Rated torque up to 1,074 Nm
- Maximum torque up to 1,760 Nm
- Maximum operating speed up to 4,500 RPM
- Heavy-duty construction for continuous industrial operation
- Multiple shaft, flange, and mounting configurations
- Ideal for CNC machine tools, spindle drives, and production machinery
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Model Series | 1PH8224 |
| Product Family | SIMOTICS M-1PH8 |
| Motor Type | Asynchronous Main Motor |
| Cooling | Forced Ventilation / Open-Circuit Cooling / Water Cooling |
| Protection Class | IP23 / IP55 / IP65 (configuration dependent) |
| Interface | DRIVE-CLiQ |
| Encoder | Incremental or Absolute (configuration dependent) |
| Rated Power | Up to 164 kW (variant dependent) |
| Rated Torque | Up to 1,074 Nm |
| Maximum Torque | Up to 1,760 Nm |
| Rated Speed | 400–3,400 RPM (configuration dependent) |
| Maximum Speed | Up to 4,500 RPM |
| Mounting | IM B3, IM B5, IM B35, IM V1, IM V3 (configuration dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
Note: Technical specifications vary according to the exact Siemens order number, encoder type, cooling method, and mechanical configuration.
Applications
- CNC Machining Centers
- CNC Milling Machines
- CNC Lathes
- Main Spindle Drives
- Heavy-Duty Machine Tools
- Metal Cutting & Forming Equipment
- Printing Machinery
- Packaging Equipment
- Material Handling Systems
- Automated Manufacturing Lines
