Product Title

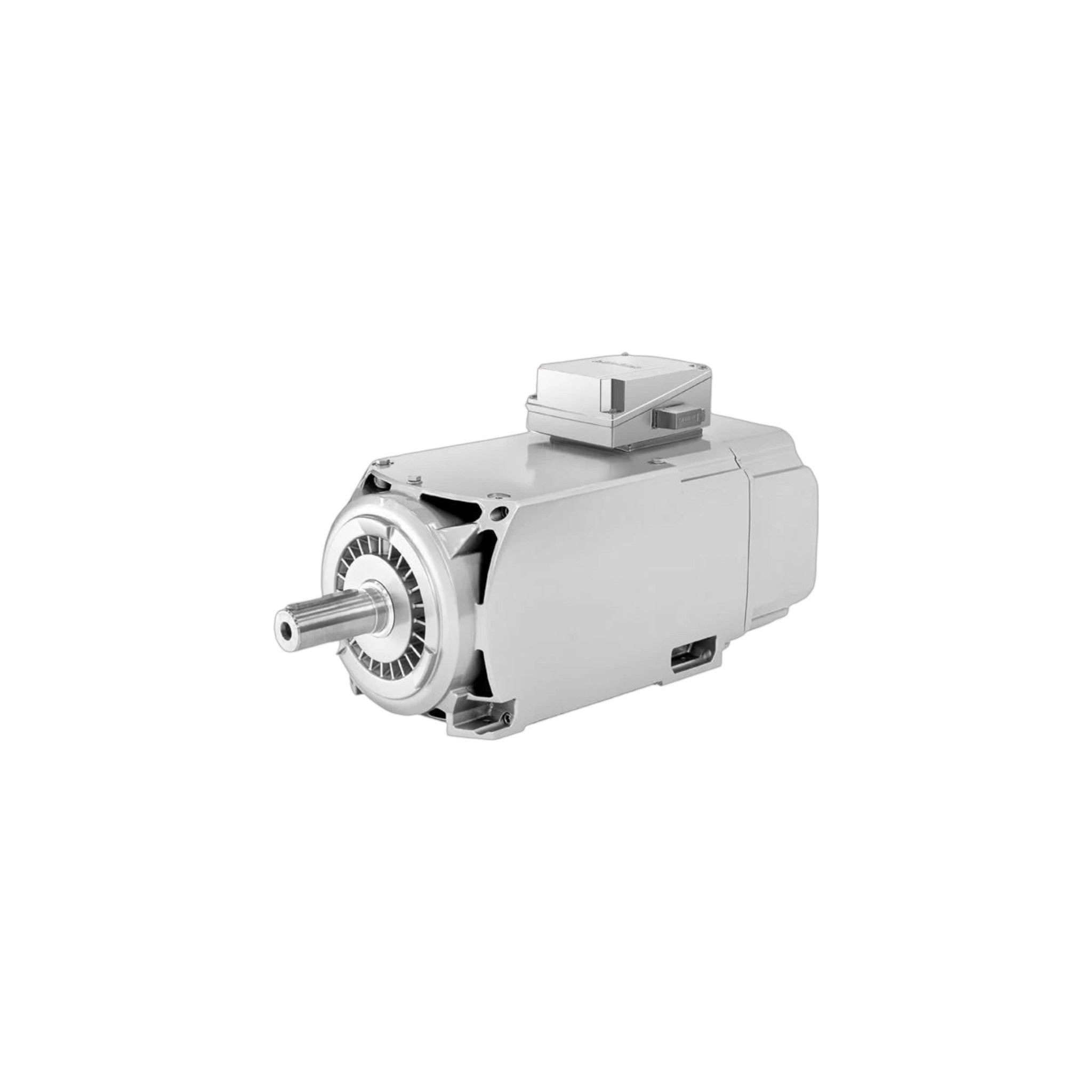

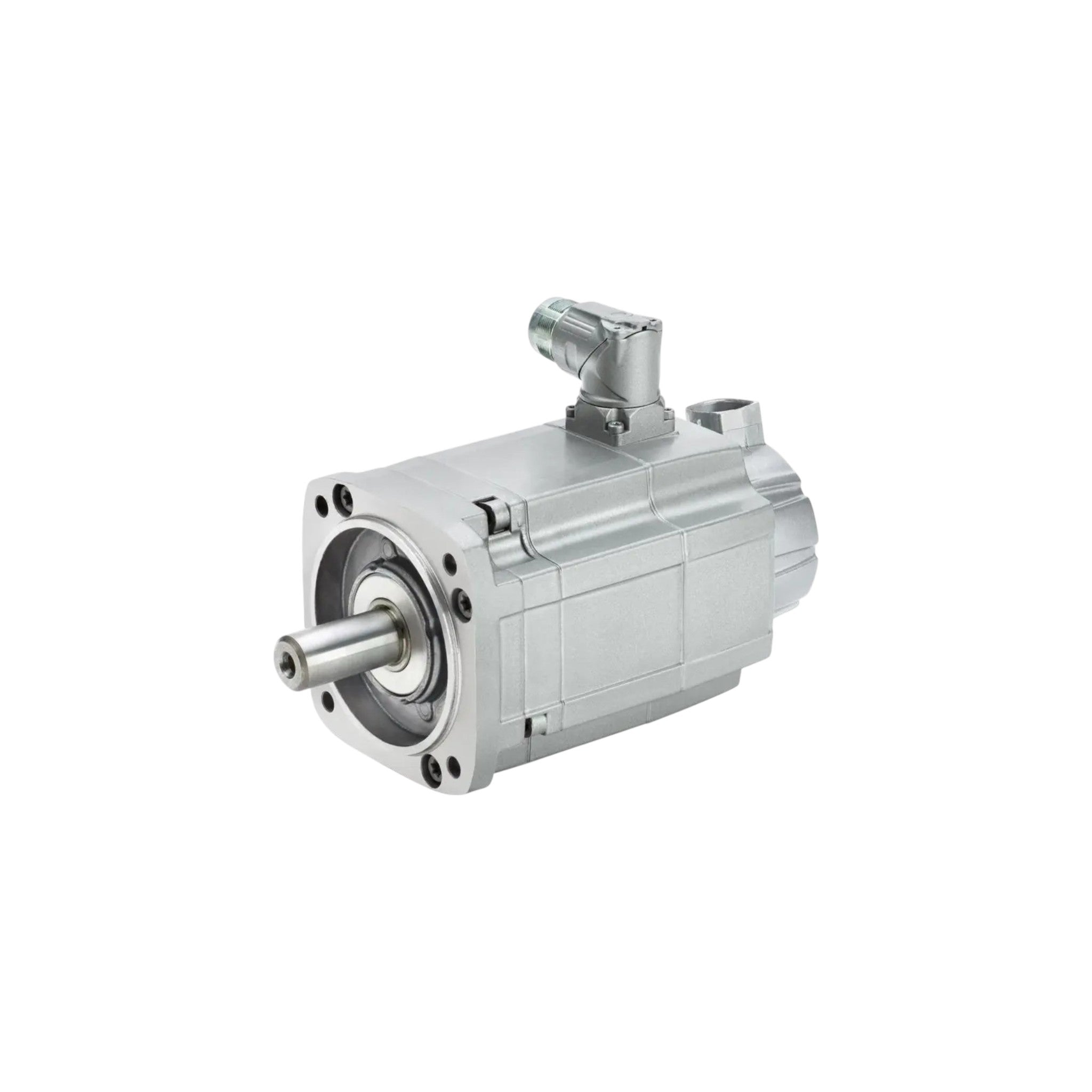

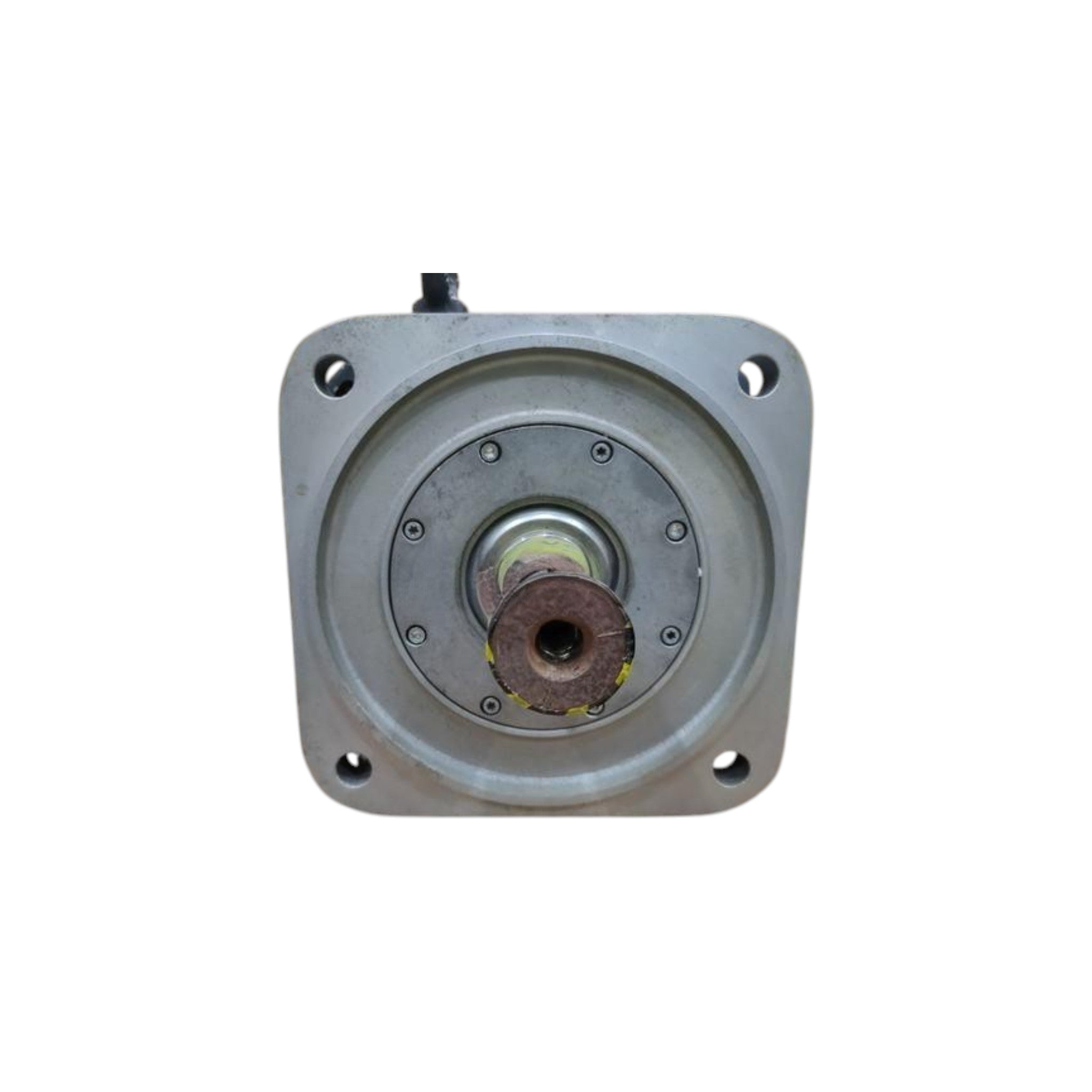

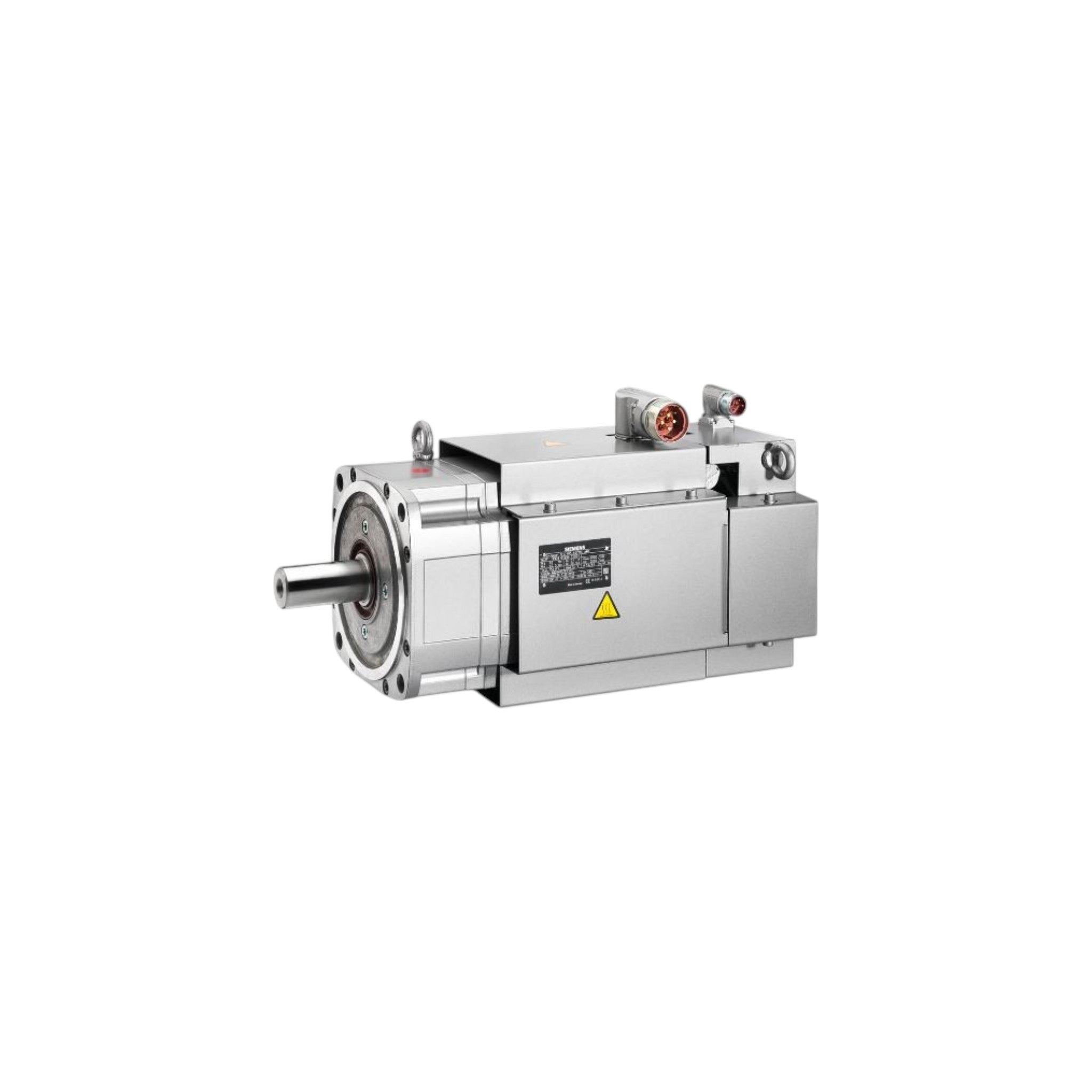

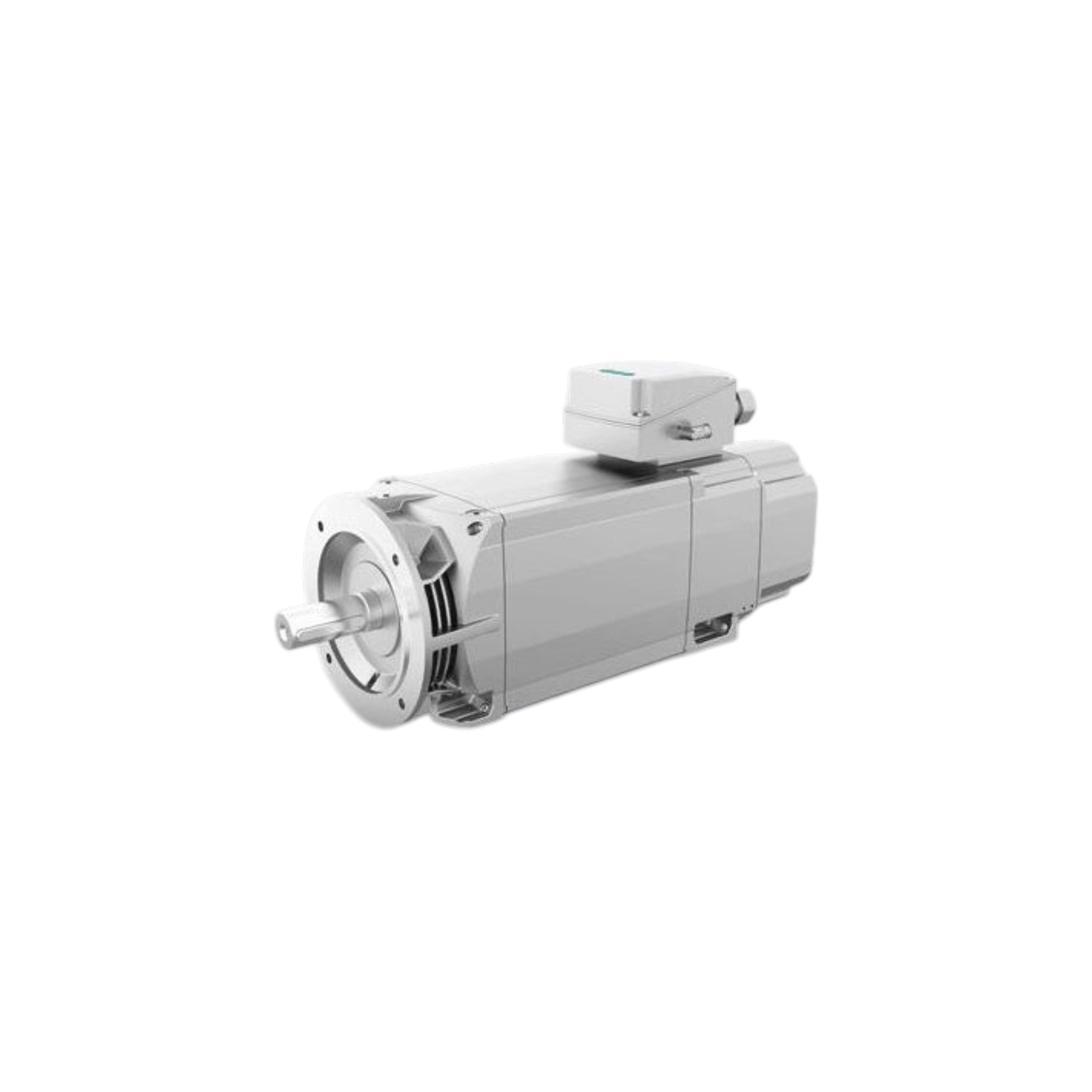

Siemens 1PH8286 SIMOTICS M-1PH8 Main Motor | Heavy-Duty Asynchronous Motor for SINAMICS S120
Product Description
The Siemens 1PH8286 is a high-performance SIMOTICS M-1PH8 asynchronous main motor engineered for heavy-duty CNC machine tools, spindle drives, metal processing equipment, and industrial automation systems. Designed for seamless integration with Siemens SINAMICS S120 drive systems, the 1PH8286 delivers exceptional torque, high power density, and precise speed control for demanding continuous-duty applications. It also features DRIVE-CLiQ technology for simplified commissioning, diagnostics, and reliable communication with Siemens drive systems.
The 1PH8286 series is available in multiple configurations with forced ventilation, water cooling, or open-circuit ventilation, along with various encoder systems, shaft designs, and mounting arrangements. Depending on the selected variant, the motor series offers rated output up to approximately 500 kW, rated torque up to 2,988 Nm, maximum torque up to 5,350 Nm, and maximum operating speeds up to 3,300 RPM, making it suitable for the most demanding industrial machining and production applications.
Designed for harsh industrial environments, the 1PH8286 is available with IP23 (open-circuit ventilation) or IP55 (water-cooled/forced ventilation) protection depending on the configuration, ensuring long service life and dependable operation.
Key Features
- Genuine Siemens SIMOTICS M-1PH8 asynchronous main motor
- Designed for Siemens SINAMICS S120 drive systems
- Integrated DRIVE-CLiQ communication interface
- High power density and exceptional overload capability
- Available with forced ventilation, water cooling, or open-circuit ventilation
- Incremental or absolute encoder options
- IP23 or IP55 protection (configuration dependent)
- Rated power up to 500 kW (variant dependent)
- Rated torque up to 2,988 Nm
- Maximum torque up to 5,350 Nm
- Maximum operating speed up to 3,300 RPM
- Rugged heavy-duty construction for continuous industrial operation
- Multiple shaft, flange, and mounting configurations
- Ideal for CNC machine tools, spindle drives, and heavy industrial machinery
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Model Series | 1PH8286 |
| Product Family | SIMOTICS M-1PH8 |
| Motor Type | Heavy-Duty Asynchronous Main Motor |
| Cooling | Forced Ventilation / Water Cooling / Open-Circuit Ventilation |
| Protection Class | IP23 / IP55 (configuration dependent) |
| Interface | DRIVE-CLiQ |
| Encoder | Incremental or Absolute (configuration dependent) |
| Rated Power | Up to 500 kW (variant dependent) |
| Rated Torque | Up to 2,988 Nm |
| Maximum Torque | Up to 5,350 Nm |
| Rated Speed | 400–2,000 RPM (configuration dependent) |
| Maximum Speed | Up to 3,300 RPM |
| Mounting | IM B3, IM B5, IM B35, IM V1, IM V3 (configuration dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
Note: Technical specifications vary depending on the exact Siemens order number, cooling method, encoder type, and mechanical configuration.
Applications
- CNC Machining Centers
- CNC Milling Machines
- CNC Lathes
- Heavy-Duty Main Spindle Drives
- Metal Cutting & Forming Equipment
- Steel Processing Machinery
- Printing Machinery
- Packaging Equipment
- Material Handling Systems
- Automated Manufacturing Lines
