Product Description

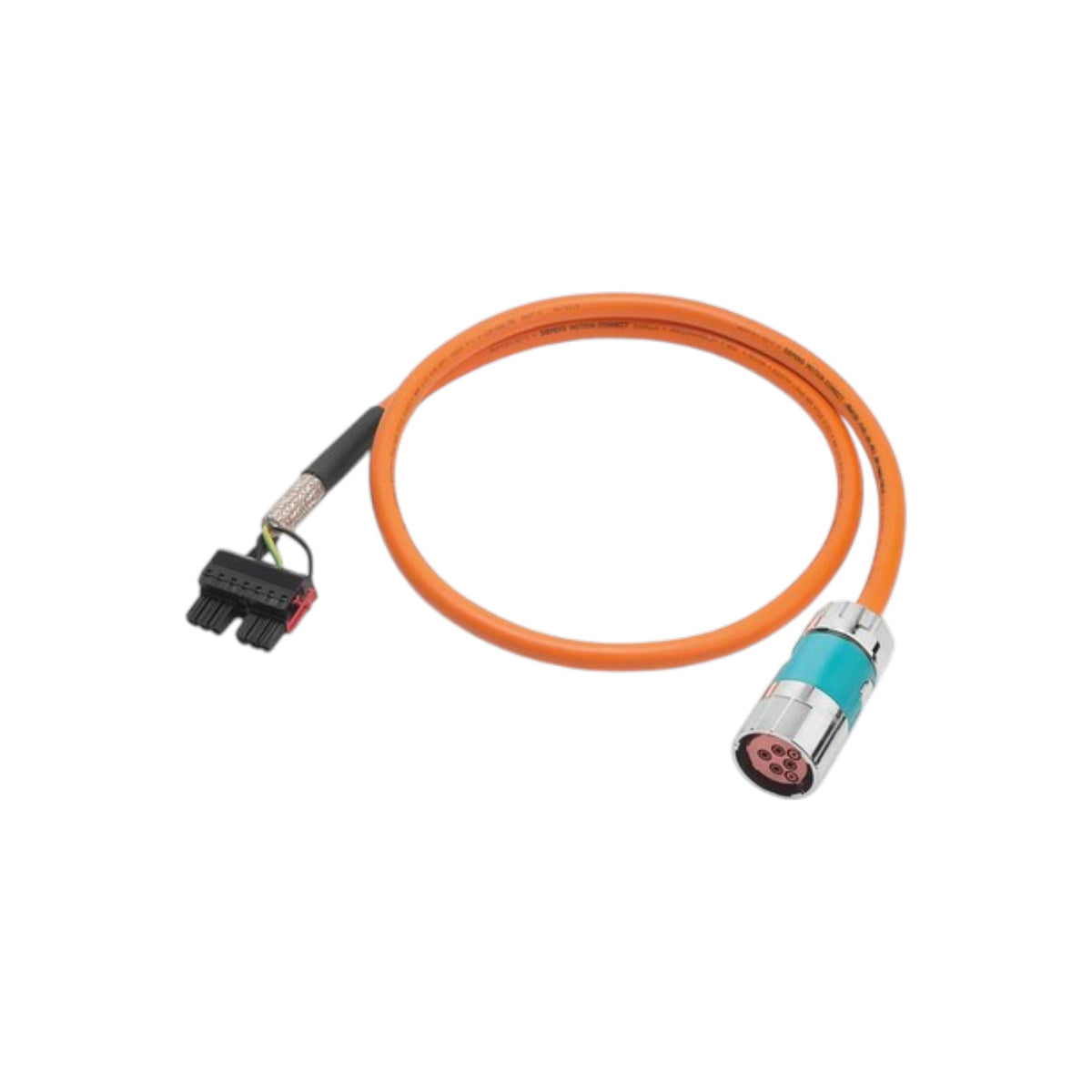

The Siemens 6FX5002-5CS14-XXXX is a factory-assembled MOTION-CONNECT 500 motor power cable engineered for reliable power transmission between Siemens SINAMICS S120 drive systems and compatible SIMOTICS S servo motors. Designed for fixed installation and low-flex applications, this cable family delivers dependable electrical performance, simplified installation, and excellent electromagnetic compatibility for industrial motion control systems. It is ideal for CNC machine tools, industrial automation, material handling systems, robotics, packaging machinery, and other precision manufacturing applications.
The 6FX5002-5CS14 series features a Full-Thread Connector Size 3 (M58) on the motor side and ring cable lug termination on the drive side for direct connection to SINAMICS S120 Motor Modules. The cable consists of 4 × 10 mm² power conductors and does not include brake conductors, making it suitable for servo motors that do not require an integrated holding brake connection. Manufactured under the MOTION-CONNECT 500 product family, it complies with UL/CSA and DESINA standards and features a durable shielded PVC construction for long-term industrial use.
Available in multiple factory lengths (identified by the -XXXX suffix), the 6FX5002-5CS14-XXXX family provides plug-and-play installation, reliable EMC protection, and long service life. Typical variants include 6FX5002-5CS14-1AF5, 1CA0, 1CF0, and additional standard cable lengths.
Key Features
- Genuine Siemens MOTION-CONNECT 500 power cable
- Siemens Part Series: 6FX5002-5CS14-XXXX
- Factory pre-assembled motor power cable
- Full-Thread motor connector (Size 3 / M58)
- Ring cable lug termination for SINAMICS S120 Motor Modules
- 4 × 10 mm² power conductors
- No brake conductors
- Shielded construction for excellent EMC performance
- PVC outer jacket
- Designed for fixed installation and low-flex applications
- Oil and abrasion resistant
- UL/CSA certified
- DESINA compliant
- Available in multiple factory cable lengths
- Plug-and-play installation
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | MOTION-CONNECT 500 |
| Part Number | 6FX5002-5CS14-XXXX |
| Product Type | Pre-Assembled Servo Motor Power Cable |
| Cable Construction | 4 × 10 mm² |
| Brake Conductors | No |
| Motor Connector | Full-Thread Connector Size 3 (M58) |
| Drive Connection | Ring Cable Lugs |
| Compatible Drives | Siemens SINAMICS S120 Motor Modules |
| Compatible Motors | Siemens SIMOTICS S-1FT2, S-1FT7, S-1FK2, S-1FK7, M-1PH8 (Full-Thread Connector Versions) |
| Rated Voltage | 600/1000 V |
| Cable Jacket | PVC (RAL 2003 Orange) |
| Maximum Cable Diameter | 20 mm |
| EMC Shielding | Yes |
| Installation Type | Fixed Installation / Low Flex |
| Certifications | UL, CSA, DESINA |
| Cable Length | Multiple variants (defined by suffix) |
| Manufacturer | Siemens |
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Material Handling Systems
- Metal Processing Equipment
- Printing Machinery
- Woodworking Machines
- Automated Production Lines
- Servo Motion Control Systems
- Factory Automation
