Description
Product Description

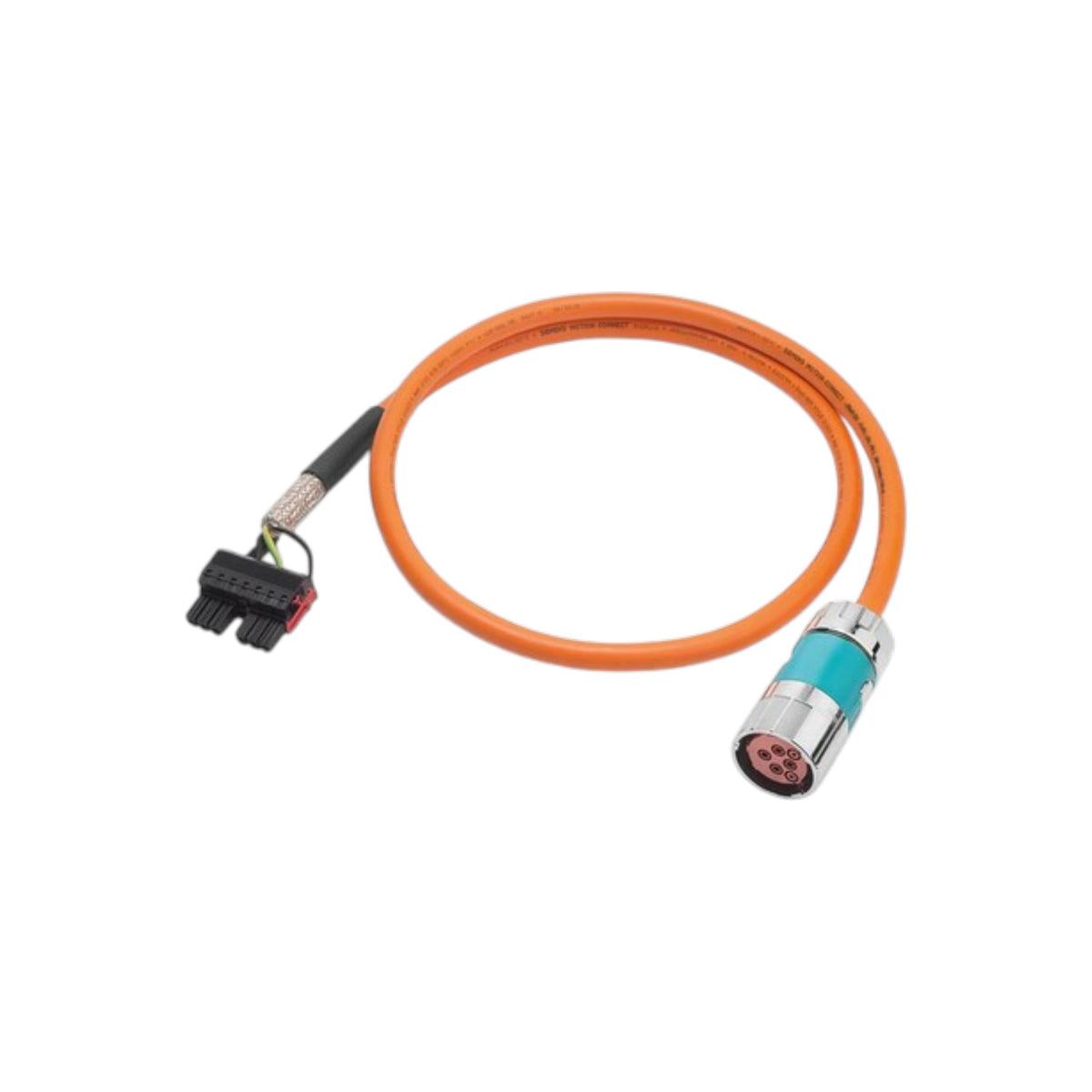

The Siemens 6FX5002-5DN06 is a MOTION-CONNECT 500 pre-assembled motor power cable designed for reliable power and brake connection between Siemens SIMOTICS motors and SINAMICS S120 drive systems. Featuring 4 × 1.5 mm² power conductors and 2 × 1.5 mm² integrated brake conductors, this cable provides a complete connection solution for servo motor applications equipped with holding brakes.
Equipped with SPEED-CONNECT Size 1 (M23) connectors, the cable enables quick installation, secure locking, and reduced commissioning time. The MOTION-CONNECT 500 series is optimized for fixed installation applications, delivering excellent EMC performance, operational reliability, and long service life in demanding industrial environments.
Manufactured to Siemens quality standards, the 6FX5002-5DN06 is ideal for machine tools, robotics, packaging machinery, material handling systems, and other motion-control applications requiring dependable motor power and brake connectivity.
Key Features
- Genuine Siemens MOTION-CONNECT 500 power cable
- Pre-assembled motor power cable with brake conductors
- SPEED-CONNECT Size 1 (M23) connector system
- 4 × 1.5 mm² power conductors
- 2 × 1.5 mm² integrated brake conductors
- Optimized for fixed installation applications
- High EMC shielding performance
- Fast installation and secure connection
- Reduced commissioning time
- Compatible with SINAMICS S120 and SIMOTICS systems
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 6FX5002-5DN06 |
| Product Family | MOTION-CONNECT 500 |
| Product Type | Motor Power Cable with Brake Cores |
| Cable Design | Pre-Assembled |
| Power Conductors | 4 × 1.5 mm² |
| Brake Conductors | 2 × 1.5 mm² |
| Connector Type | SPEED-CONNECT Size 1 (M23) |
| Shielding | EMC Shielded |
| Drive Compatibility | SINAMICS S120 |
| Motor Compatibility | SIMOTICS Servo Motors |
| Installation Type | Fixed Installation |
| Manufacturer | Siemens |
Applications
- SIMOTICS S-1FT2 Servo Motors
- SIMOTICS S-1FT7 Servo Motors
- SIMOTICS S-1FK2 Servo Motors
- SIMOTICS S-1FK7 Servo Motors
- SIMOTICS S-1FG1 Motors
- SINAMICS S120 Drive Systems
- CNC Machine Tools
- Robotics Systems
- Packaging Machinery
- Industrial Motion Control Equipment
