Product Description

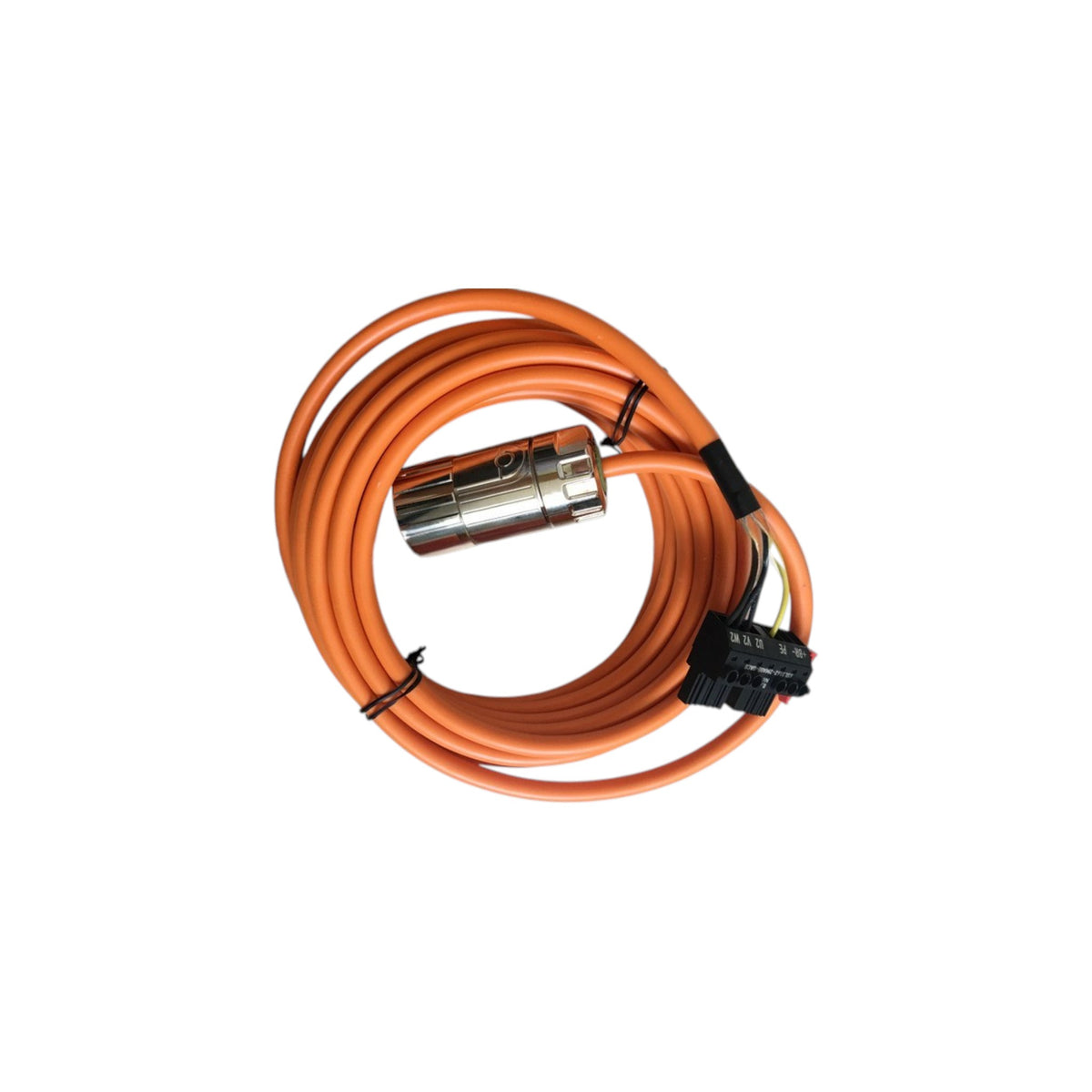

The Siemens 6FX5002-5DN36 is a pre-assembled MOTION-CONNECT 500 power cable designed for reliable motor power transmission between Siemens SIMOTICS motors and SINAMICS S120 Booksize Motor Modules. The cable features SPEED-CONNECT Size 1.5 connectors, a 4 × 2.5 mm² power conductor configuration, and (2 × 1.5 mm²) brake conductors, making it ideal for servo motor applications requiring integrated brake connections.
As part of the Siemens MOTION-CONNECT 500 cable family, the 6FX5002-5DN36 is engineered for industrial environments with predominantly fixed installation requirements and moderate mechanical loads. The cable is UL/CSA certified, DESINA compliant, and provides excellent EMC performance for dependable operation in motion control and automation systems.
The pre-assembled design reduces installation time and commissioning effort while ensuring optimal compatibility with Siemens SINAMICS S120 drive systems. Its robust construction, complete shielding, and industrial-grade connectors help maximize system reliability and machine uptime.
Key Features
- Genuine Siemens MOTION-CONNECT 500 power cable
- Pre-assembled motor power cable with brake cores
- SPEED-CONNECT Size 1.5 connector technology
- 4 × 2.5 mm² power conductors
- 2 × 1.5 mm² integrated brake conductors
- Designed for SINAMICS S120 Booksize Motor Modules (C-/D-types)
- Complete EMC shielding for industrial environments
- UL/CSA certified and DESINA compliant
- Fast installation and reduced commissioning time
- Suitable for fixed installation and moderate dynamic applications
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 6FX5002-5DN36 |
| Product Family | MOTION-CONNECT 500 |
| Product Type | Pre-Assembled Motor Power Cable |
| Power Conductors | 4 × 2.5 mm² |
| Brake Conductors | 2 × 1.5 mm² |
| Connector Type | SPEED-CONNECT Size 1.5 |
| Application | Motor Power & Brake Connection |
| Drive Compatibility | SINAMICS S120 Booksize C-/D-Type Motor Modules |
| Certification | UL/CSA, DESINA |
| Maximum Cable Diameter | 12.4 mm |
| Shielding | Complete EMC Shield |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected cable length variant.
Applications
- SIMOTICS Servo Motors
- SINAMICS S120 Drive Systems
- CNC Machine Tools
- Packaging Machinery
- Robotics Systems
- Material Handling Equipment
- Printing Machines
- Motion Control Systems
- Automated Production Lines
- Industrial Manufacturing Equipment
