Product Description

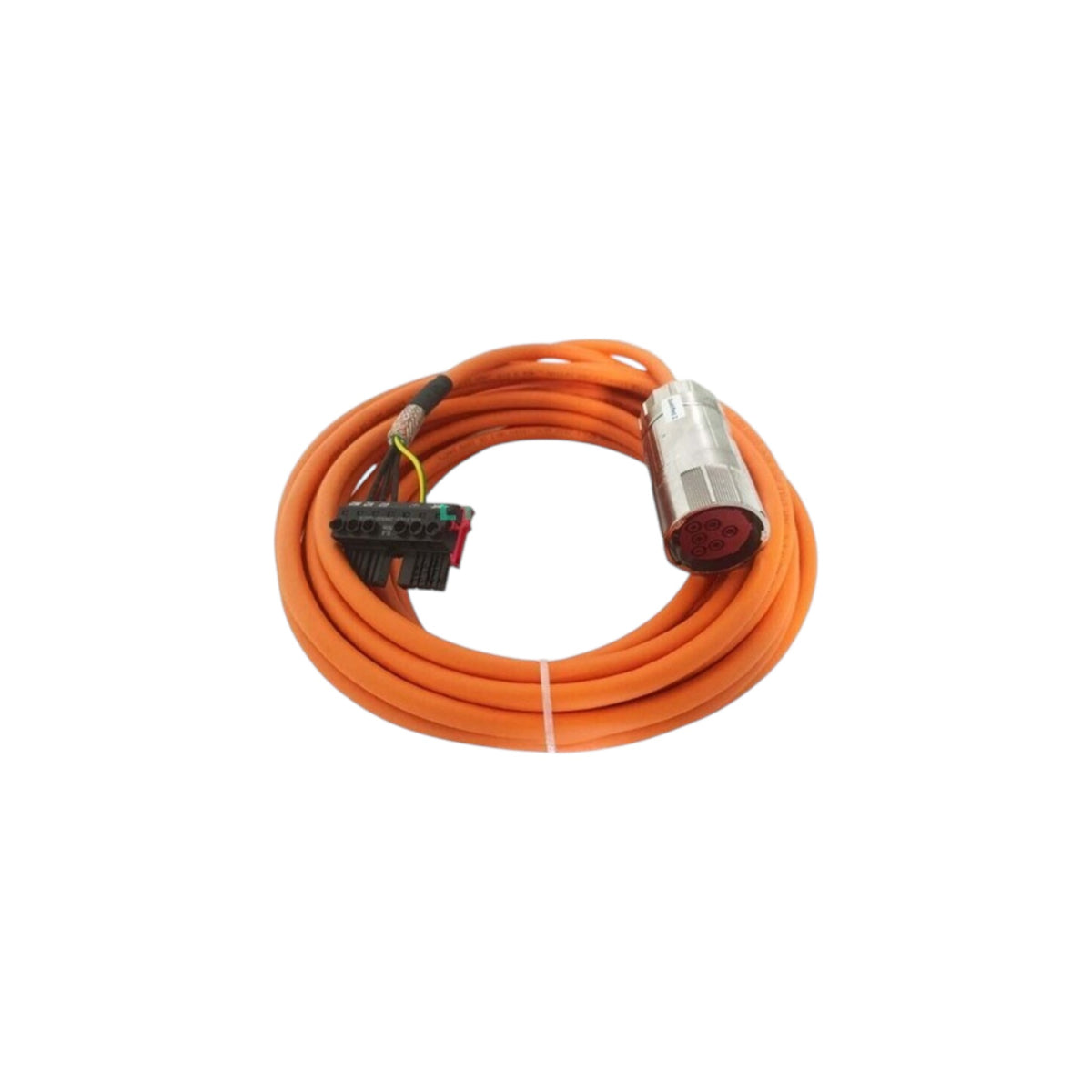

The Siemens 6FX5002-5DN46 is a MOTION-CONNECT 500 pre-assembled motor power cable engineered for reliable power and brake connections between Siemens SIMOTICS motors and SINAMICS S120 Booksize Motor Modules. The cable features 4 × 4.0 mm² power conductors and 2 × 1.5 mm² brake conductors, making it ideal for servo motor applications with integrated holding brakes.
Designed with SPEED-CONNECT Size 1.5 connectors, the cable enables fast, secure, and error-free installation while reducing commissioning time. As part of the MOTION-CONNECT 500 series, it is optimized for fixed installation applications and provides excellent EMC shielding, long service life, and dependable performance in demanding industrial environments.
Manufactured to Siemens' industrial standards, the 6FX5002-5DN46 is suitable for CNC machine tools, robotics, packaging systems, material handling equipment, and other motion-control applications requiring reliable motor power transmission and integrated brake connectivity.
Key Features
- Genuine Siemens MOTION-CONNECT 500 power cable
- Pre-assembled motor power cable with integrated brake conductors
- SPEED-CONNECT Size 1.5 connector system
- 4 × 4.0 mm² power conductors
- 2 × 1.5 mm² brake conductors
- Designed for SINAMICS S120 Booksize C-/D-type Motor Modules
- Optimized for fixed installation applications
- High EMC shielding performance
- UL/CSA approved and DESINA compliant
- Industrial-grade construction for long service life
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 6FX5002-5DN46 |
| Product Family | MOTION-CONNECT 500 |
| Product Type | Pre-Assembled Motor Power Cable with Brake Cores |
| Power Conductors | 4 × 4.0 mm² |
| Brake Conductors | 2 × 1.5 mm² |
| Connector Type | SPEED-CONNECT Size 1.5 |
| Drive Compatibility | SINAMICS S120 Booksize C-/D-Type Motor Modules |
| Cable Type | Fixed Installation |
| Cable Sheath | PVC DESINA Orange (RAL 2003) |
| Certifications | UL/CSA, DESINA |
| Maximum Cable Diameter | 14 mm |
| Manufacturer | Siemens |
Cable length varies depending on the selected ordering variant.
Applications
- SIMOTICS S-1FT2 Servo Motors
- SIMOTICS S-1FT7 Servo Motors
- SIMOTICS S-1FK2 Servo Motors
- SIMOTICS S-1FK7 Servo Motors
- SIMOTICS S-1FG1 Motors
- SIMOTICS M-1PH8 Main Spindle Motors
- SINAMICS S120 Drive Systems
- CNC Machine Tools
- Robotics and Automation Systems
- Packaging and Material Handling Equipment
