Product Description

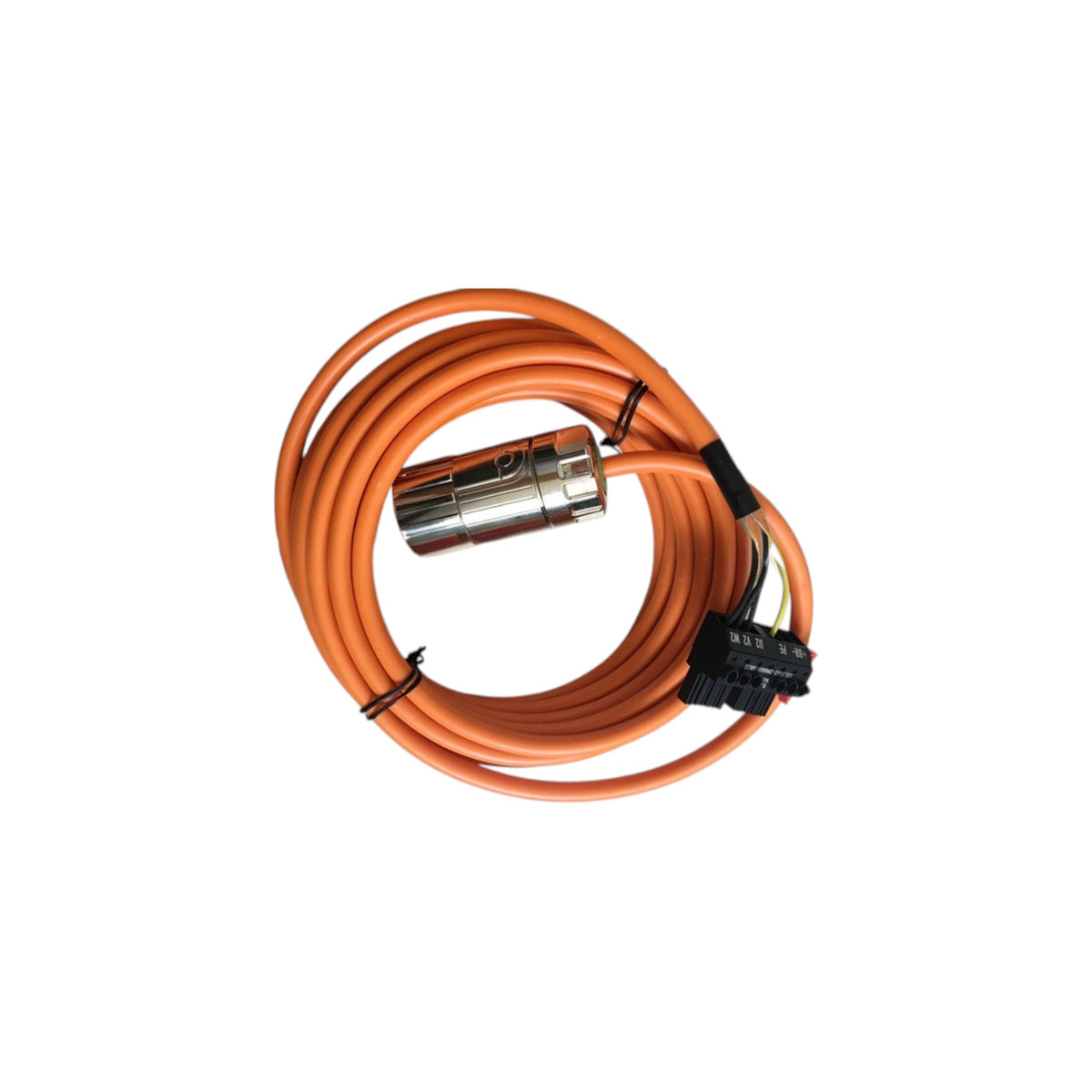

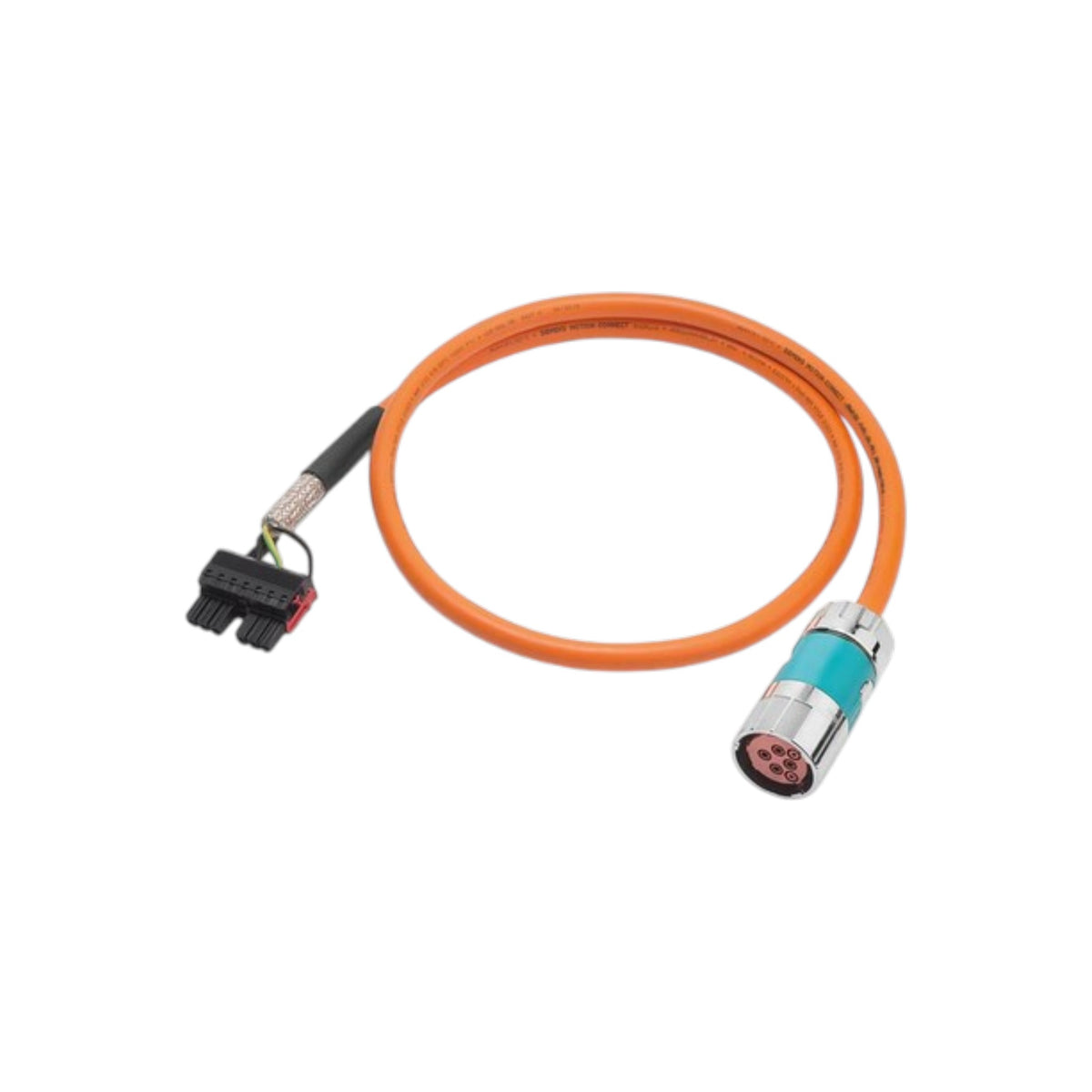

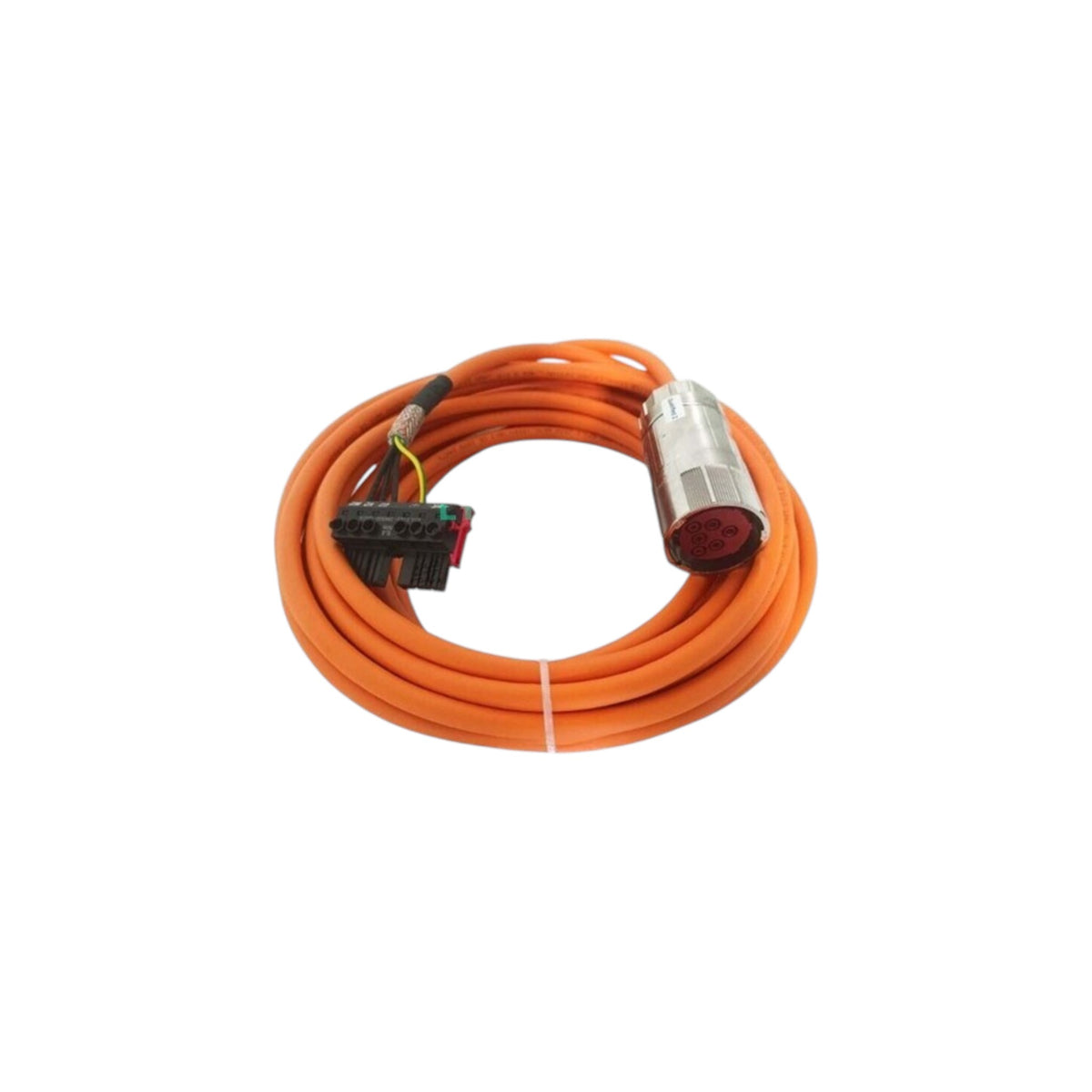

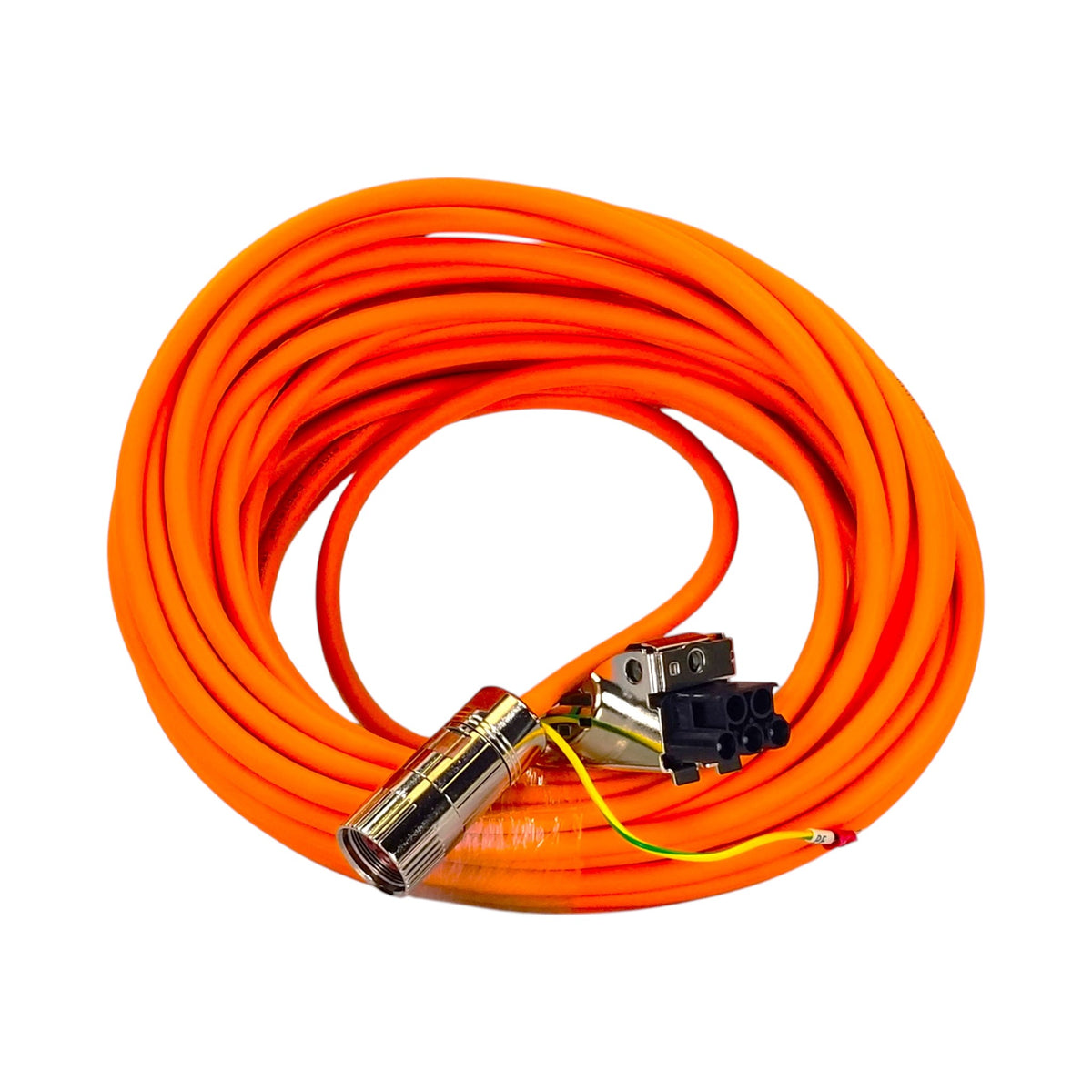

The Siemens 6FX8002-5CN06 is a pre-assembled MOTION-CONNECT 800PLUS power cable designed for reliable motor power transmission between Siemens SIMOTICS motors and SINAMICS S120 Booksize Motor Modules. Equipped with a SPEED-CONNECT Size 1 (M23) motor connector, this cable enables fast installation, secure connections, and dependable performance in demanding industrial automation environments.
Designed for trailing cable applications, the cable features 4 × 1.5 mm² conductors, a durable PUR DESINA orange outer jacket, and excellent EMC characteristics for interference-free operation. The cable is optimized for use with SIMOTICS S-1FT2, S-1FT7, S-1FK2, S-1FK7, S-1FG1, and M-1PH8 motor series connected to SINAMICS S120 drive systems.
The MOTION-CONNECT 800PLUS design supports high mechanical flexibility, long service life, and reliable operation in CNC machine tools, robotics, packaging machinery, and motion-control systems where dynamic cable movement is required.
Key Features
- Genuine Siemens MOTION-CONNECT 800PLUS power cable
- Pre-assembled motor power cable
- SPEED-CONNECT Size 1 (M23) connector
- 4 × 1.5 mm² power conductors
- Compatible with SINAMICS S120 Booksize C-/D-type Motor Modules
- Designed for trailing cable applications
- PUR DESINA industrial-grade cable jacket
- High EMC shielding performance
- UL/CSA approved construction
- Fast installation and secure motor connection technology
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 6FX8002-5CN06 |
| Product Family | MOTION-CONNECT 800PLUS |
| Product Type | Pre-Assembled Motor Power Cable |
| Conductor Size | 4 × 1.5 mm² |
| Brake Conductors | No |
| Connector Type | SPEED-CONNECT Size 1 (M23) |
| Drive Compatibility | SINAMICS S120 Booksize C-/D-Type Motor Modules |
| Rated Voltage | 600 V / 1000 V |
| Cable Diameter | 9.5 mm |
| Outer Jacket | PUR DESINA Orange (RAL 2003) |
| Application | Trailing / Flexible Installation |
| Manufacturer | Siemens |
Technical specifications may vary according to the selected cable length variant.
Applications
- SINAMICS S120 Drive Systems
- SIMOTICS S-1FT2 Servo Motors
- SIMOTICS S-1FT7 Servo Motors
- SIMOTICS S-1FK2 Servo Motors
- SIMOTICS S-1FK7 Servo Motors
- SIMOTICS S-1FG1 Motors
- SIMOTICS M-1PH8 Main Spindle Motors
- CNC Machine Tools
- Robotics Systems
- Industrial Motion Control Applications
