Product Description

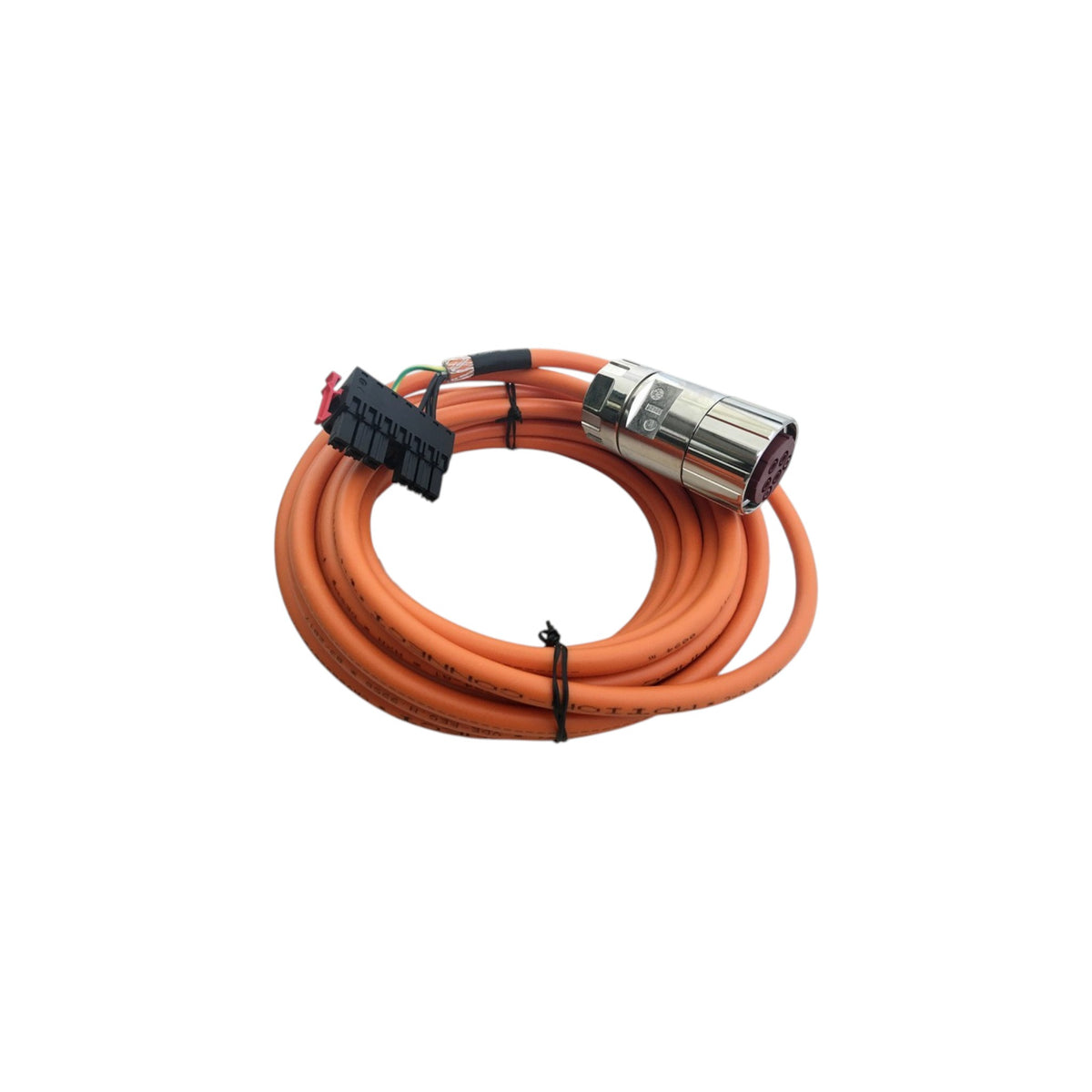

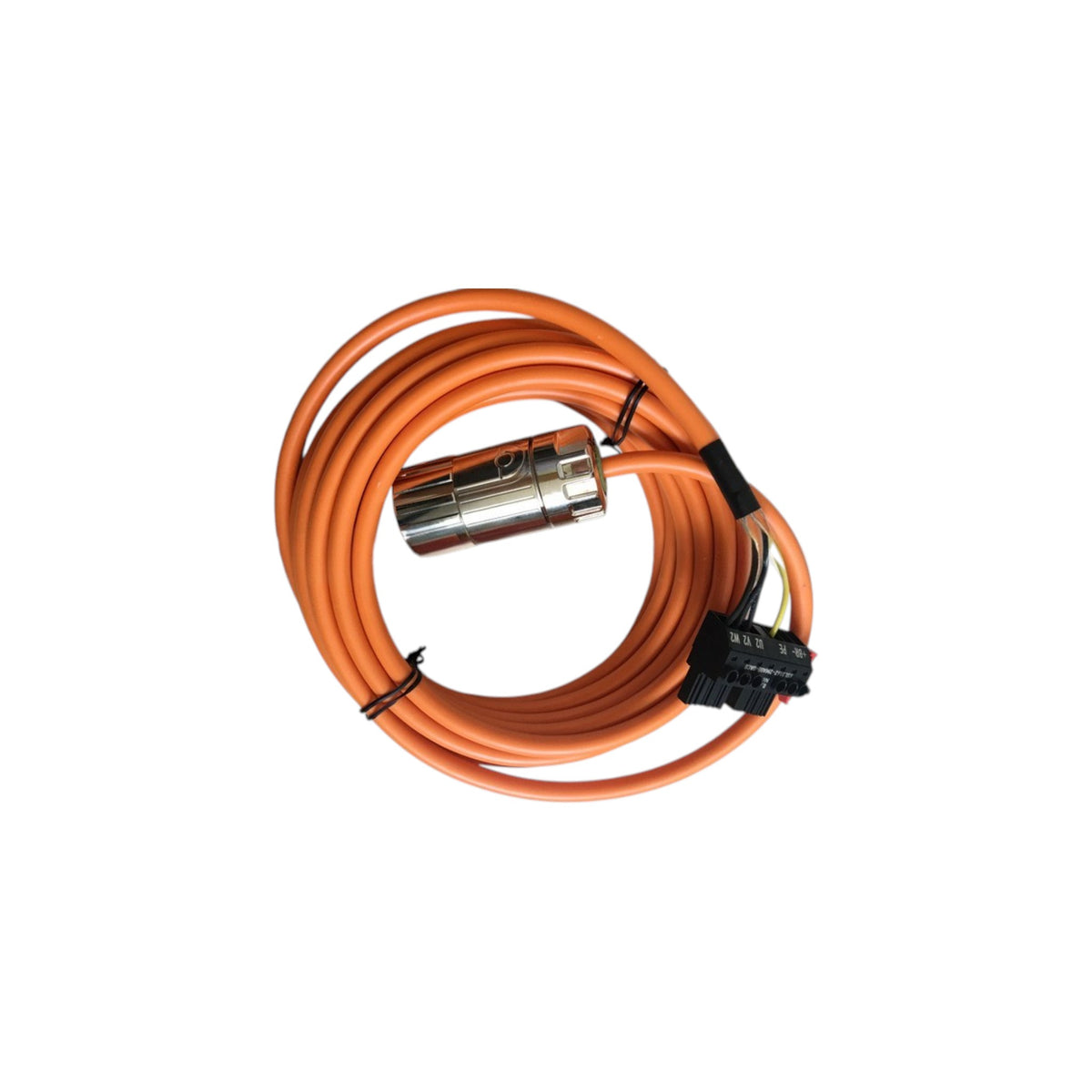

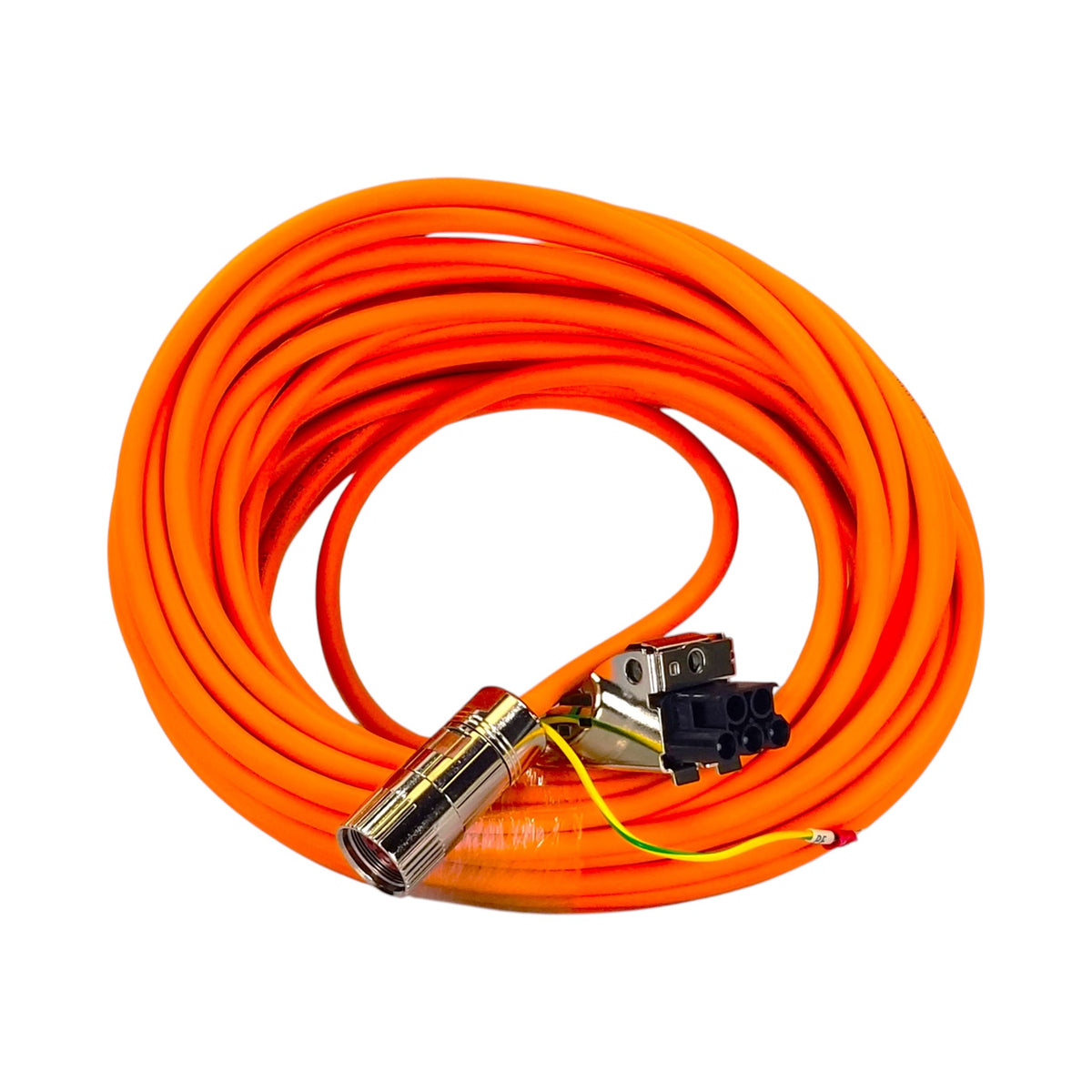

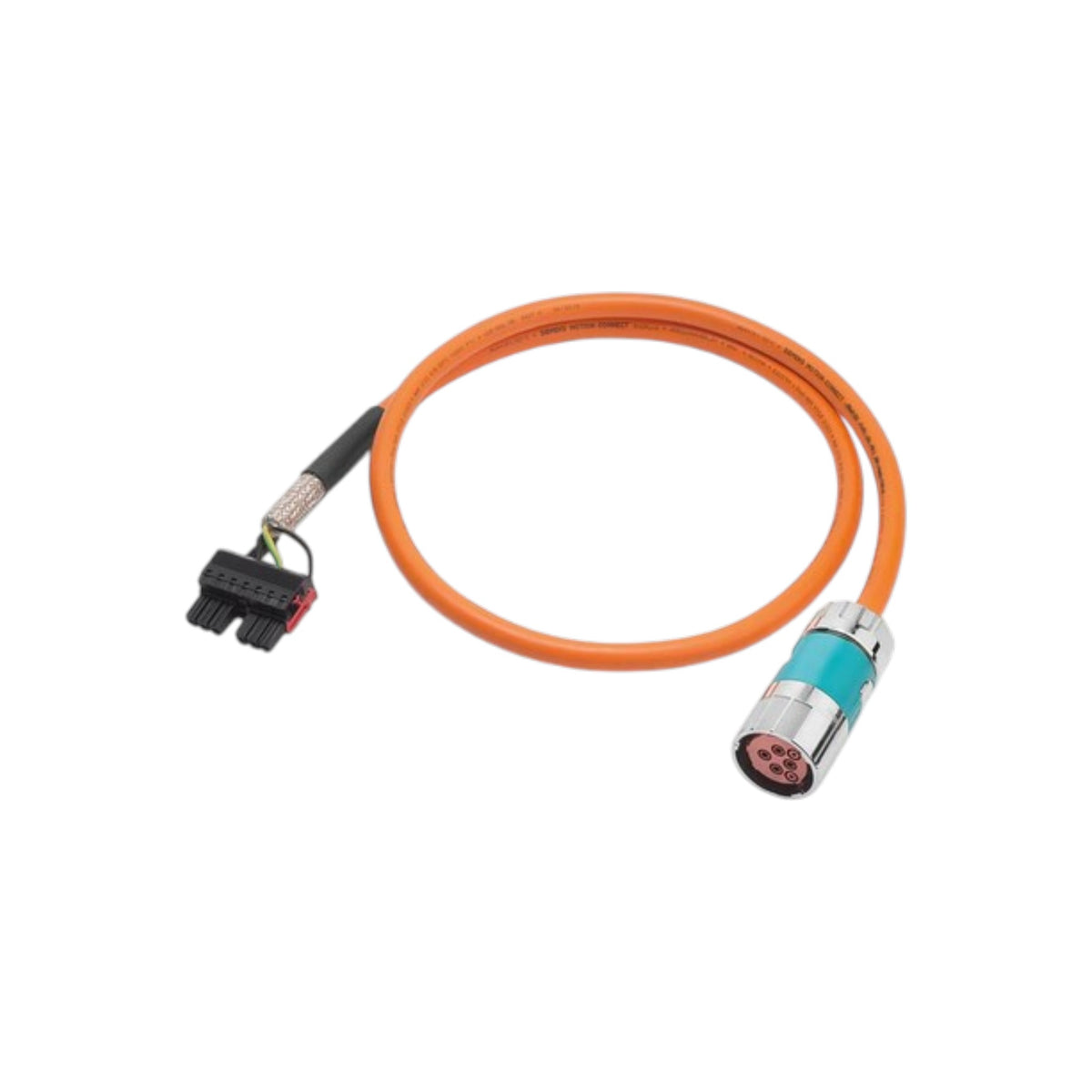

The Siemens 6FX8002-5CN26 is a pre-assembled MOTION-CONNECT 800PLUS power cable designed for reliable motor power transmission between Siemens SIMOTICS motors and SINAMICS S120 Booksize Motor Modules. Featuring a SPEED-CONNECT motor-side connector and a converter-side connector for SINAMICS S120 Booksize C/D-type motor modules, this cable ensures fast installation, secure connectivity, and long-term operational reliability in demanding industrial environments.
Built with 4 × 1.5 mm² conductors, the cable is optimized for servo and motion-control applications requiring high flexibility, EMC performance, and durability. The MOTION-CONNECT 800PLUS design supports both fixed and dynamic installations, making it suitable for CNC machinery, packaging systems, robotics, and automated production equipment.
The cable utilizes Siemens SPEED-CONNECT technology for rapid motor connection and is available in multiple cable lengths through Siemens ordering variants (e.g., 2 m, 5 m, 10 m, 20 m).
Key Features
- Original Siemens MOTION-CONNECT 800PLUS power cable
- SPEED-CONNECT motor-side connector
- Compatible with SINAMICS S120 Booksize Motor Modules
- 4 × 1.5 mm² power conductors
- Pre-assembled industrial power cable
- High EMC and interference protection
- Suitable for fixed and dynamic cable installations
- DESINA-compliant cable construction
- Quick installation and secure connection technology
- Designed for SIMOTICS servo and spindle motor applications
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 6FX8002-5CN26 |
| Product Family | MOTION-CONNECT 800PLUS |
| Product Type | Pre-Assembled Power Cable |
| Conductor Size | 4 × 1.5 mm² |
| Motor Connector | SPEED-CONNECT Size 1.5 |
| Drive Connector | SINAMICS S120 Booksize C/D Type |
| Rated Voltage | 600 V / 1000 V |
| Maximum Cable Diameter | 9.5 mm |
| Minimum Fixed Bending Radius | 28.5 mm |
| Cable Sheath | PUR DESINA Orange (variant dependent) |
| Application | Servo Motor Power Connection |
| Manufacturer | Siemens |
Applications
- SINAMICS S120 Drive Systems
- SIMOTICS Servo Motors
- CNC Machine Tools
- Robotics Systems
- Packaging Machinery
- Printing Equipment
- Material Handling Systems
- Industrial Automation Equipment
- Motion Control Applications
- Production Machinery
