Product Description

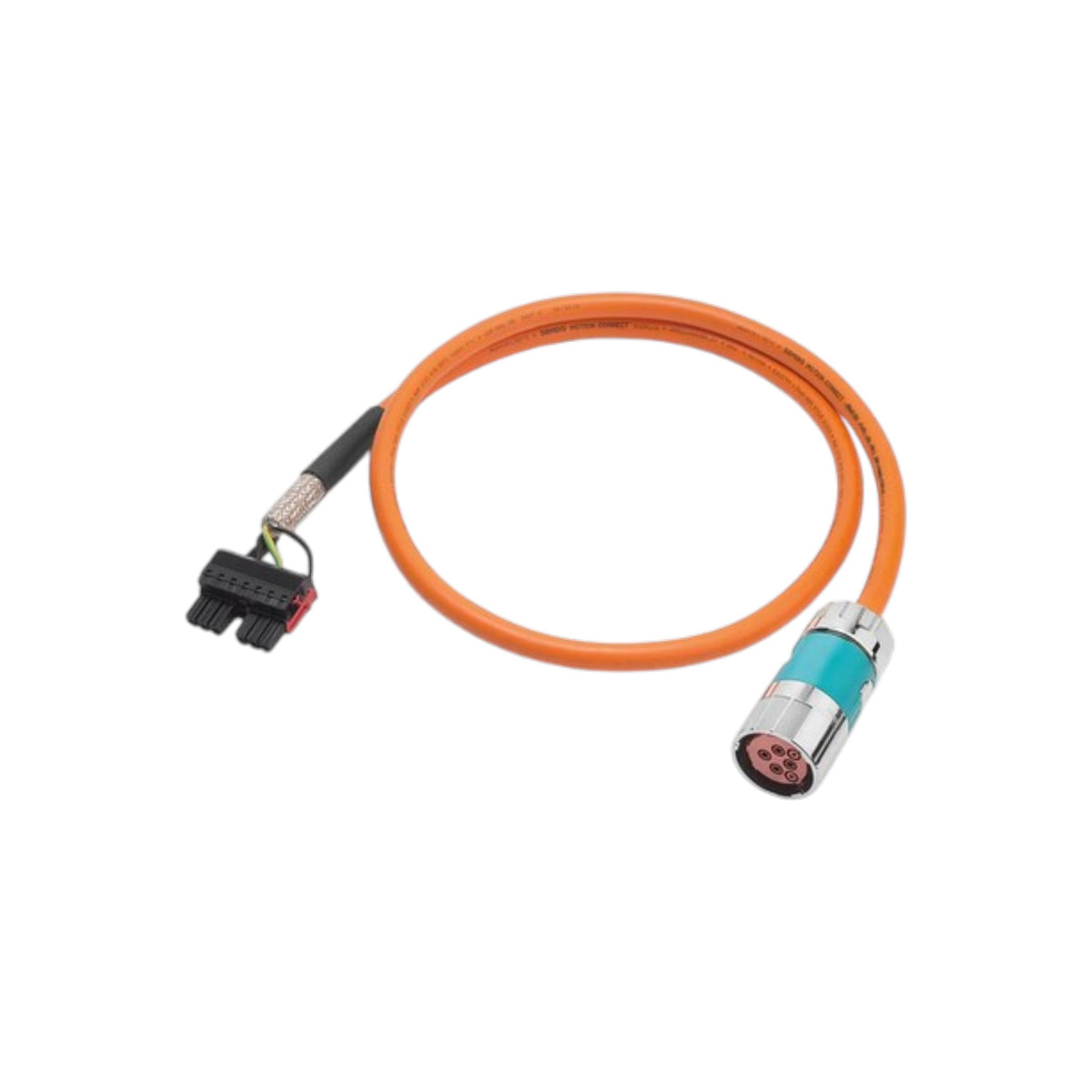

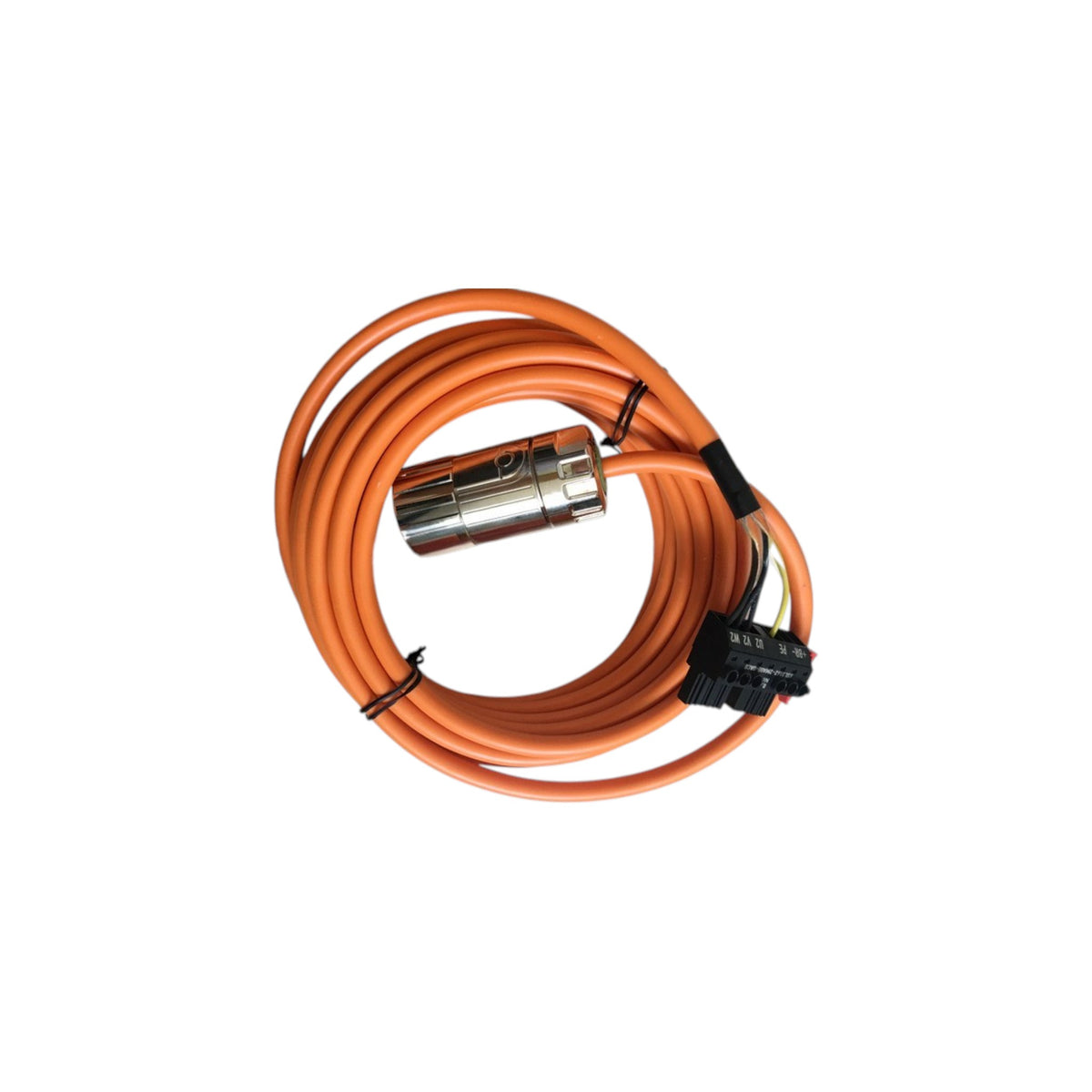

The Siemens 6FX8002-5DN06 is a pre-assembled MOTION-CONNECT 800PLUS power cable designed for connecting Siemens SIMOTICS motors to SINAMICS S120 Booksize Motor Modules. This cable features 4 × 1.5 mm² power conductors plus 2 × 1.5 mm² brake conductors, making it ideal for servo motor applications requiring integrated motor brake functionality.
Equipped with a SPEED-CONNECT Size 1 (M23) motor connector, the cable enables fast, secure, and reliable installation while reducing commissioning time. The MOTION-CONNECT 800PLUS trailing cable design is optimized for dynamic applications such as CNC machinery, robotics, packaging equipment, and automated production systems.
The cable is UL/CSA certified, DESINA compliant, and constructed with a durable PUR outer jacket for excellent mechanical performance, EMC protection, and long service life in demanding industrial environments. It is compatible with Siemens SIMOTICS S-1FT2, S-1FT7, S-1FK2, S-1FK7, S-1FG1, and M-1PH8 motor families.
Key Features
- Genuine Siemens MOTION-CONNECT 800PLUS power cable
- Pre-assembled cable with integrated brake conductors
- SPEED-CONNECT Size 1 (M23) connector
- 4 × 1.5 mm² power conductors
- 2 × 1.5 mm² brake conductors
- Designed for SINAMICS S120 Booksize C-/D-type Motor Modules
- Suitable for trailing and dynamic cable applications
- PUR DESINA industrial-grade outer sheath
- Excellent EMC shielding performance
- UL/CSA certified and DESINA compliant
Technical Specifications
| Specification | Details |
|---|---|
| Part Number | 6FX8002-5DN06 |
| Product Family | MOTION-CONNECT 800PLUS |
| Product Type | Pre-Assembled Motor Power Cable |
| Power Conductors | 4 × 1.5 mm² |
| Brake Conductors | 2 × 1.5 mm² |
| Connector Size | Size 1 (M23) |
| Connector Type | SPEED-CONNECT |
| Drive Compatibility | SINAMICS S120 Booksize C-/D-Type Motor Modules |
| Rated Voltage | 600 V / 1000 V |
| Maximum Cable Diameter | 12 mm |
| Cable Jacket | PUR DESINA Orange (RAL 2003) |
| Installation Type | Trailing / Flexible Application |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected cable length variant.
Applications
- SIMOTICS S-1FT2 Servo Motors
- SIMOTICS S-1FT7 Servo Motors
- SIMOTICS S-1FK2 Servo Motors
- SIMOTICS S-1FK7 Servo Motors
- SIMOTICS S-1FG1 Motors
- SIMOTICS M-1PH8 Main Spindle Motors
- SINAMICS S120 Drive Systems
- CNC Machine Tools
- Robotics Systems
- Packaging and Automation Equipment
