Product Description

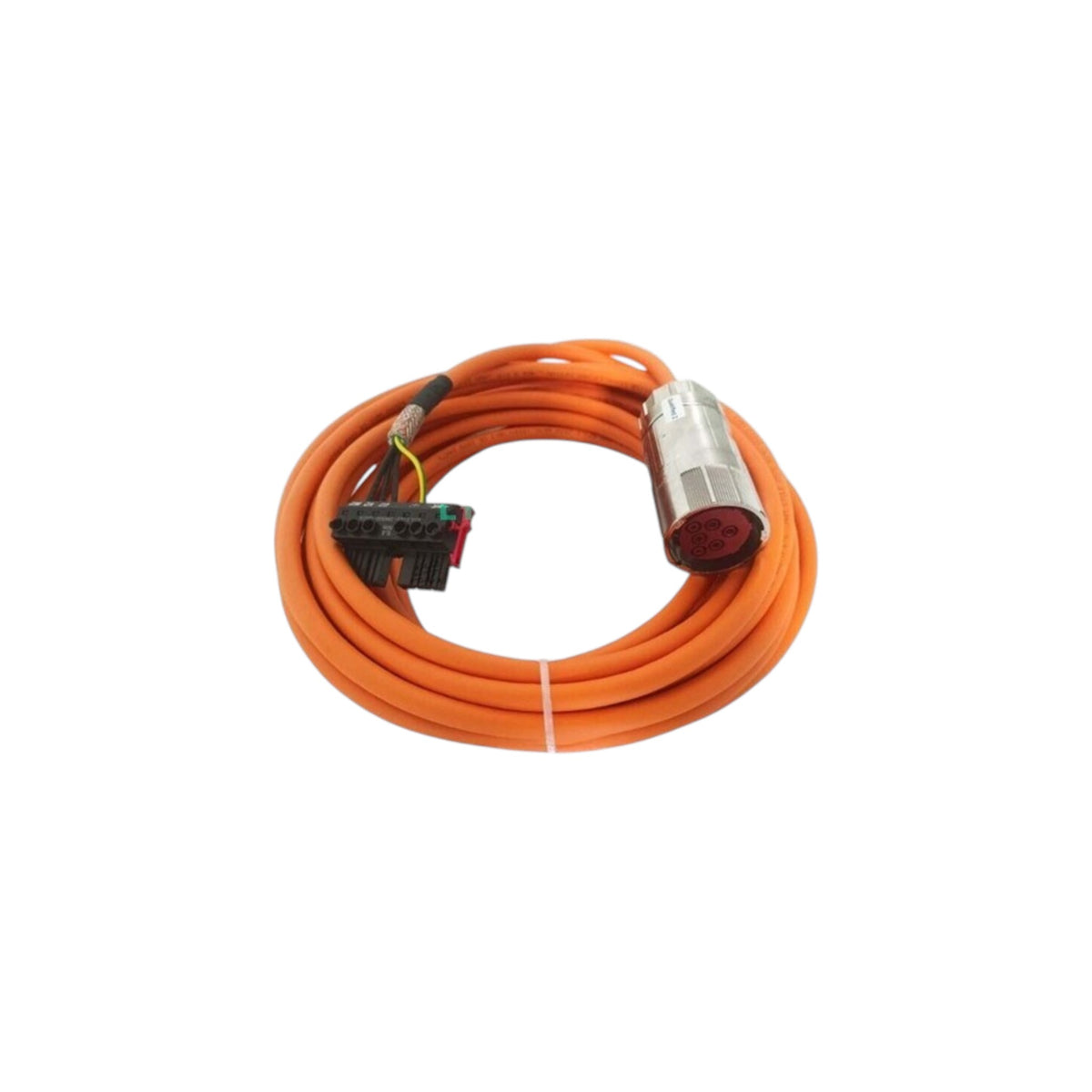

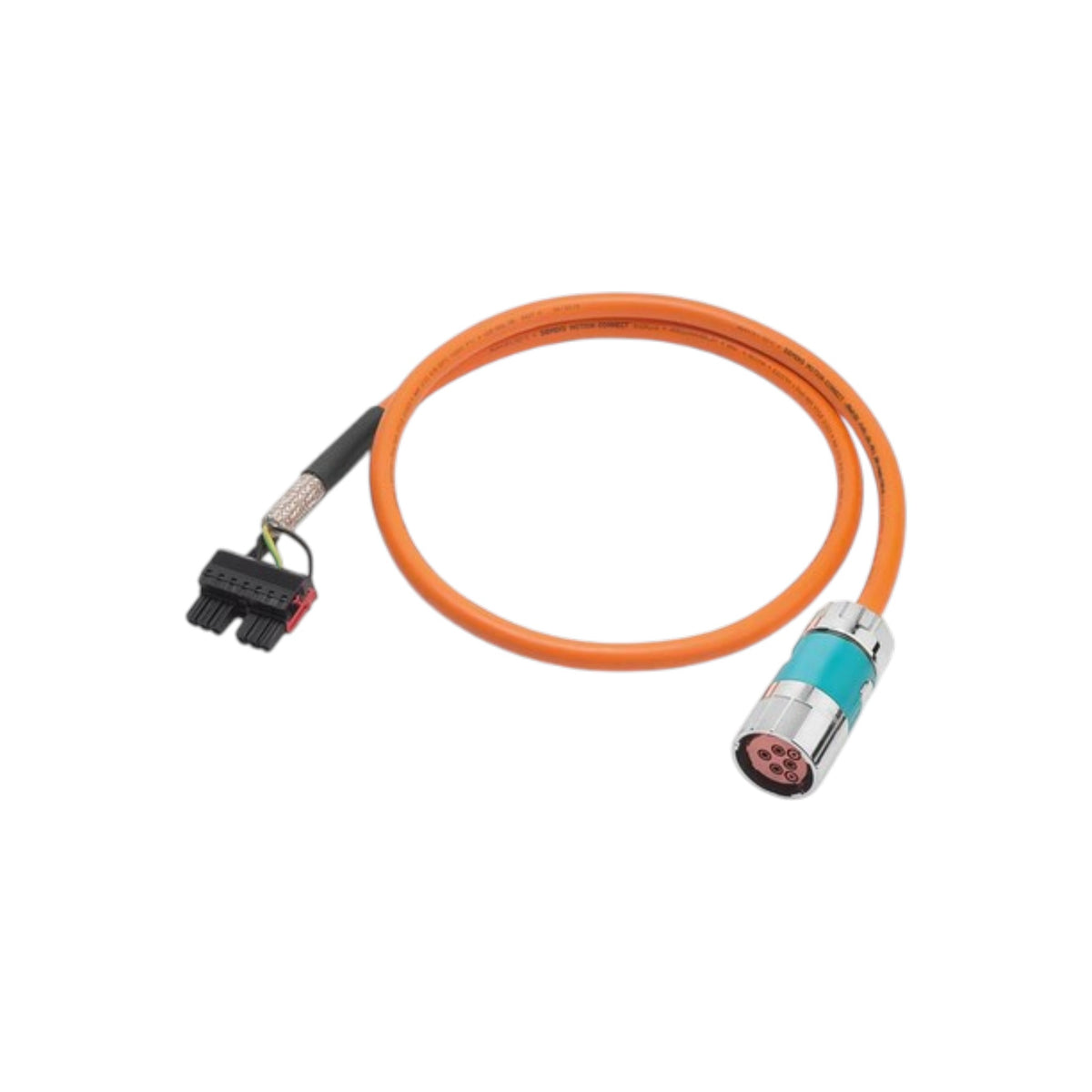

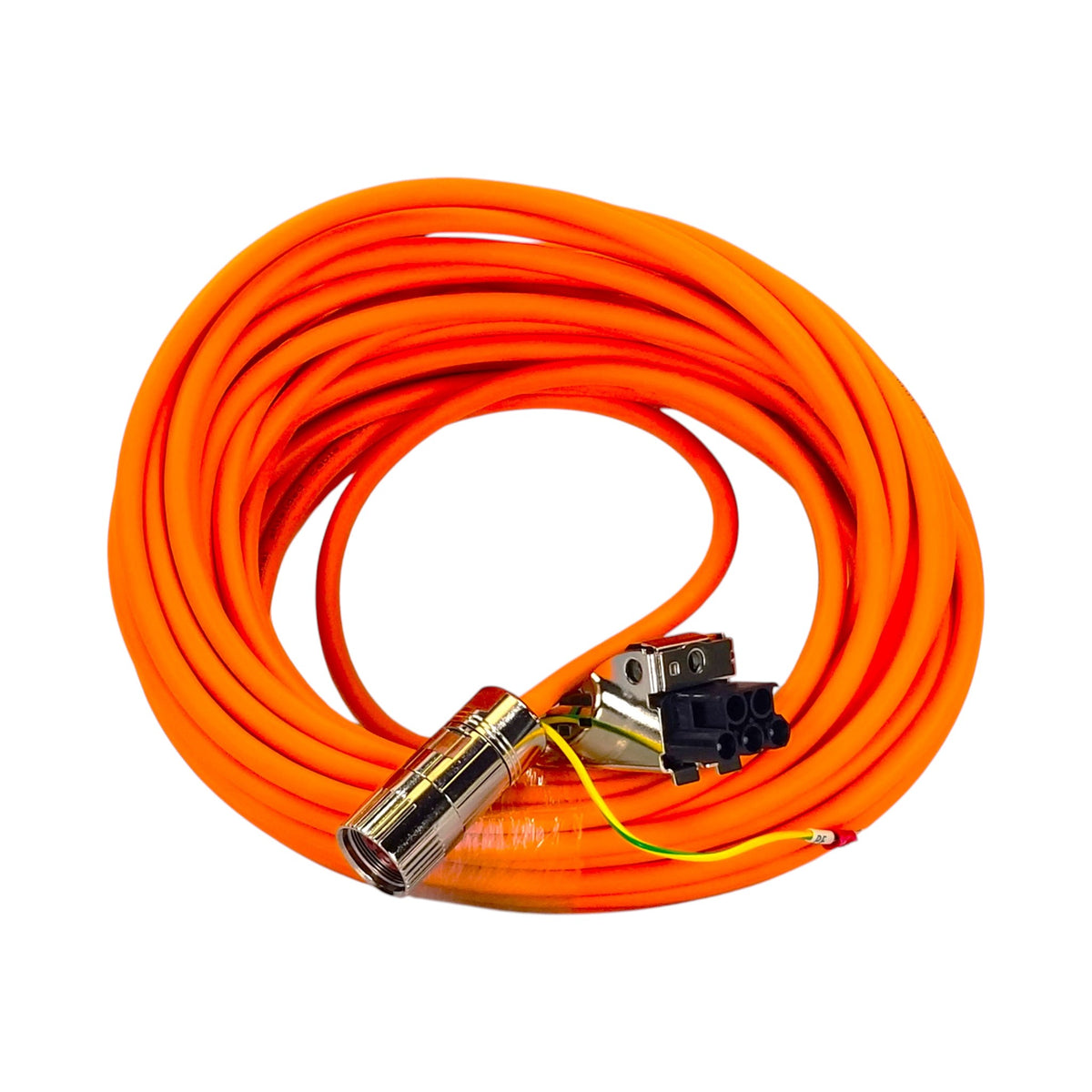

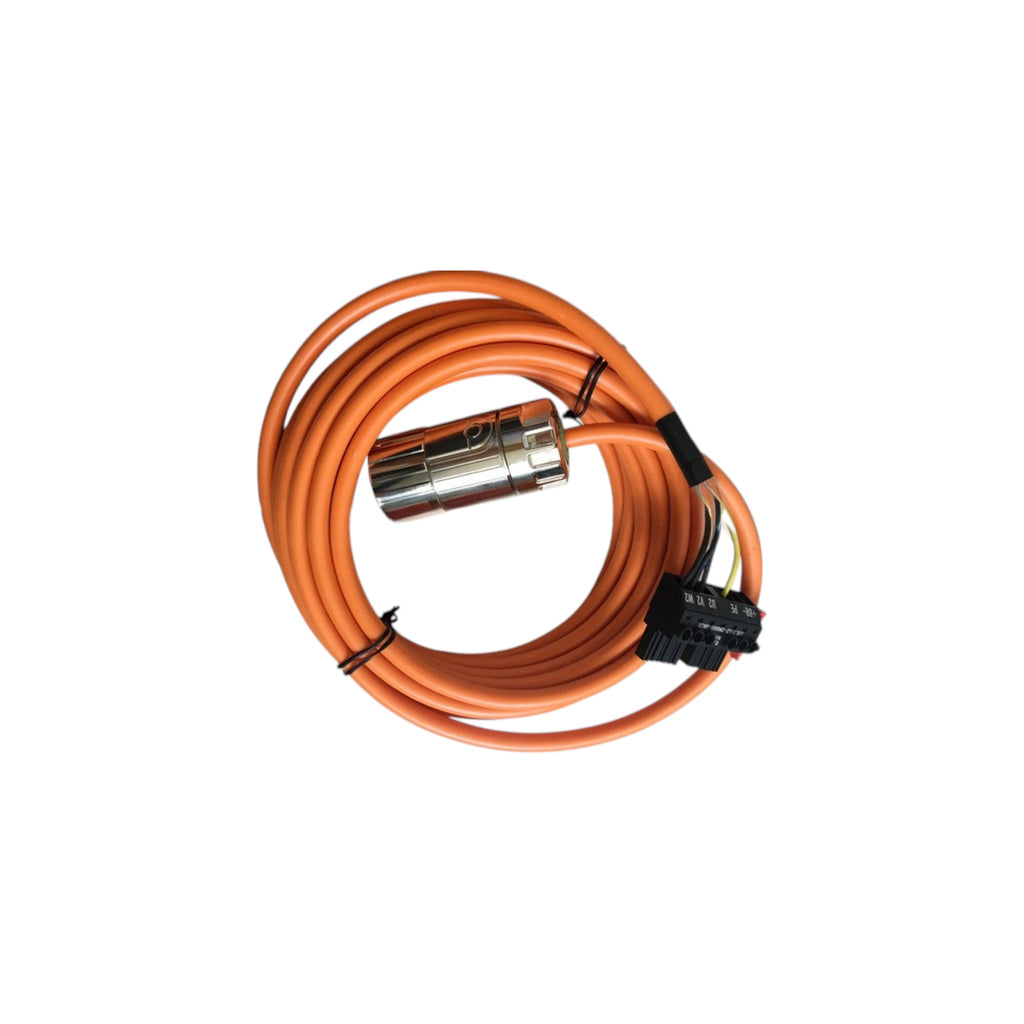

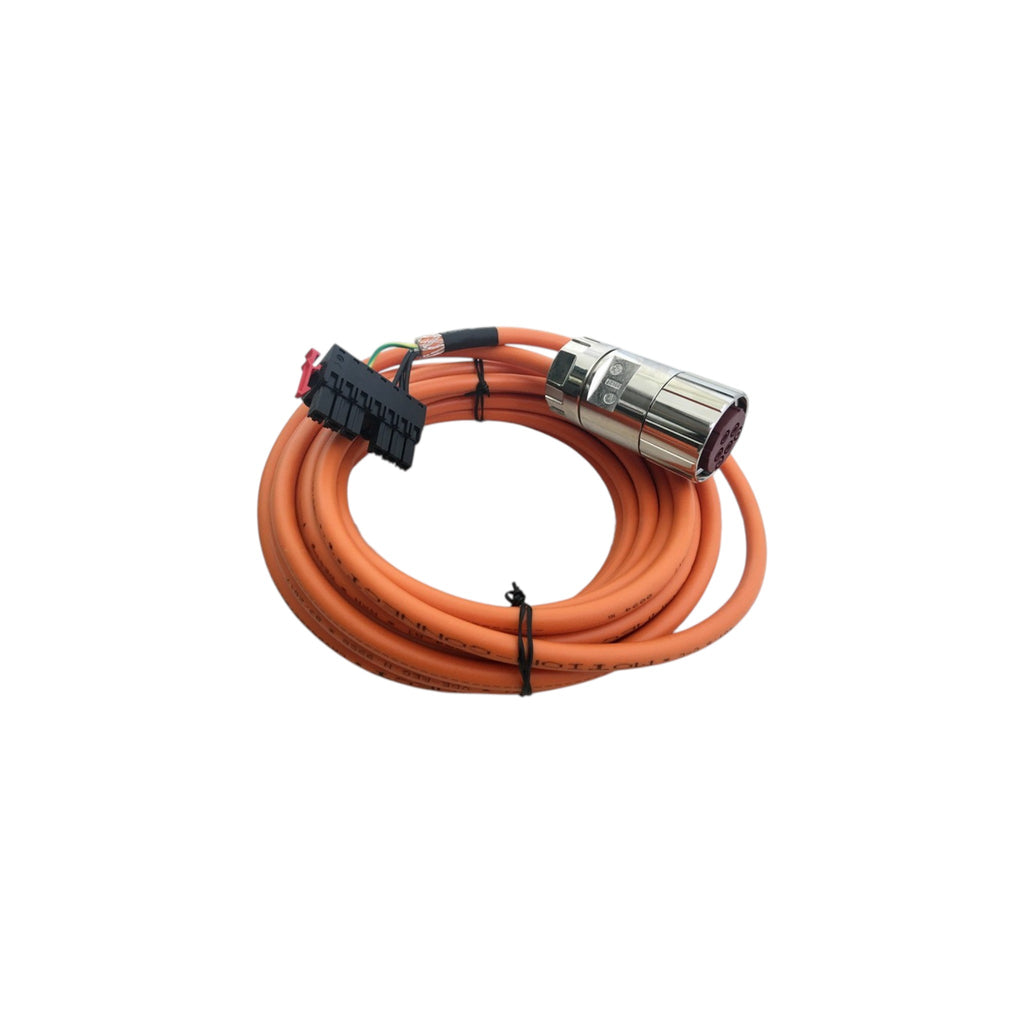

The Siemens 6FX8002-5DN54-XXXX is a factory-assembled MOTION-CONNECT 800PLUS motor power cable designed for reliable power transmission between Siemens SINAMICS S120 Motor Modules and SIMOTICS S servo motors. This cable family incorporates integrated brake conductors, making it ideal for servo motors equipped with holding brakes while ensuring reliable power and brake connections in a single cable assembly. It is engineered for demanding industrial motion control applications where high flexibility, durability, and electromagnetic compatibility are essential.
The 6FX8002-5DN54 series features a Speed-Connect Size 1.5 connector on the motor side and ring cable lugs on the converter/module side for direct connection to SINAMICS S120 Motor Modules. Constructed using MOTION-CONNECT 800PLUS technology, these cables are suitable for continuous flexing in cable carriers (trailable applications) and comply with UL/CSA and DESINA industrial standards. The cable construction consists of 4 × 6 mm² power conductors plus 2 × 1.5 mm² brake conductors, supporting servo motors equipped with integrated holding brakes.
Available in multiple standard lengths (identified by the suffix -XXXX), the cable family provides excellent EMC performance, oil-resistant PUR insulation, robust industrial connectors, and dependable long-term operation in CNC machine tools, robotics, packaging machinery, printing systems, material handling equipment, and automated production lines. The exact cable length is defined by the complete Siemens order number (for example, 6FX8002-5DN54-1BA0, 1CF0, 1DC0, 1JF0, etc.).
Key Features
- Genuine Siemens MOTION-CONNECT 800PLUS power cable
- Siemens Part Series: 6FX8002-5DN54-XXXX
- Factory pre-assembled motor power cable
- Speed-Connect connector (Size 1.5) on motor side
- Ring cable lug termination on converter side
- Designed for SINAMICS S120 Motor Modules
- Compatible with SIMOTICS S servo motors
- Includes integrated brake conductors
- Cable carrier (trailable) suitable
- PUR outer jacket
- Shielded cable for excellent EMC performance
- Oil, abrasion, and coolant resistant
- UL/CSA certified
- DESINA compliant
- Available in multiple cable lengths
- Plug-and-play installation
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | MOTION-CONNECT 800PLUS |
| Part Number | 6FX8002-5DN54-XXXX |
| Product Type | Pre-Assembled Servo Motor Power Cable |
| Cable Construction | 4 × 6 mm² + 2 × 1.5 mm² (Brake Conductors) |
| Motor Connector | Speed-Connect Connector Size 1.5 |
| Drive Connection | Ring Cable Lugs |
| Brake Conductors | Yes |
| Compatible Drives | Siemens SINAMICS S120 Motor Modules |
| Compatible Motors | Siemens SIMOTICS S Servo Motors |
| Rated Voltage | 600/1000 V |
| Test Voltage (Power Conductors) | 4.0 kV |
| Test Voltage (Brake Conductors) | 2.0 kV |
| Cable Jacket | PUR |
| Maximum Cable Diameter | 17.3 mm |
| Cable Type | Continuous Flex / Cable Carrier |
| EMC Shielding | Yes |
| Certifications | UL / CSA, DESINA |
| Cable Length | Multiple variants (defined by suffix) |
| Manufacturer | Siemens |
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Material Handling Systems
- Printing Equipment
- Metal Processing Machines
- Woodworking Machinery
- Textile Machinery
- Automated Production Lines
- High-Performance Motion Control Systems
