Description
Product Description

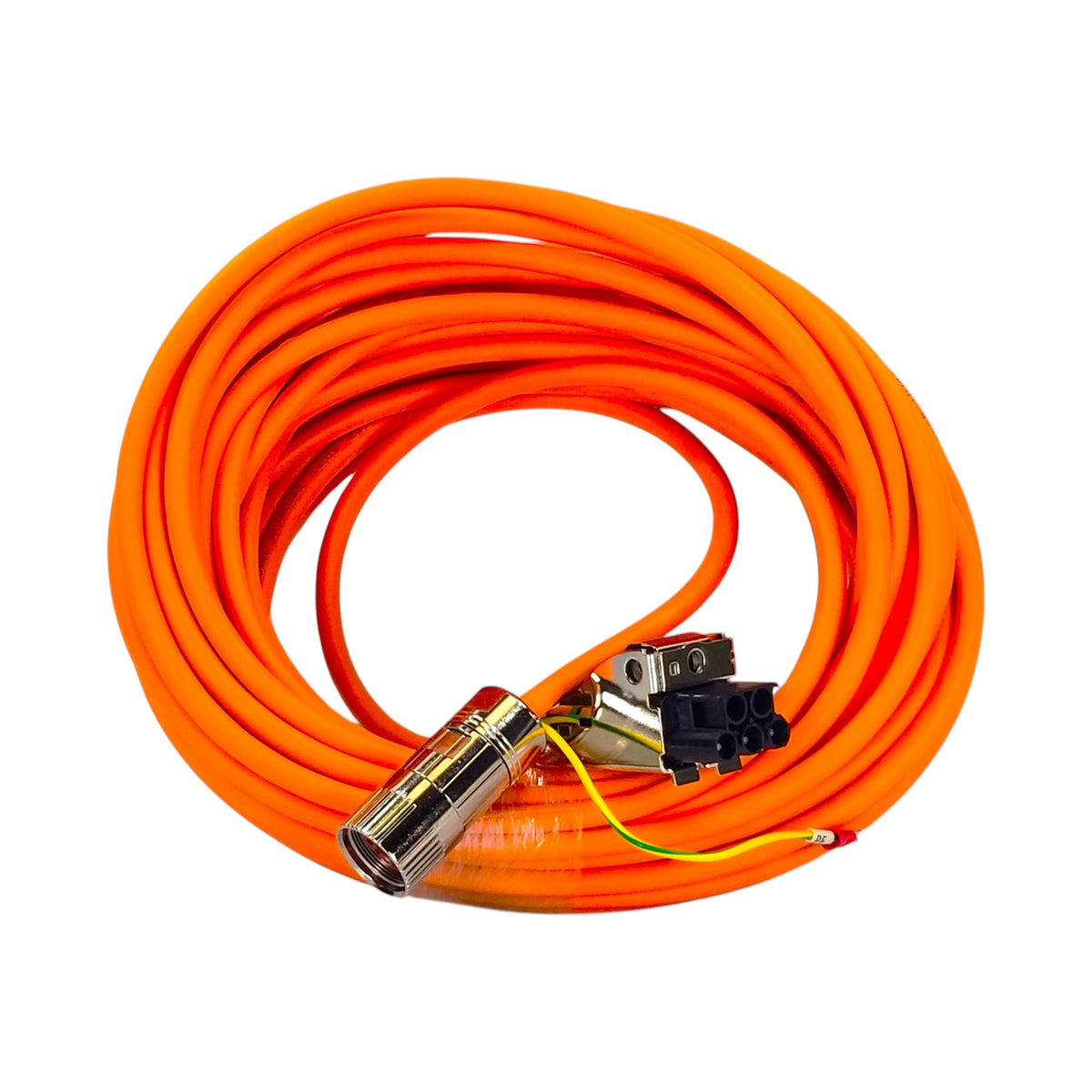

The Siemens 6FX8002-5DS14-XXXX is a factory-assembled MOTION-CONNECT 800PLUS motor power cable designed for reliable power and brake signal transmission between Siemens SINAMICS S120 Motor Modules and compatible SIMOTICS S servo motors. Engineered for demanding industrial automation and motion control applications, this cable provides exceptional flexibility, long service life, and superior EMC performance. It is specifically designed for continuous-flex (trailable) installations, making it ideal for cable carrier applications.
The 6FX8002-5DS14 series features a Full-Thread Connector Size 3 (M58) on the motor side and ring cable lugs on the drive side for direct connection to SINAMICS S120 Booksize Motor Modules. The cable construction consists of 4 × 10 mm² power conductors plus 2 × 1.5 mm² brake conductors, making it suitable for servo motors equipped with integrated holding brakes. Manufactured using MOTION-CONNECT 800PLUS technology, the cable features a durable PUR outer jacket, high mechanical strength, oil and coolant resistance, and compliance with UL/CSA and DESINA standards.
Available in multiple factory lengths (identified by the -XXXX suffix), the 6FX8002-5DS14-XXXX family provides plug-and-play installation and dependable operation in CNC machine tools, industrial robotics, packaging machinery, material handling systems, metalworking equipment, and other precision motion control applications. Typical variants include 6FX8002-5DS14-1BF0, 1CF0, 1CJ0, 1GC0, and other standard lengths.
Key Features
- Genuine Siemens MOTION-CONNECT 800PLUS power cable
- Siemens Part Series: 6FX8002-5DS14-XXXX
- Factory pre-assembled motor power cable
- Full-Thread motor connector (Size 3 / M58)
- Ring cable lug termination for SINAMICS S120 Motor Modules
- 4 × 10 mm² power conductors + 2 × 1.5 mm² brake conductors
- Suitable for servo motors with integrated holding brake
- Designed for continuous-flex (trailable) applications
- PUR outer jacket
- Shielded construction for excellent EMC performance
- Oil, coolant, and abrasion resistant
- UL/CSA certified
- DESINA compliant
- Available in multiple factory cable lengths
- Plug-and-play installation
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | MOTION-CONNECT 800PLUS |
| Part Number | 6FX8002-5DS14-XXXX |
| Product Type | Pre-Assembled Servo Motor Power Cable |
| Cable Construction | 4 × 10 mm² + 2 × 1.5 mm² |
| Brake Conductors | Yes |
| Motor Connector | Full-Thread Connector Size 3 (M58) |
| Drive Connection | Ring Cable Lugs |
| Compatible Drives | Siemens SINAMICS S120 Booksize Motor Modules |
| Compatible Motors | Siemens SIMOTICS S-1FT2, S-1FT7, S-1FK2, S-1FK7, M-1PH8 (Full-Thread Connector Versions) |
| Rated Voltage | 600/1000 V |
| Test Voltage (Power Conductors) | 4.0 kV |
| Test Voltage (Brake Conductors) | 2.0 kV |
| Cable Jacket | PUR |
| Maximum Cable Diameter | 20.1 mm |
| Installation Type | Continuous Flex / Cable Carrier |
| EMC Shielding | Yes |
| Certifications | UL, CSA, DESINA |
| Cable Length | Multiple variants (defined by suffix) |
| Manufacturer | Siemens |
Specifications may vary slightly depending on the selected cable length variant.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Material Handling Systems
- Metal Processing Equipment
- Printing Machinery
- Woodworking Machines
- Automated Production Lines
- Servo Motion Control Systems
- Factory Automation
