Product Description

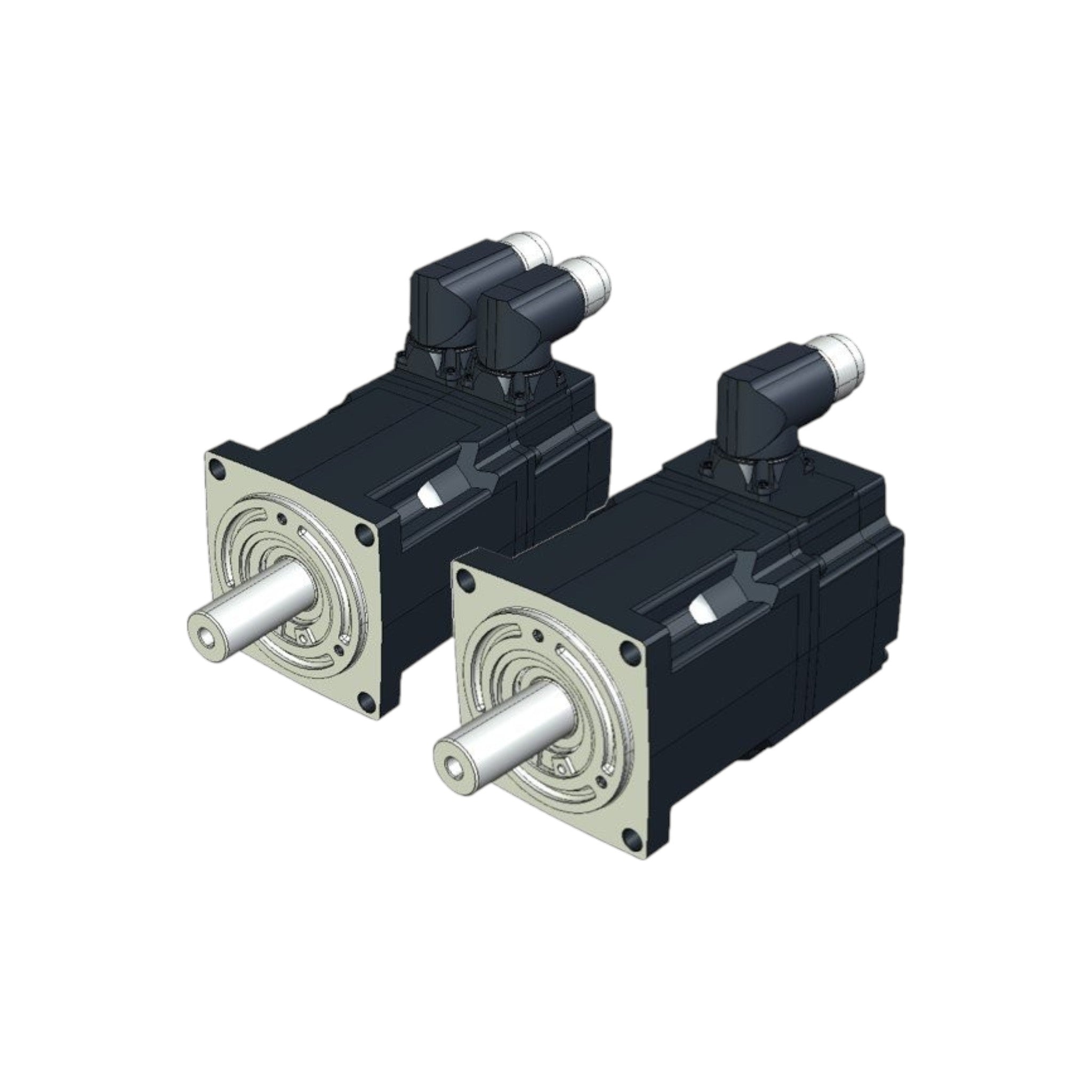

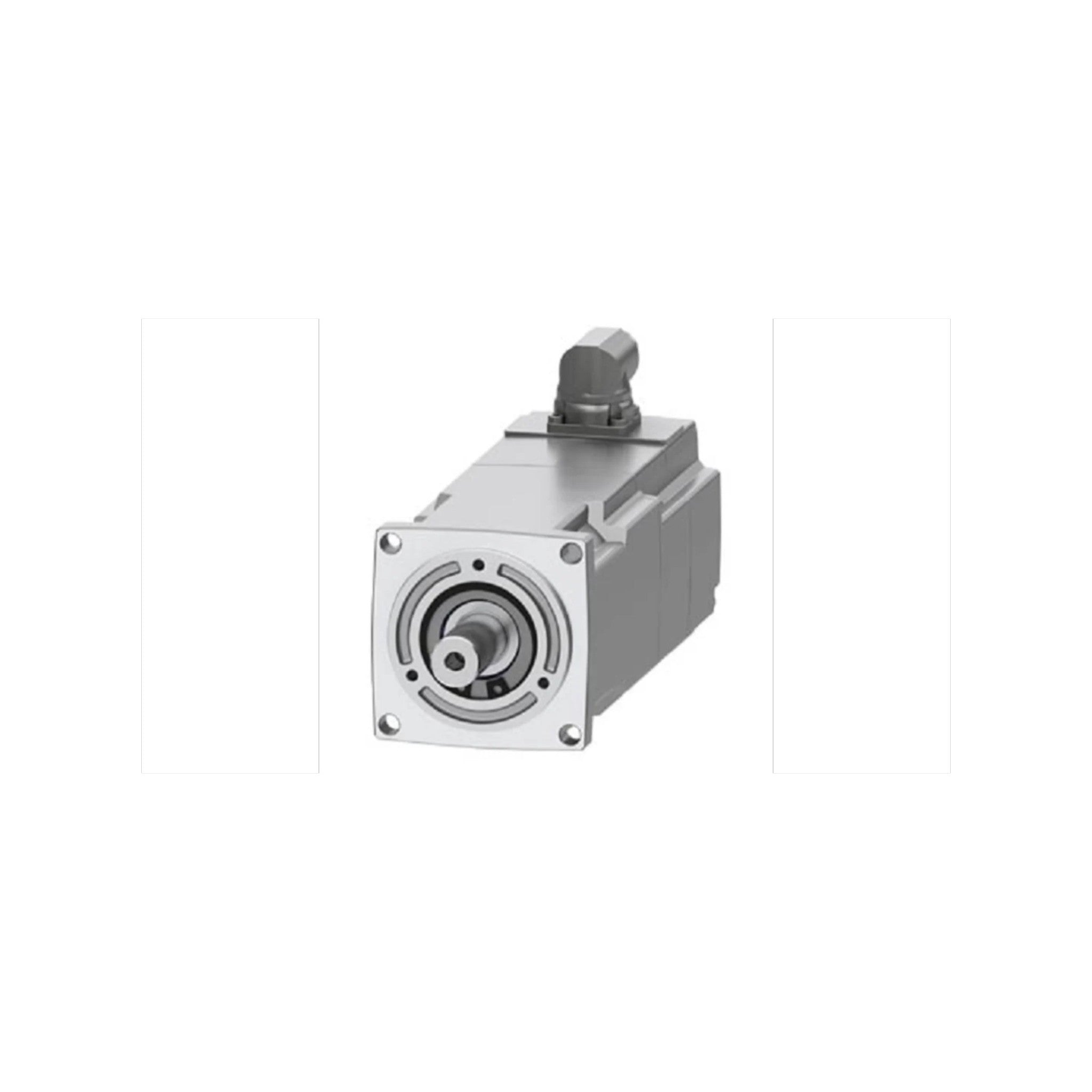

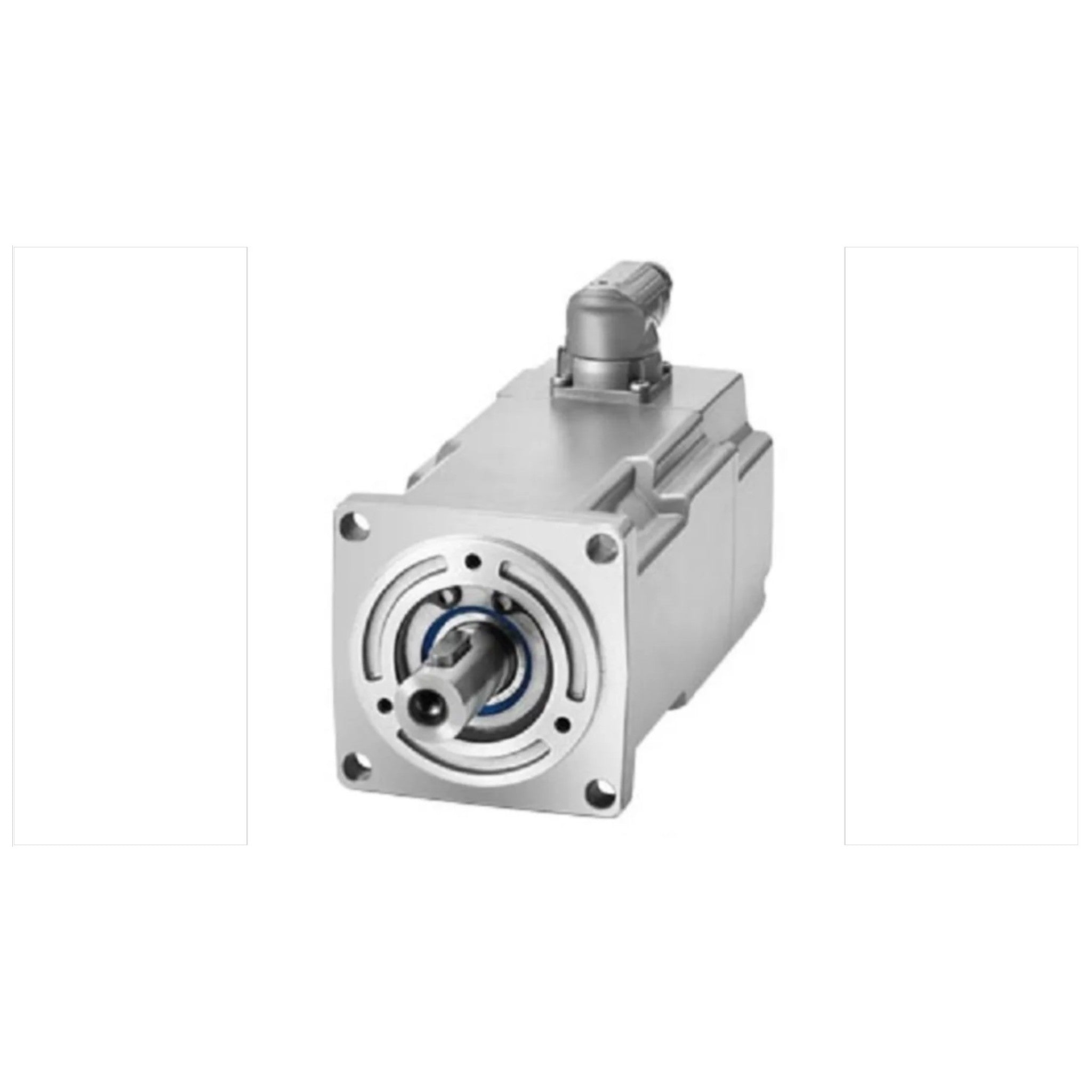

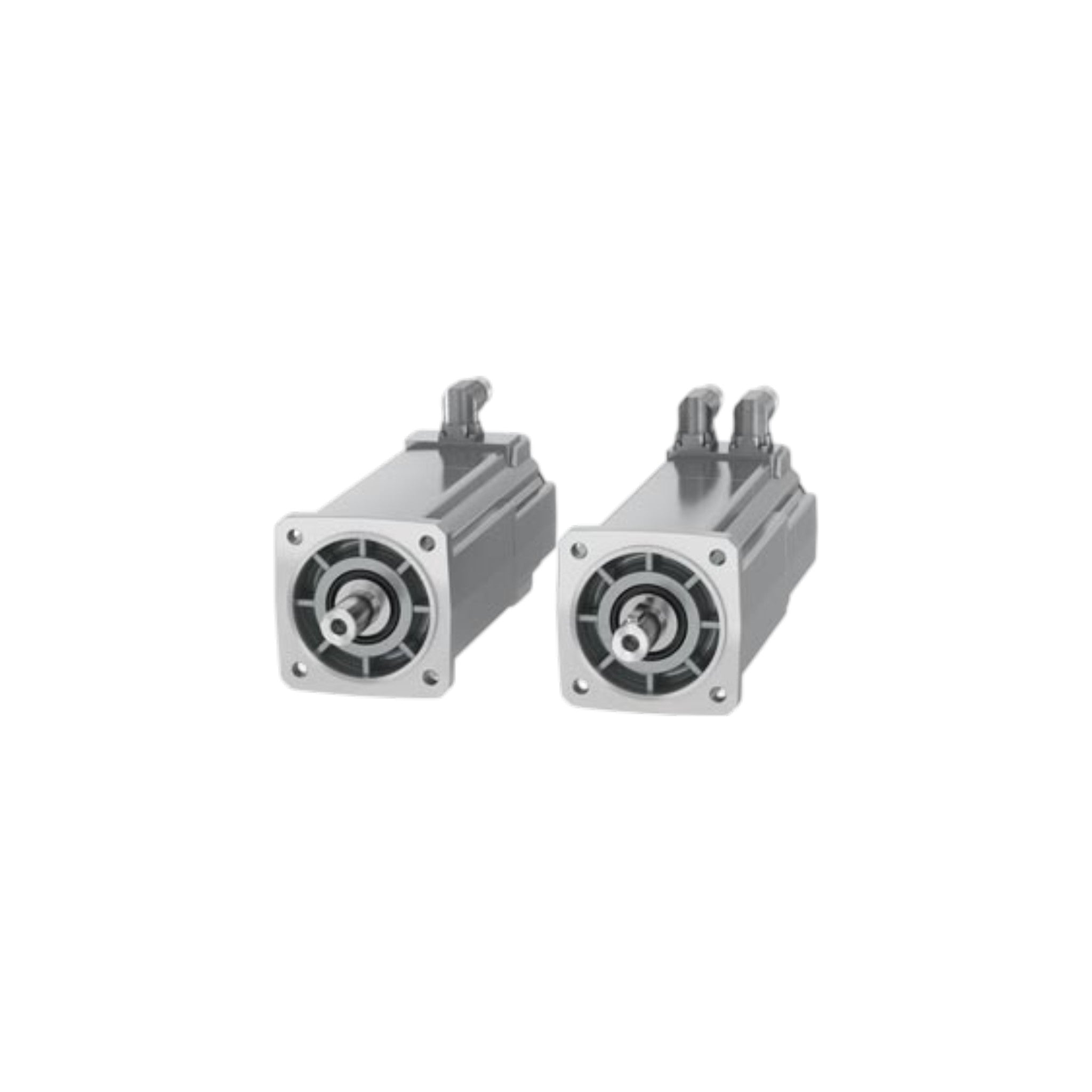

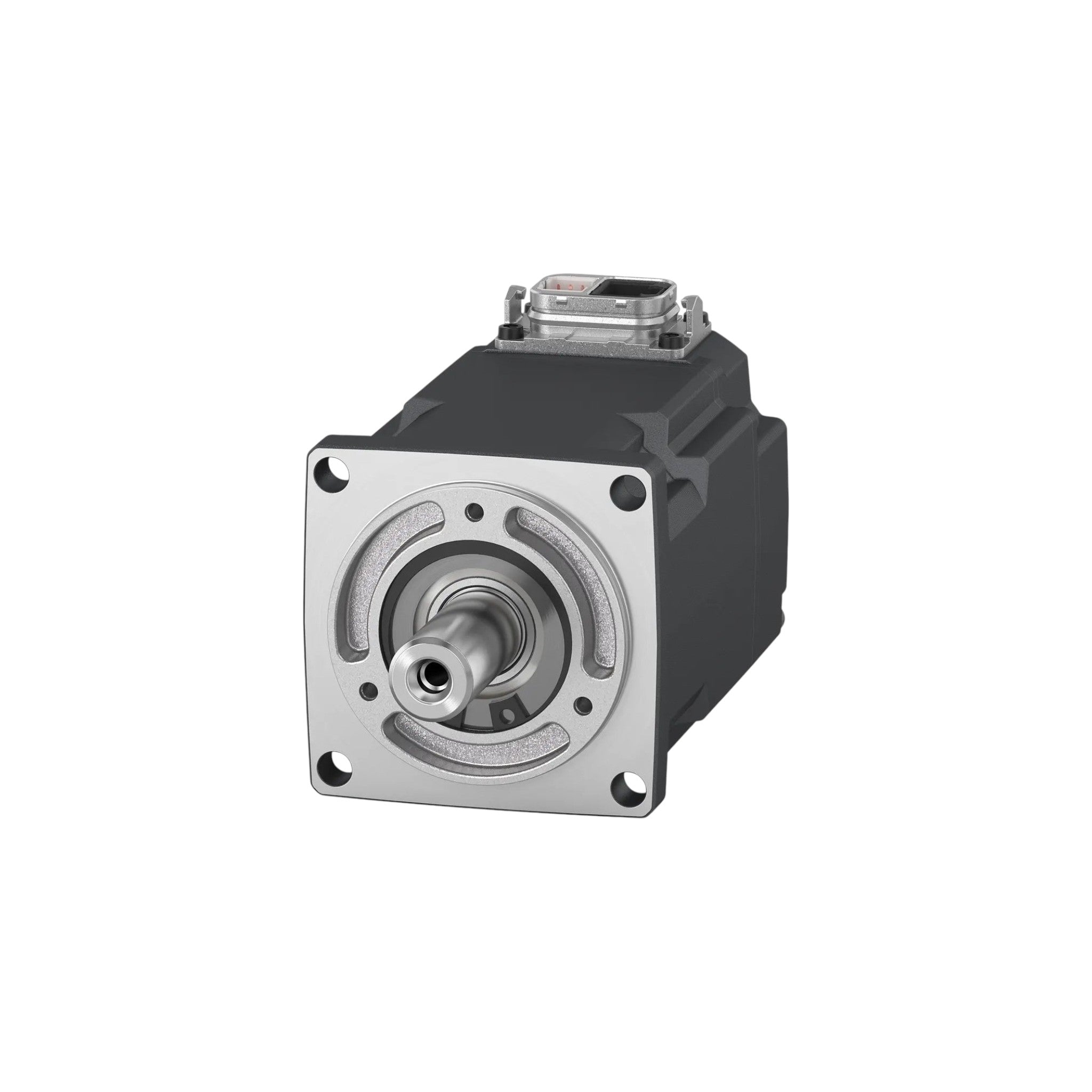

The Siemens 1FT2204-5AF is a SIMOTICS S-1FT2 Compact permanent magnet synchronous servo motor designed for precise, reliable, and efficient motion control in industrial automation applications. Optimized for seamless integration with Siemens SINAMICS S120 and SINAMICS S210 servo drive systems, this compact motor delivers high positioning accuracy, smooth operation, and excellent torque performance for a wide range of machine-building applications.
The 1FT2204-5AF features a naturally cooled design with an OCC (One Cable Connection) interface and rotatable M17 connector, simplifying installation and reducing cabling requirements. It provides 0.75 kW rated power, 3,000 rpm rated speed, 2.4 Nm rated (stall) torque, 7.1 Nm maximum torque, and a maximum speed of 7,500 rpm. The compact construction and robust performance make it ideal for CNC equipment, packaging machinery, robotics, electronics assembly, and precision manufacturing systems.
Key Features
- Siemens SIMOTICS S-1FT2 Compact servo motor
- Model: 1FT2204-5AF
- Permanent magnet synchronous servo motor
- Compact, naturally cooled design
- Rated power: 0.75 kW
- Rated speed: 3,000 rpm
- Maximum speed: 7,500 rpm
- Rated torque: 2.4 Nm
- Stall torque: 2.4 Nm
- Maximum torque: 7.1 Nm
- OCC (One Cable Connection) interface
- Rotatable M17 connector
- High positioning accuracy and smooth dynamic performance
- Compatible with Siemens SINAMICS S120 and SINAMICS S210 servo drive systems
Applications
- CNC machine tools
- Industrial robotics
- Packaging machinery
- Electronics assembly
- Semiconductor equipment
- Medical automation
- Pick-and-place systems
- Textile machinery
- Precision manufacturing
- Automated production lines
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Siemens |
| Product Family | SIMOTICS S-1FT2 Compact |
| Model Number | 1FT2204-5AF |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Rated Power | 0.75 kW |
| Rated Speed | 3,000 rpm |
| Maximum Speed | 7,500 rpm |
| Rated Torque | 2.4 Nm |
| Stall Torque | 2.4 Nm |
| Maximum Torque | 7.1 Nm |
| Rated Current | 2.25 A |
| Stall Current | 2.25 A |
| Maximum Current | 7.1 A |
| Rotor Inertia | 1.23 kg·cm² |
| Weight | 2.9 kg (3.75 kg with brake) |
| Mounting | IM B5 Flange Mount |
| Connector | OCC Interface, Rotatable M17 |
| Protection Class | IP64 |
| Encoder | Configuration dependent |
| Drive Compatibility | Siemens SINAMICS S120 & SINAMICS S210 |
