Description

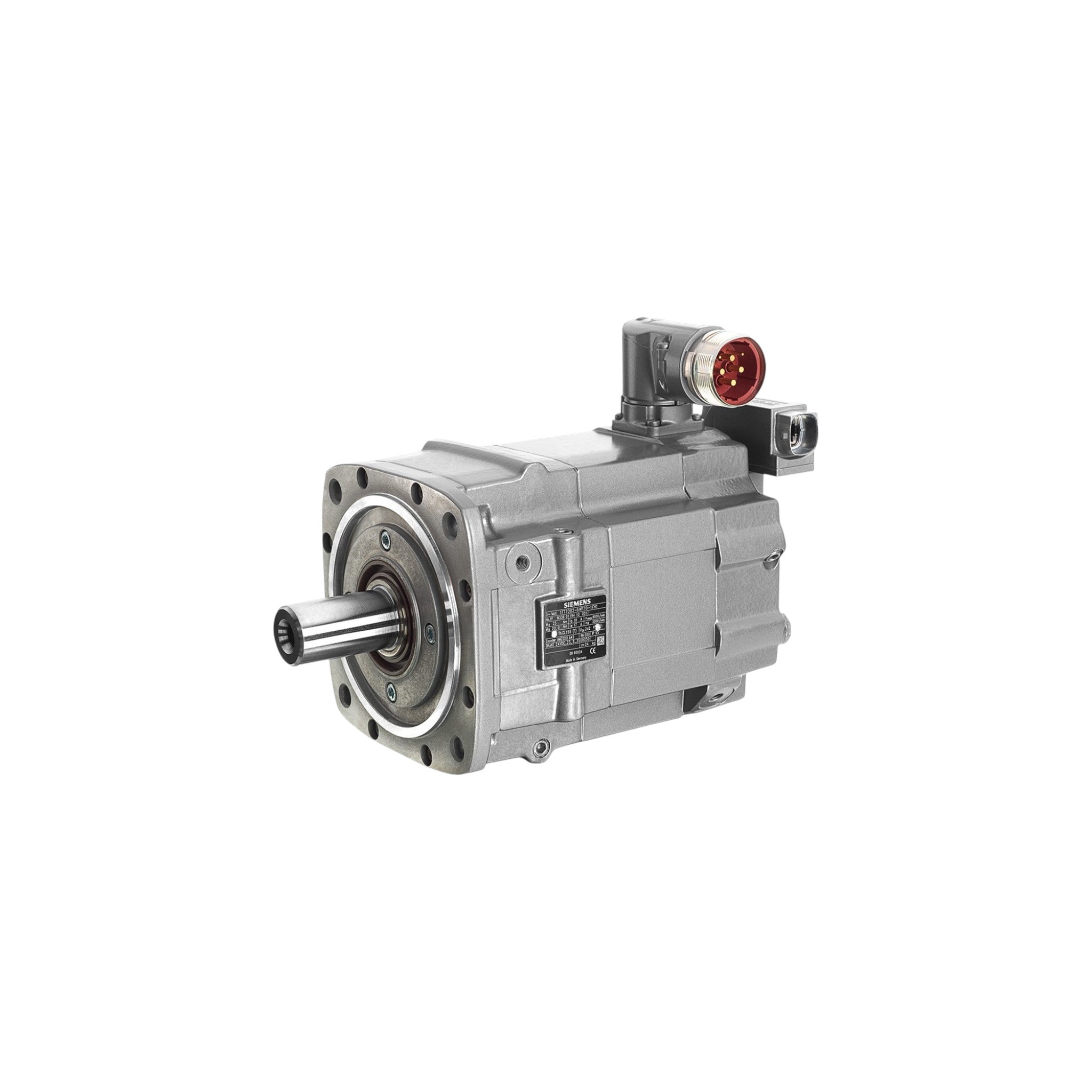

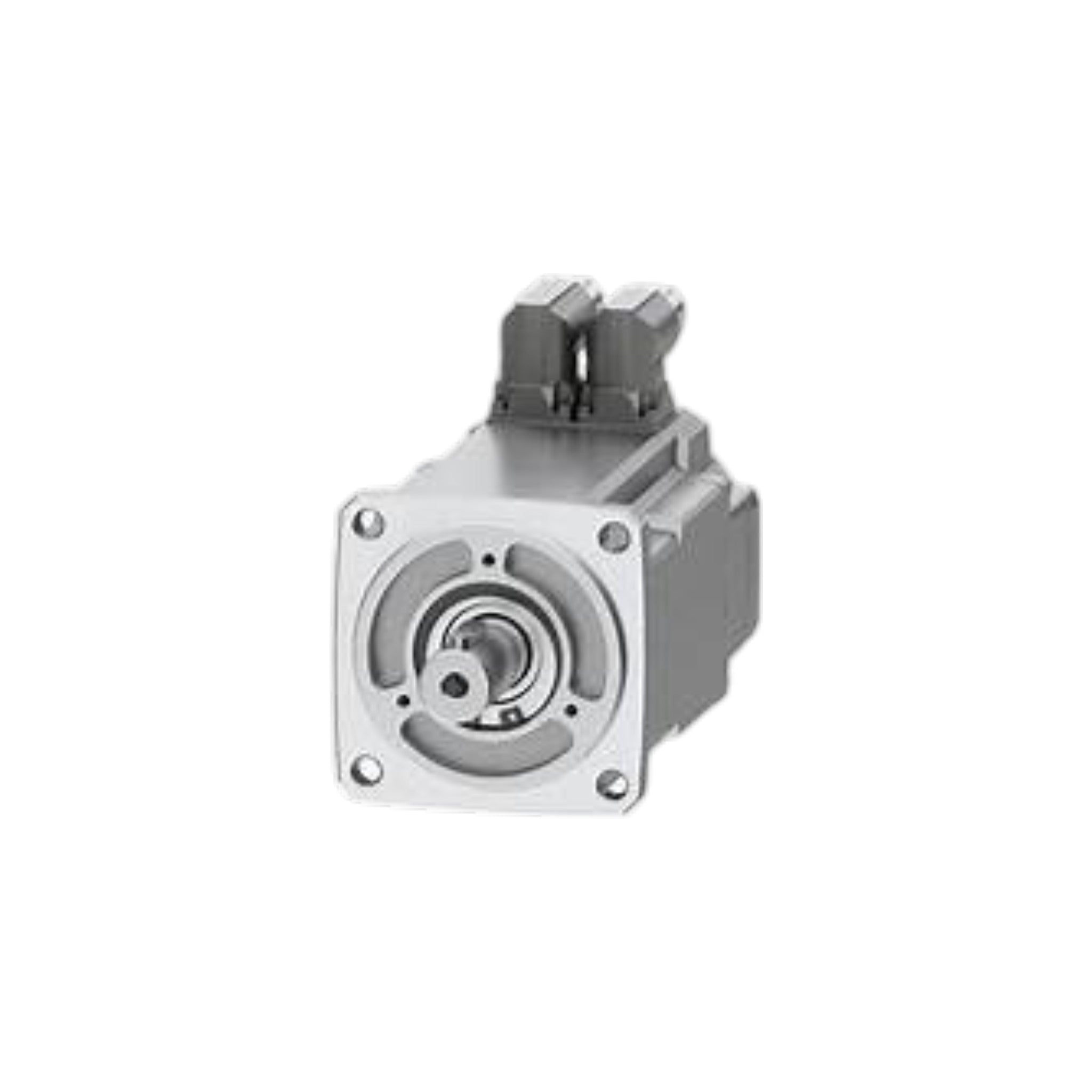

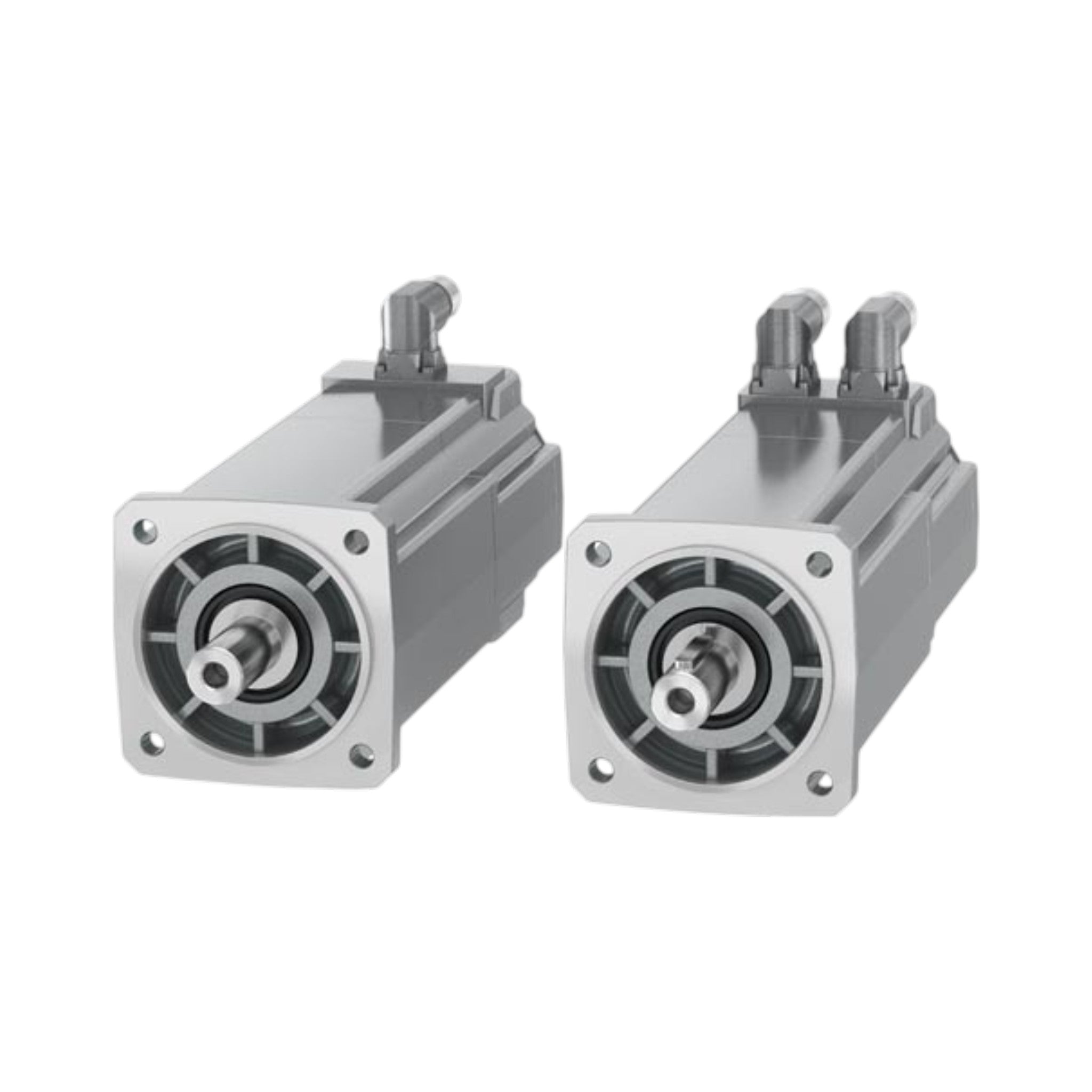

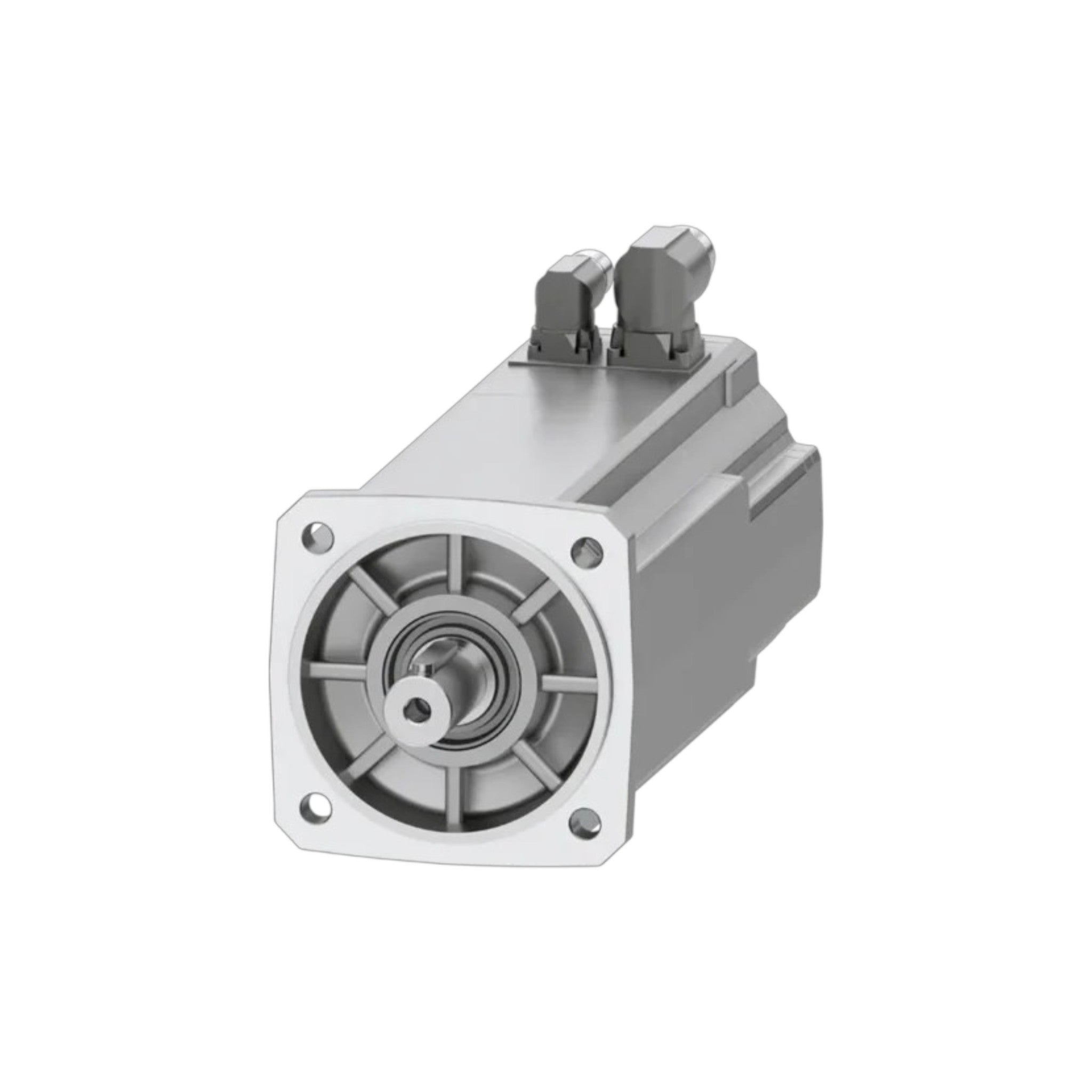

Siemens SIMOTICS S-1FT2 Servo Motor – 1FT2205-2AC
Product Overview
The Siemens 1FT2205-2AC is a SIMOTICS S-1FT2 Compact permanent magnet synchronous servo motor engineered for precision motion control in compact automation systems. Designed for use with SINAMICS S210 servo drives, it delivers 3.6 Nm static torque and 0.69 kW rated power at 2,000 rpm (380–480 V). Featuring an OCC interface with an M17 connector, this motor provides reliable communication, excellent positioning accuracy, and smooth dynamic performance for demanding industrial applications.
Key Specifications
| Parameter | Value |
|---|---|
| Product Series | SIMOTICS S-1FT2 Compact |
| Part Number | 1FT2205-2AC |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling | Natural Cooling |
| Static Torque | 3.6 Nm |
| Rated Torque | 3.3 Nm |
| Maximum Torque | 10.8 Nm |
| Rated Power | 0.69 kW (380–480 V) |
| Rated Speed | 2,000 rpm |
| Maximum Speed | 4,850 rpm |
| Rated Current | 1.74 A |
| Maximum Current | 6 A |
| Stall Current | 1.84 A |
| Communication Interface | OCC Interface |
| Power Connector | M17 |
| Weight | Approx. 3.75 kg |
| Product Family | SIMOTICS S-1FT2 for SINAMICS S210 |
Actual encoder, shaft, and brake configuration depend on the complete order number.
Shopify Product Description
Siemens 1FT2205-2AC SIMOTICS S-1FT2 Compact Servo Motor
The Siemens 1FT2205-2AC is a compact, high-performance SIMOTICS S-1FT2 synchronous servo motor developed for precision industrial automation. With 0.69 kW rated output and 3.6 Nm static torque, it delivers fast response, accurate positioning, and dependable operation in continuous-duty applications.
Designed for seamless integration with SINAMICS S210 servo drive systems, this motor features an OCC communication interface, compact construction, and high torque density. It is well suited for applications requiring reliable motion control, energy efficiency, and long service life.
Features
- Genuine Siemens SIMOTICS S-1FT2 Compact servo motor
- Permanent magnet synchronous motor technology
- 0.69 kW rated output (380–480 V)
- 3.6 Nm static torque
- 10.8 Nm maximum torque
- Rated speed of 2,000 rpm
- Maximum speed up to 4,850 rpm
- OCC communication interface
- M17 industrial connector
- Compact and lightweight design
- Optimized for Siemens SINAMICS S210 servo systems
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Pick-and-Place Systems
- Material Handling Equipment
- Assembly Automation
- Textile Machinery
- Precision Manufacturing
