Description

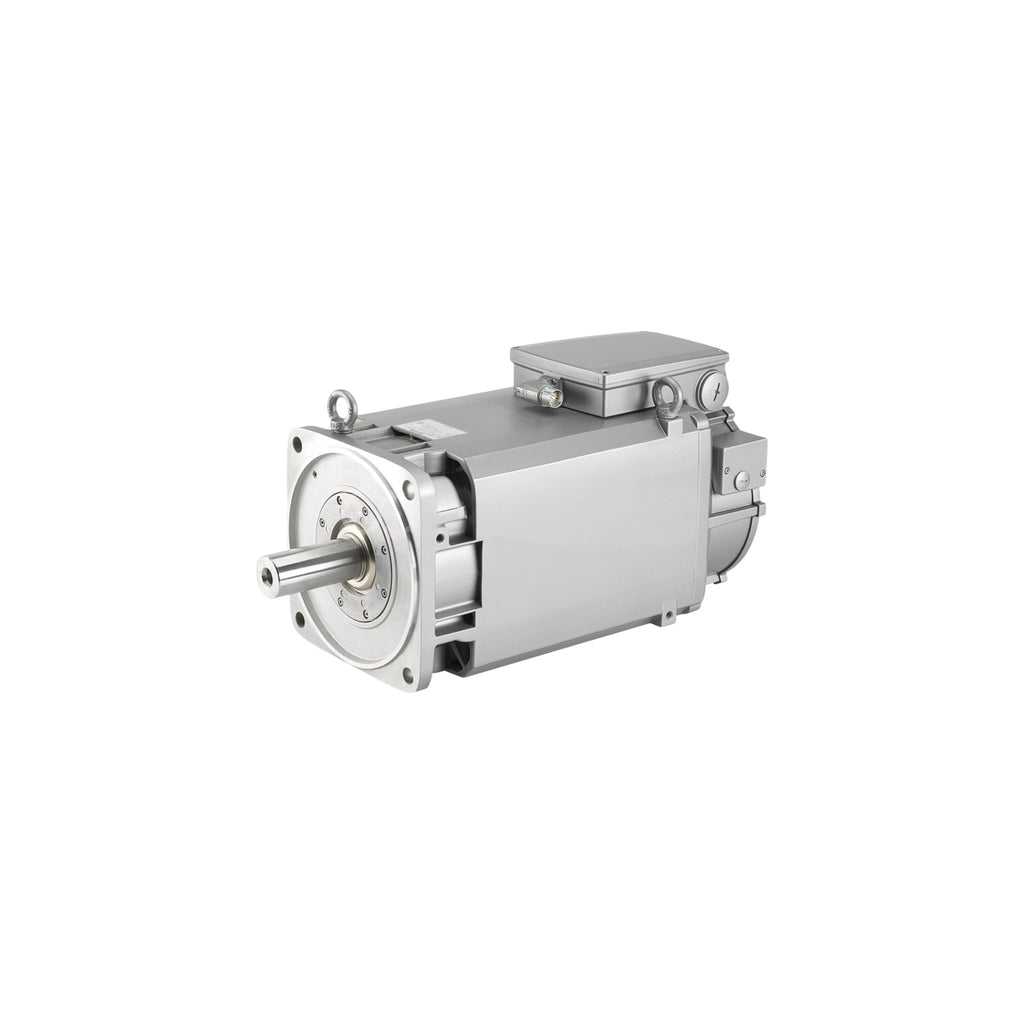

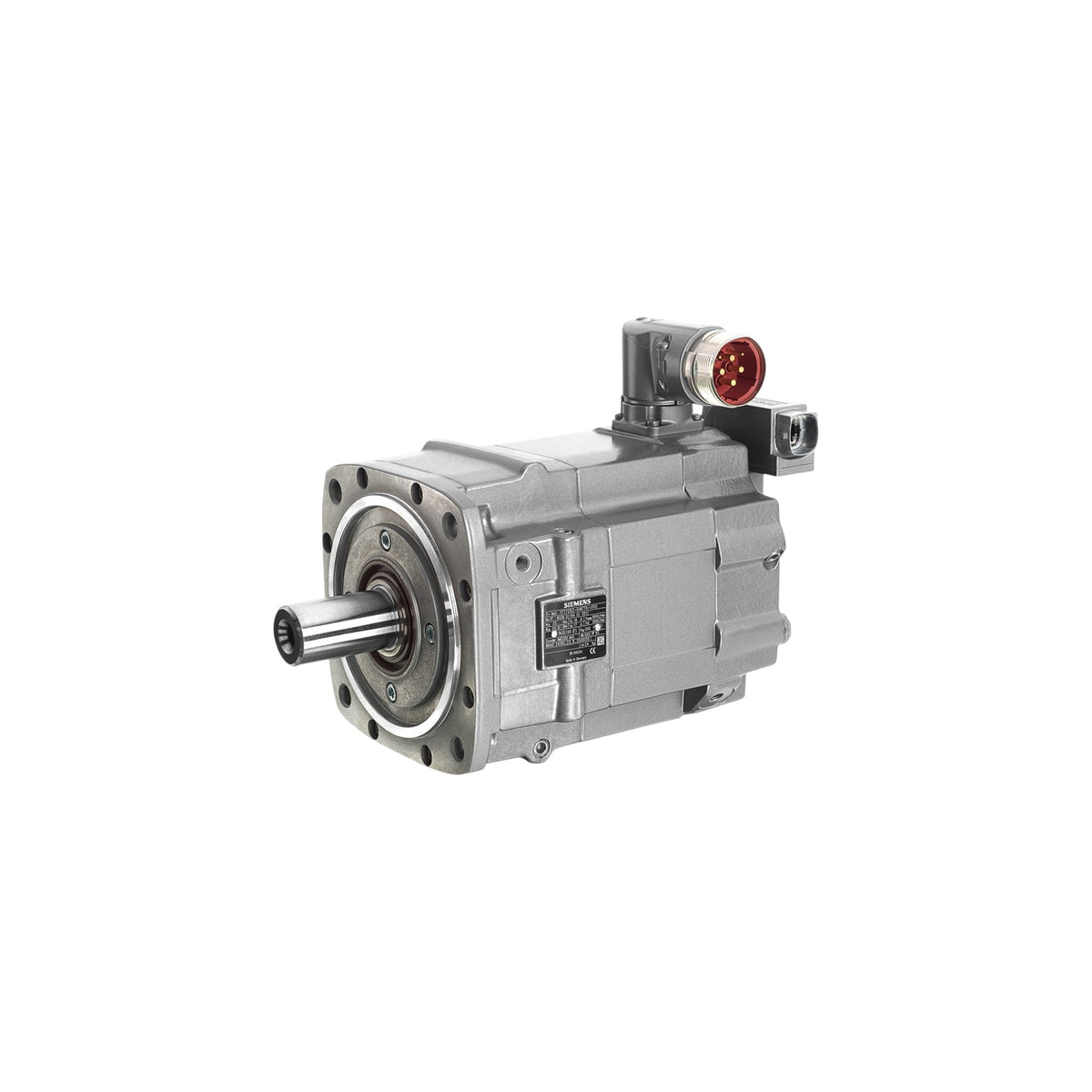

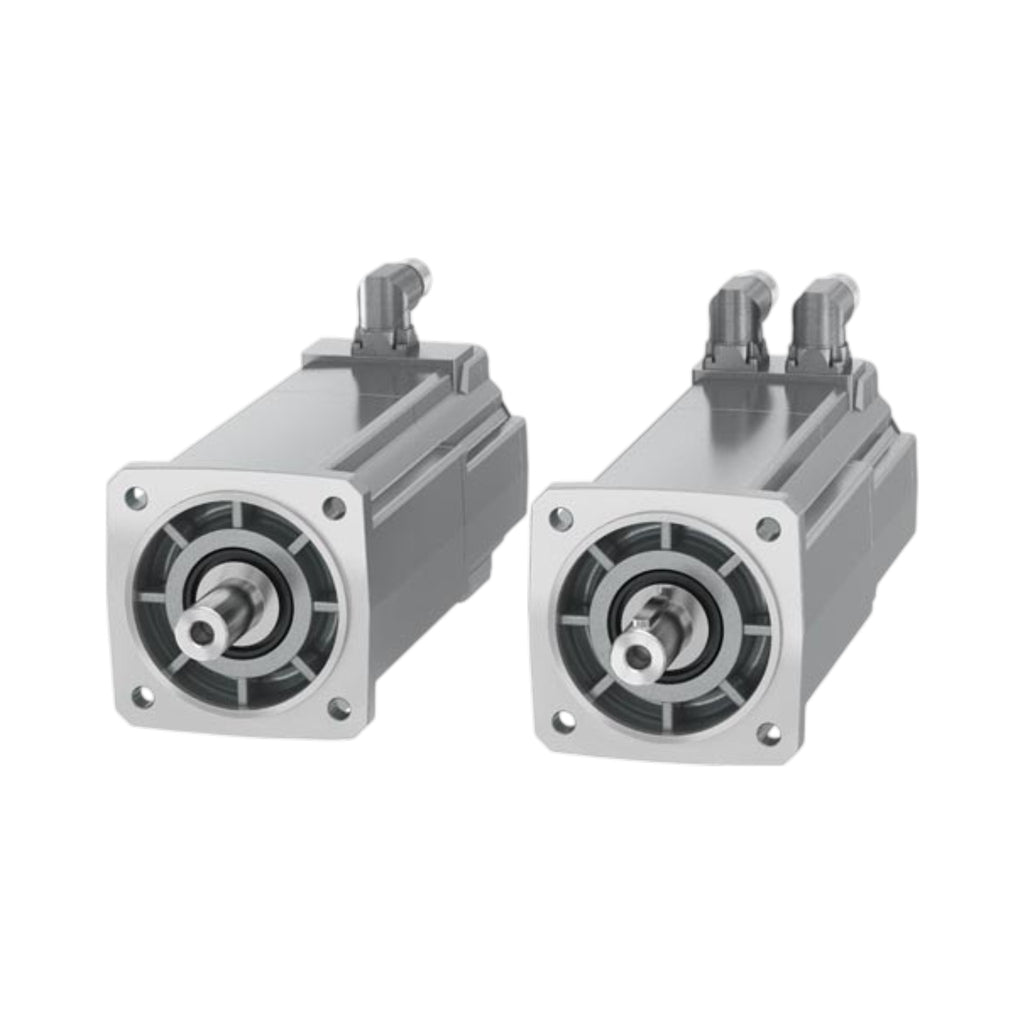

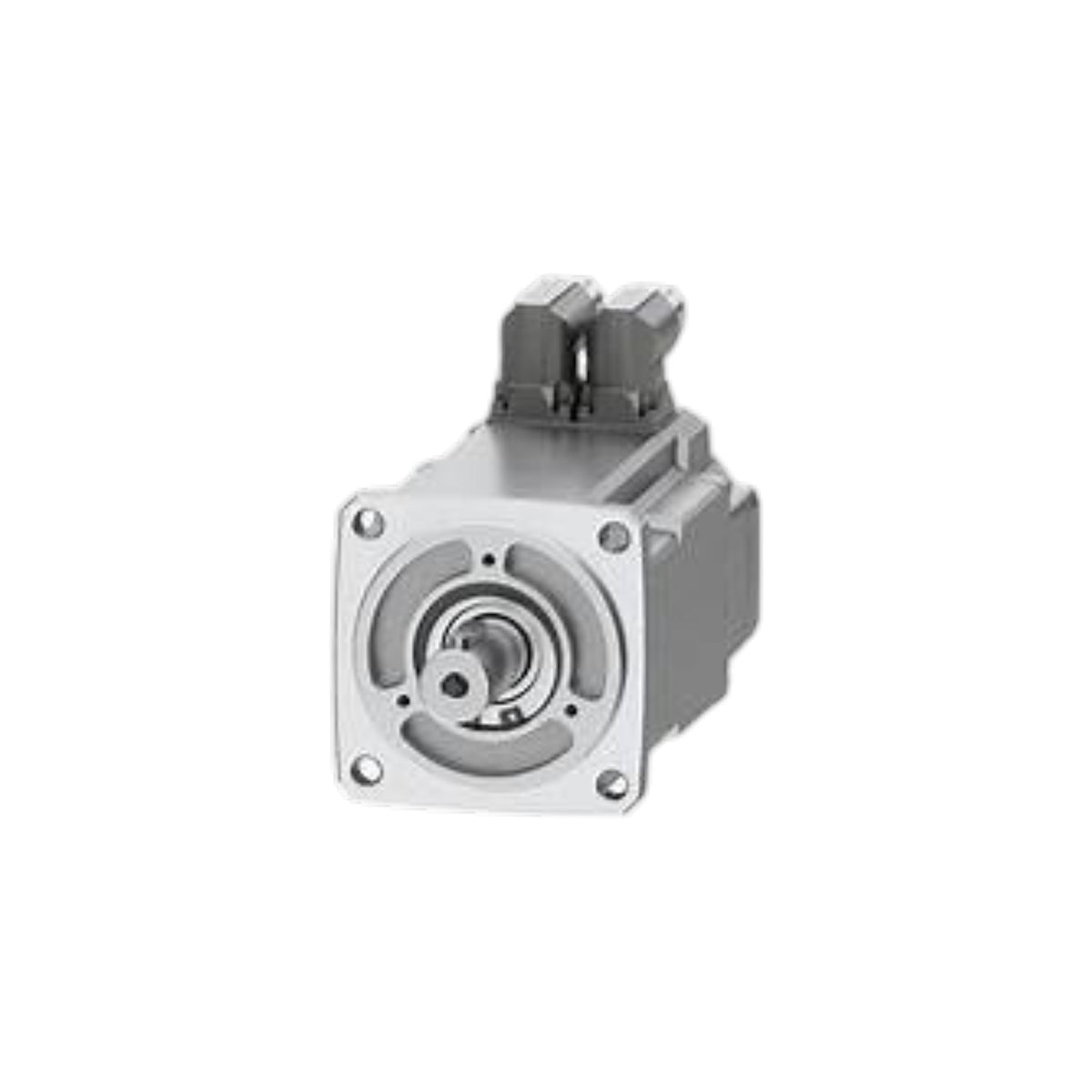

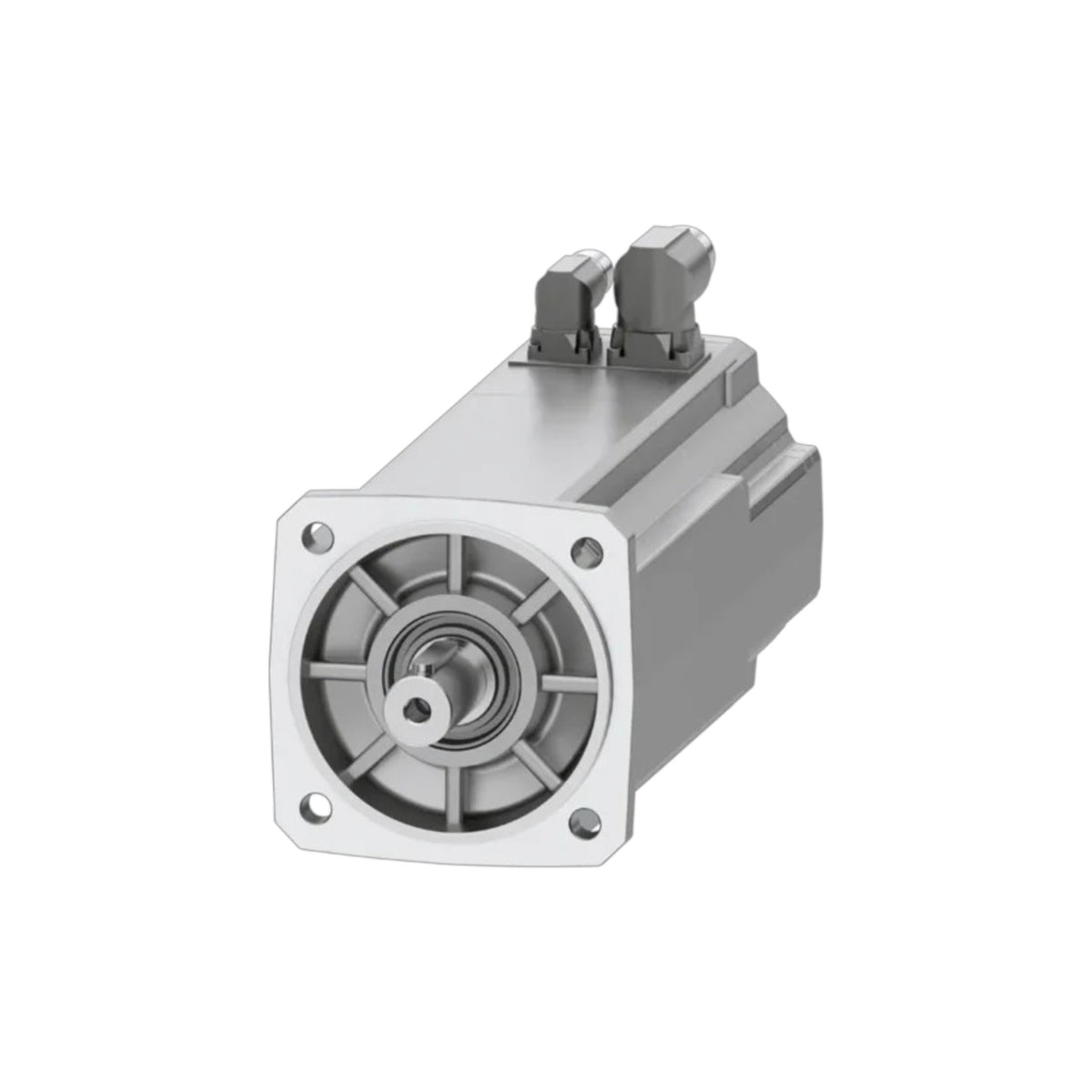

Siemens SIMOTICS S-1FT2 Servo Motor – 1FT2205-2AF
Product Overview
The Siemens 1FT2205-2AF is a SIMOTICS S-1FT2 Compact permanent magnet synchronous servo motor designed for high-speed, high-precision motion control in industrial automation. Delivering 0.94 kW rated power, 3.6 Nm static torque, and a 3,000 rpm rated speed, this compact servo motor is ideal for CNC machine tools, robotics, packaging equipment, pick-and-place systems, and precision manufacturing. It features an OCC communication interface with a rotatable M17 connector for easy installation and reliable connectivity.
Key Specifications
| Parameter | Value |
|---|---|
| Product Series | SIMOTICS S-1FT2 Compact |
| Part Number | 1FT2205-2AF |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling | Natural Cooling |
| Static Torque | 3.6 Nm |
| Rated Torque | 3 Nm |
| Maximum Torque | 10.8 Nm |
| Rated Power | 0.94 kW |
| Rated Speed | 3,000 rpm |
| Maximum Speed | 6,500 rpm |
| Rated Current | 2.5 A |
| Maximum Current | 9.5 A |
| Stall Current | 2.9 A |
| Communication Interface | OCC Interface |
| Power Connector | Rotatable M17 Connector |
| Approximate Weight | 3.75 kg |
| Product Family | SIMOTICS S-1FT2 for SINAMICS S210 |
Encoder type, shaft version, holding brake, and protection class depend on the complete configured order number.
Shopify Product Description
Siemens 1FT2205-2AF SIMOTICS S-1FT2 Compact Servo Motor
The Siemens 1FT2205-2AF is a compact, high-performance SIMOTICS S-1FT2 servo motor engineered for demanding industrial motion control applications. Built with permanent magnet synchronous technology, it delivers excellent torque density, smooth operation, and precise positioning while maintaining high energy efficiency.
With 0.94 kW rated output, 3.6 Nm static torque, and a maximum speed of 6,500 rpm, the motor is optimized for dynamic applications requiring rapid acceleration and accurate speed control. It integrates seamlessly with SINAMICS S210 servo drive systems through the OCC interface, ensuring reliable communication and simplified commissioning.
Features
- Genuine Siemens SIMOTICS S-1FT2 Compact servo motor
- Permanent magnet synchronous motor technology
- 0.94 kW rated output
- 3.6 Nm static torque
- 10.8 Nm maximum torque
- Rated speed of 3,000 rpm
- Maximum speed up to 6,500 rpm
- OCC communication interface
- Rotatable M17 power connector
- Compact, lightweight, and energy-efficient design
- Optimized for Siemens SINAMICS S210 servo drive systems
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Pick-and-Place Systems
- Material Handling Equipment
- Automated Assembly Lines
- Textile Machinery
- Precision Manufacturing
