Description
Siemens 1FT2205-4AF SIMOTICS S-1FT2 Servo Motor – Shopify Product Listing
Product Title

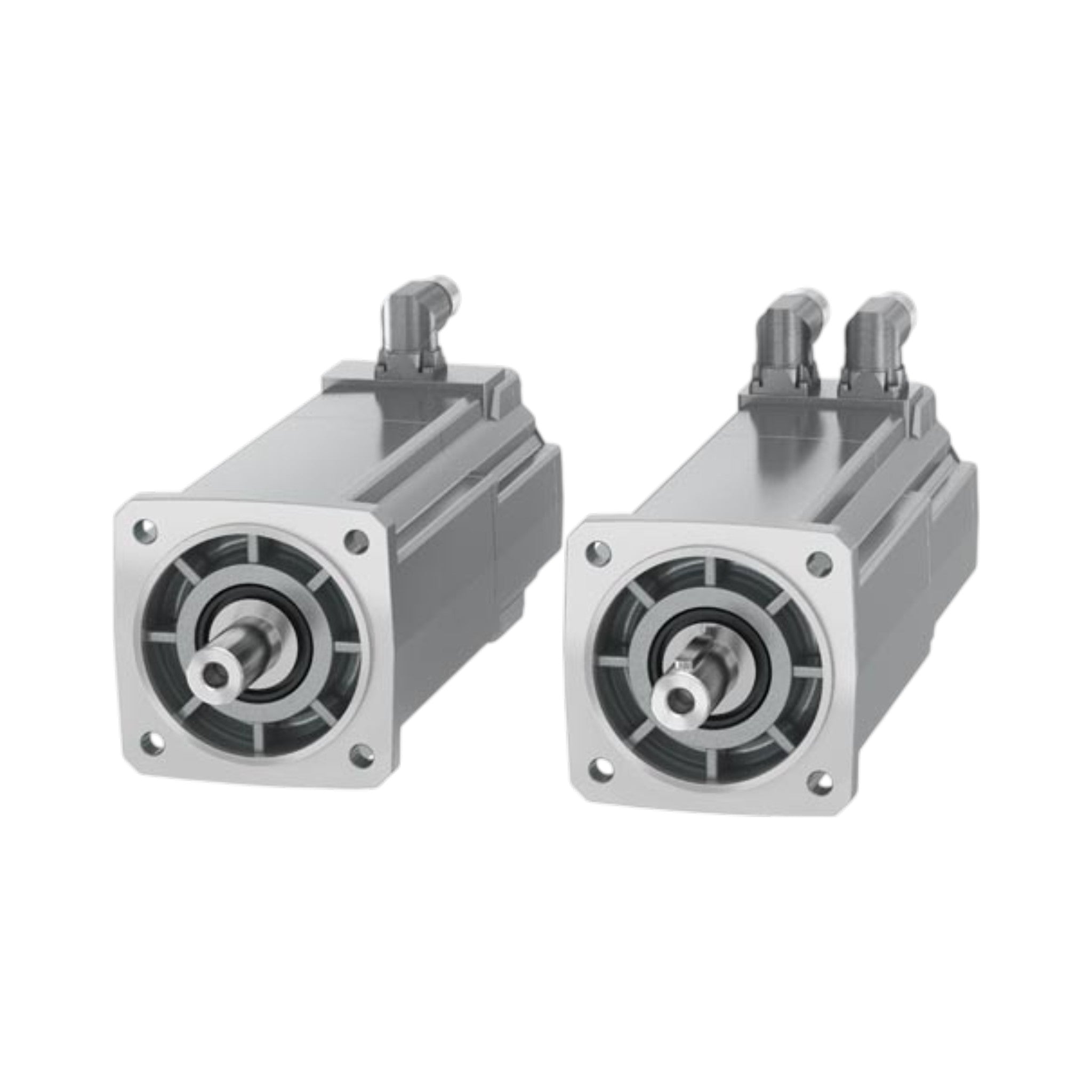

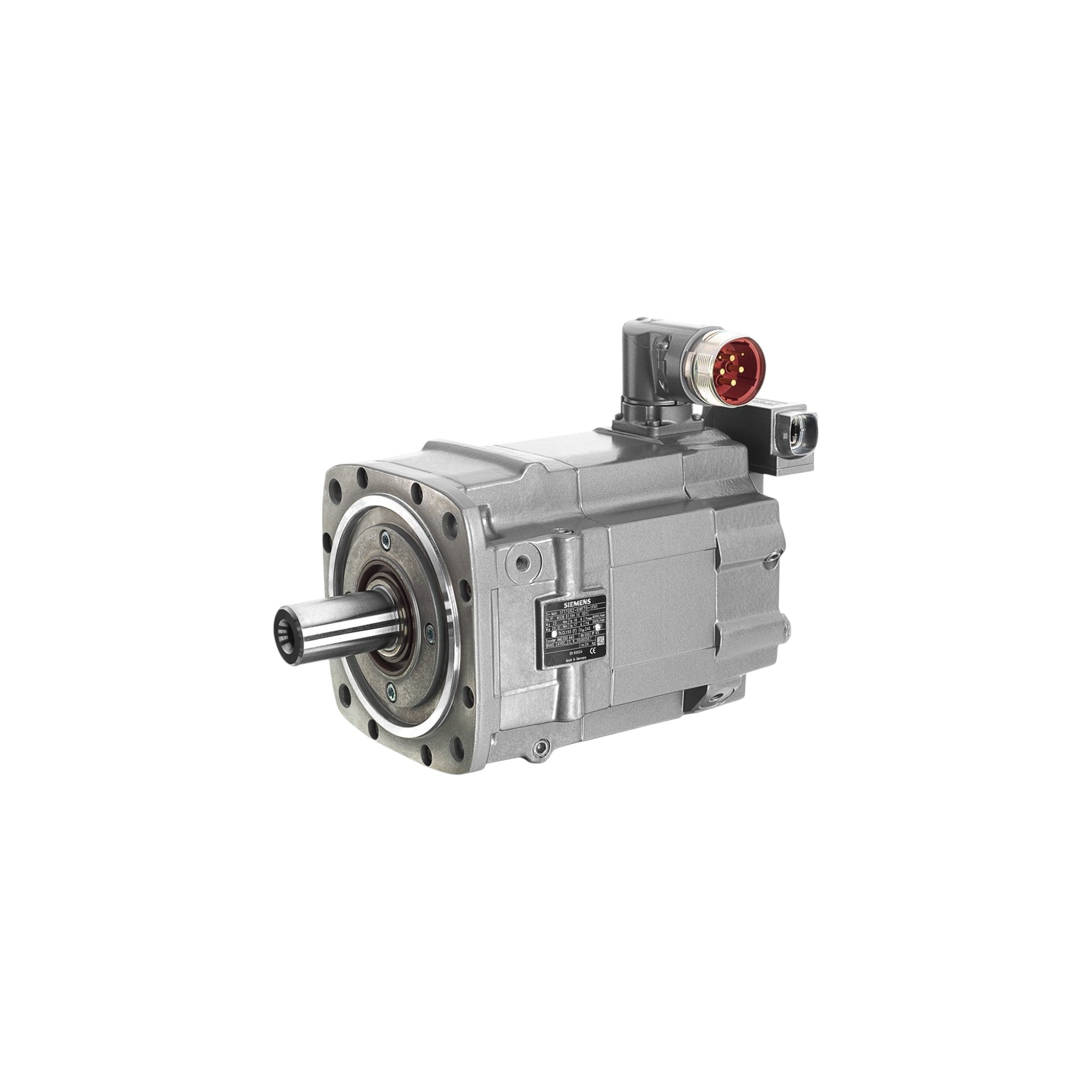

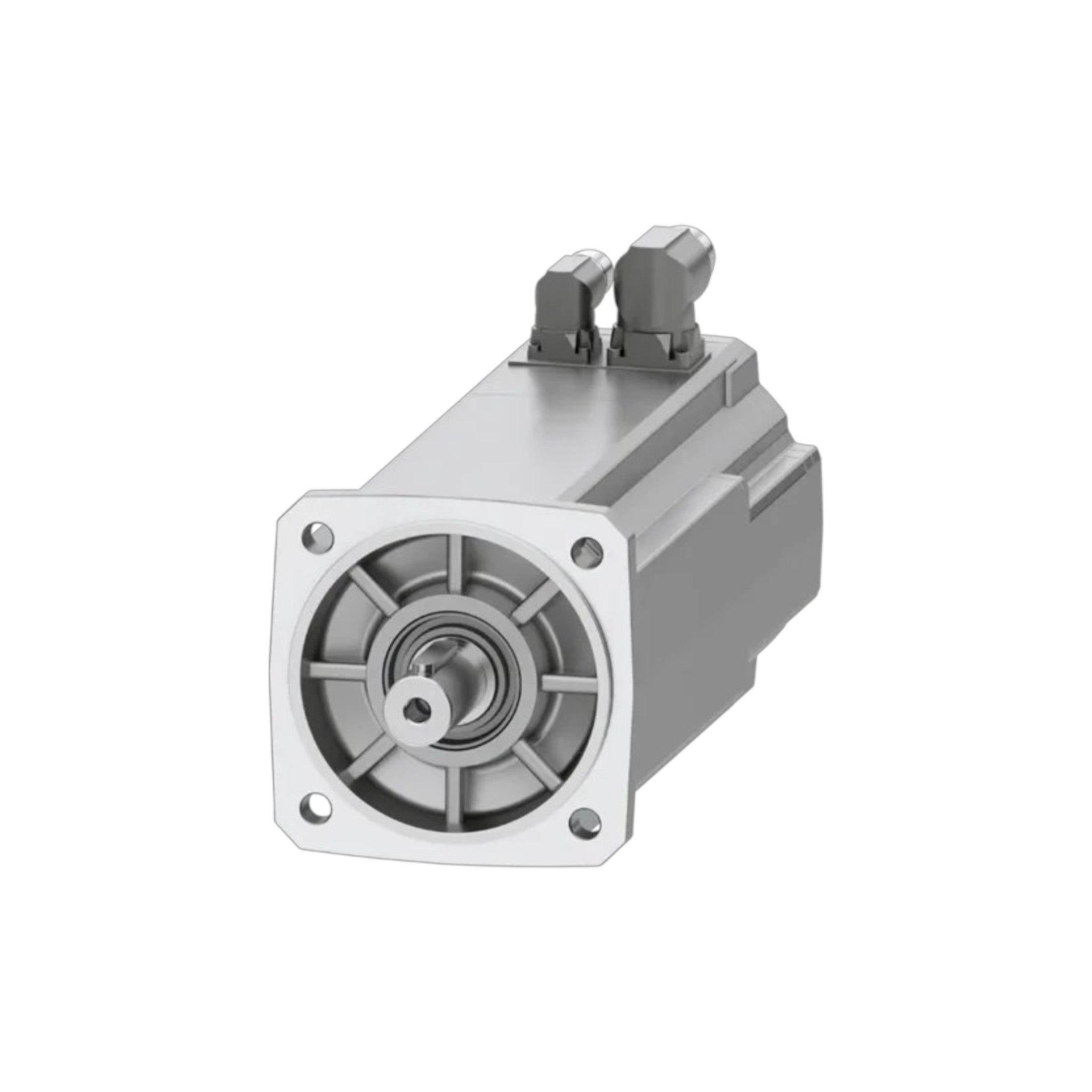

Siemens 1FT2205-4AF SIMOTICS S-1FT2 Compact Servo Motor | 1.45 kW | 4.6 Nm | 6200 RPM
Product Description
The Siemens 1FT2205-4AF is a high-performance SIMOTICS S-1FT2 compact permanent magnet synchronous servo motor engineered for demanding industrial automation and precision motion control applications. Designed for seamless integration with SINAMICS S120 and SINAMICS S210 servo drive systems, this servo motor delivers exceptional torque, rapid acceleration, and highly accurate positioning for modern manufacturing environments.
With a rated power of 1.45 kW, rated torque of 4.6 Nm, static torque of 6 Nm, and a maximum speed of 6200 RPM, the 1FT2205-4AF is ideal for CNC machine tools, robotics, packaging systems, printing equipment, and automated production lines. Its compact design, low rotor inertia, and robust construction ensure reliable, energy-efficient operation while maximizing machine productivity. The motor is available in multiple configurations with options such as holding brake, encoder variants, and IP64/IP65 protection depending on the exact order number.
Key Features
- Genuine Siemens SIMOTICS S-1FT2 compact servo motor
- Permanent magnet synchronous motor technology
- Rated output power: 1.45 kW
- Rated torque: 4.6 Nm
- Static torque: 6 Nm
- Maximum torque: 18 Nm
- Maximum speed: 6200 RPM
- Rated speed: 3000 RPM
- Compact, space-saving design
- Low rotor inertia for high dynamic performance
- High positioning accuracy
- Available with holding brake and absolute encoder options
- IP64/IP65 protection (depending on configuration)
- Compatible with Siemens SINAMICS S120 and SINAMICS S210 servo drives
- Designed for continuous industrial operation and long service life
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Siemens |
| Model | 1FT2205-4AF |
| Product Series | SIMOTICS S-1FT2 |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Rated Power | 1.45 kW |
| Rated Torque | 4.6 Nm |
| Static Torque | 6 Nm |
| Maximum Torque | 18 Nm |
| Rated Speed | 3000 RPM |
| Maximum Speed | 6200 RPM |
| Rated Current | 3.75 A |
| Stall Current | 4.7 A |
| Maximum Current | 15.1 A |
| Supply Voltage | 380–480 VAC |
| Cooling Method | Natural Cooling |
| Weight | Approx. 5.2 kg |
| Compatible Drives | Siemens SINAMICS S120 & S210 |
Applications
- CNC Milling Machines
- CNC Turning Centers
- Industrial Robotics
- Packaging Machinery
- Printing Machines
- Material Handling Systems
- Automated Assembly Lines
- Semiconductor Equipment
- Textile Machinery
- Precision Motion Control Systems
