Product Description

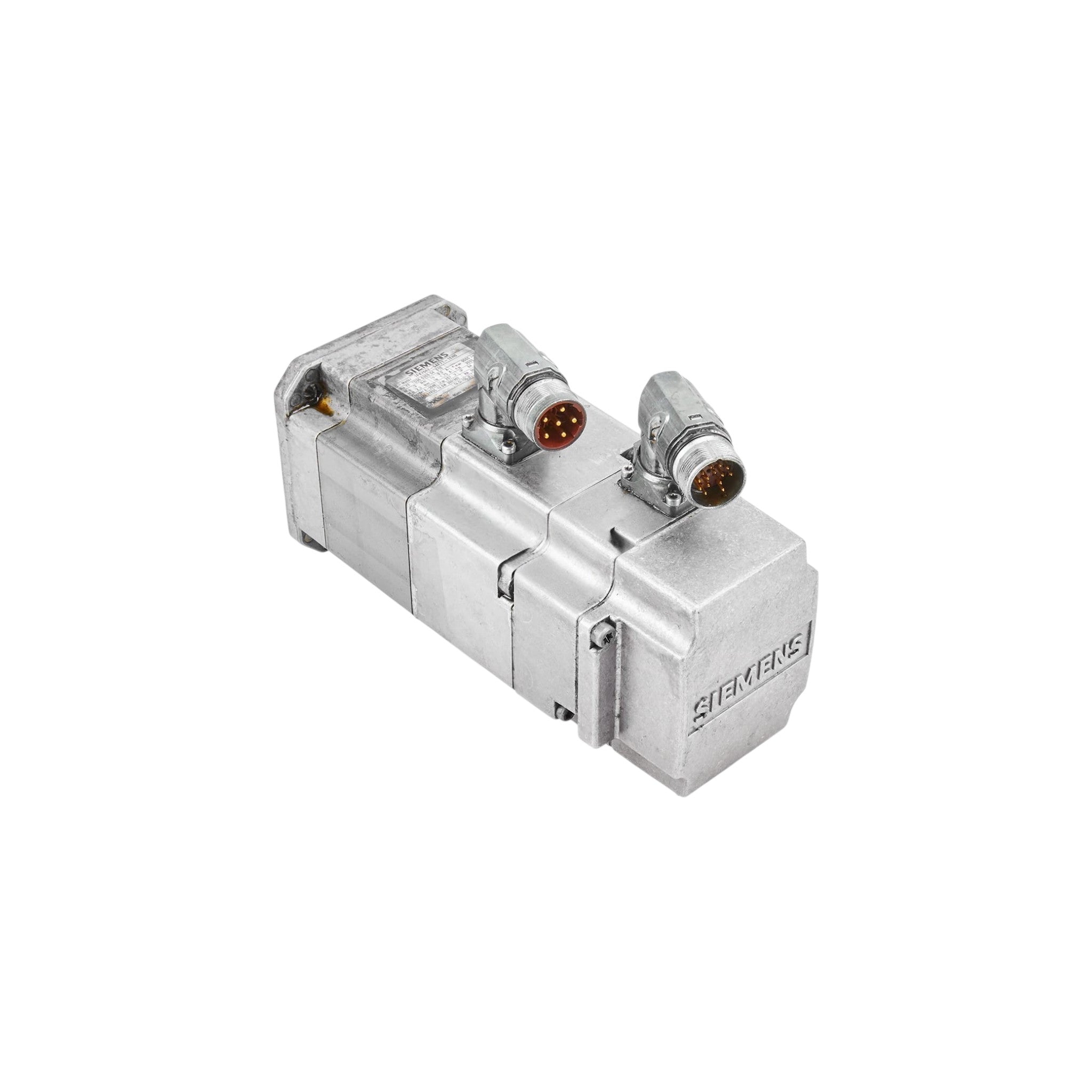

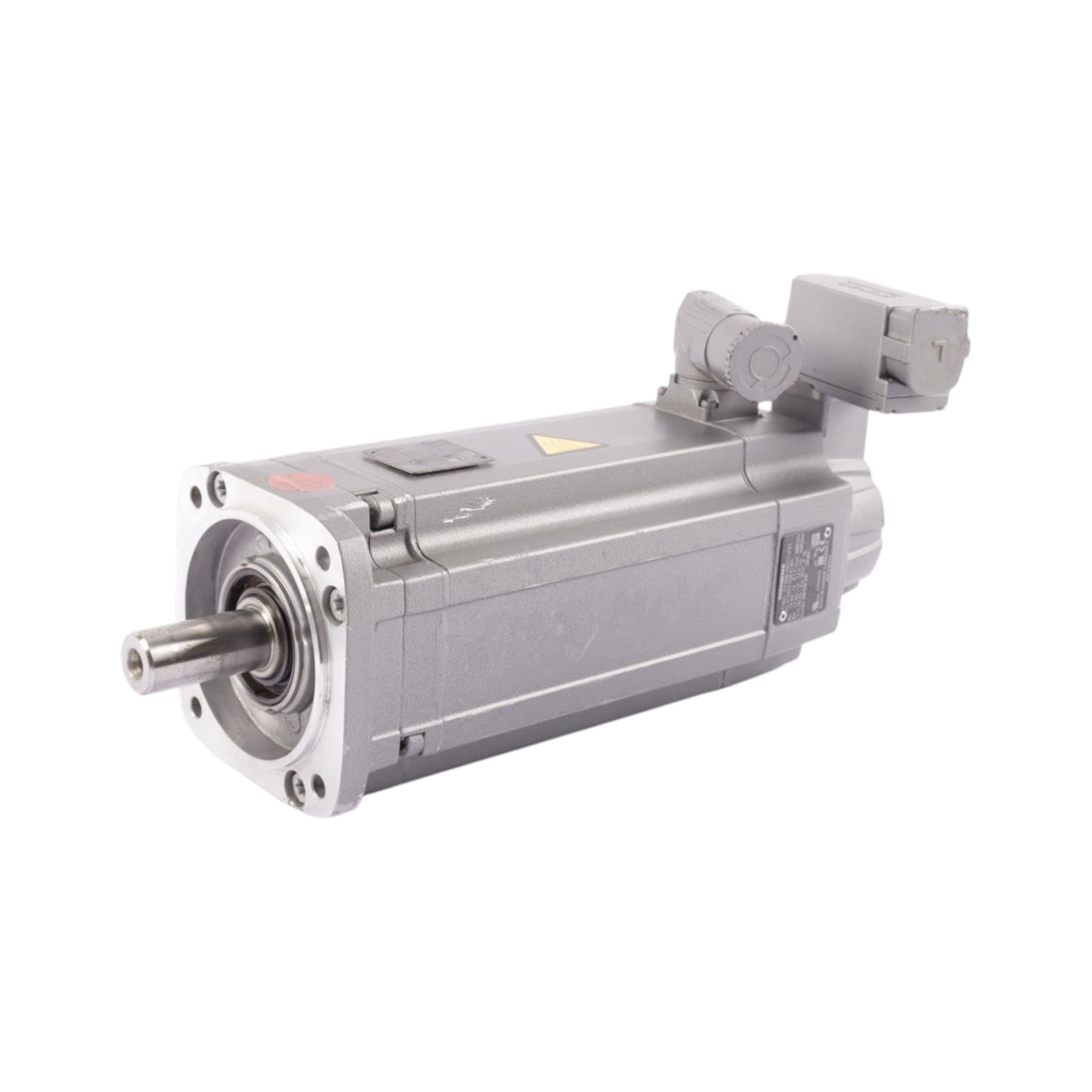

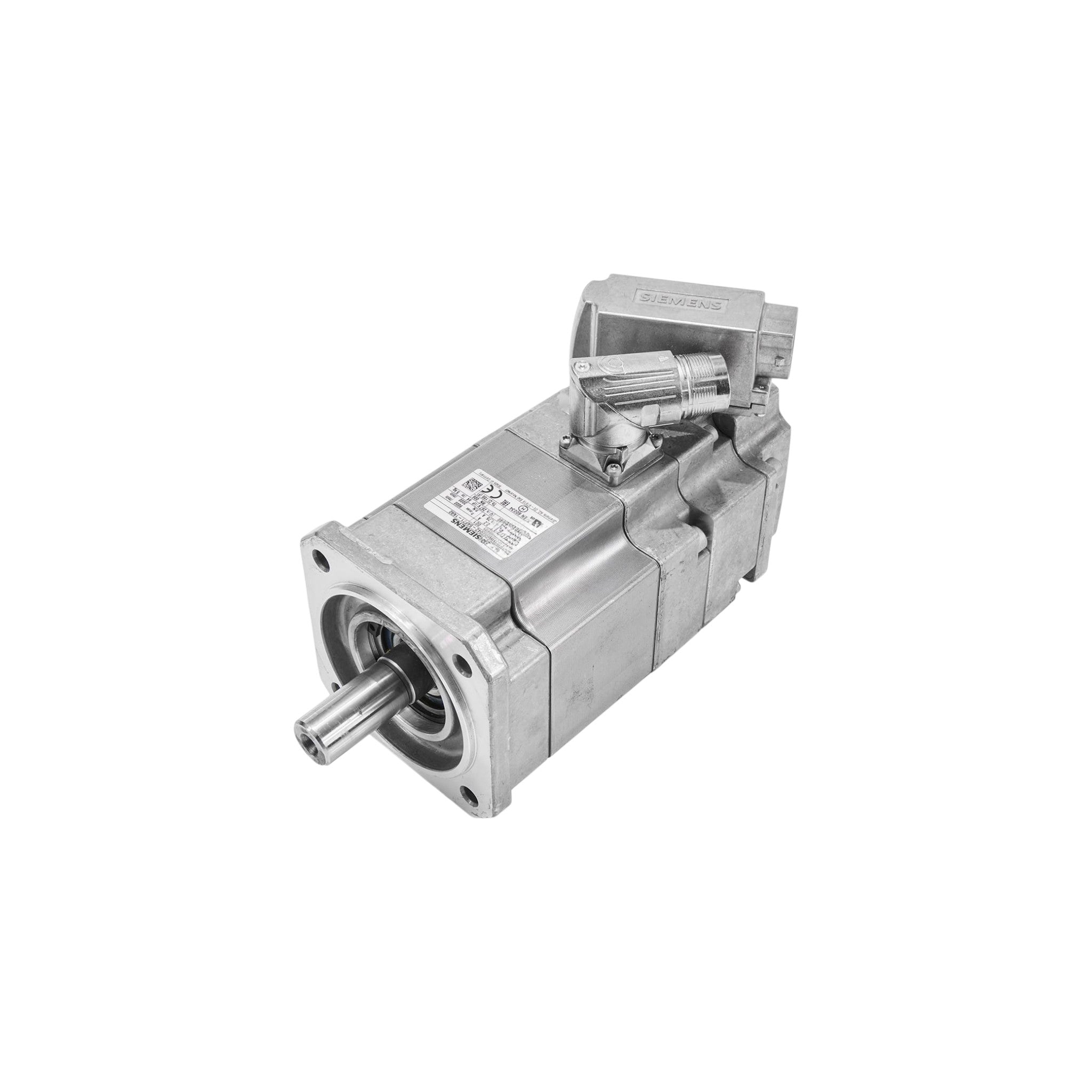

The Siemens 1FT7034-5AK7X-1XXX is a compact SIMOTICS S-1FT7 permanent magnet synchronous servo motor designed for high-speed, high-precision motion control applications. Engineered for seamless integration with Siemens SINAMICS S120 servo drive systems via the DRIVE-CLiQ interface, this naturally cooled servo motor delivers excellent positioning accuracy, rapid acceleration, and reliable continuous-duty performance. It is ideally suited for CNC machinery, robotics, packaging equipment, semiconductor manufacturing, electronics assembly, printing systems, and other advanced automation applications.
Operating at a rated speed of 6,000 RPM, the 1FT7034-5AK7X-1XXX provides 0.88 kW optimum output power, 1.4 Nm rated torque, and 2.0 Nm stall torque (100 K). The motor is capable of delivering up to 8.0 Nm maximum torque while supporting a maximum mechanical speed of 10,000 RPM, making it ideal for applications requiring extremely fast response, smooth operation, and high positional accuracy. Its permanent magnet rotor design ensures high efficiency, low rotor inertia, and outstanding dynamic performance.
The 1FT7034-5AK7X-1XXX product family includes numerous MLFB variants with different encoder technologies, shaft configurations (plain shaft or fitted key), optional holding brakes, connector orientations, temperature sensor options (KTY or Pt1000), vibration grades, and IP protection ratings. All variants feature natural cooling, IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication. The final configuration is determined by the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drives
- Optimum output power: 0.88 kW
- Rated speed: 6,000 RPM
- Rated torque: 1.4 Nm
- Stall torque (100 K): 2.0 Nm
- Maximum torque: 8.0 Nm
- Maximum mechanical speed: 10,000 RPM
- High efficiency (approximately 90%)
- Natural cooling
- DRIVE-CLiQ encoder interface
- Incremental, absolute single-turn, and multiturn encoder options
- Plain shaft or fitted key versions
- Optional holding brake
- IM B5 flange mounting
- Rotatable power connector
- Integrated KTY or Pt1000 temperature sensor
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7034-5AK7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Optimum Power | 0.88 kW |
| Rated Speed | 6,000 RPM |
| Optimum Speed | 6,000 RPM |
| Rated Torque (100 K) | 1.4 Nm |
| Stall Torque (100 K) | 2.0 Nm |
| Stall Torque (60 K) | 1.6 Nm |
| Maximum Torque | 8.0 Nm |
| Rated Current | 2.1 A |
| Stall Current (100 K) | 2.7 A |
| Stall Current (60 K) | 2.1 A |
| Maximum Current | 12.0 A |
| Maximum Mechanical Speed | 10,000 RPM |
| Maximum Inverter Speed | 10,000 RPM |
| Number of Poles | 6 |
| Efficiency | 90% |
| Torque Constant | 0.76 Nm/A |
| Voltage Constant | 48.5 V/1000 RPM |
| Winding Resistance | 2.4 Ω |
| Rotating Field Inductance | 9.7 mH |
| Electrical Time Constant | 4 ms |
| Mechanical Time Constant | 1.1 ms |
| Thermal Time Constant | 25 min |
| Rotor Inertia | 0.85 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 0.98 × 10⁻⁴ kg·m² |
| Motor Weight | 3.8 kg |
| Motor Weight (with Brake) | 4.2 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 Flange |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Temperature Monitoring | Integrated KTY or Pt1000 Sensor |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected MLFB configuration, encoder type, shaft option, brake option, and protection class.
Applications
- CNC Machine Tools
- Industrial Robotics
- Electronics Assembly
- Semiconductor Manufacturing
- Packaging Machinery
- Printing Machinery
- Pick-and-Place Systems
- Textile Machinery
- Laboratory Automation
- High-Speed Precision Motion Control
