Description
Product Overview

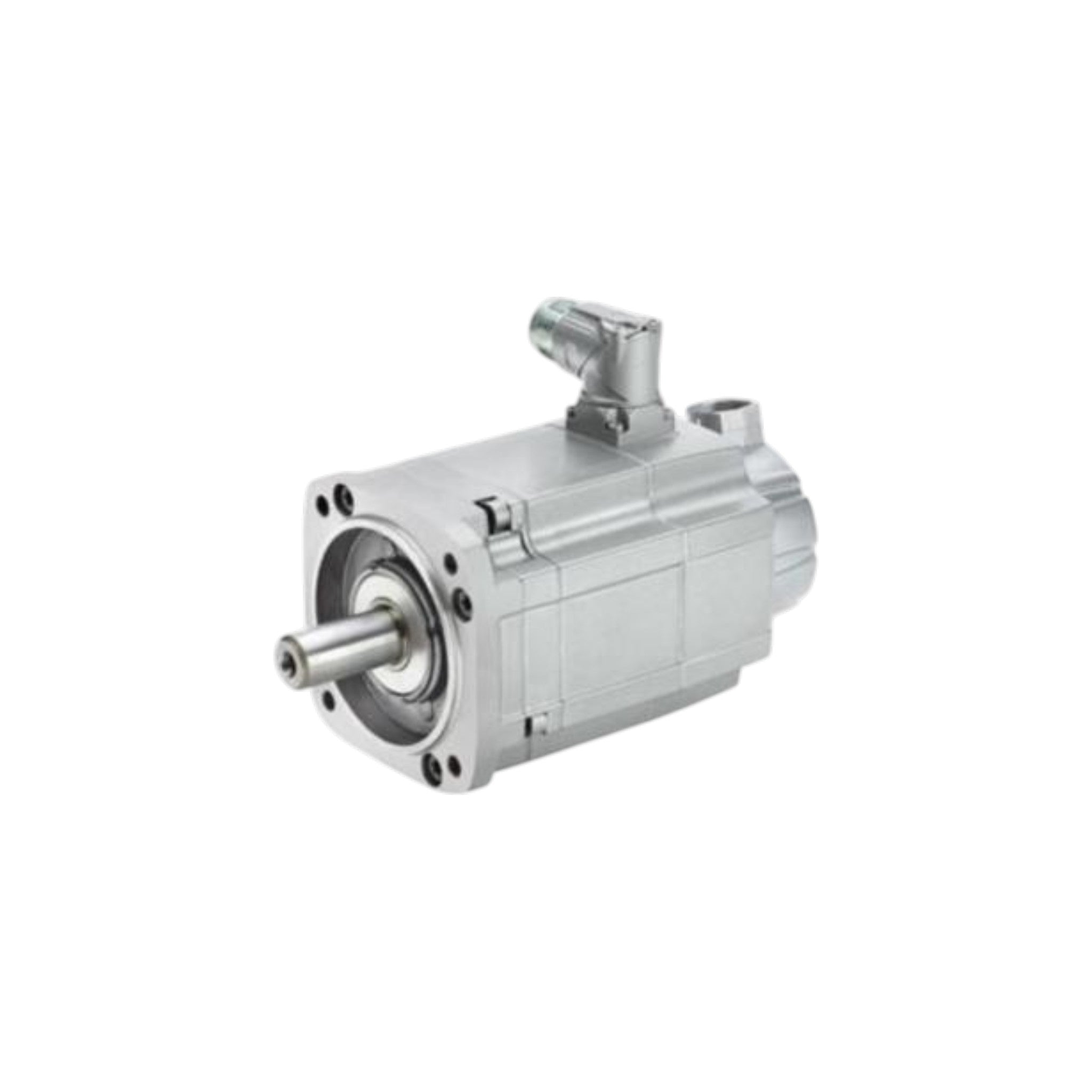

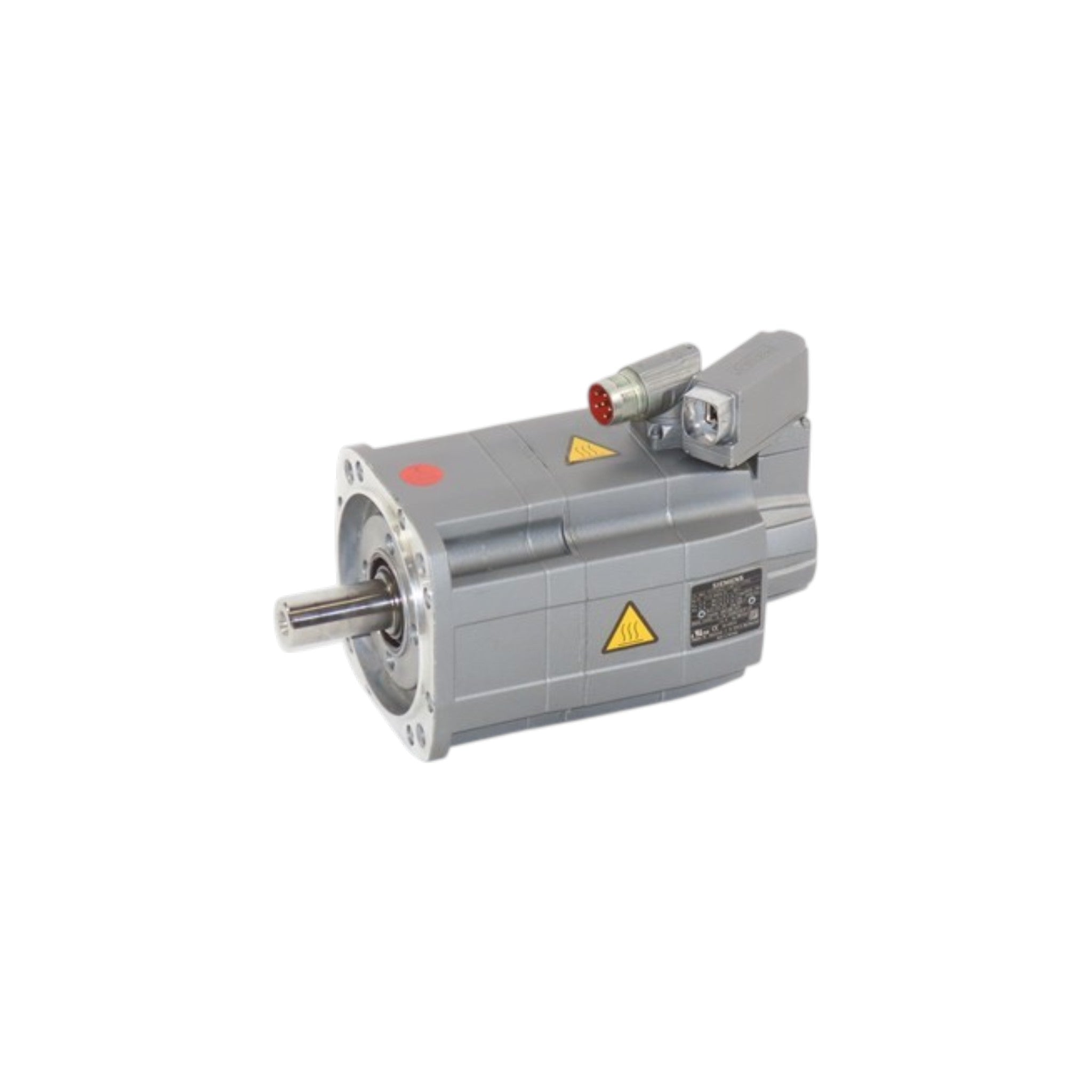

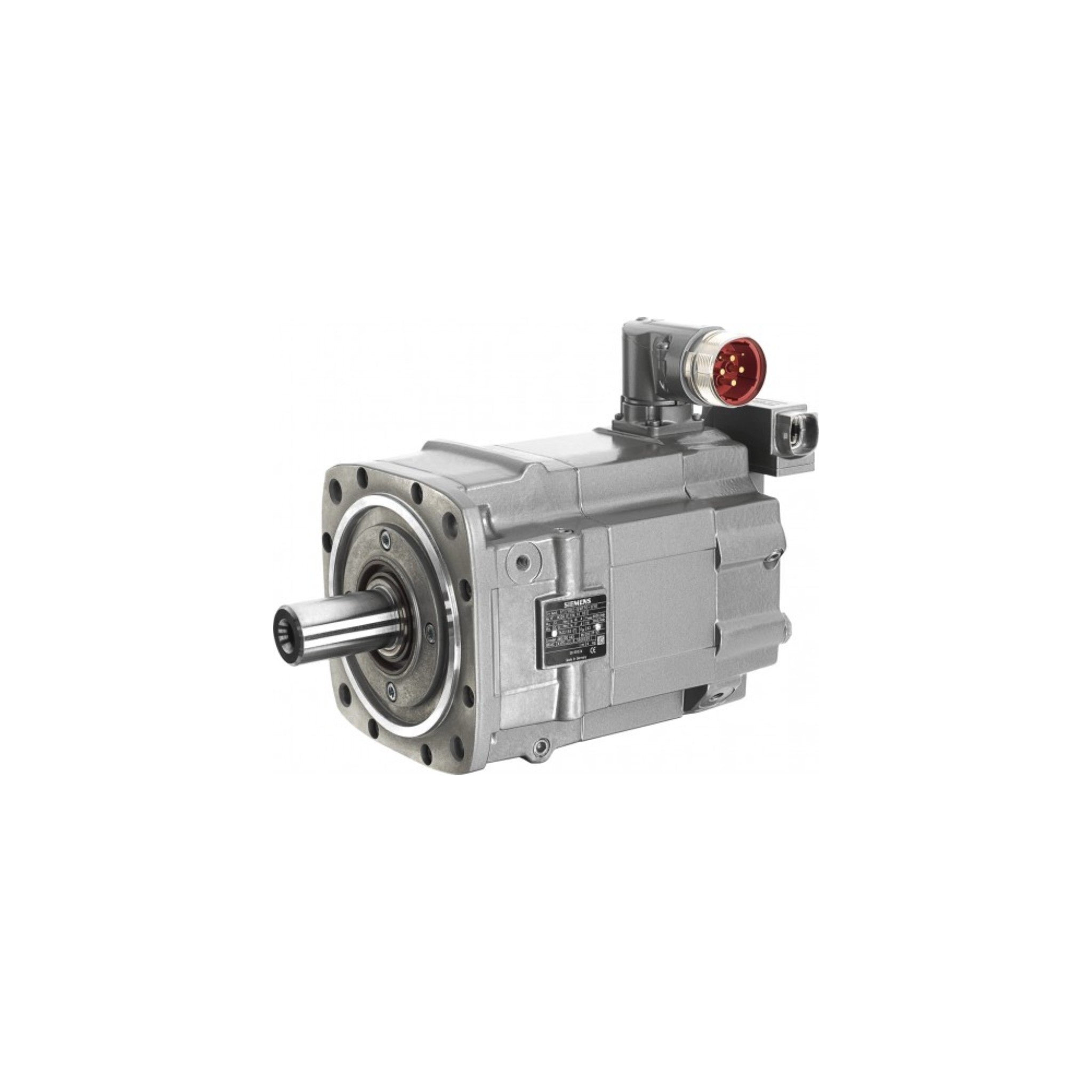

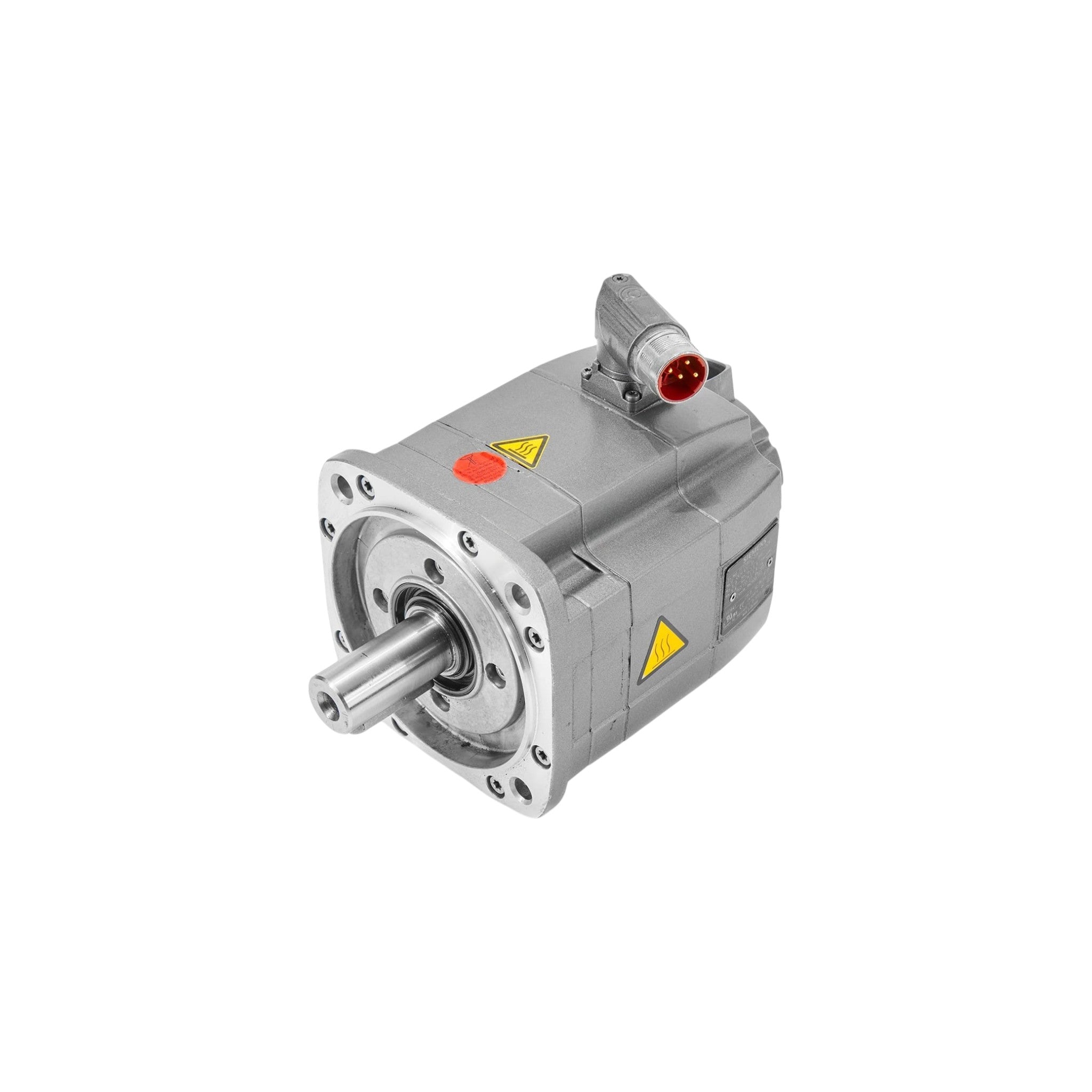

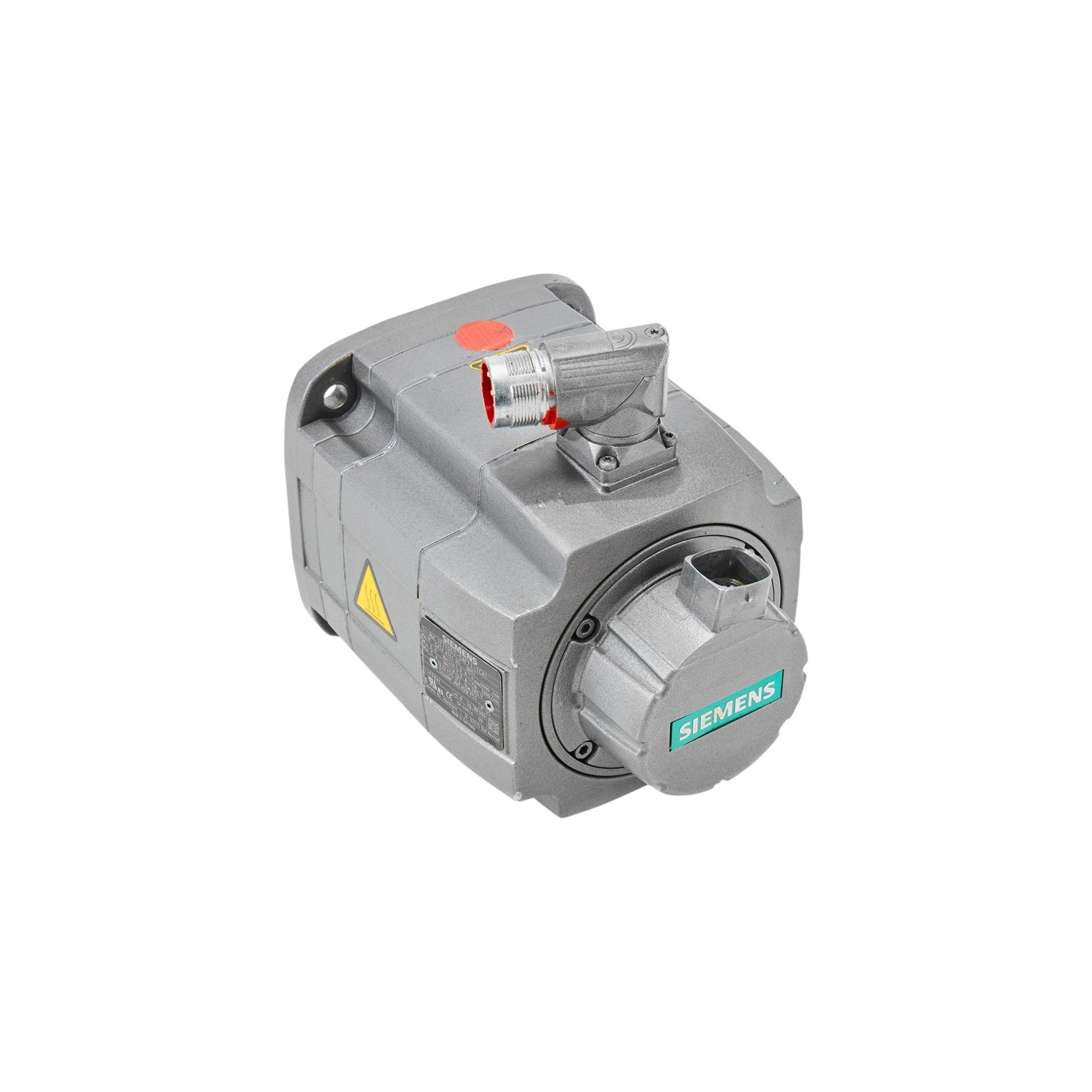

The 1FT7062-5WF7X-1XXX is a Siemens SIMOTICS S 1FT7 permanent-magnet synchronous servo motor designed for demanding motion control applications. This model features water cooling, delivering high continuous torque and excellent thermal performance for CNC machines, robotics, packaging systems, printing equipment, and automated production lines. It is optimized for operation with SINAMICS S120 drive systems and provides high dynamic response, precise positioning, and reliable long-term operation.
Key Features
- Permanent-magnet synchronous servo motor
- SIMOTICS S 1FT7 series
- Water-cooled construction for higher continuous output
- Rated speed: 3000 rpm
- Rated torque: 10 Nm
- Continuous output power: 3.1 kW
- Maximum mechanical speed: 9000 rpm
- High overload capability (up to 26 Nm maximum torque)
- Compact, high-power-density design
- Designed for Siemens SINAMICS S120 servo systems
- Excellent positioning accuracy and dynamic performance
- Multiple encoder, shaft, brake, and connector options depending on the X-1XXX configuration code
- Suitable for continuous industrial operation with IP65/IP67 protection depending on the exact variant
Typical Applications
- CNC machine tools
- Industrial automation
- Robotics
- Packaging machinery
- Printing equipment
- Textile machinery
- Material handling systems
- Semiconductor manufacturing
- Precision assembly equipment
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Siemens |
| Series | SIMOTICS S 1FT7 |
| Model | 1FT7062-5WF7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling | Water-cooled |
| Rated Power | 3.1 kW |
| Rated Torque | 10 Nm |
| Rated Speed | 3000 rpm |
| Maximum Torque | 26 Nm |
| Maximum Mechanical Speed | 9000 rpm |
| Rated Current | 7.8 A |
| Protection Class | IP65/IP67 (configuration dependent) |
| Temperature Sensor | KTY |
| Compatible Drive | Siemens SINAMICS S120 |
