Product Description

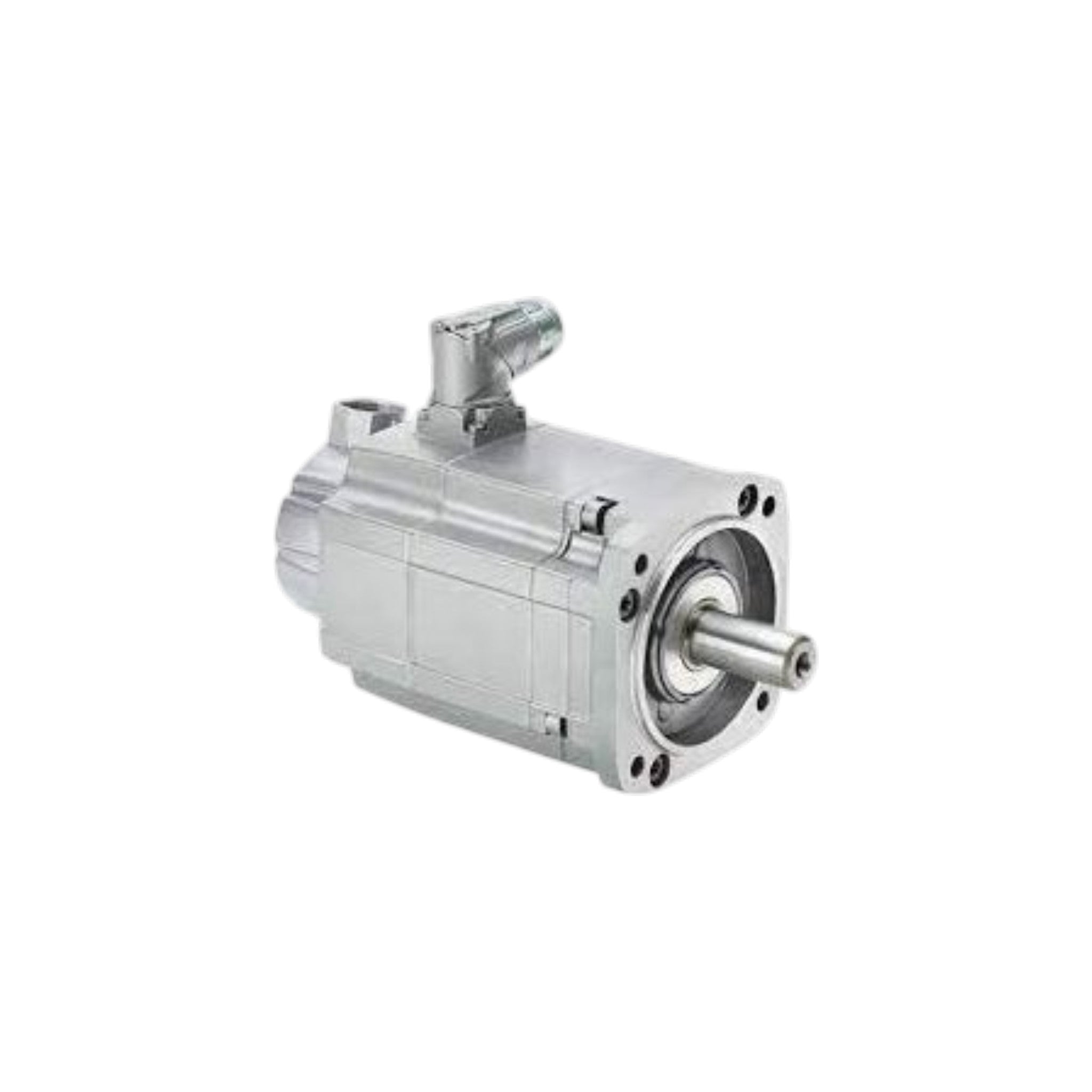

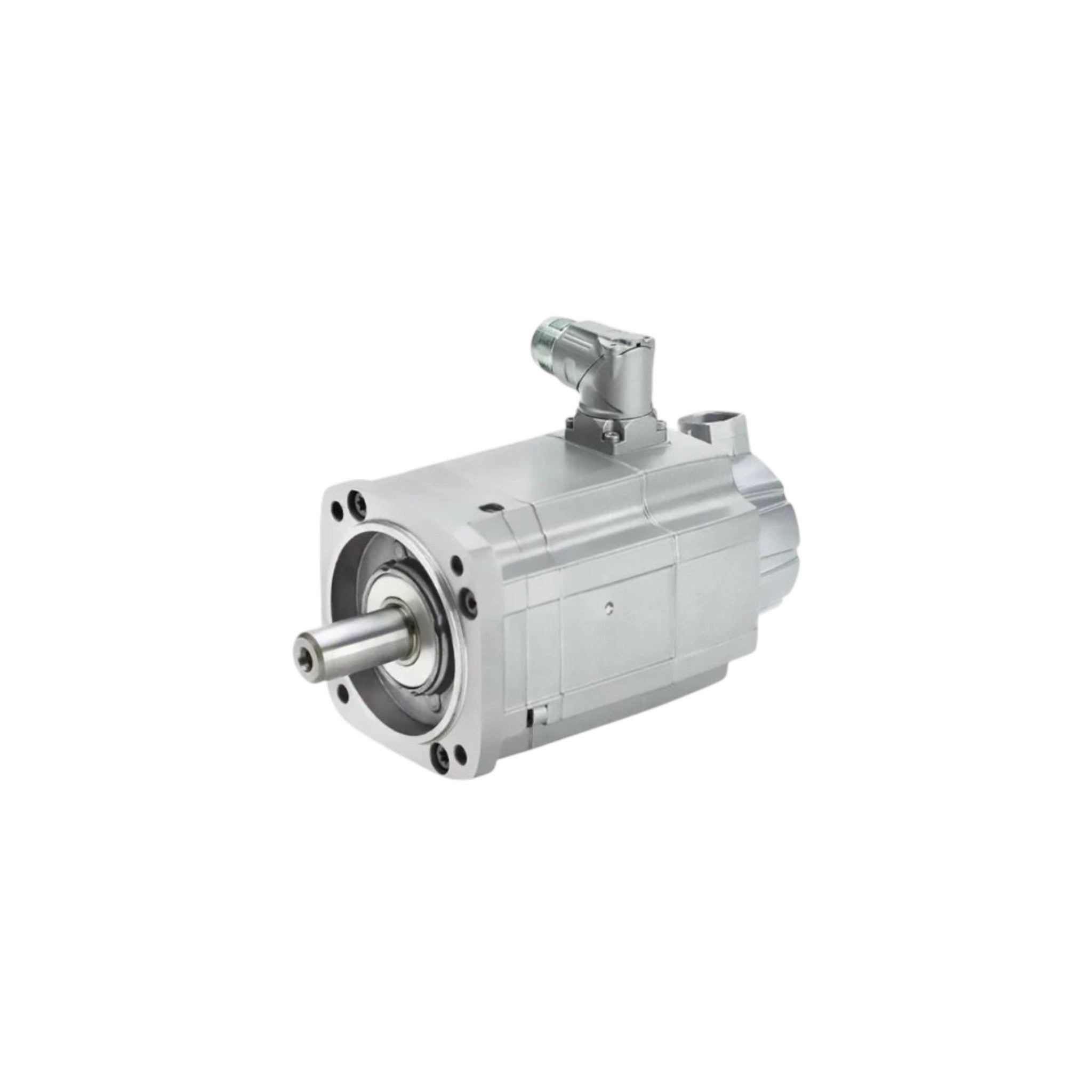

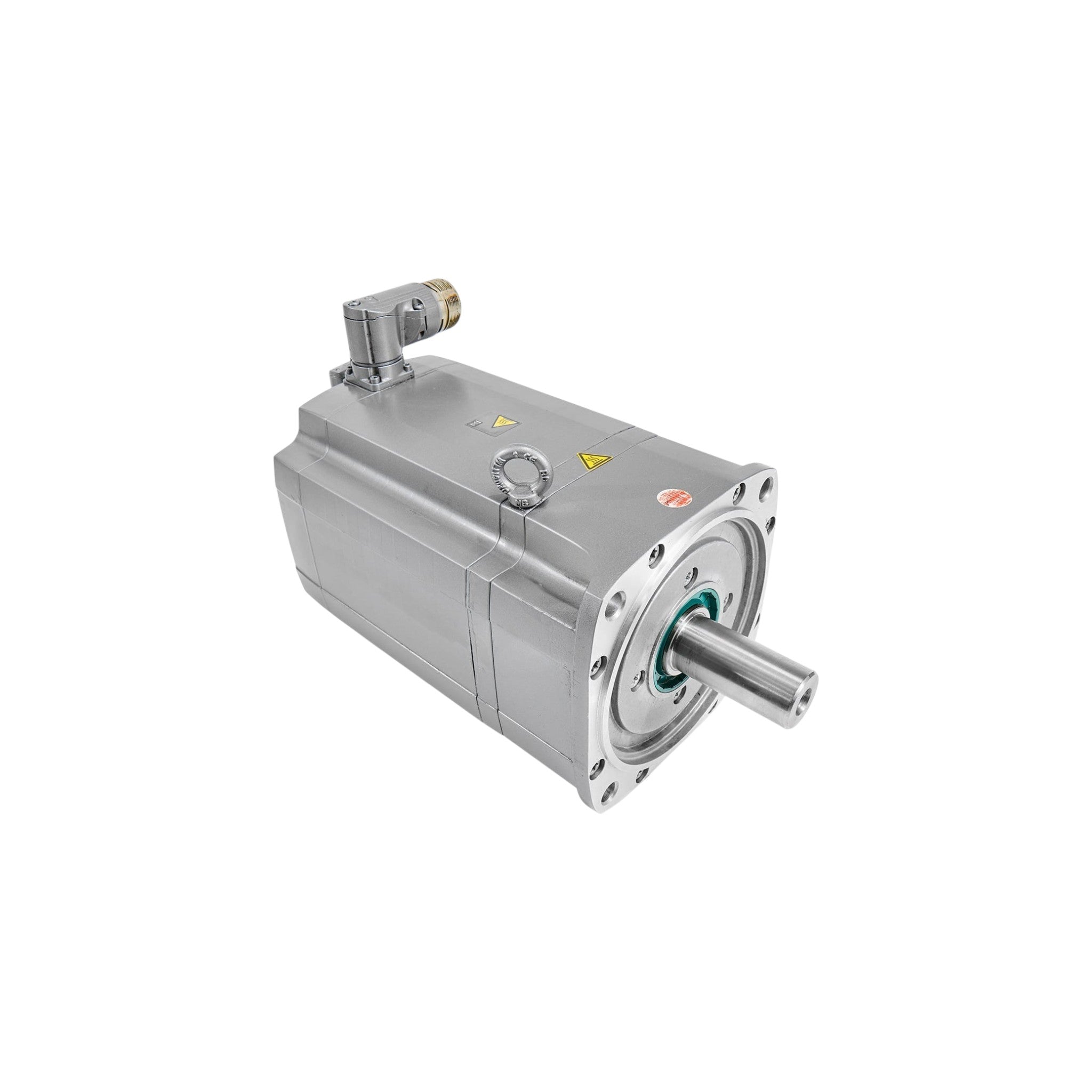

The Siemens 1FT7066-5AF7X-1XXX belongs to the SIMOTICS S-1FT7 family of permanent magnet synchronous servo motors, engineered for demanding industrial motion control applications requiring high torque density, exceptional positioning accuracy, and outstanding dynamic performance. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems, this motor is ideal for CNC machine tools, industrial robotics, packaging machinery, printing equipment, semiconductor manufacturing, material handling systems, and automated production lines.
Operating at a rated speed of 3,000 RPM, the 1FT7066-5AF7X-1XXX delivers 2.92 kW rated output power, 9.3 Nm rated torque, and 12.0 Nm stall torque (100 K). The motor can produce up to 49 Nm maximum torque while supporting maximum mechanical speeds of 9,000 RPM, providing rapid acceleration, excellent overload capability, and highly accurate motion control. The permanent magnet rotor ensures high efficiency, low rotor inertia, and superior servo performance.
The 1FT7066-5AF7X-1XXX family is available in numerous MLFB variants with different encoder technologies, shaft configurations (plain shaft or fitted key), optional holding brakes, connector orientations, vibration grades, and protection classes. All variants feature natural cooling, IM B5 flange mounting, DRIVE-CLiQ communication, and integrated motor temperature monitoring. The final configuration is determined by the complete Siemens MLFB order number.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drive systems
- Rated output power: 2.92 kW
- Rated speed: 3,000 RPM
- Rated torque: 9.3 Nm
- Stall torque (100 K): 12.0 Nm
- Maximum torque: 49 Nm
- Maximum mechanical speed: 9,000 RPM
- High-efficiency design (up to 92%)
- Natural cooling
- DRIVE-CLiQ encoder interface
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft options
- Optional holding brake
- IM B5 flange mounting
- Rotatable power connector
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Series | 1FT7066-5AF7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Rated Power | 2.92 kW |
| Rated Speed | 3,000 RPM |
| Rated Torque | 9.3 Nm |
| Stall Torque (100 K) | 12.0 Nm |
| Maximum Torque | 49 Nm |
| Rated Current | 7.2 A |
| Stall Current (100 K) | 8.4 A |
| Maximum Current | 44 A |
| Maximum Mechanical Speed | 9,000 RPM |
| Maximum Inverter Speed | 6,500 RPM |
| Number of Poles | 10 |
| Efficiency | Up to 92% |
| Torque Constant | 1.405 Nm/A |
| Voltage Constant | 89.5 V/1000 RPM |
| Winding Resistance | 0.5 Ω |
| Rotating Field Inductance | 5.5 mH |
| Rotor Inertia | 16.4 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 19.3 × 10⁻⁴ kg·m² |
| Motor Weight | 12.3 kg |
| Motor Weight (with Brake) | 14.1 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Temperature Monitoring | Integrated Temperature Sensor |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected MLFB configuration.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Semiconductor Equipment
- Printing Machinery
- Material Handling Systems
- Pick-and-Place Systems
- Textile Machinery
- Automated Production Lines
- High-Precision Motion Control Systems
