Product Description

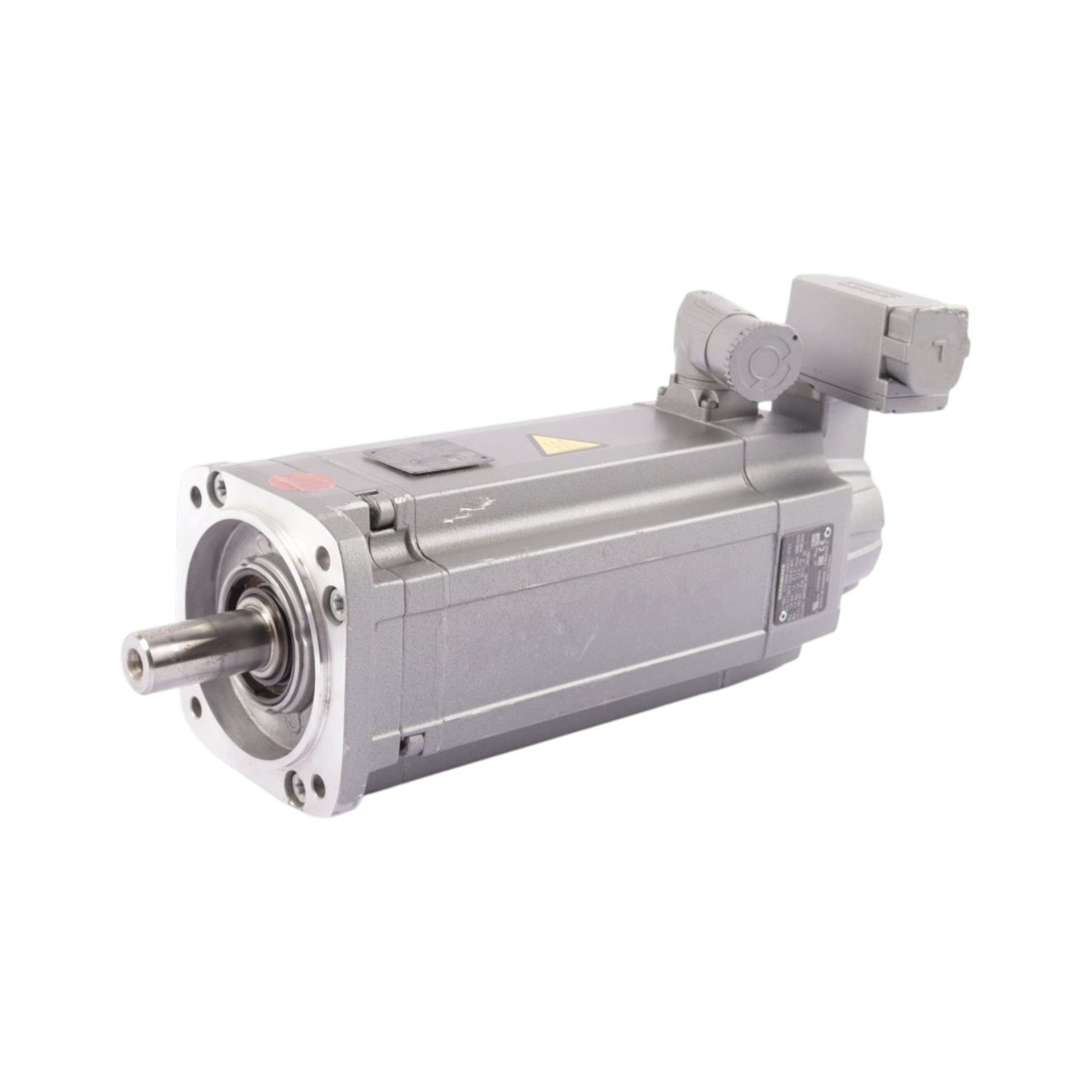

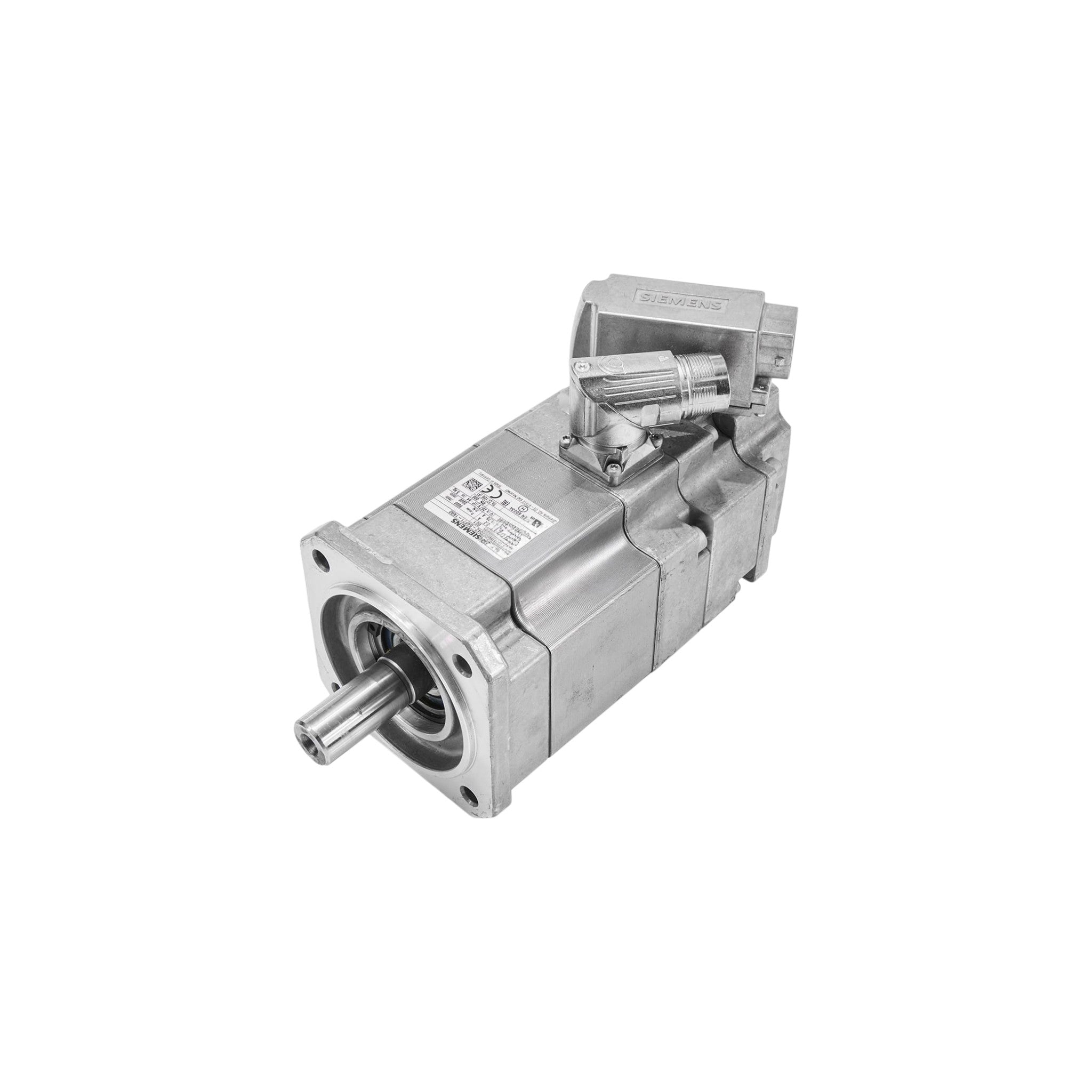

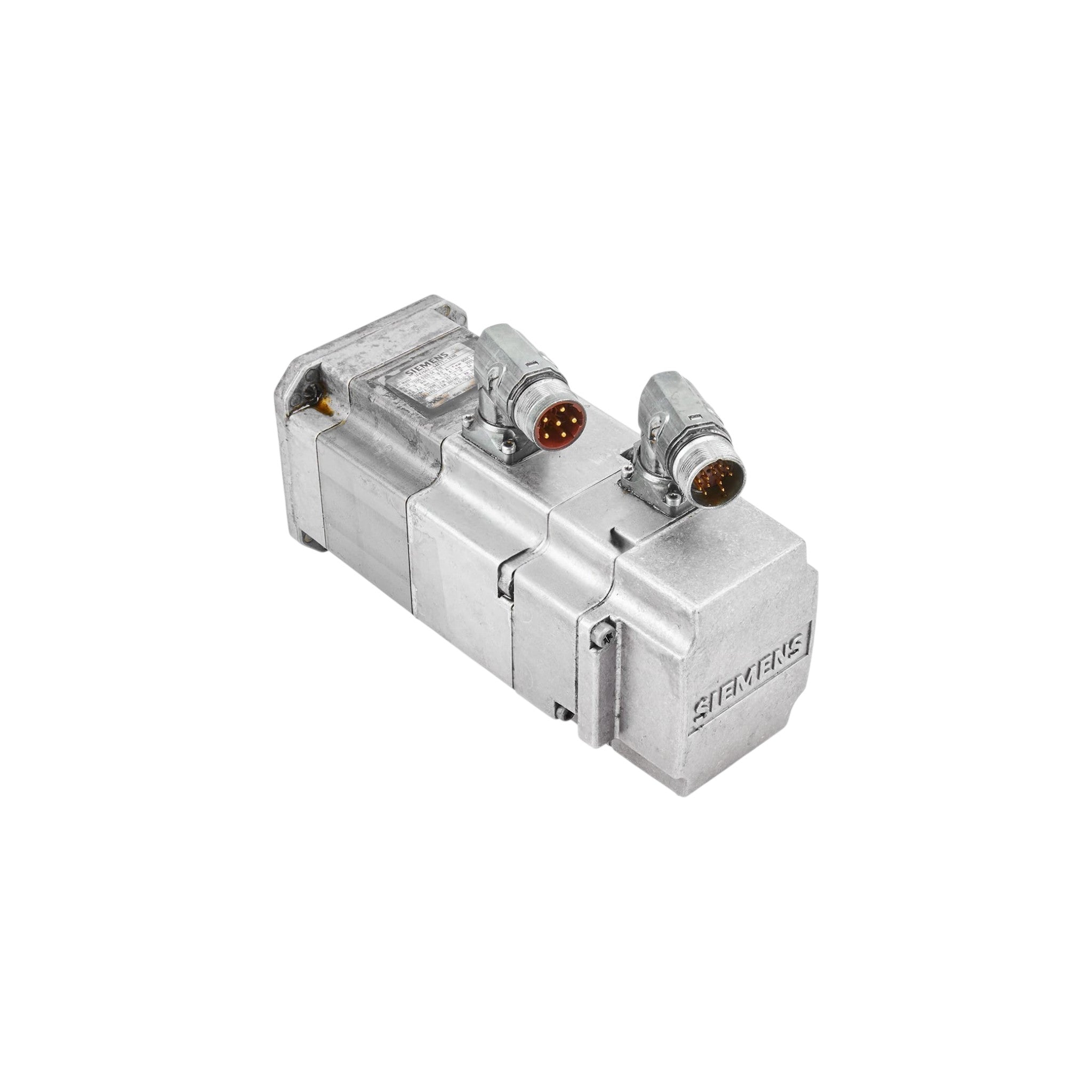

The Siemens 1FT7082-5AH7X-1XXX is a SIMOTICS S-1FT7 permanent magnet synchronous servo motor engineered for high-speed, high-precision motion control in demanding industrial automation environments. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems via the DRIVE-CLiQ interface, this naturally cooled motor delivers exceptional dynamic performance, excellent positioning accuracy, and reliable continuous-duty operation. It is ideal for CNC machine tools, industrial robotics, packaging machinery, semiconductor manufacturing, printing systems, and advanced material handling applications.
Operating at a rated speed of 4,500 RPM, the 1FT7082-5AH7X-1XXX provides 3.77 kW rated output power, 8.0 Nm rated torque, and 13.0 Nm stall torque (100 K). The motor can generate up to 52 Nm maximum torque while supporting a maximum mechanical speed of 8,000 RPM, ensuring rapid acceleration, high overload capability, and precise servo control. The permanent magnet rotor design offers high torque density, low inertia, and excellent energy efficiency.
The 1FT7082-5AH7X-1XXX product family is available in multiple MLFB configurations with various encoder technologies, shaft designs (plain shaft or fitted key), optional holding brakes, connector orientations, vibration grades, and protection classes. All variants feature natural cooling, IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication. The exact configuration is determined by the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Designed for Siemens SINAMICS S120 servo drives
- Rated output power: 3.77 kW
- Rated speed: 4,500 RPM
- Rated torque: 8.0 Nm
- Stall torque (100 K): 13.0 Nm
- Maximum torque: 52 Nm
- Maximum mechanical speed: 8,000 RPM
- Natural cooling
- DRIVE-CLiQ digital encoder interface
- High torque density with low rotor inertia
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft options
- Optional holding brake
- IM B5 flange mounting
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7082-5AH7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Rated Power | 3.77 kW |
| Rated Speed | 4,500 RPM |
| Optimum Speed | 4,500 RPM |
| Rated Torque | 8.0 Nm |
| Stall Torque (100 K) | 13.0 Nm |
| Stall Torque (60 K) | 10.6 Nm |
| Maximum Torque | 52 Nm |
| Rated Current | 7.8 A |
| Stall Current (100 K) | 12.3 A |
| Stall Current (60 K) | 10.3 A |
| Maximum Current | 63 A |
| Maximum Mechanical Speed | 8,000 RPM |
| Maximum Converter Speed | 8,000 RPM |
| Number of Poles | 10 |
| Torque Constant | 1.03 Nm/A |
| Voltage Constant | 65.5 V/1000 RPM |
| Winding Resistance | 0.23 Ω |
| Rotating Field Inductance | 3.5 mH |
| Electrical Time Constant | 15 ms |
| Mechanical Time Constant | 1.7 ms |
| Thermal Time Constant | 40 min |
| Rotor Inertia | 26.5 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 41.9 × 10⁻⁴ kg·m² |
| Motor Weight | 14.0 kg |
| Motor Weight (with Brake) | 18.3 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 Flange |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Temperature Monitoring | Integrated Temperature Sensor |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected MLFB configuration, encoder type, shaft version, and brake option.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Semiconductor Equipment
- Printing Machinery
- Material Handling Systems
- Automated Assembly Lines
- Electronics Manufacturing
- High-Speed Production Systems
- Precision Motion Control Applications
