Description
Product Description

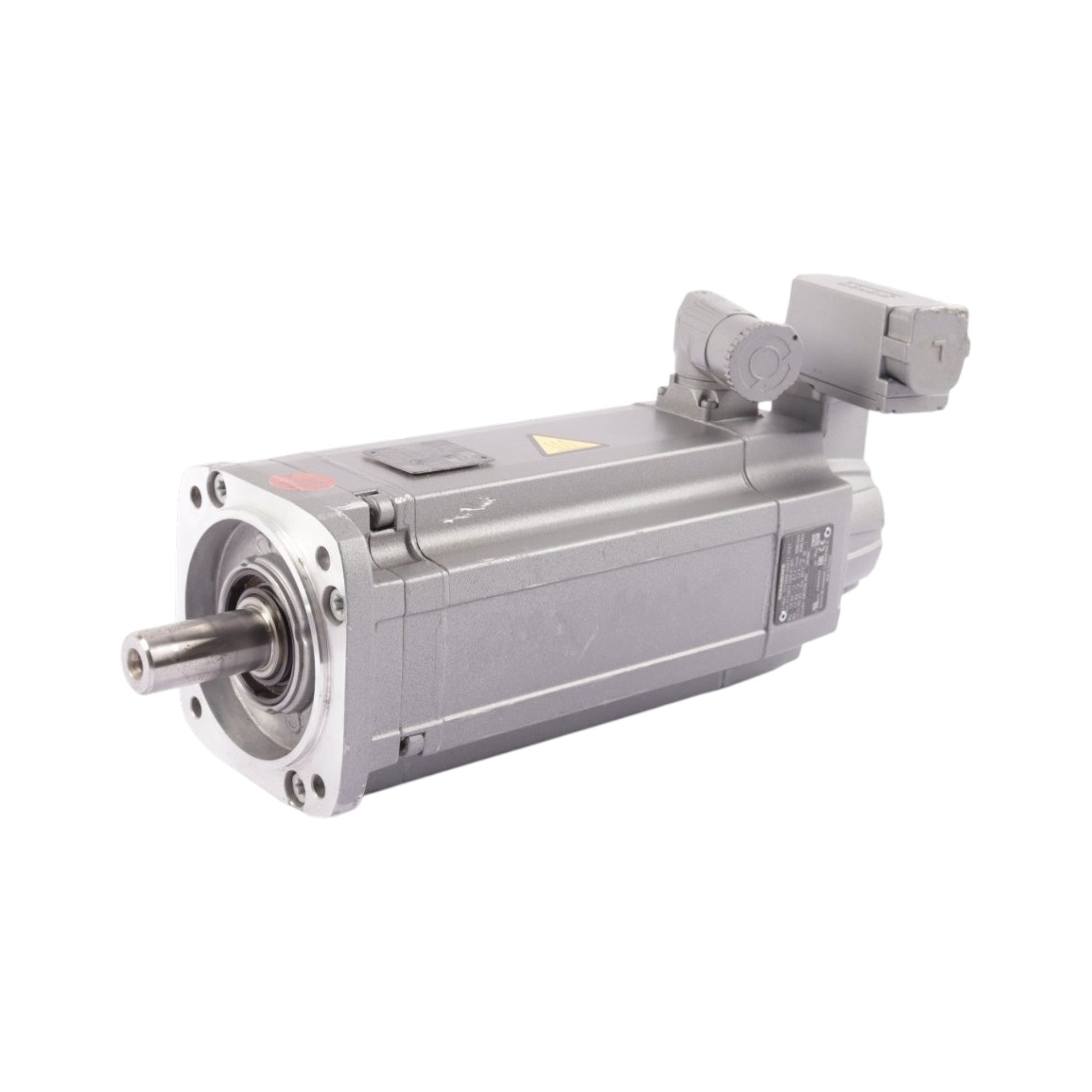

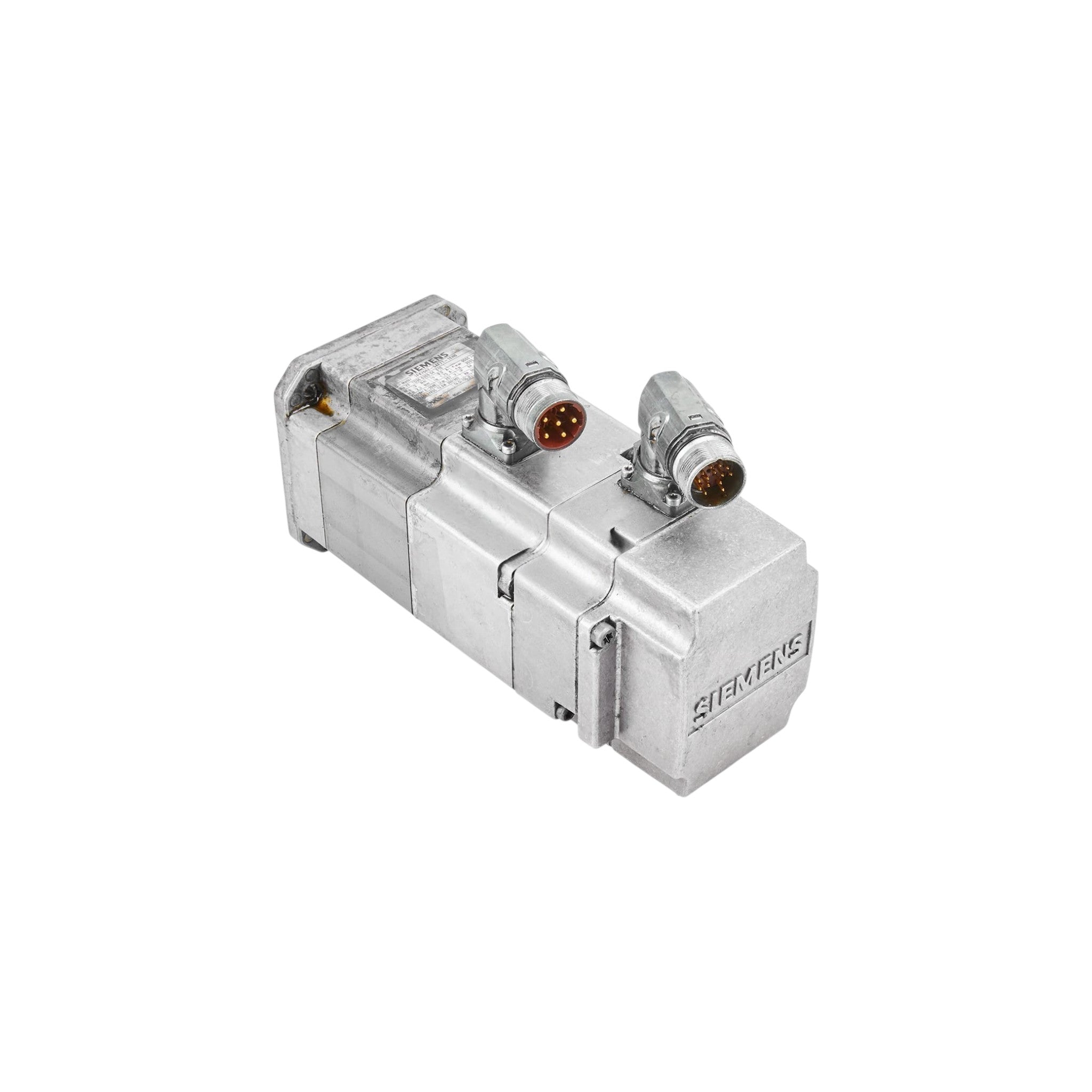

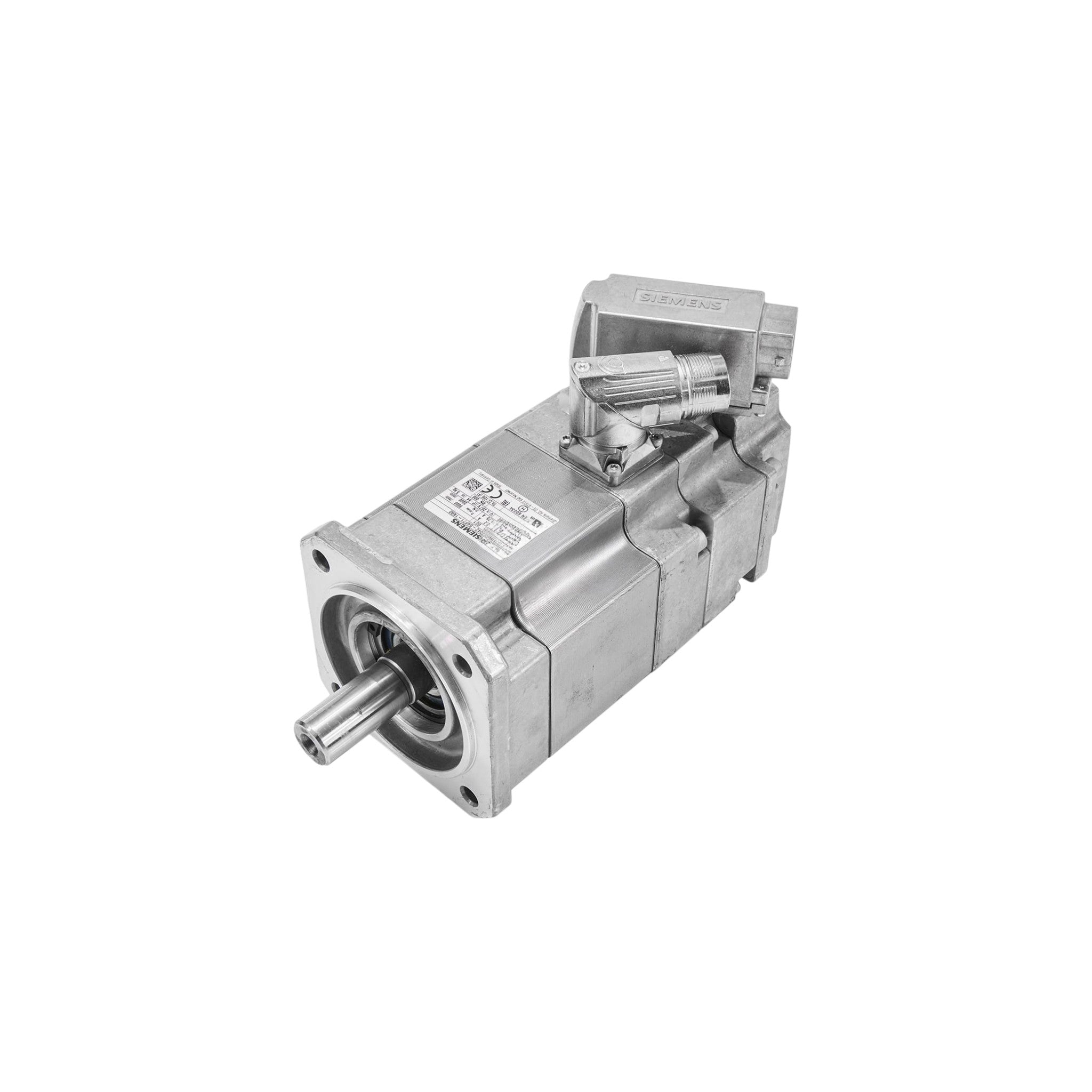

The Siemens 1FT7084-5AH7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor engineered for high-speed, precision motion control applications. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems using the DRIVE-CLiQ interface, this naturally cooled servo motor delivers exceptional dynamic response, high positioning accuracy, and reliable continuous-duty operation. It is ideally suited for CNC machine tools, industrial robotics, packaging machinery, semiconductor equipment, printing systems, material handling, and automated manufacturing lines.
Operating at a rated speed of 4,500 RPM, the 1FT7084-5AH7X-1XXX provides 4.82 kW optimum output power, 9.5 Nm rated torque, and 20 Nm stall torque (100 K). The motor can generate up to 81 Nm maximum torque while supporting maximum mechanical speeds up to 8,000 RPM, making it ideal for applications requiring rapid acceleration, excellent overload capability, and highly accurate positioning. The permanent magnet rotor design delivers high torque density, low rotor inertia, and outstanding energy efficiency.
The 1FT7084-5AH7X-1XXX product family includes numerous MLFB variants with different encoder systems, shaft configurations (plain shaft or fitted key), optional holding brakes, connector orientations, vibration grades, and protection classes. All variants feature natural cooling, IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication. The exact motor configuration is determined by the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drives
- Optimum output power: 4.82 kW
- Rated speed: 4,500 RPM
- Rated torque: 9.5 Nm
- Stall torque (100 K): 20 Nm
- Maximum torque: 81 Nm
- Maximum mechanical speed: 8,000 RPM
- High efficiency (93%)
- Natural cooling
- DRIVE-CLiQ encoder interface
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft options
- Optional holding brake
- IM B5 flange mounting
- Rotatable power connector
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7084-5AH7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Optimum Power | 4.82 kW |
| Rated Speed | 4,500 RPM |
| Optimum Speed | 4,000 RPM |
| Rated Torque | 9.5 Nm |
| Stall Torque (100 K) | 20 Nm |
| Stall Torque (60 K) | 16.8 Nm |
| Maximum Torque | 81 Nm |
| Rated Current | 7.8 A |
| Stall Current (100 K) | 15.6 A |
| Stall Current (60 K) | 13.4 A |
| Maximum Current | 80 A |
| Maximum Mechanical Speed | 8,000 RPM |
| Maximum Converter Speed | 7,200 RPM |
| Rated Converter Current | 18 A |
| Maximum Converter Current | 54 A |
| Maximum Converter Torque | 60 Nm |
| Number of Poles | 10 |
| Efficiency | 93% |
| Torque Constant | 1.25 Nm/A |
| Voltage Constant | 79.5 V/1000 RPM |
| Winding Resistance | 0.172 Ω |
| Rotating Field Inductance | 2.9 mH |
| Electrical Time Constant | 17 ms |
| Mechanical Time Constant | 1.5 ms |
| Thermal Time Constant | 55 min |
| Rotor Inertia | 45.1 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 60.4 × 10⁻⁴ kg·m² |
| Motor Weight | 20.8 kg |
| Motor Weight (with Brake) | 25.1 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 Flange |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Temperature Monitoring | Integrated Temperature Sensor |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected MLFB configuration, encoder type, shaft option, brake option, and protection class.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Semiconductor Equipment
- Printing Machinery
- Material Handling Systems
- Electronics Manufacturing
- Automated Assembly Lines
- Textile Machinery
- High-Speed Precision Motion Control
