Description
Product Description

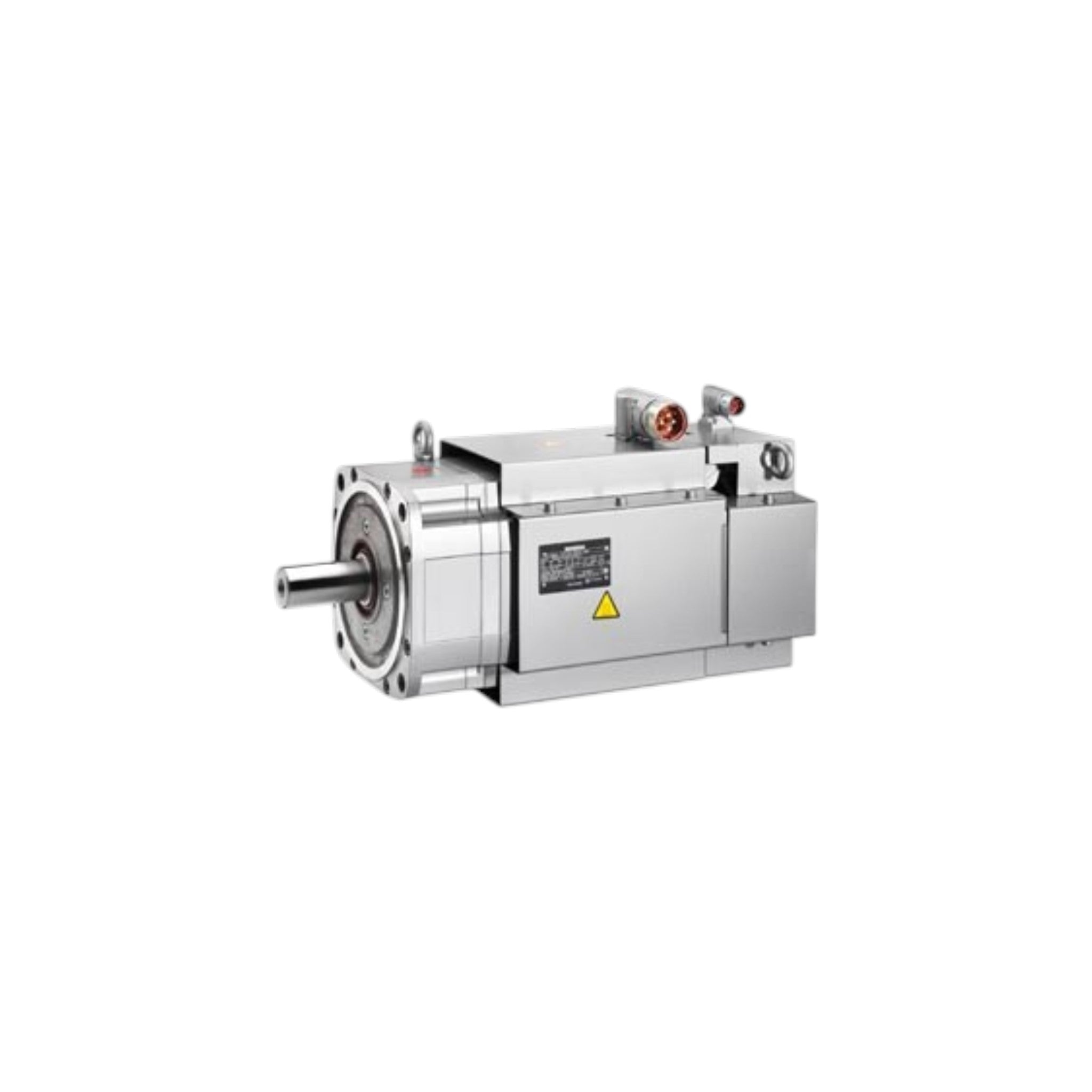

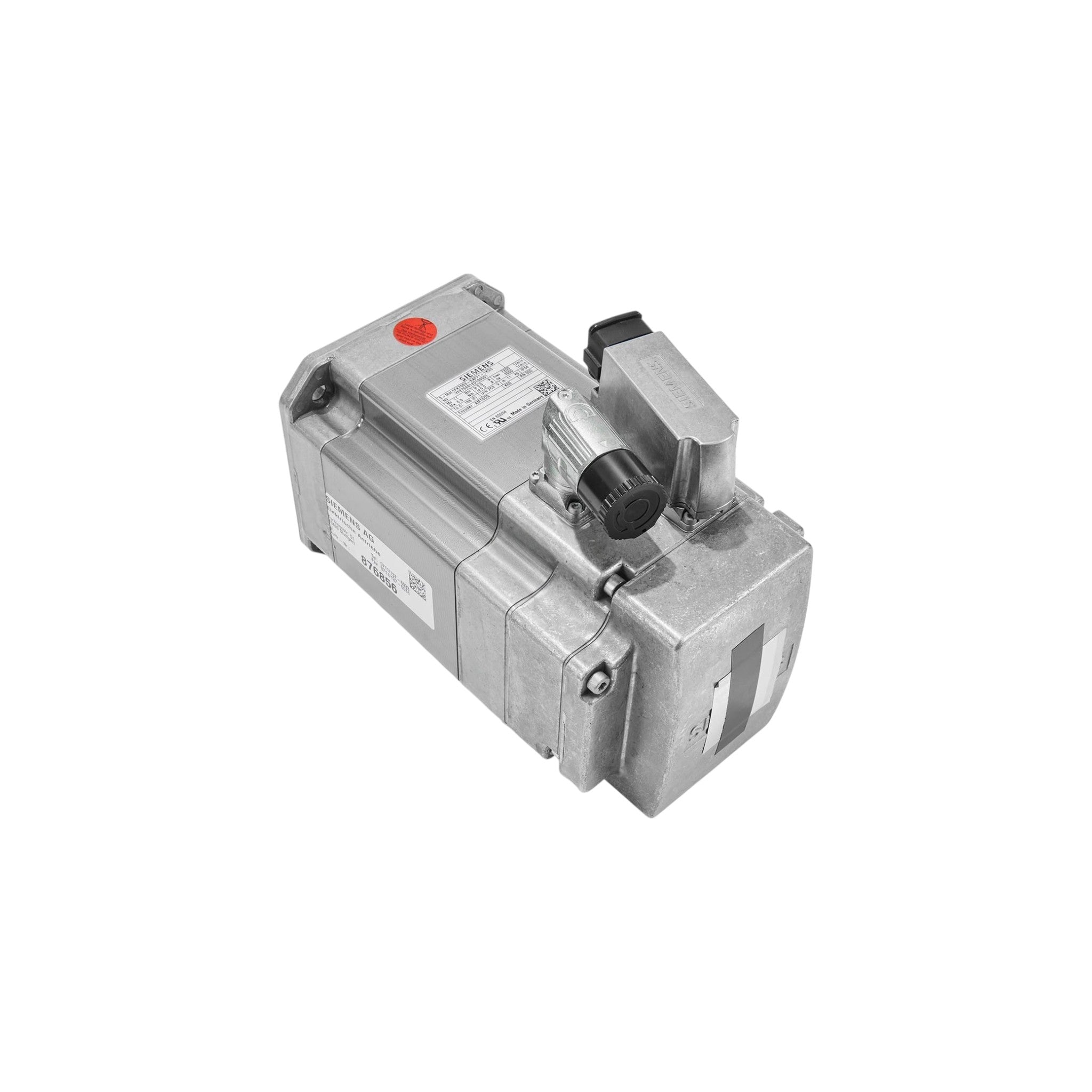

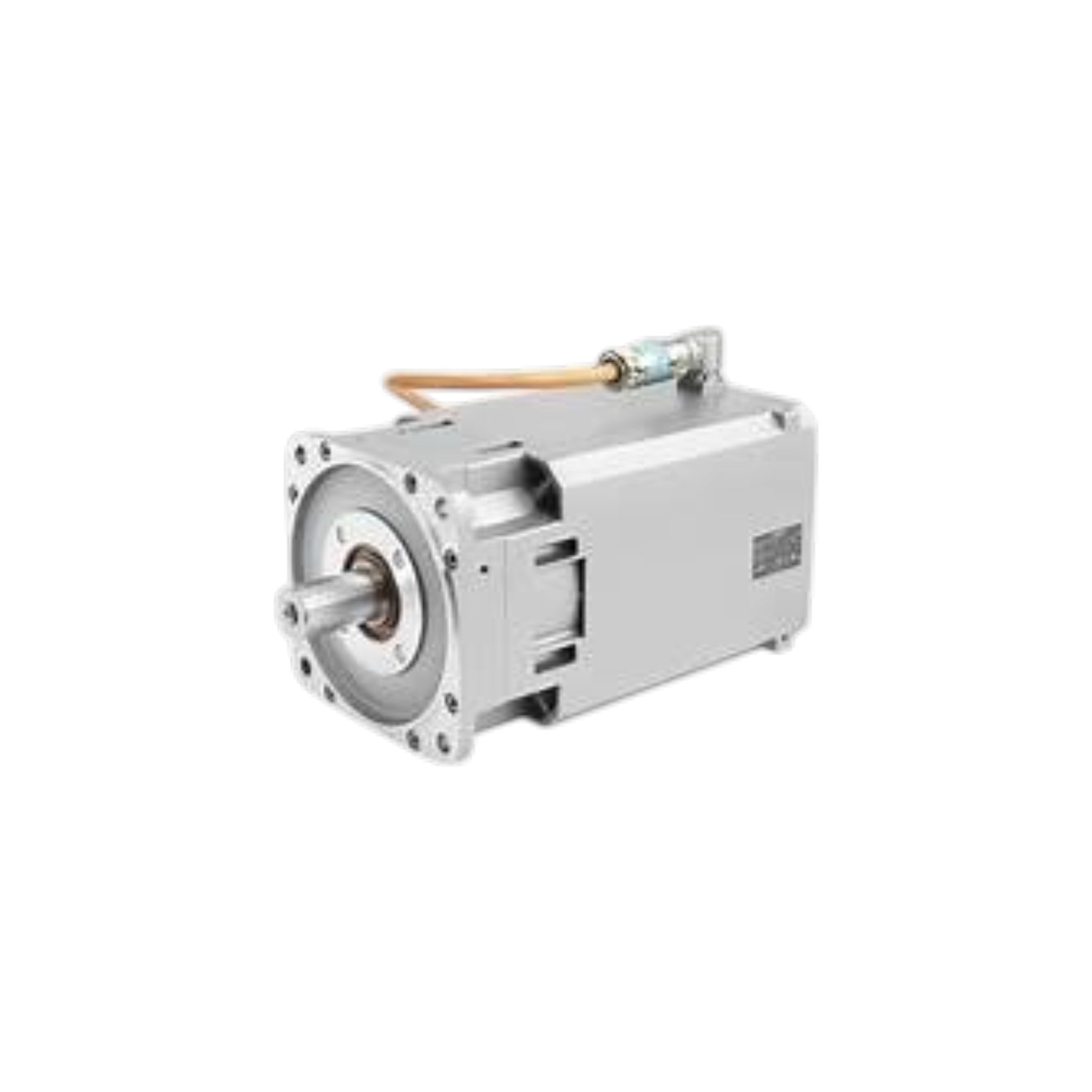

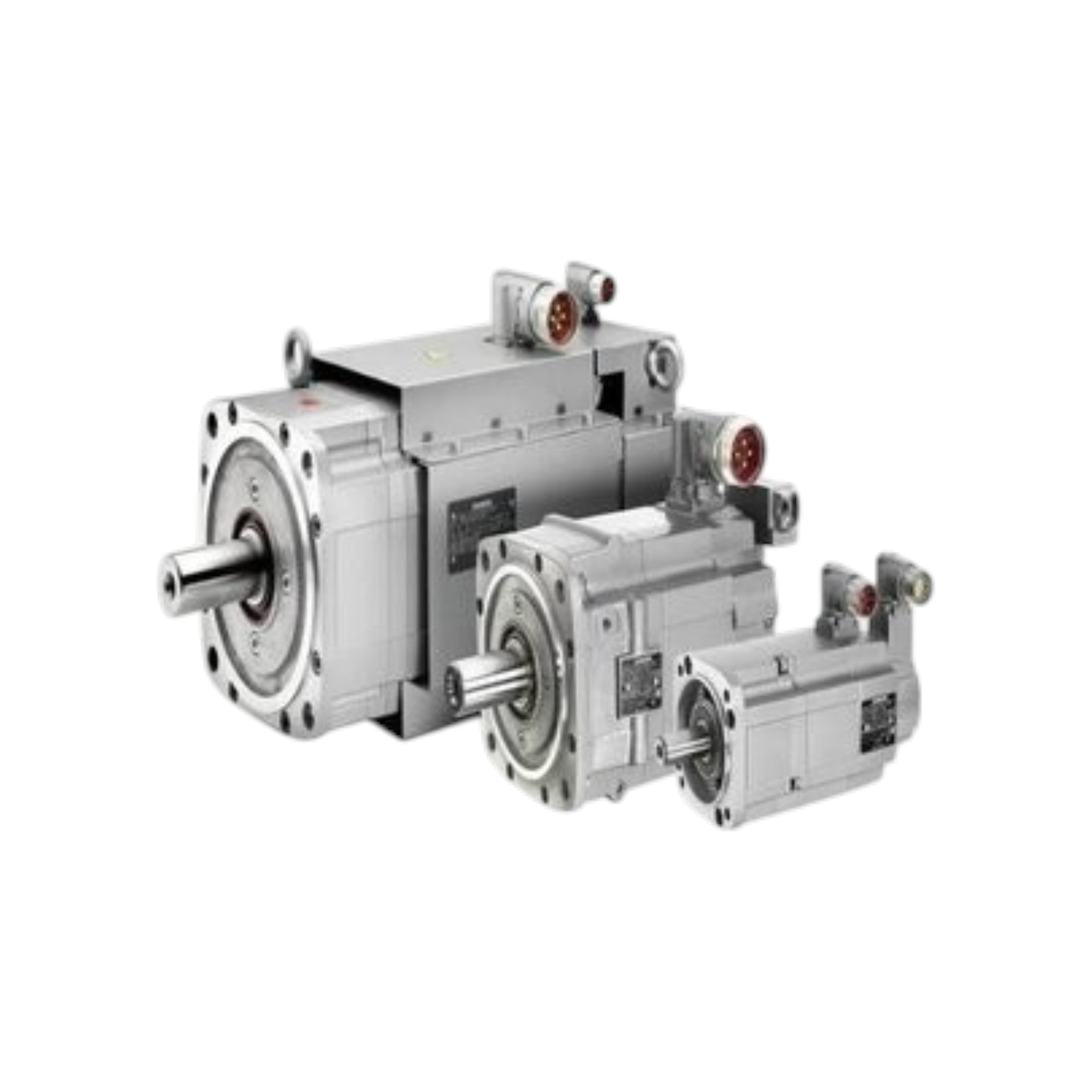

The Siemens 1FT7084-5SC7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor designed for demanding industrial motion control applications that require high torque, excellent positioning accuracy, and continuous-duty reliability. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems via the DRIVE-CLiQ interface, this forced-ventilated servo motor delivers outstanding dynamic response and energy-efficient operation for CNC machine tools, robotics, packaging equipment, metalworking machinery, and automated production systems.
The 1FT7084-5SC7X-1XXX motor family operates at a rated speed of 3,000 RPM and delivers an optimum output power of approximately 8.48 kW, 27 Nm rated torque (100 K), and 35 Nm stall torque (100 K). It provides up to 90 Nm maximum torque and supports a maximum mechanical speed of 8,000 RPM, making it ideal for applications requiring rapid acceleration, high overload capability, and precise motion control. Forced ventilation enables stable thermal performance during continuous high-load operation.
The 1FT7084-5SC7X-1XXX family includes numerous MLFB variants with multiple encoder technologies, shaft versions (plain shaft or fitted key), optional holding brakes, connector orientations, vibration grades, and IP protection classes. All variants feature IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication for fast commissioning and diagnostics. The final motor configuration depends on the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drives
- Forced ventilation cooling
- Optimum output power: 8.48 kW
- Rated speed: 3,000 RPM
- Rated torque: 27 Nm
- Stall torque (100 K): 35 Nm
- Maximum torque: 90 Nm
- Maximum mechanical speed: 8,000 RPM
- High efficiency
- DRIVE-CLiQ digital encoder interface
- High torque density with low rotor inertia
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft versions
- Optional holding brake
- IM B5 flange mounting
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7084-5SC7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Forced Ventilation |
| Optimum Output Power | 8.48 kW |
| Rated Speed | 3,000 RPM |
| Rated Torque (100 K) | 27 Nm |
| Stall Torque (100 K) | 35 Nm |
| Stall Torque (60 K) | 29 Nm |
| Maximum Torque | 90 Nm |
| Rated Current | 24.2 A |
| Stall Current (100 K) | 23.0 A |
| Stall Current (60 K) | 19.2 A |
| Maximum Current | 78 A |
| Maximum Mechanical Speed | 8,000 RPM |
| Maximum Converter Speed | 6,100 RPM |
| Rated Converter Current | 30 A |
| Maximum Converter Current | 90 A |
| Maximum Converter Torque | 90 Nm |
| Number of Poles | 10 |
| Efficiency | 94% |
| Torque Constant | 1.51 Nm/A |
| Voltage Constant | 95 V/1000 RPM |
| Winding Resistance | 0.18 Ω |
| Rotating Field Inductance | 3.1 mH |
| Electrical Time Constant | 17 ms |
| Mechanical Time Constant | 1.2 ms |
| Rotor Inertia | 62.5 × 10⁻⁴ kg·m² |
| Motor Weight | Approximately 30.5 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional Permanent-Magnet Brake |
| Mounting Arrangement | IM B5 Flange |
| Temperature Monitoring | Integrated Pt1000 Temperature Sensor |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected encoder, shaft configuration, holding brake, connector orientation, and complete Siemens MLFB configuration.
Applications
- CNC Machine Tools
- Industrial Robotics
- Metal Processing Machinery
- Packaging Machinery
- Printing Equipment
- Material Handling Systems
- Semiconductor Manufacturing
- Rotary Tables
- Automated Production Lines
- High-Precision Motion Control
