Description
Product Description

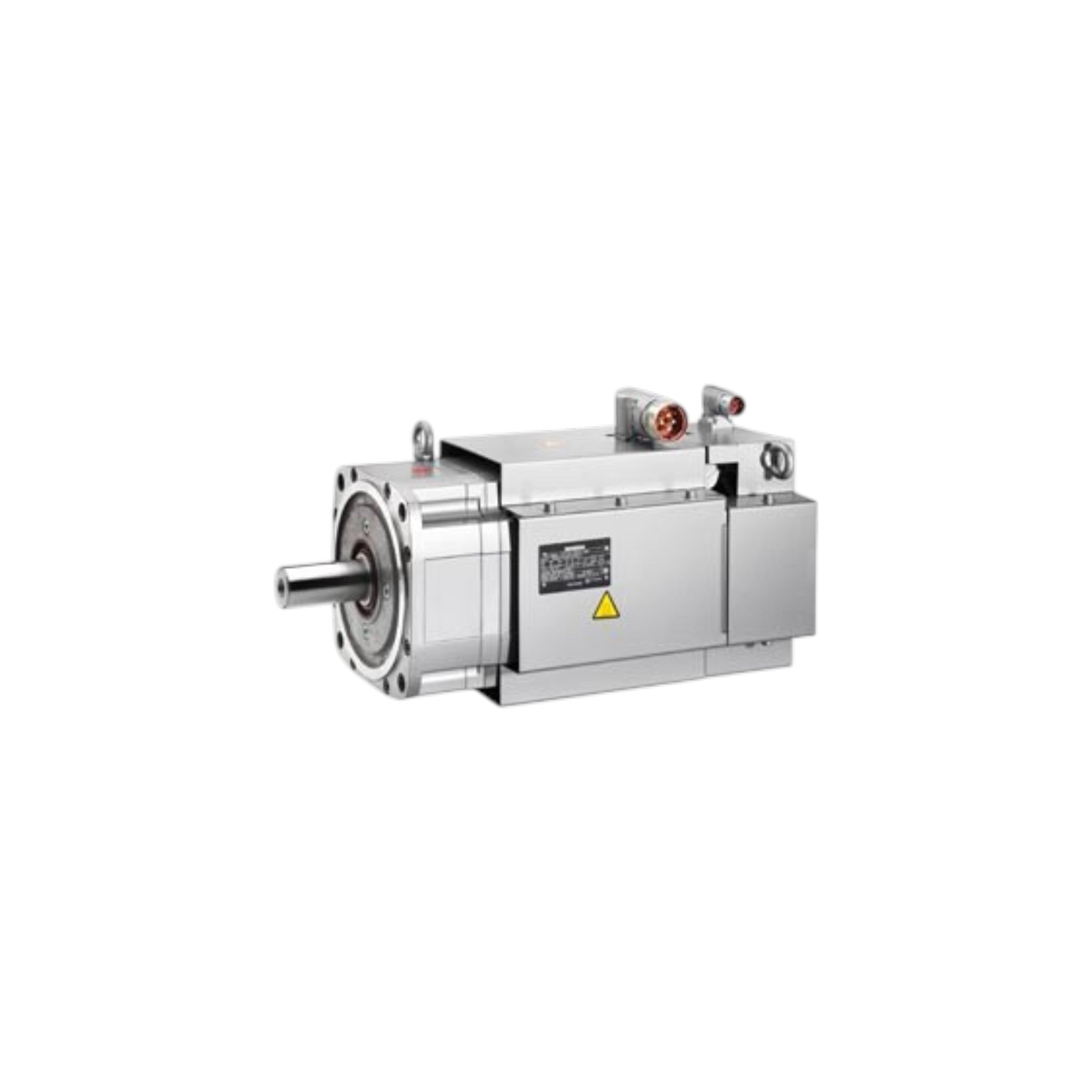

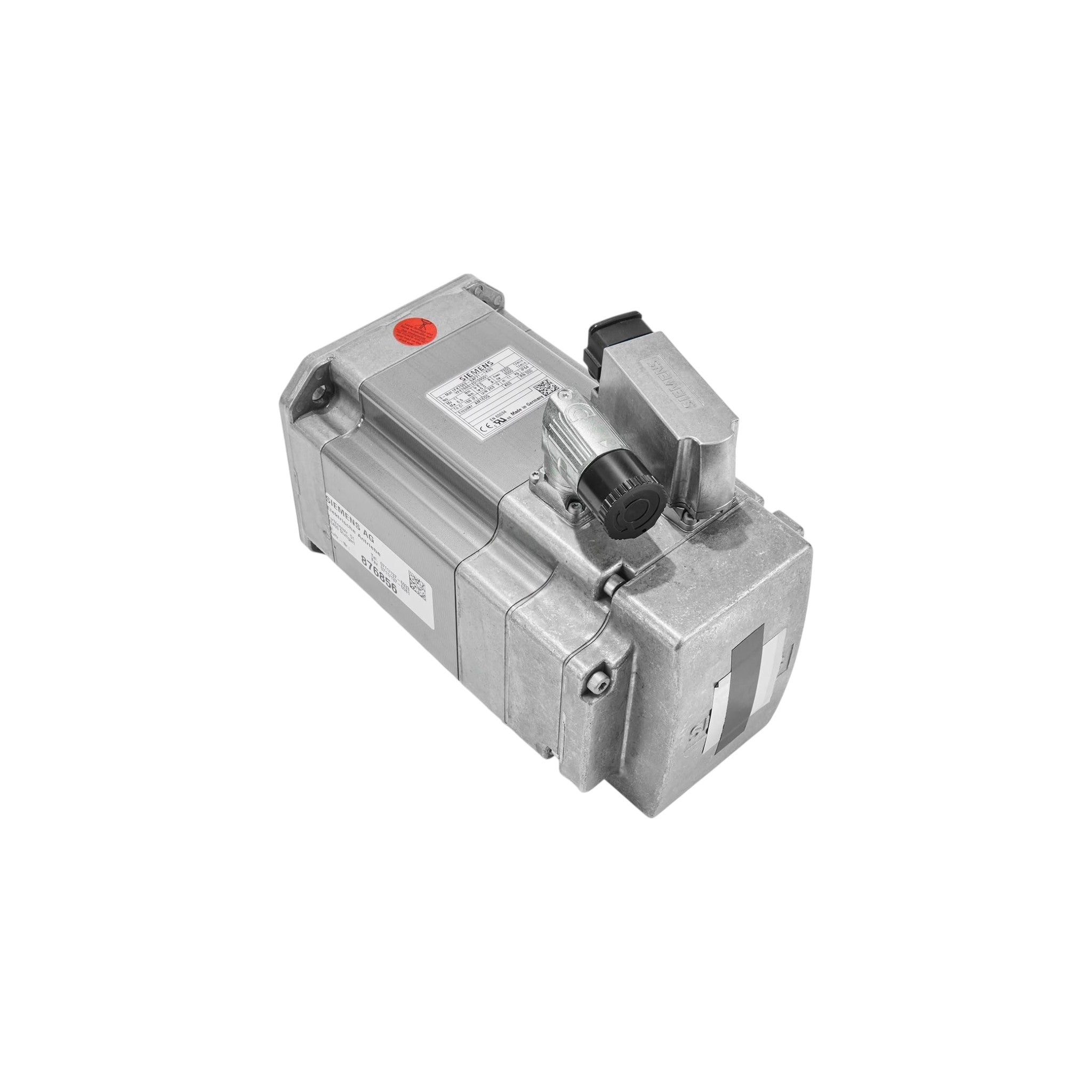

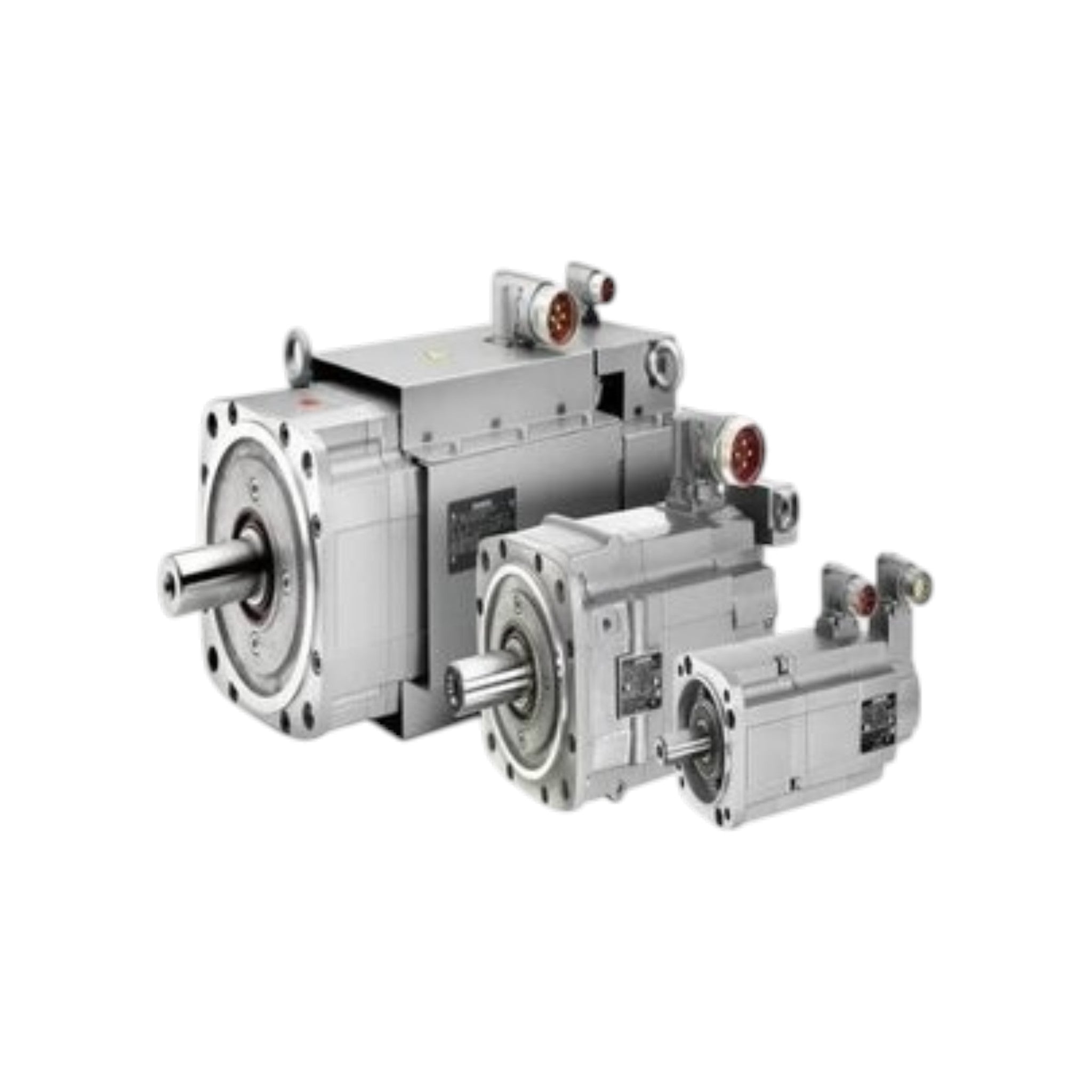

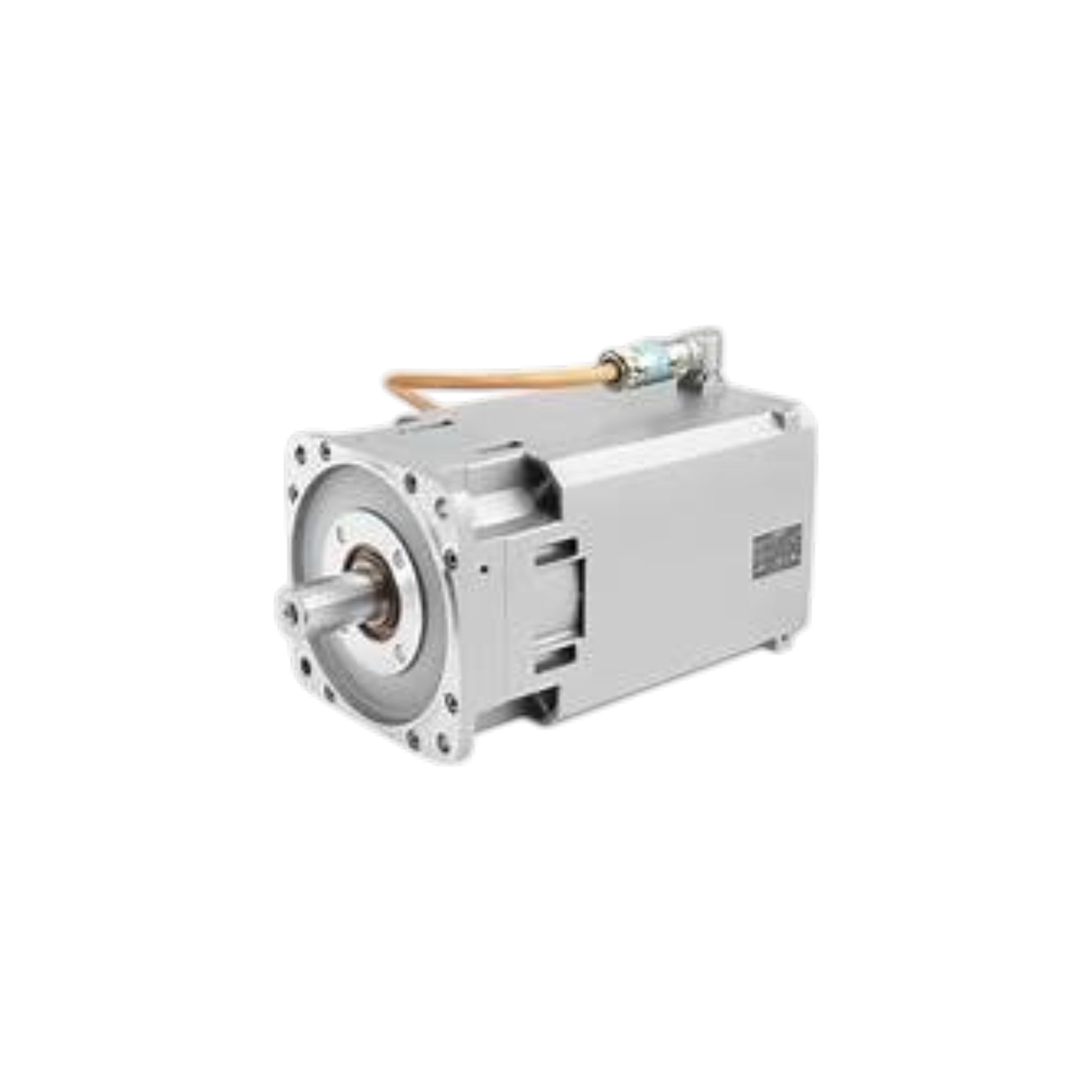

The Siemens 1FT7084-5SF7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor engineered for precision motion control and demanding industrial automation applications. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems through the DRIVE-CLiQ interface, this forced-ventilated servo motor delivers high torque density, rapid dynamic response, and exceptional positioning accuracy for CNC machine tools, industrial robotics, rotary tables, packaging equipment, and automated production systems.
Operating at a rated speed of 3,000 RPM, the 1FT7084-5SF7X-1XXX delivers an optimum output power of 7.20 kW, 23 Nm rated torque (100 K), and 27 Nm stall torque (100 K). The motor is capable of producing up to 81 Nm maximum torque while supporting a maximum mechanical speed of 8,000 RPM, making it ideal for applications requiring high-speed operation, rapid acceleration, and continuous-duty performance.
The 1FT7084-5SF7X-1XXX product family includes numerous MLFB variants with multiple encoder options, shaft configurations (plain shaft or fitted key), optional permanent-magnet holding brakes, connector orientations, vibration grades, and IP protection classes. All variants feature IM B5 flange mounting, integrated motor temperature monitoring, and DRIVE-CLiQ communication for simplified commissioning and diagnostics.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drive systems
- Forced ventilation cooling
- Optimum output power: 7.20 kW
- Rated speed: 3,000 RPM
- Rated torque: 23 Nm
- Stall torque (100 K): 27 Nm
- Maximum torque: 81 Nm
- Maximum mechanical speed: 8,000 RPM
- High dynamic performance and precision positioning
- DRIVE-CLiQ digital encoder interface
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft versions
- Optional permanent-magnet holding brake
- IM B5 flange mounting
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (configuration dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7084-5SF7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Forced Ventilation |
| Optimum Output Power | 7.20 kW |
| Rated Speed | 3,000 RPM |
| Optimum Speed | 3,000 RPM |
| Rated Torque (100 K) | 23 Nm |
| Stall Torque (100 K) | 27 Nm |
| Stall Torque (60 K) | 21.5 Nm |
| Maximum Torque | 81 Nm |
| Rated Current | 18.5 A |
| Stall Current (100 K) | 21 A |
| Stall Current (60 K) | 16.5 A |
| Maximum Current | 77 A |
| Maximum Mechanical Speed | 8,000 RPM |
| Maximum Converter Speed | 7,000 RPM |
| Number of Poles | 10 |
| Torque Constant | 1.30 Nm/A |
| Voltage Constant | 83 V/1000 RPM |
| Winding Resistance | 0.18 Ω |
| Rotating Field Inductance | 2.8 mH |
| Electrical Time Constant | 16 ms |
| Mechanical Time Constant | 1.4 ms |
| Thermal Time Constant | 35 min |
| Rotor Moment of Inertia | 45 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 60 × 10⁻⁴ kg·m² |
| Motor Weight | 25 kg |
| Motor Weight (with Brake) | 29 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional Permanent-Magnet Brake |
| Mounting Arrangement | IM B5 Flange |
| Temperature Monitoring | Integrated Temperature Sensor |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Specifications may vary depending on the complete MLFB configuration, encoder type, shaft option, brake option, connector orientation, and protection class selected.
Applications
- CNC Machine Tools
- Industrial Robotics
- Rotary Tables
- Packaging Machinery
- Printing Equipment
- Material Handling Systems
- Semiconductor Manufacturing
- Automated Assembly Systems
- Textile Machinery
- High-Precision Motion Control
