Product Description

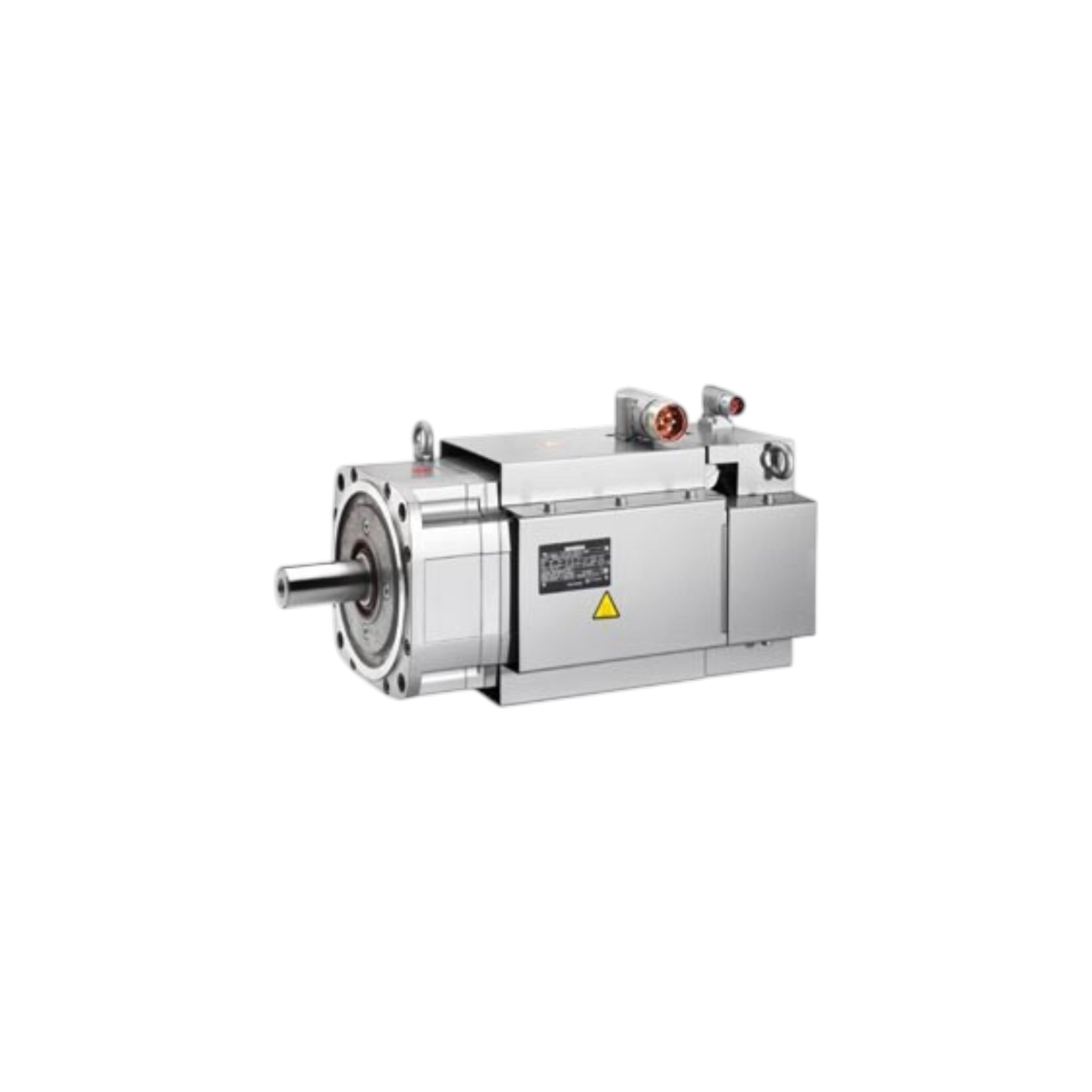

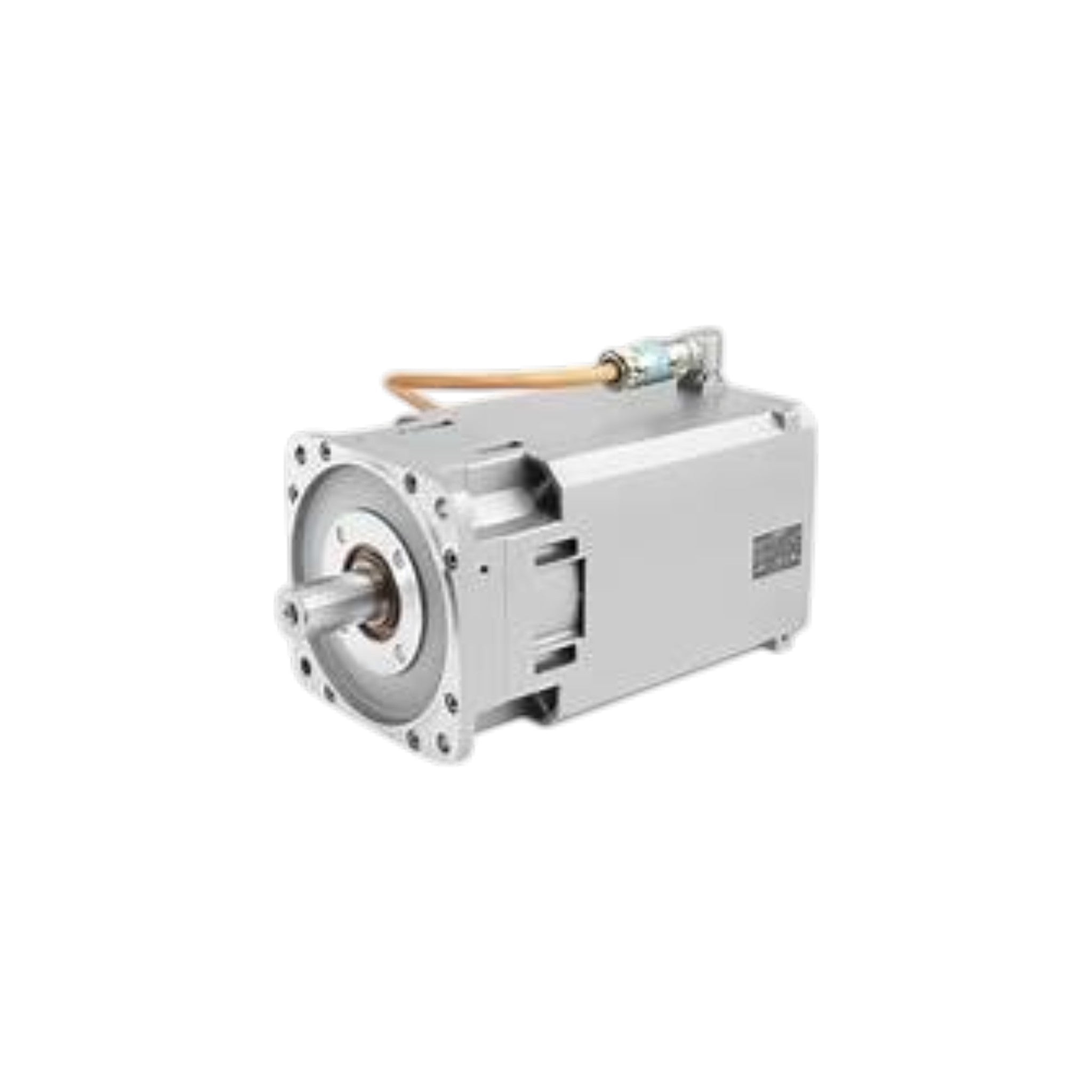

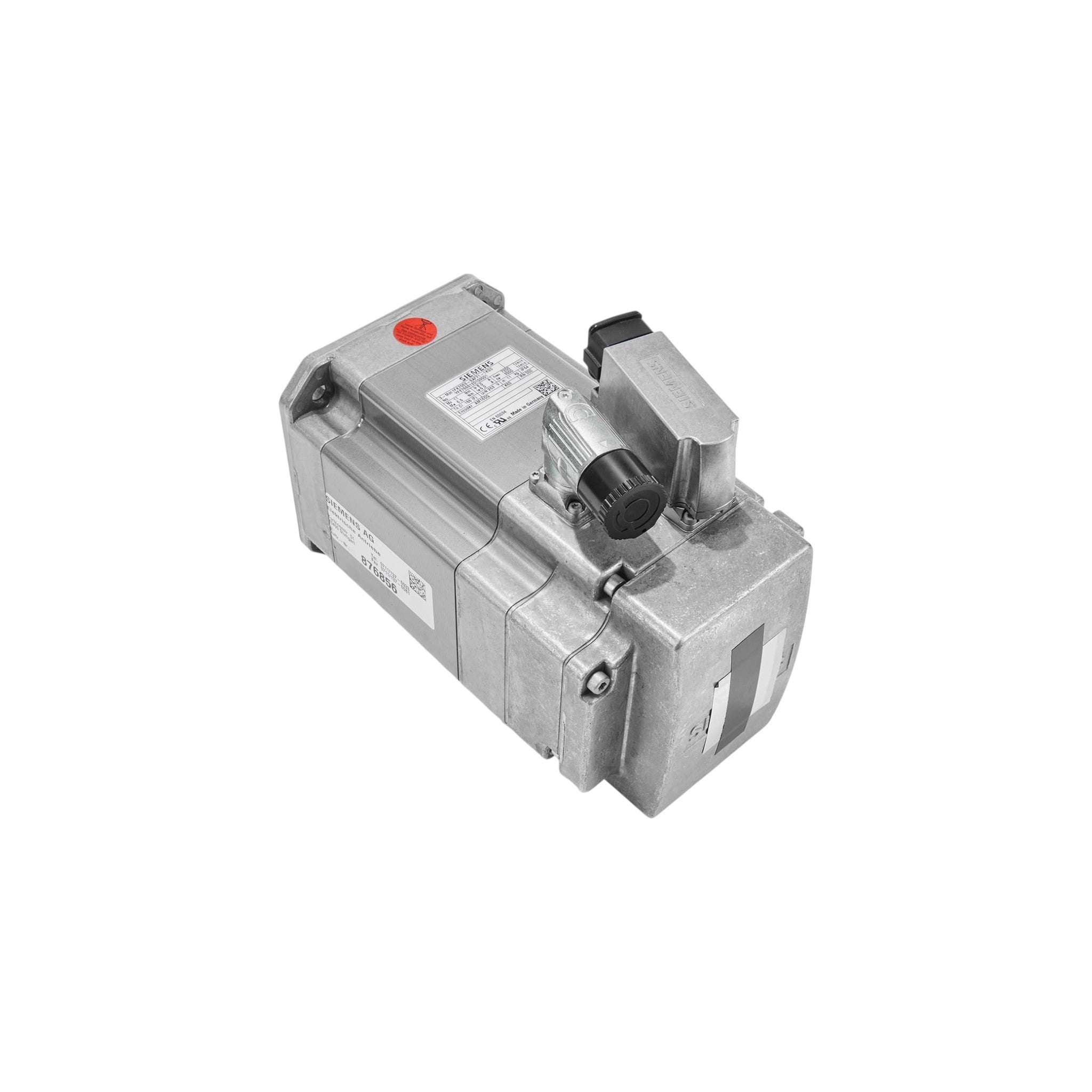

The Siemens 1FT7084-5SH7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor designed for demanding industrial automation and precision motion control applications. Featuring forced ventilation cooling, this servo motor delivers exceptional torque density, high-speed operation, and outstanding dynamic response while integrating seamlessly with Siemens SINAMICS S120 drive systems via the DRIVE-CLiQ interface. It is ideal for CNC machine tools, industrial robotics, packaging machinery, printing equipment, rotary tables, and automated manufacturing systems.
Operating at a rated speed of 4,500 RPM, the 1FT7084-5SH7X-1XXX provides an optimum output power of 9.90 kW, 21 Nm rated torque (100 K), and 27 Nm stall torque (100 K). The motor is capable of delivering up to 81 Nm maximum torque while supporting a maximum mechanical speed of 8,000 RPM, making it suitable for high-speed, high-precision applications requiring continuous-duty reliability.

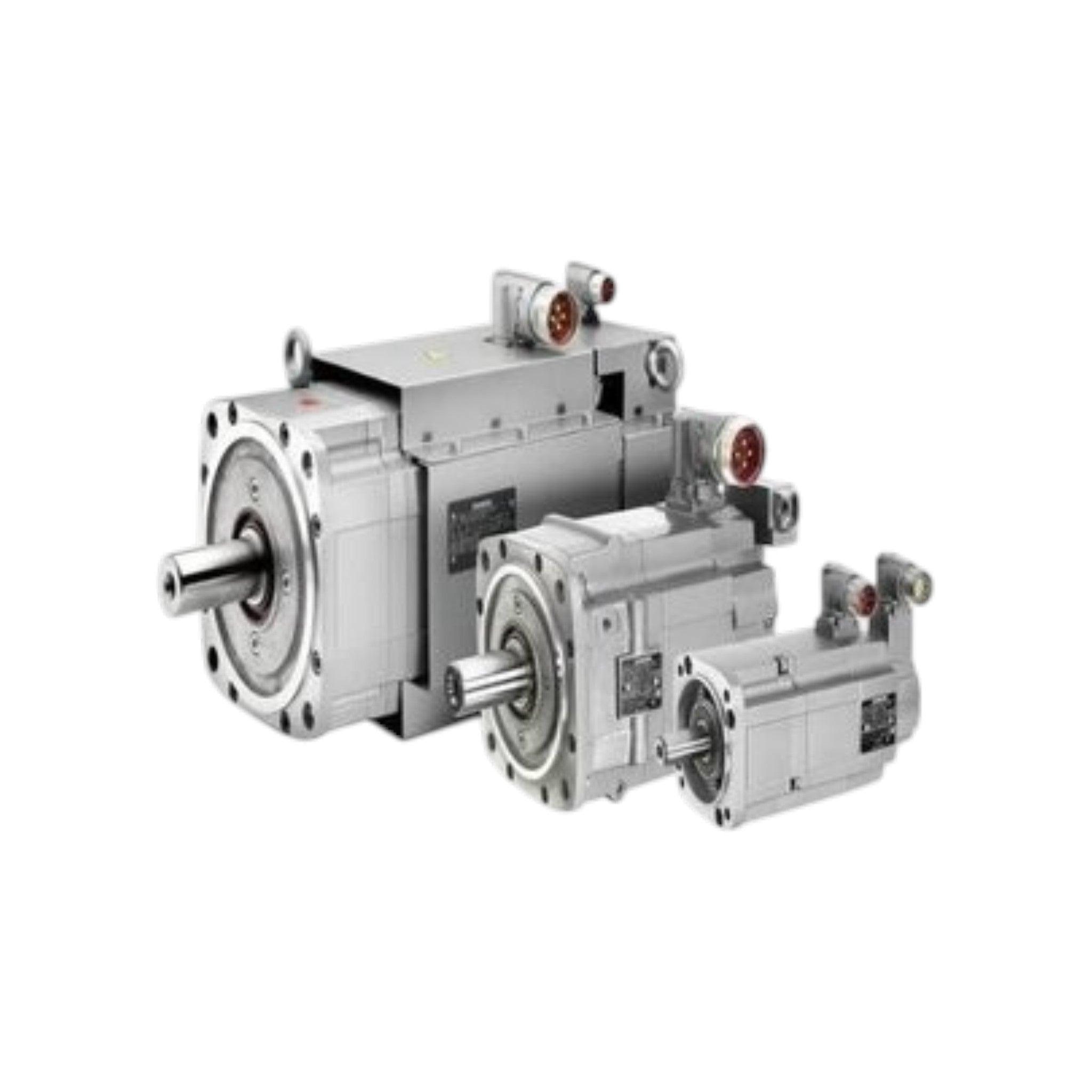

The 1FT7084-5SH7X-1XXX product family is available in numerous MLFB configurations with multiple encoder options, shaft versions (plain shaft or fitted key), optional permanent-magnet holding brakes, connector orientations, vibration grades, and IP protection classes. All variants feature IM B5 flange mounting, integrated motor temperature monitoring, and DRIVE-CLiQ communication for simplified commissioning and advanced diagnostics.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Designed for Siemens SINAMICS S120 servo drive systems
- Forced ventilation cooling
- Optimum output power: 9.90 kW
- Rated speed: 4,500 RPM
- Rated torque: 21 Nm
- Stall torque (100 K): 27 Nm
- Maximum torque: 81 Nm
- Maximum mechanical speed: 8,000 RPM
- DRIVE-CLiQ digital encoder interface
- High torque density and dynamic performance
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft versions
- Optional permanent-magnet holding brake
- IM B5 flange mounting
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (configuration dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7084-5SH7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Forced Ventilation |
| Optimum Output Power | 9.90 kW |
| Rated Speed | 4,500 RPM |
| Optimum Speed | 4,500 RPM |
| Rated Torque (100 K) | 21 Nm |
| Stall Torque (100 K) | 27 Nm |
| Stall Torque (60 K) | 21.5 Nm |
| Maximum Torque | 81 Nm |
| Rated Current | 24.5 A |
| Stall Current (100 K) | 30.5 A |
| Stall Current (60 K) | 24 A |
| Maximum Current | 114 A |
| Maximum Mechanical Speed | 8,000 RPM |
| Maximum Converter Speed | 8,000 RPM |
| Number of Poles | 10 |
| Torque Constant | 0.88 Nm/A |
| Voltage Constant | 56 V/1000 RPM |
| Winding Resistance | 0.08 Ω |
| Rotating Field Inductance | 1.4 mH |
| Electrical Time Constant | 18 ms |
| Mechanical Time Constant | 1.4 ms |
| Thermal Time Constant | 35 min |
| Rotor Moment of Inertia | 45 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 60 × 10⁻⁴ kg·m² |
| Motor Weight | 25 kg |
| Motor Weight (with Brake) | 29 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional Permanent-Magnet Brake |
| Mounting Arrangement | IM B5 Flange |
| Temperature Monitoring | Integrated Temperature Sensor |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Specifications may vary depending on the complete MLFB configuration, encoder type, shaft option, holding brake, connector orientation, and protection class selected.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Printing Equipment
- Rotary Tables
- Material Handling Systems
- Semiconductor Manufacturing
- Textile Machinery
- Automated Production Lines
- High-Speed Precision Motion Control
