Description
Product Description

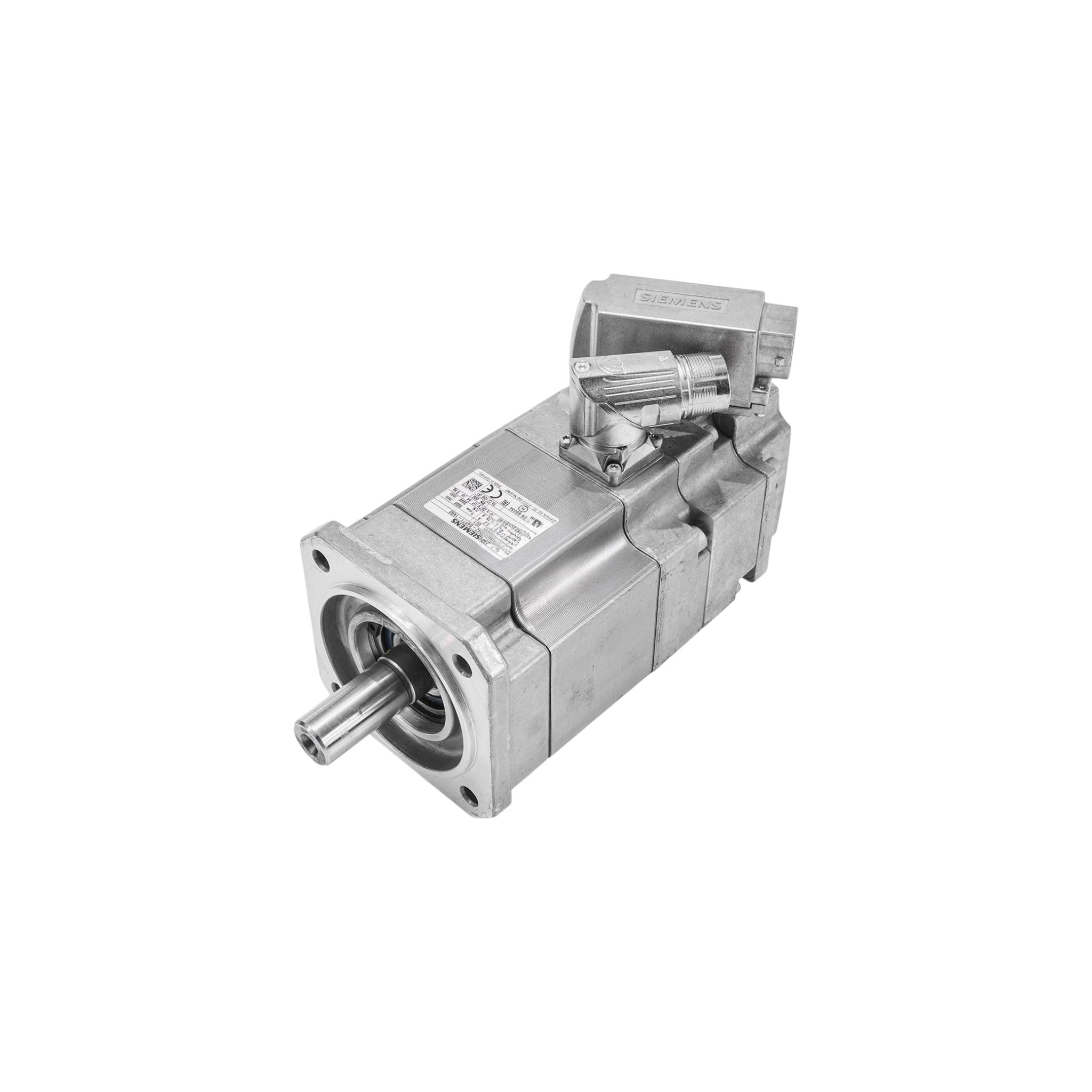

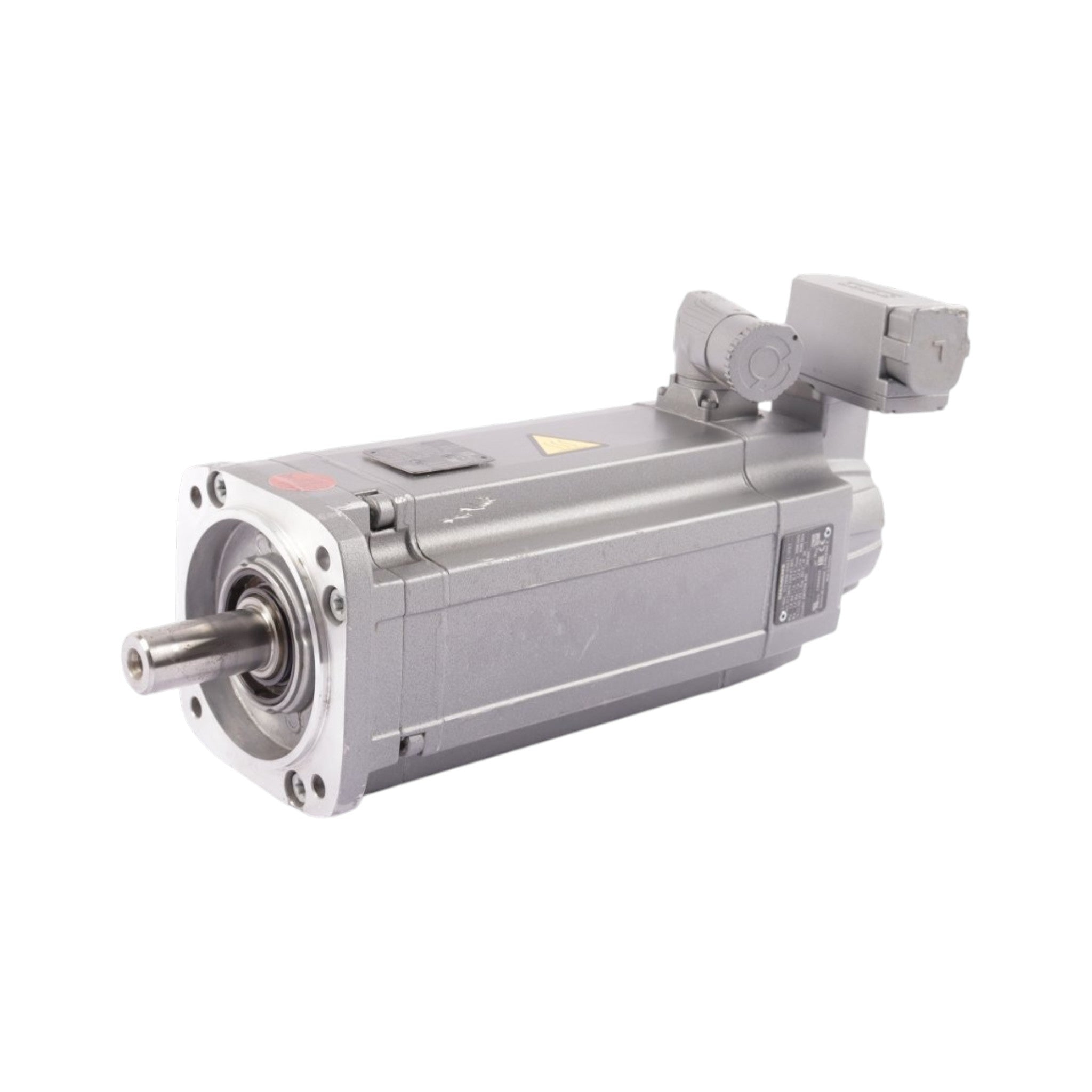

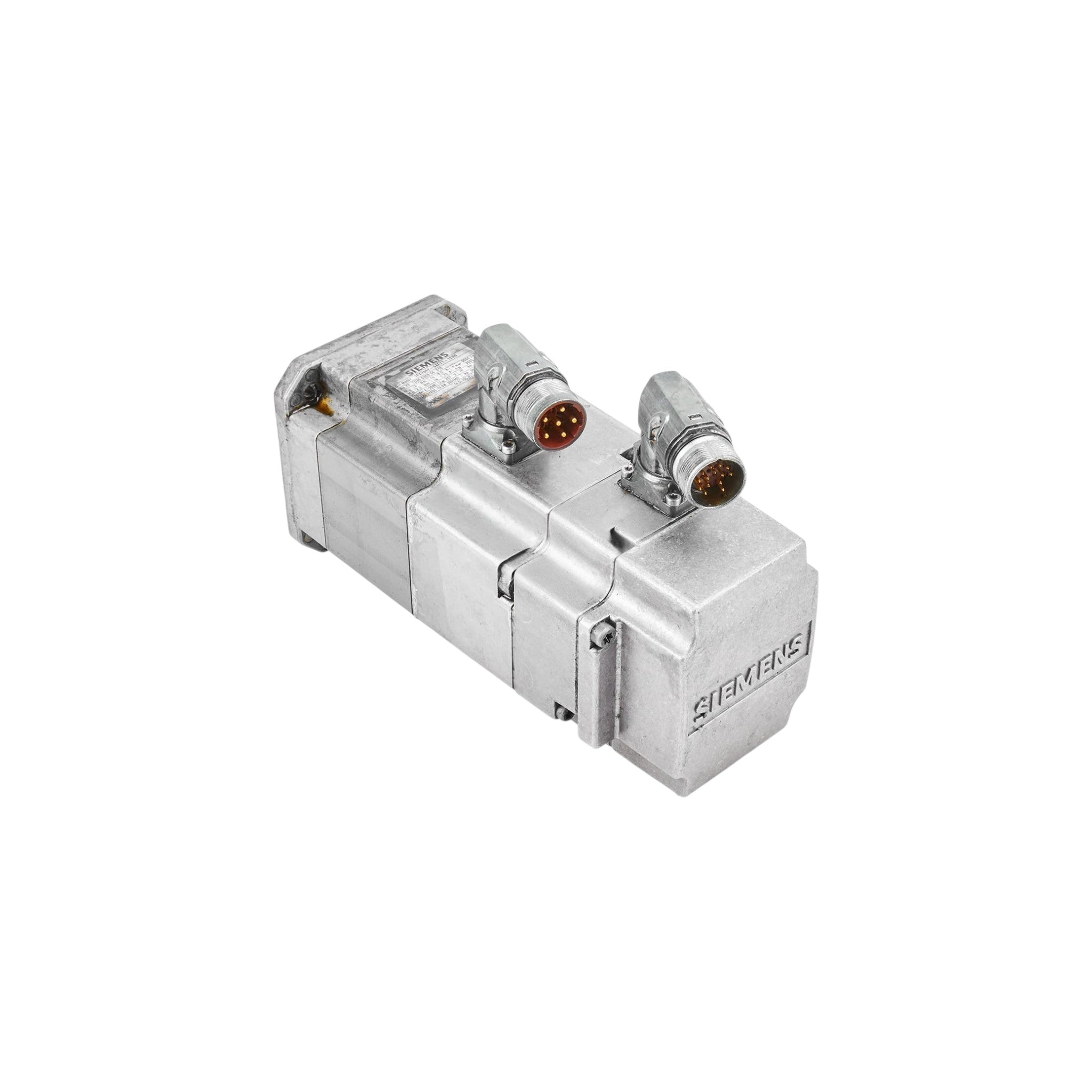

The Siemens 1FT7086-5AH7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor designed for demanding industrial automation applications requiring high-speed operation, precise positioning, and excellent dynamic response. Optimized for use with Siemens SINAMICS S120 servo drive systems through the DRIVE-CLiQ interface, this naturally cooled motor delivers outstanding efficiency, high torque density, and reliable long-term performance for CNC machine tools, robotics, packaging machinery, semiconductor equipment, printing systems, and advanced material handling applications.
Operating at a rated speed of 4,500 RPM, the 1FT7086-5AH7X-1XXX delivers 4.71 kW optimum output power, 10 Nm rated torque (100 K), and 28 Nm stall torque (100 K). The motor is capable of producing up to 120 Nm maximum torque while supporting a maximum mechanical speed of 8,000 RPM, providing excellent overload capability, rapid acceleration, and highly accurate motion control. Its permanent magnet rotor ensures low inertia, smooth operation, and superior energy efficiency.
The 1FT7086-5AH7X-1XXX family includes numerous MLFB variants with different encoder technologies, shaft configurations (plain shaft or fitted key), optional holding brakes, connector orientations, vibration grades, and protection classes. All variants feature natural cooling, IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication for simplified commissioning and diagnostics. The exact motor configuration depends on the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drives
- Optimum output power: 4.71 kW
- Rated speed: 4,500 RPM
- Rated torque: 10 Nm
- Stall torque (100 K): 28 Nm
- Maximum torque: 120 Nm
- Maximum mechanical speed: 8,000 RPM
- High efficiency (up to 93%)
- Natural cooling
- DRIVE-CLiQ digital interface
- Incremental, single-turn absolute, and multiturn absolute encoder options
- Plain shaft or fitted key shaft versions
- Optional holding brake
- IM B5 flange mounting
- Rotatable power connector
- Integrated Pt1000 temperature monitoring
- IP64 / IP65 / IP67 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7086-5AH7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Optimum Power | 4.71 kW |
| Rated Speed | 4,500 RPM |
| Optimum Speed | 4,500 RPM |
| Rated Torque (100 K) | 10 Nm |
| Stall Torque (100 K) | 28 Nm |
| Stall Torque (60 K) | 23 Nm |
| Maximum Torque | 120 Nm |
| Rated Current | 10 A |
| Stall Current (100 K) | 22.4 A |
| Stall Current (60 K) | 18.4 A |
| Maximum Current | 110 A |
| Maximum Mechanical Speed | 8,000 RPM |
| Maximum Converter Speed | 7,200 RPM |
| Rated Converter Current | 24 A |
| Maximum Converter Current | 72 A |
| Maximum Converter Torque | 82.7 Nm |
| Number of Poles | 10 |
| Torque Constant | 1.25 Nm/A |
| Voltage Constant | 80 V/1000 RPM |
| Winding Resistance | 0.113 Ω |
| Rotating Field Inductance | 2.0 mH |
| Electrical Time Constant | 18 ms |
| Mechanical Time Constant | 1.4 ms |
| Thermal Time Constant | 60 min |
| Rotor Inertia | 63.6 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 79 × 10⁻⁴ kg·m² |
| Motor Weight | 27.5 kg |
| Motor Weight (with Brake) | 31.8 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Fitted Key |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 Flange |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Temperature Monitoring | Integrated Pt1000 Temperature Sensor |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected MLFB configuration, encoder option, shaft type, brake option, and protection class.
Applications
- CNC Machine Tools
- Industrial Robotics
- Packaging Machinery
- Semiconductor Equipment
- Printing Machinery
- Material Handling Systems
- Electronics Manufacturing
- Automated Assembly Lines
- Textile Machinery
- High-Speed Precision Motion Control
