Product Description

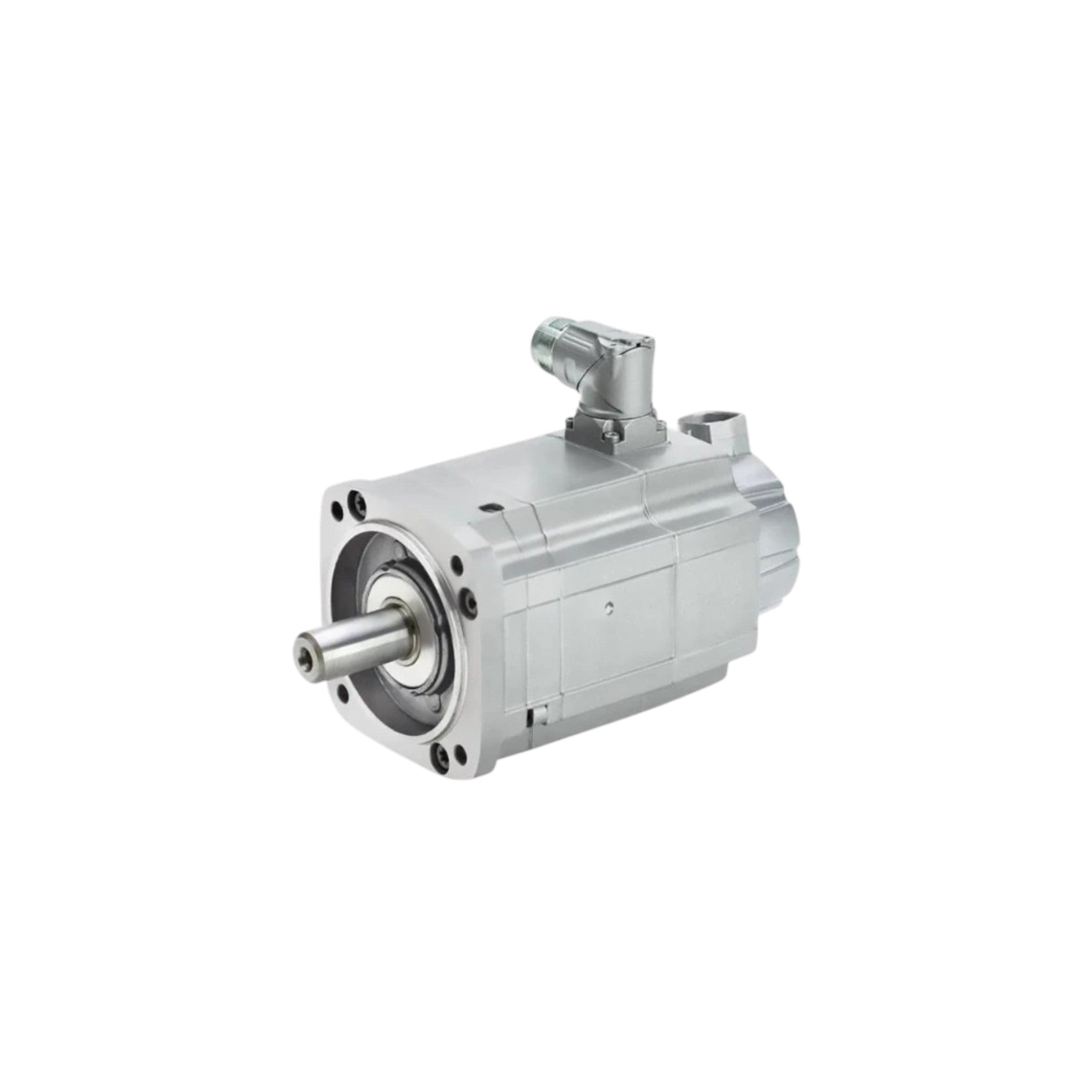

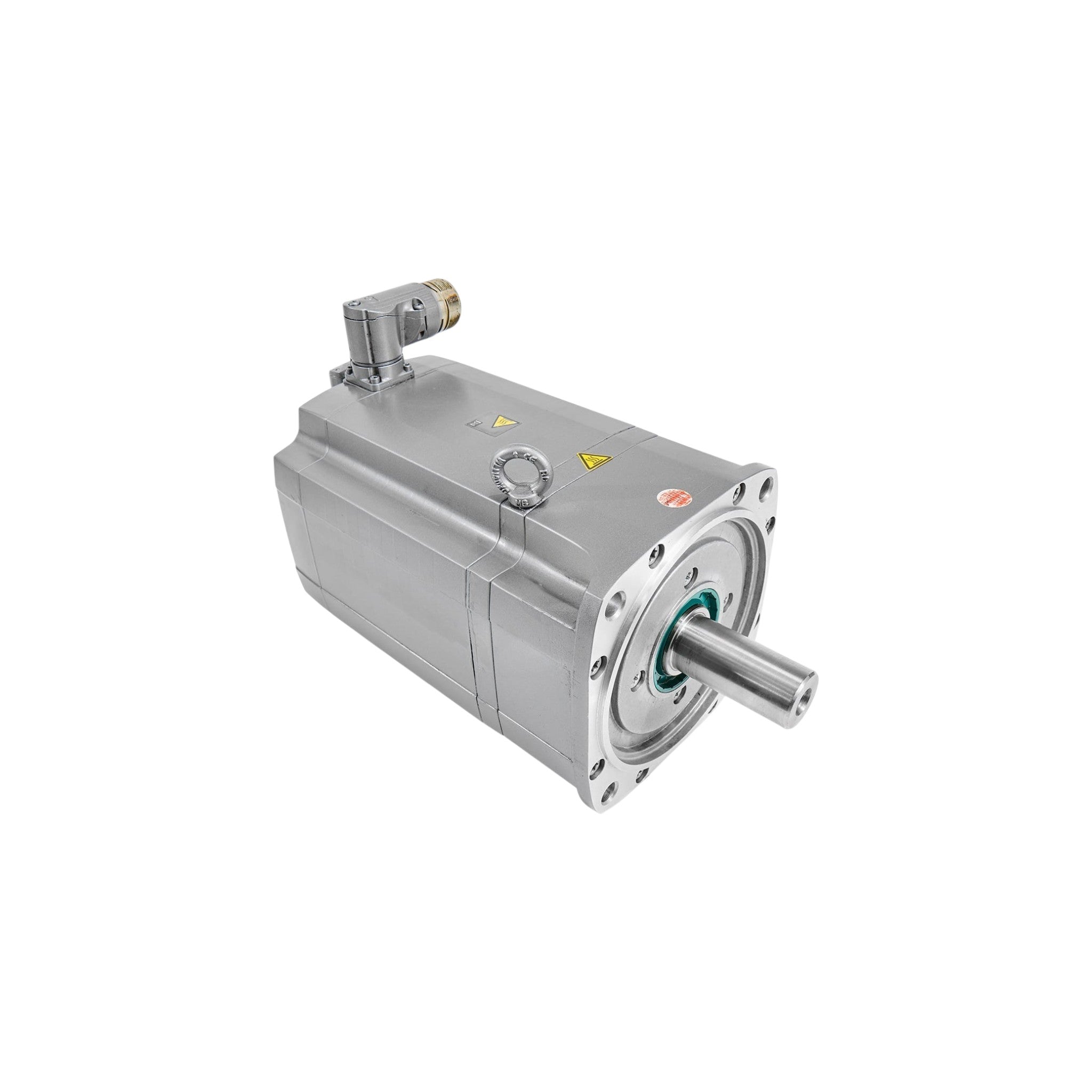

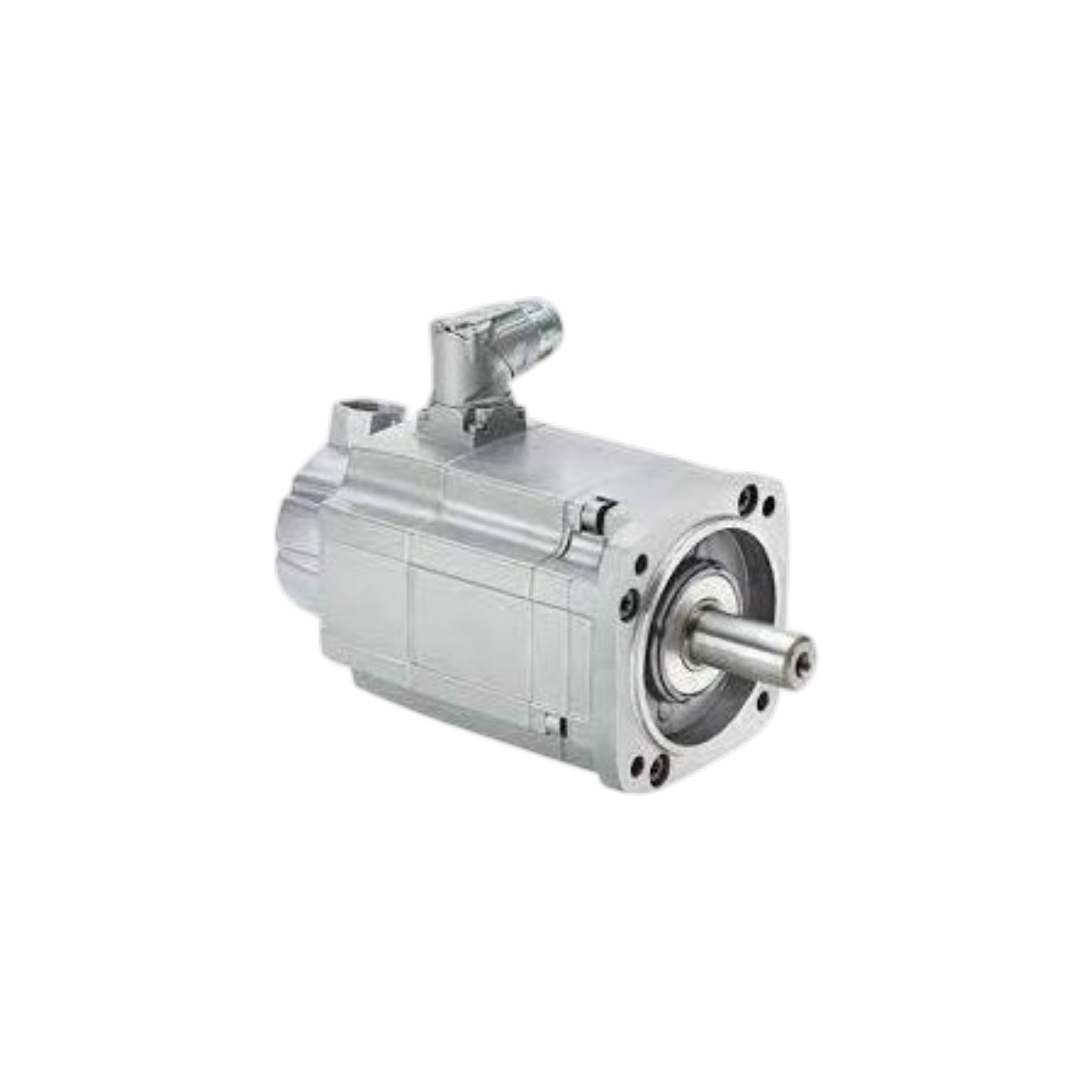

The Siemens 1FT7102-5AC7X-1XXX is part of the SIMOTICS S-1FT7 family of permanent magnet synchronous servo motors, engineered for high-performance motion control applications requiring exceptional positioning accuracy, high torque density, and reliable continuous-duty operation. Designed for seamless integration with Siemens SINAMICS S120 servo drive systems, this motor family is ideal for CNC machine tools, industrial robotics, packaging machinery, material handling systems, semiconductor equipment, printing presses, and automated production lines.
Operating at a rated speed of 2,000 RPM, the 1FT7102-5AC7X-1XXX series delivers 5.03 kW rated output power, 24 Nm rated torque, and 30 Nm stall torque (100 K). The motors provide up to 120 Nm maximum torque while supporting maximum mechanical speeds of 6,000 RPM, ensuring excellent overload capability, rapid acceleration, and precise speed and position control. The permanent magnet synchronous design offers high efficiency, low rotor inertia, and smooth dynamic performance.
The 1FT7102-5AC7X-1XXX family includes numerous MLFB variants with different encoder technologies, shaft configurations (plain shaft or keyed shaft), optional holding brakes, connector orientations, and balancing grades. All models feature natural cooling, IM B5 flange mounting, DRIVE-CLiQ communication, integrated motor temperature monitoring, rotatable power connectors, and IP64/IP65 protection depending on the selected configuration. The exact electrical and mechanical features are defined by the complete Siemens MLFB ordering code.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Optimized for Siemens SINAMICS S120 servo drive systems
- Rated output power: 5.03 kW
- Rated speed: 2,000 RPM
- Rated torque: 24 Nm
- Stall torque (100 K): 30 Nm
- Maximum torque: 120 Nm
- Maximum mechanical speed: 6,000 RPM
- Natural convection cooling
- High overload capability
- DRIVE-CLiQ encoder interface
- Available with incremental, single-turn, and multiturn absolute encoders
- Plain shaft or keyed shaft options
- Optional integrated holding brake
- IM B5 flange mounting
- Rotatable power connector
- Integrated temperature monitoring
- IP64/IP65 protection (variant dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Series | 1FT7102-5AC7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Natural Cooling |
| Rated Power | 5.03 kW |
| Rated Speed | 2,000 RPM |
| Rated Torque | 24 Nm |
| Stall Torque (100 K) | 30 Nm |
| Maximum Torque | 120 Nm |
| Rated Current | 10 A |
| Stall Current (100 K) | 12.5 A |
| Maximum Current | 64 A |
| Maximum Mechanical Speed | 6,000 RPM |
| Maximum Converter Speed | 3,800 RPM |
| Number of Poles | 10 |
| Efficiency | 93% |
| Torque Constant | 2.35 Nm/A |
| Voltage Constant | 149.5 V/1000 RPM |
| Rotor Inertia | 91.4 kg·cm² |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Keyed Shaft |
| Holding Brake | Optional |
| Mounting Arrangement | IM B5 Flange |
| Protection Class | IP64 / IP65 (variant dependent) |
| Temperature Monitoring | Integrated Temperature Sensor |
| Drive Compatibility | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Applications
- CNC Machining Centers
- CNC Milling Machines
- CNC Turning Centers
- Industrial Robotics
- Packaging Machinery
- Material Handling Systems
- Printing & Converting Equipment
- Semiconductor Manufacturing
- Textile Machinery
- Automated Assembly Lines
- Precision Motion Control Systems
