Product Description

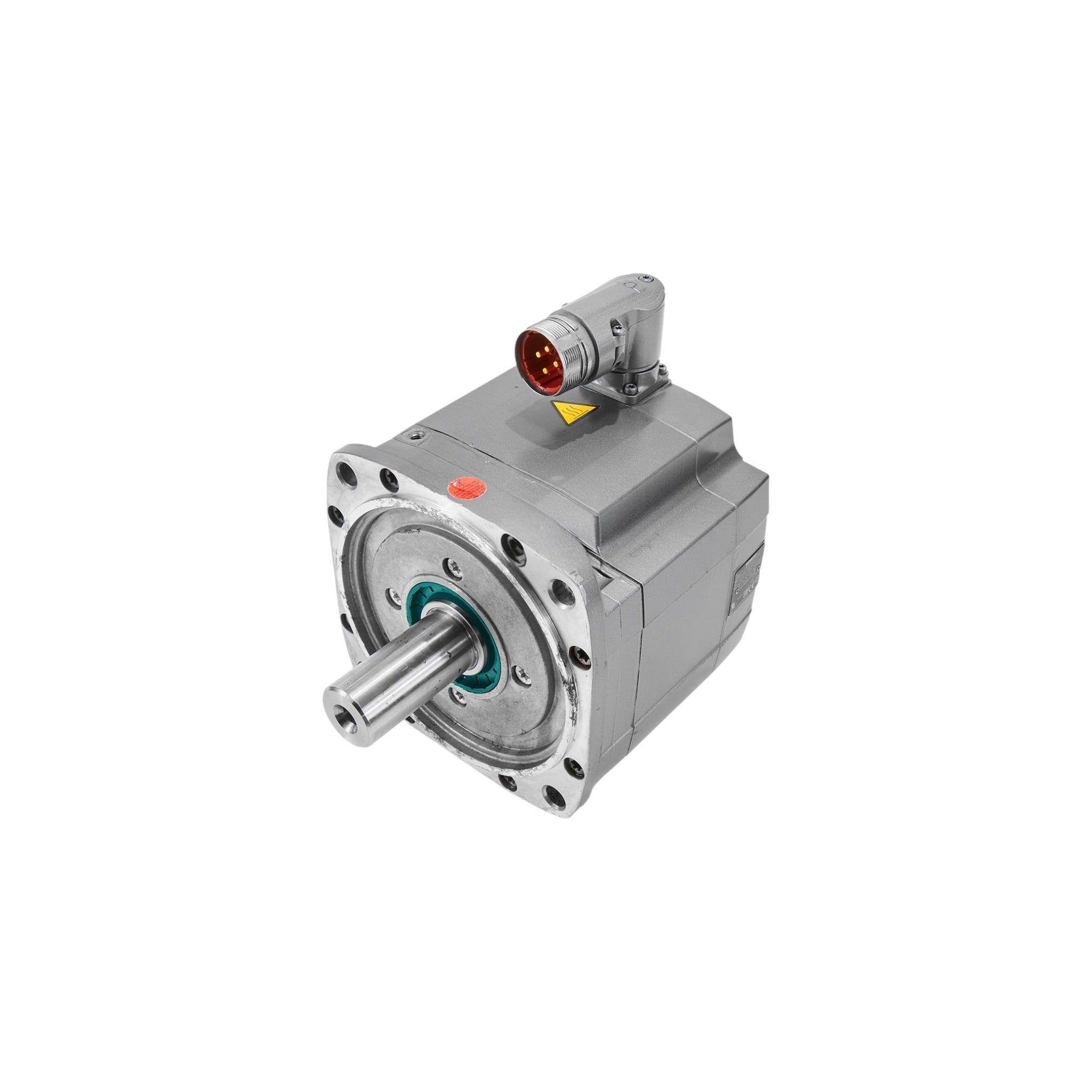

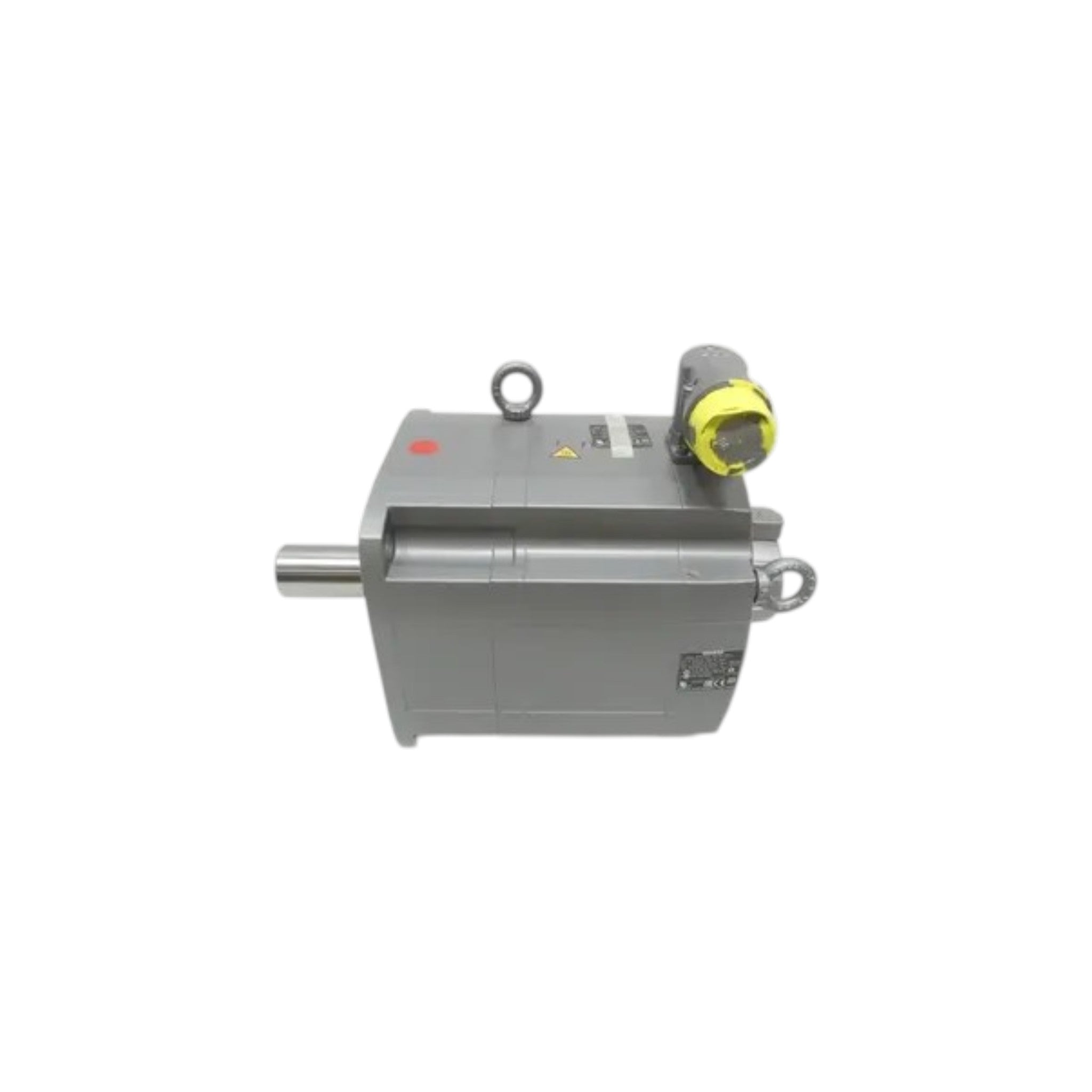

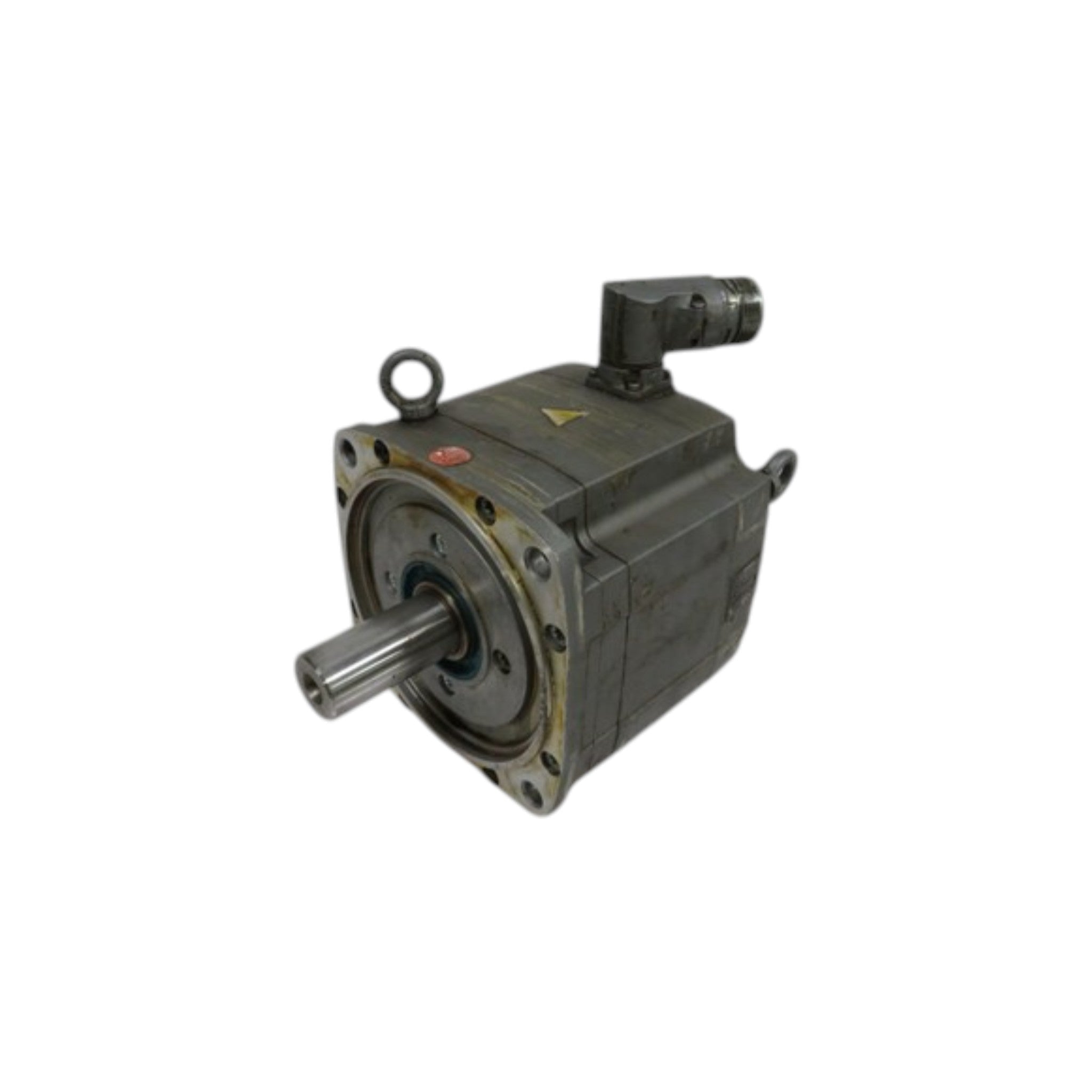

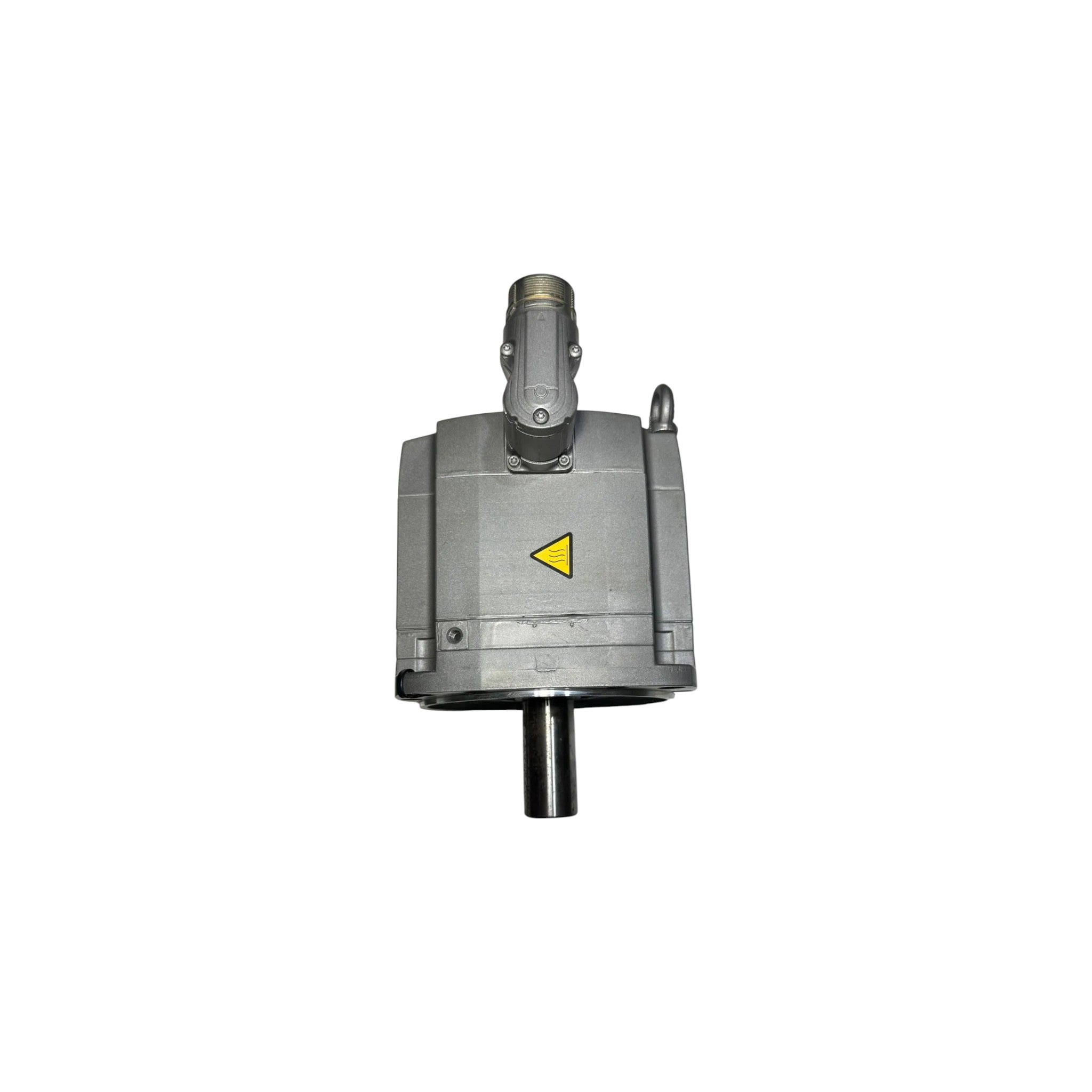

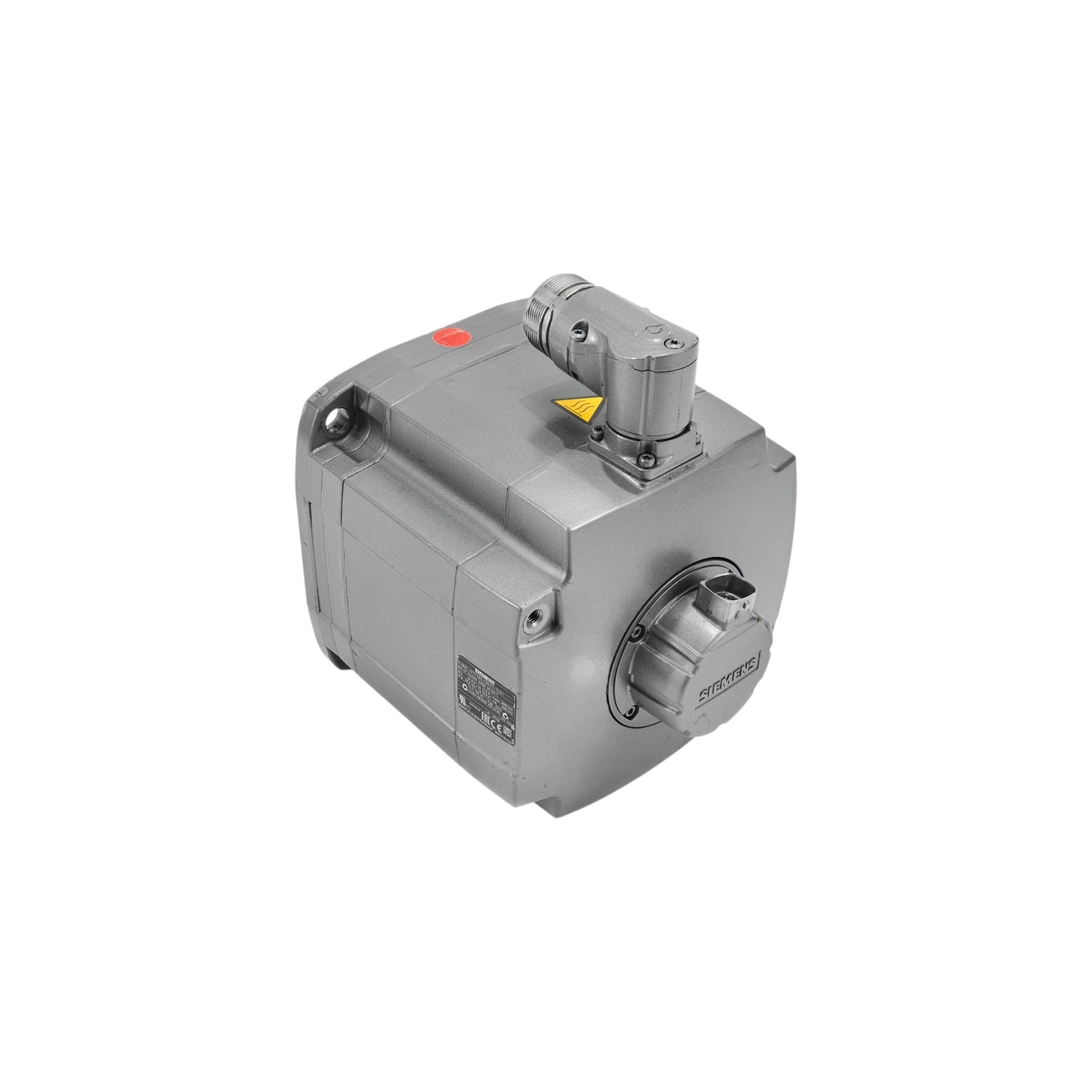

The Siemens 1FT7102-5WB7X-1XXX is a high-performance SIMOTICS S-1FT7 permanent magnet synchronous servo motor designed for precision motion control and continuous-duty industrial applications. Featuring water cooling, this servo motor delivers high continuous torque, excellent thermal stability, and outstanding positioning accuracy. It integrates seamlessly with Siemens SINAMICS S120 drive systems through the DRIVE-CLiQ interface, making it ideal for CNC machine tools, industrial robotics, rotary tables, packaging systems, metal processing equipment, and automated production lines.
Operating at a rated speed of 1,500 RPM, the 1FT7102-5WB7X-1XXX delivers an optimum output power of 7.85 kW, 50 Nm rated torque, and 50 Nm stall torque (100 K). The motor can produce up to 130 Nm maximum torque while supporting a maximum mechanical speed of 6,000 RPM, ensuring smooth acceleration, exceptional dynamic response, and reliable operation in demanding industrial environments.
The 1FT7102-5WB7X-1XXX family is available in multiple MLFB configurations with various encoder systems, shaft options (plain shaft or keyed shaft), optional holding brakes, connector orientations, and protection classes. All variants feature IM B5 flange mounting, integrated temperature monitoring, and DRIVE-CLiQ communication for simplified commissioning and advanced diagnostics.
Key Features
- Genuine Siemens SIMOTICS S-1FT7 synchronous servo motor
- Permanent magnet synchronous motor technology
- Water-cooled construction for continuous high-performance operation
- Designed for Siemens SINAMICS S120 servo drive systems
- Optimum output power: 7.85 kW
- Rated speed: 1,500 RPM
- Rated torque: 50 Nm
- Stall torque (100 K): 50 Nm
- Maximum torque: 130 Nm
- Maximum mechanical speed: 6,000 RPM
- DRIVE-CLiQ digital encoder interface
- Excellent torque density and positioning accuracy
- Incremental, single-turn absolute, and multiturn encoder options
- Plain shaft or keyed shaft versions
- Optional permanent-magnet holding brake
- IM B5 flange mounting
- Integrated temperature monitoring
- IP64 / IP65 / IP67 protection (configuration dependent)
Technical Specifications
| Specification | Details |
|---|---|
| Product Family | SIMOTICS S-1FT7 |
| Part Number | 1FT7102-5WB7X-1XXX |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Cooling Method | Water Cooled |
| Optimum Output Power | 7.85 kW |
| Rated Speed | 1,500 RPM |
| Optimum Speed | 1,500 RPM |
| Rated Torque (100 K) | 50 Nm |
| Rated Current | 20.3 A |
| Stall Torque (60 K) | 40 Nm |
| Stall Torque (100 K) | 50 Nm |
| Stall Current (60 K) | 14.2 A |
| Stall Current (100 K) | 17.8 A |
| Maximum Torque | 130 Nm |
| Maximum Current | 59 A |
| Maximum Mechanical Speed | 6,000 RPM |
| Maximum Converter Speed | 3,200 RPM |
| Number of Poles | 10 |
| Efficiency | 93% |
| Torque Constant | 2.81 Nm/A |
| Voltage Constant | 177–179 V/1000 RPM |
| Winding Resistance | 0.31 Ω |
| Rotating Field Inductance | 6.2 mH |
| Electrical Time Constant | 20 ms |
| Mechanical Time Constant | 1.2 ms |
| Thermal Time Constant | 1.5 min |
| Rotor Moment of Inertia | 98.9 × 10⁻⁴ kg·m² |
| Rotor Inertia (with Brake) | 125 × 10⁻⁴ kg·m² |
| Motor Weight | 36.6 kg |
| Motor Weight (with Brake) | 40.9 kg |
| Encoder Interface | DRIVE-CLiQ |
| Encoder Options | Incremental, Single-turn Absolute, Multiturn Absolute |
| Shaft Options | Plain Shaft or Keyed Shaft |
| Holding Brake | Optional Permanent-Magnet Brake |
| Mounting Arrangement | IM B5 Flange |
| Temperature Monitoring | Integrated Temperature Sensor |
| Protection Class | IP64 / IP65 / IP67 (variant dependent) |
| Compatible Drives | Siemens SINAMICS S120 |
| Manufacturer | Siemens |
Technical specifications may vary depending on the selected encoder, shaft configuration, holding brake, connector orientation, and complete Siemens MLFB ordering code.
Applications
- CNC Machine Tools
- Industrial Robotics
- Rotary Tables
- Packaging Machinery
- Printing Machinery
- Metal Processing Equipment
- Material Handling Systems
- Semiconductor Manufacturing
- Automated Production Lines
- High-Precision Motion Control
